Solving Linear Rational
Expectations Models:
A Horse Race

Gary S. Anderson1
Board of Governors of the Federal Reserve System

Keywords: Linear Rational Expectations, Blanchard-Kahn, Saddle Point Solution

Abstract:

This paper compares the functionality, accuracy, computational efficiency, and practicalities of alternative approaches to solving linear rational expectations models, including the procedures of (Sims, 1996), (Anderson and Moore, 1983), (Binder and Pesaran, 1994), (King and Watson, 1998),  (Klein, 1999), and (Uhlig, 1999). While all six procedures yield similar results for models with a unique stationary solution, the AIM algorithm of (Anderson and Moore, 1983) provides the highest accuracy; furthermore, this procedure exhibits significant gains in computational efficiency for larger-scale models.



1 Introduction and Summary

Since (Blanchard and Kahn, 1980) a number of alternative approaches for solving linear rational expectations models have emerged. This paper describes, compares and contrasts the techniques of  (Anderson and Moore, 1983,1985; Anderson, 1997),  (Binder and Pesaran, 1994), (King and Watson, 1998),  (Klein, 1999), (Sims, 1996), and (Uhlig, 1999). All these authors provide MATLAB code implementing their algorithm.2

The paper compares the computational efficiency, functionality and accuracy of these MATLAB implementations. The paper uses numerical examples to characterize practical differences in employing the alternative procedures.

Economists use the output of these procedures for simulating models, estimating models, computing impulse response functions, calculating asymptotic covariance, solving infinite horizon linear quadratic control problems and constructing terminal constraints for nonlinear models. These applications benefit from the use of reliable, efficient and easy to use code.

A comparison of the algorithms reveals that:

Section 2 states the problem and introduces notation. This paper divides the algorithms into three categories: eigensystem, QZ, and matrix polynomial methods. Section 3 describes the eigensystem methods. Section 4 describes applications of the QZ algorithm. Section 5 describes applications of the matrix polynomial approach. Section 6 compares the computational efficiency, functionality and accuracy of the algorithms. Section 7 concludes the paper. The appendices provide usage notes for each of the algorithms as well as information about how to compare inputs and outputs from each of the algorithms.


2 Problem Statement and Notation

These algorithms compute solutions for models of the form

LaTex Encoded Math: \displaystyle \sum_{i=-\tau}^\theta{ H_i x_{ t + i } }= \Psi{} z_{t}, t = 0,\ldots{},\infty{} (1)

with initial conditions, if any, given by constraints of the form


LaTex Encoded Math: \displaystyle x_i = x^{data}_i, i =-\tau, \ldots,-1 (2)

where both  \tau and  \theta are non-negative, and  x_t is an L dimensional vector of endogenous variables with


LaTex Encoded Math: \displaystyle \lim_{ t \rightarrow \infty } \Vert x_t\Vert < \infty\intertext{ and $z_t$\ is a $k$\ dimensional vector of exogenous variables.} (3)

Solutions can be cast in the form

LaTex Encoded Math: \displaystyle (x_t- x^\ast)= \sum_{i=-\tau}^{-1} B_i (x_{t+i}-x^\ast)

Given any algorithm that computes the  B_i, one can easily compute other quantities useful for characterizing the impact of exogenous variables. For models with  \tau=\theta=1 the formulae are especially simple.

Let

LaTex Encoded Math: \displaystyle \Phi= (H_0 + H_1 B)^{-1}
LaTex Encoded Math: \displaystyle F= -\Phi H_1 B

We can write


and when


LaTex Encoded Math: \displaystyle (x_t-x^\ast) = B (x_{t-1}-x^\ast) + \sum_{s=0}^\infty F^s \phi \psi z_{t+s}z_{t+1}= \Upsilon z_t
LaTex Encoded Math: \displaystyle vec(\vartheta) = (I - \Upsilon^T\otimes F)^{-1} vec( \Phi\Psi)
LaTex Encoded Math: \displaystyle (x_t-x^\ast)= B (x_{t-1}-x^\ast) + \vartheta z_t

Consult (Anderson, 1997) for other useful formulae concerning rational expectations model solutions.

I downloaded the MATLAB code for each implementation in July, 1999. See the bibliography for the relevant URL's.


3 Eigensystem Methods


3.1 The Anderson-Moore Algorithm

 (Anderson and Moore, 1985; Anderson, 1997) developed their algorithm in the mid 80's for solving rational expectations models that arise in large scale macro models. Appendix B.1 provides a synopsis of the model concepts and algorithm inputs and outputs. Appendix A presents pseudocode for the algorithm.

The algorithm determines whether equation 1 has a unique solution, an infinity of solutions or no solutions at all. The algorithm produces a matrix  Q codifying the linear constraints guaranteeing asymptotic convergence. The matrix  Q provides a strategic point of departure for making many rational expectations computations.

The uniqueness of solutions to system 1 requires that the transition matrix characterizing the linear system have appropriate numbers of explosive and stable eigenvalues (Blanchard and Kahn, 1980), and that the asymptotic linear constraints are linearly independent of explicit and implicit initial conditions (Anderson and Moore, 1985).

The solution methodology entails

  1. Manipulating equation 1 to compute a state space transition matrix.
  2. Computing the eigenvalues and the invariant space associated with explosive eigenvalues
  3. Combining the constraints provided by:
    1. the initial conditions,
    2. auxiliary initial conditions identified in the computation of the transition matrix and
    3. the invariant space vectors

The first phase of the algorithm computes a transition matrix,  A, and auxiliary initial conditions,  Z. The second phase combines left invariant space vectors associated with large eigenvalues of  A with the auxiliary initial conditions to produce the matrix  Q characterizing the saddle point solution. Provided the right hand half of  Q is invertible, the algorithm computes the matrix  B, an autoregressive representation of the unique saddle point solution.

The Anderson-Moore methodology does not explicitly distinguish between predetermined and non-predetermined variables. The algorithm assumes that history fixes the values of all variables dated prior to time t and that these initial conditions, the saddle point property terminal conditions, and the model equations determine all subsequent variable values.


3.2 King & Watson's Canonical Variables/System Reduction Method

 (King and Watson, 1998) describe another method for solving rational expectations models. Appendix B.2 provides a synopsis of the model concepts and algorithm inputs and outputs. The algorithm consists of two parts: system reduction for efficiency and canonical variables solution for solving the saddle point problem. Although their paper describes how to accommodate arbitrary exogenous shocks, the MATLAB function does not return the relevant matrices.

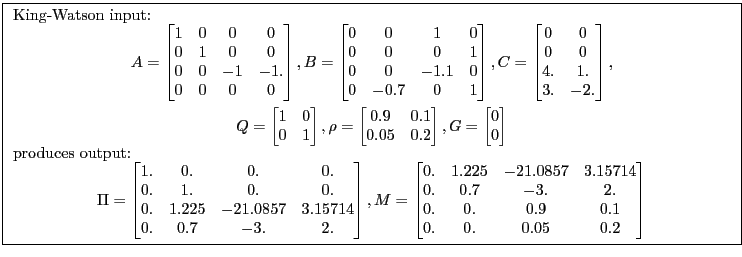

King-Watson provide a MATLAB function, resolkw, that computes solutions. The MATLAB function transforms the original system to facilitate the canonical variables calculations. The mdrkw program computes the solution assuming the exogenous variables follow a vector autoregressive process.

Given:

LaTex Encoded Math: \displaystyle A E(y_{t+1}) = B y_t + C x_t

system reduction produces an equivalent model of the form


LaTex Encoded Math: \displaystyle 0 = f_t + K d_t + \Psi_f(\boldsymbol{F}) E(x_t)
LaTex Encoded Math: \displaystyle E(d_{t+1}) = W d_t + \Psi_d(\boldsymbol{F}) E(x_t)

Where  d_t are the "dynamic" variables and  f_t are the "flow" variables in the  y_t vector.

The mdrkw program takes the reduced system produced by redkw and the decomposition of its dynamic subsystem computed by dynkw and computes the rational expectations solution. The computation can use either eigenvalue-eigenvector decomposition or Schur decomposition.

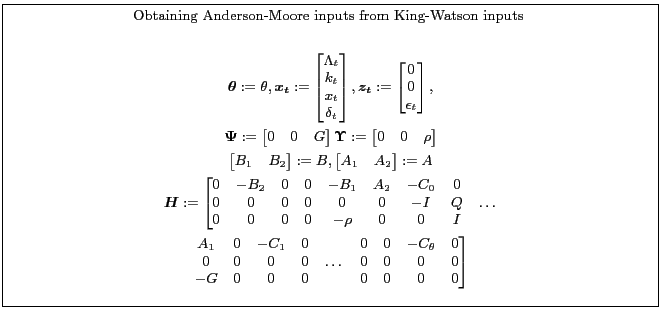

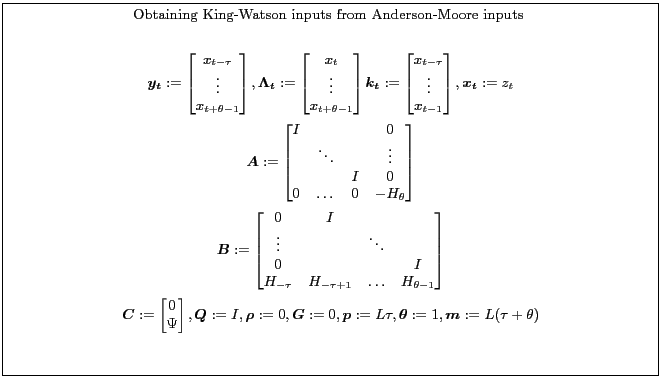

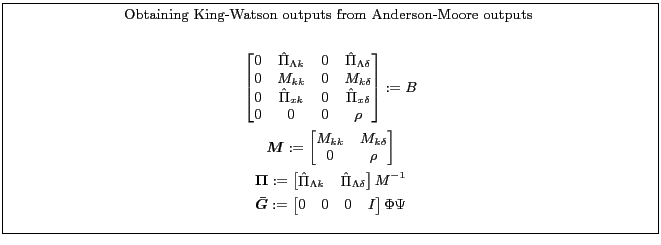

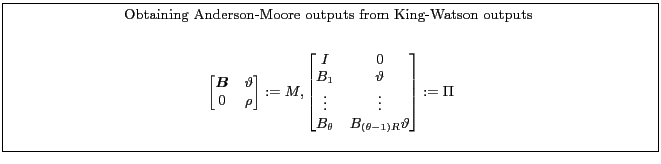

Appendix B.2.1 shows one way to compute the King-Watson solution using the Anderson-Moore algorithm. Appendix B.2.2 shows one way to compute the Anderson-Moore solution using the King-Watson algorithm.


4 Applications of the QZ Algorithm

Several authors exploit the properties of the Generalized Schur Form (Golub and van Loan, 1989).

Theorem 1   The Complex Generalized Schur Form - If  A and  B are in  \mathcal{C}^{n \times n}, then there exist unitary  Q and  Z such that  Q^H A Z = T and  Q^HBZ=S are upper triangular. If for some k,  t_{kk} and  s_{kk} are both zero, then  \lambda(A,B)=\mathcal{C}. Otherwise,  \lambda(A,B)=\{\frac{t_{ii}}{s_{ii}}:s_{ii}\ne 0\}

The algorithm uses the QZ decomposition to recast equation 5 in a canonical form that makes it possible to solve the transformed system "forward" for endogenous variables consistent with arbitrary values of the future exogenous variables.


4.1 Sims' QZ Method

 (Sims, 1996) describes the QZ Method. His algorithm solves a linear rational expectations model of the form:

LaTex Encoded Math: \displaystyle \Gamma_0 y_t=\Gamma_1 y_{t-1} + C + \Psi z_t + \Pi \eta_t (4)

where  t=1, 2, 3, \cdots, \infty and  C is a vector of constants,  z_t is an exogenously evolving, possibly serially correlated, random disturbance, and  \eta_t is an expectational error, satisfying  E_t \eta_{t+1}=0.

Here, as with all the algorithms except the Anderson-Moore algorithm, one must cast the model in a form with one lag and no leads. This can be problematic for models with more than a couple of equations.

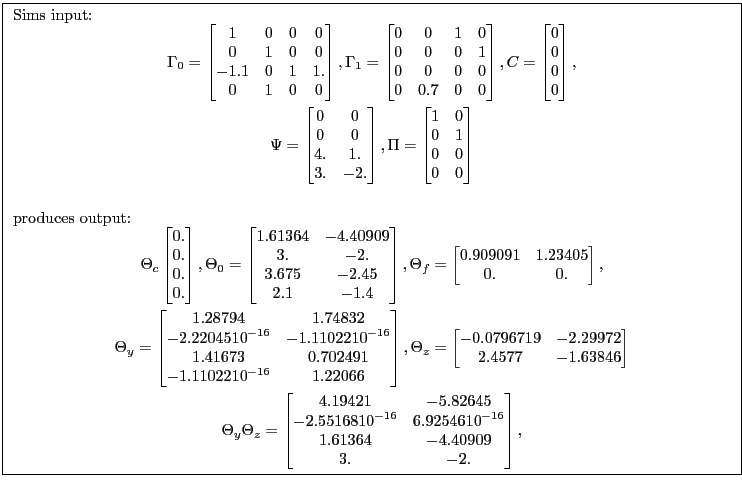

Appendix B.3 summarizes the Sims' QZ method model concepts and algorithm inputs and outputs.

The  \Pi designation of expectational errors identifies the "predetermined" variables. The Anderson-Moore technique does not explicitly require the identification of expectational errors. In applying the Anderson-Moore technique, one chooses the time subscript of the variables that appear in the equations. All predetermined variables have historical values available through time  t-1. The evolution of the solution path can have no effect on any variables dated  (t-1) or earlier. Future model values may influence time  t values of any variable.

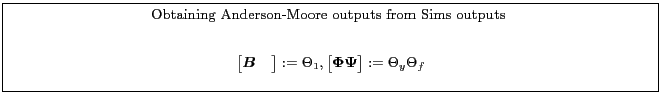

Appendix B.3.1 shows one way to transform the problem from Sims' form to Anderson-Moore form and how to reconcile the solutions. For the sake of comparison, the Anderson-Moore transformation adds  L\theta variables and the same number of equations, setting future expectation errors to zero.

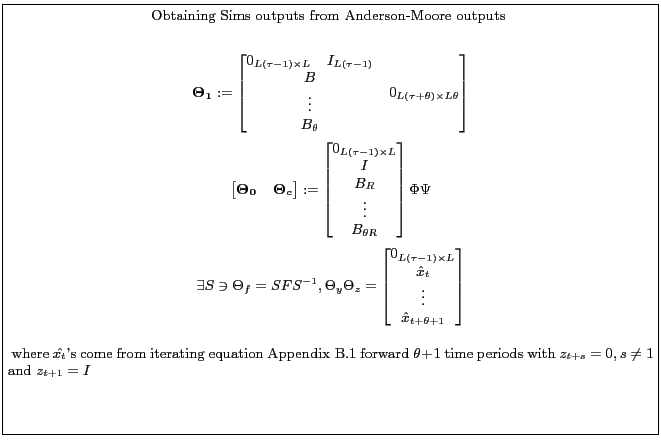

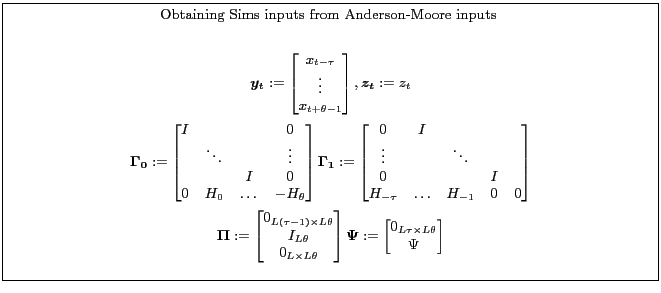

Appendix B.3.2 shows one way to transform the problem from Anderson-Moore form to Sims form.


4.2 Klein's Approach

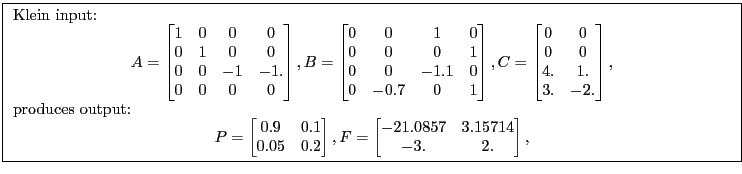

 (Klein, 1999) describes another method. Appendix B.4 summarizes the model concepts and algorithm inputs and outputs.

The algorithm uses the Generalized Schur Decomposition to decouple backward and forward variables of the transformed system.

Although the MATLAB version does not provide solutions for autoregressive exogenous variables, one can solve the autoregressive exogenous variables problem by augmenting the system. The MATLAB program does not return matrices for computing the impact of arbitrary exogenous factors.

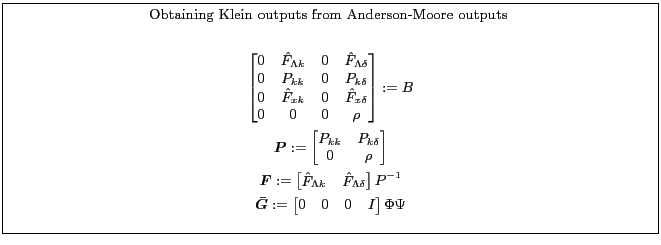

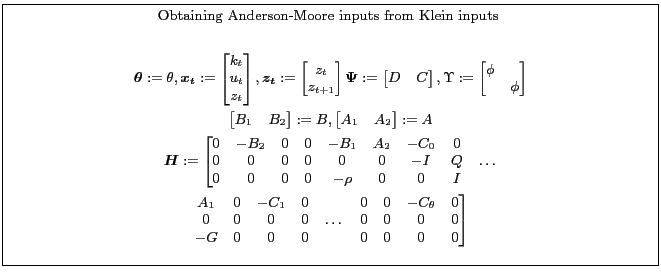

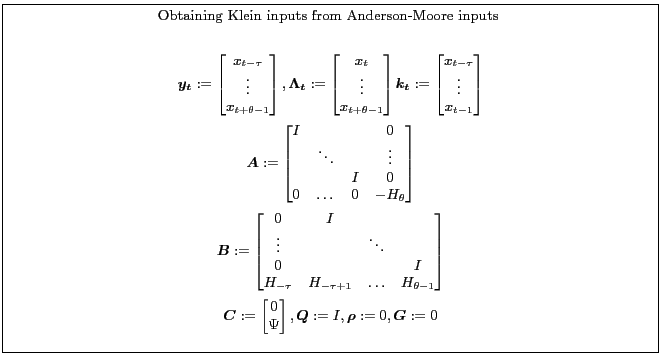

Appendix B.4.1 describes one way to recast a model from a form suitable for Klein into a form for the Anderson-Moore algorithm. Appendix B.4.2 describes one way to recast a model from a form suitable for the Anderson-Moore methodology into a form for the Klein Algorithm.


5 Applications of the Matrix Polynomial Approach

Several algorithms rely on determining a matrix  C satisfying

LaTex Encoded Math: \displaystyle H_1 C^2 +H_0C+ H_{-1} = 0. (5)

They employ linear algebraic techniques to solve this quadratic equation. Generally there are many solutions.

When the homogeneous linear system has a unique saddle-path solution, the Anderson-Moore algorithm constructs the unique matrix  C_{AM}=B that satisfies the quadratic matrix equation and has all roots inside the unit circle.

LaTex Encoded Math: \displaystyle H_1 C_{AM}^2 +H_0 C_{AM} + H_{-1} = 0


5.1 Binder & Pesaran's Method

 (Binder and Pesaran, 1994) describe another method.

According to Binder & Pesaran(1994), under certain conditions, the unique stable solution, if it exists, is given by:

LaTex Encoded Math: \displaystyle x_t = C x_{t-1} + \sum_{i=0}^\infty F^i E(w_{t+1})

where
LaTex Encoded Math: \displaystyle F= (I - B C)^{-1}B

and  C satisfies a quadratic equation like equation 6.

Their algorithm consists of a "recursive" application of the linear equations defining the relationships between C, H and F.

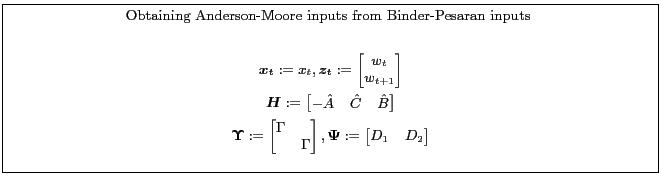

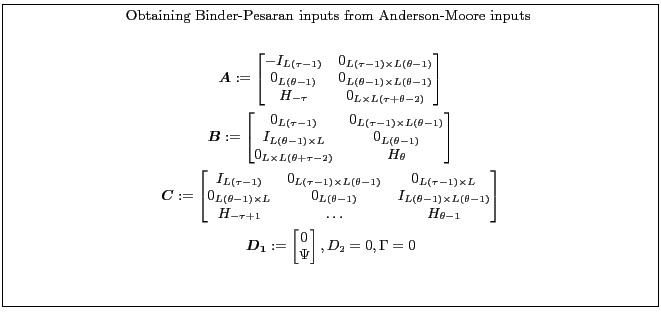

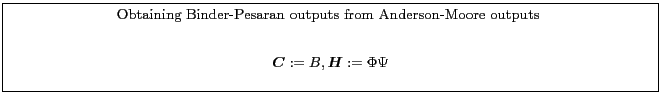

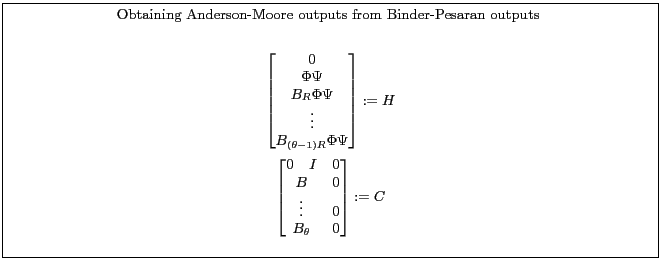

Appendix B.5.1 describes one way to recast a model from a form suitable for Binder-Pesaran into a form for the Anderson-Moore algorithm. Appendix B.5.2 describes one way to recast a model from a form suitable for the Anderson-Moore methodology into a form for the Binder-Pesaran Algorithm.


5.2 Uhlig's Technique

 (Uhlig, 1999) describes another method. The algorithm uses generalized eigenvalue calculations to obtain a solution for the matrix polynomial equation.

One can view the Uhlig technique as preprocessing of the input matrices to reduce the dimension of the quadratic matrix polynomial. It turns out that once the simplification has been done, the Anderson-Moore algorithm computes the solution to the matrix polynomial more efficiently than the approach adopted in Uhlig's algorithm.

Uhlig's algorithm operates on matrices of the form:

LaTex Encoded Math: \displaystyle \begin{bmatrix}B&0&A&C&0&0\\ H&0&G&K&F&J \end{bmatrix}

Uhlig in effect pre-multiplies the equations by the matrix


LaTex Encoded Math: \displaystyle \begin{bmatrix}C^0&0\\ C^+\\ -K C^+&I \end{bmatrix}

where


LaTex Encoded Math: \displaystyle C^0 C = 0,C^+=(C^TC)^{-1}C^T

to get


LaTex Encoded Math: \displaystyle \begin{bmatrix}C^0B&0&C^0A&0&0&0\\ C^+B&0&C^+A&I&0&0\\ H-KC^+B&0&G-K C^+A&0&F&J \end{bmatrix}

one can imagine leading the second block of equations by one period and using them to annihilate J to get


LaTex Encoded Math: \displaystyle \begin{bmatrix}0&0&C^0B&0&C^0A&0\\ H-KC^+B&0&G-K C^+A-JC^+B&0&F-JC^+A&0\\ 0&0&C^+B&0&C^+A&I \end{bmatrix}

This step in effect decouples the second set of equations making it possible to investigate the asymptotic properties by focusing on a smaller system.


LaTex Encoded Math: \displaystyle \begin{bmatrix}0&C^0B&C^0A\\ H-KC^+B&G-K C^+A-JC^+B&F-JC^+A\\ \end{bmatrix}

Uhlig's algorithm undertakes the solution of a quadratic equation like equation 6 with

LaTex Encoded Math: \displaystyle H_1= \begin{bmatrix}C^0A\\ F-JC^+A\\ \end{bmatrix}, H_0= \begin{bmatrix}C^0B\\ G-K C^+A-JC^+B\\ \end{bmatrix}, H_{-1}= \begin{bmatrix}0\\ H-KC^+B\\ \end{bmatrix}

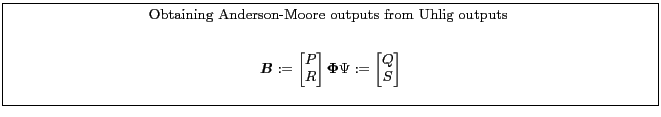

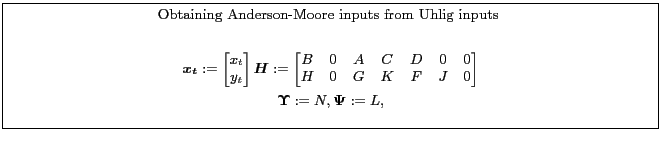

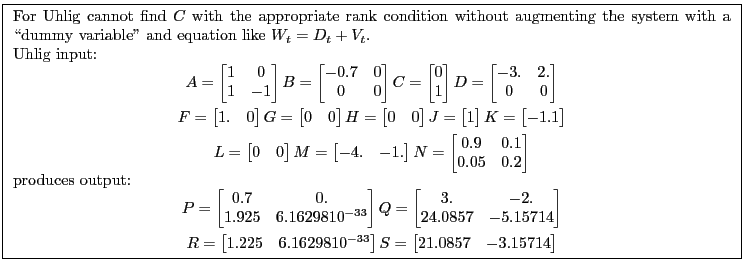

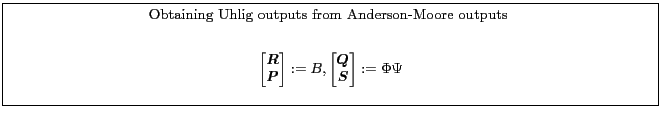

Appendix B.6.2 describes one way to recast a model from a form suitable for Uhlig into a form for the Anderson-Moore algorithm. Appendix B.6.1 describes one way to recast a model from a form suitable for the Anderson-Moore methodology into a form for the Uhlig Algorithm.


6 Comparisons

Section 2 identified  B, \vartheta, \phi and  F as potential outputs of a linear rational expectation algorithm. Most of the implementations do not compute each of the potential outputs. Only Anderson-Moore and Binder-Pesaran provide all four outputs (See Table 6).

Generally, the implementations make restrictions on the form of the input. Most require the user to specify models with at most one lag or one lead. Only Anderson-Moore explicitly allows multiple lags and leads.


Table 1: Modeling Features
Technique  B  \vartheta  \phi,F Usage Notes
Anderson-Moore check mark check mark check mark Allows multiple lags and leads. Has modeling language.
King & Watson check mark check mark   one lead, no lags
Sims check mark   check mark one lag, no leads
Klein check mark check mark   one lead, no lags
Binder-Peseran check mark check mark check mark one lag, one lead;  \hat{C} must be non-singular
Uhlig check mark check mark   one lag, one lead; constraint involving choice of "jump" variables and rank condition on  C .

Note:

  • The Klein and Uhlig procedures compute  \vartheta by augmenting linear system
  • For the Uhlig procedure one must choose "jump" variables to guarantee that the  C matrix has full rank.


Each of the authors provides small illustrative models along with their MATLAB code. The next two sections present results from applying all the algorithms to each of the example models.

6.1 Computational Efficiency

Nearly all the algorithms successfully computed solutions for all the examples. Each of the algorithms, except Binder-Pesaran's, successfully computed solutions for all of Uhlig's examples. Uhlig's algorithm failed to provide a solution for the given parametrization of one of King's examples. However, Binder-Pesaran's and Uhlig's routines would likely solve alternative parametrization of the models that had convergence problems.

Tables 2-4 present the MATLAB-reported floating point operations (flops) counts for each of the algorithms applied to the example models.

The first column of each table identifies the example model. The second column provides the flops required by the Anderson-Moore algorithm to compute  B followed by the flops required to compute  B,  \vartheta ,  \phi, and  F. Columns three through seven report the flops required by each algorithm divided by the flops required by the Anderson-Moore algorithm for a given example model.

Note that the Anderson-Moore algorithm typically required a fraction of the number of flops required by the other algorithms. For example, King-Watson's algorithm required more than three times the flops required by the Anderson-Moore algorithm for the first Uhlig example. In the first row, one observes that Uhlig's algorithm required only 92% of the number of flops required by the Anderson-Moore algorithm, but this is the only instance where an alternative to the Anderson-Moore algorithm required fewer flops.

In general, Anderson-Moore provides solutions with the least computational effort. There were only a few cases where some alternative had approximately the same number of floating point operations. The efficiency advantage was especially pronounced for larger models. King-Watson generally used twice to three times the number of floating point operations. Sims generally used thirty times the number of floating point operations - never fewer than Anderson-Moore, King-Watson or Uhlig. It had about the same performance as Klein. Klein generally used thirty times the number of floating point operations. It never used fewer than Anderson-Moore, King-Watson or Uhlig. Binder-Pesaran was consistently the most computationally expensive algorithm. It generally used hundreds of times more floating point operations. In one case, it took as many as 100,000 times the number of floating point operations. Uhlig generally used about twice the flops of Anderson-Moore even for small models and many more flops for larger models.

Table 5 presents a comparison of the original Uhlig algorithm to a version using Anderson-Moore to solve the quadratic polynomial equation. Employing the Anderson-Moore algorithm speeds the computation. The difference was most dramatic for larger models.


6.2 Numerical Accuracy

Tables 6-11 presents the MATLAB relative errors. I have employed a symbolic algebra version of the Anderson-Moore algorithm to compute solutions to high precision5. Although  \vartheta and  F are relatively simple linear transformations of  B, each of the authors uses radically different methods to compute these quantities. I then compare the matrices computed in MATLAB by each algorithm to the high precision solution.

Anderson-Moore always computed the correct solution and in almost every case produced the most accurate solution. Relative errors were on the order of  10^{-16}. King-Watson always computed the correct solution, but produced solutions with relative errors generally 3 times the size of the Anderson-Moore algorithm. Sims always computed correct solutions but produced solutions with relative errors generally 5 times the size of the Anderson-Moore algorithm. 6Sim's F calculation produced errors that were 20 times the size of the Anderson-Moore relative errors. Klein always computed the correct solution but produced solutions with relative errors generally 5 times the size of the Anderson-Moore algorithm.

Uhlig provides accurate solutions with relative errors about twice the size of the Anderson-Moore algorithm for each case for which it converges. It cannot provide a solution for King's example 3 for the particular parametrization I employed. I did not explore alternative parametrizations. For the  \vartheta computation, the results were similar. The algorithm was unable to compute  \vartheta for King example 3. Errors were generally 10 times the size of Anderson-Moore relative errors.

Binder-Pesaran converges to an incorrect value for three of the Uhlig examples: example 3, 6 and example 7. In each case, the resulting matrix solves the quadratic matrix polynomial, but the particular solution has an eigenvalue greater than one in magnitude even though an alternative matrix solution exists with eigenvalues less than unity. For Uhlig's example 3, the algorithm diverges and produces a matrix with NaN's. Even when the algorithm converges to approximate the correct solution, the errors are much larger than the other algorithms. One could tighten the convergence criterion at the expense of increasing computational time, but the algorithm is already the slowest of the algorithms evaluated. Binder-Pesaran's algorithm does not converge for either of Sims' examples. The algorithm provides accurate answers for King & Watson's examples. Although the convergence depends on the particular parametrization, I did not explore alternative parametrization when the algorithm's did not converge. The  \vartheta and  F results were similar to the  B results. The algorithm was unable to compute  H for Uhlig 3 in addition to Uhlig 7. It computed the wrong value for Uhlig 6. It was unable to compute values for either of Sims's examples.


7 Conclusions

A comparison of the algorithms reveals that:

Bibliography

Gary Anderson. A reliable and computationally efficient algorithm for imposing the saddle point property in dynamic models.
Unpublished Manuscript, Board of Governors of the Federal Reserve System. Downloadable copies of this and other related papers at http://www.federalreserve.gov/pubs/oss/oss4/aimindex.html, 1997.
Gary Anderson and George Moore. An efficient procedure for solving linear perfect foresight models. 1983.
Gary Anderson and George Moore. A linear algebraic procedure for solving linear perfect foresight models.
Economics Letters, (3), 1985.
URL http://www.federalreserve.gov/pubs/oss/oss4/aimindex.html.
Michael Binder and M. Hashem Pesaran. Multivariate rational expectations models and macroeconometric modelling: A review and some new results.
Seminar Paper, May 1994.
Olivier Jean Blanchard and C. Kahn. The solution of linear difference models under rational expectations.
Econometrica, 48, 1980.
Laurence Broze, Christian Gouriéroux, and Ariane Szafarz. Solutions of multivariate rational expectations models.
Econometric Theory, 11:229-257, 1995.
Gene H. Golub and Charles F. van Loan. Matrix Computations.
Johns Hopkins, 1989.
Robert G. King and Mark W. Watson. The solution of singular linear difference systems under rational expectations.
International Economic Review, 39(4):1015-1026, November 1998.
Paul Klein. Using the generalized schur form to solve a multivariate linear rational expectations model.
Journal of Economic Dynamics and Control, 1999.
Christopher A. Sims.
Solving linear rational expectations models.
Seminar paper, 1996.
Harald Uhlig. A toolkit for analyzing nonlinear dynamic stochastic models easily.
User's Guide, 1999.
Peter A. Zadrozny. An eigenvalue method of undetermined coefficients for solving linear rational expectations models.
Journal of Economic Dynamics and Control, 22:1353-1373, 1998.


Appendix A The Anderson-Moore Algorithm(s)

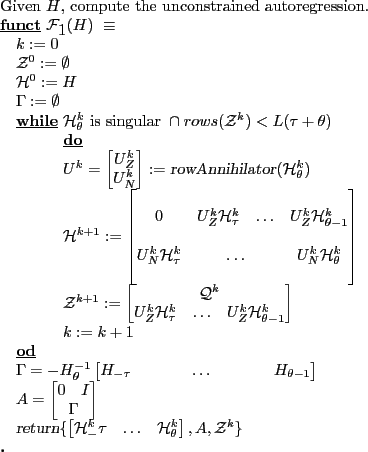

Algorithm 1
\begin{program} % latex2html id marker 665\mbox{Given $H$, compute the unconst... ...s&\mathcal{H}^k_{\theta}\end{bmatrix},A,\mathcal{Z}^k \} \ENDFUNCT \end{program}

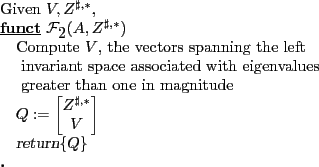

Algorithm 2
\begin{program} % latex2html id marker 697\mbox{Given $V,Z^{\sharp,\ast}$,} \FUNCT \mathcal{F}_{\ref{alg:asymptoticConstraints}}(A,Z^{\sharp,\ast}) \text{Compute $V$, the vectors spanning the left} \text{ invariant space associated with eigenvalues } \text{ greater than one in magnitude} Q:=\begin{bmatrix}Z^{\sharp,\ast}\\ V\end{bmatrix}\vert return\vert\{Q\} \ENDFUNCT \end{program}

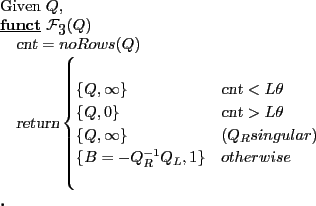

Algorithm 3
\begin{program} % latex2html id marker 712\mbox{Given $Q$,} \FUNCT \mathcal{F}_{\ref{alg:bmat}}(Q) \vert cnt\vert=noRows(Q) \vert return\vert\begin{cases} \{Q,\infty\} &\vert cnt\vert < L\theta \{Q,0\} &\vert cnt\vert > L\theta \{Q,\infty\}&(Q_R singular) \{B=-Q_R^{-1} Q_L,1\} &otherwise \end{cases}\ENDFUNCT \end{program}


Appendix B Model Concepts

The following sections present the inputs and outputs for each of the algorithms for the following simple example:

LaTex Encoded Math: \displaystyle V_{t+1}=(1+R)V_t- D_{t+1}
LaTex Encoded Math: \displaystyle D= (1-\delta)D_{t-1}


Appendix B.1 Anderson-Moore

Inputs
LaTex Encoded Math: \displaystyle \sum_{i= - \tau}^\theta { H_i x_{ t + i } }= \Psi z_{t}
Model Variable Description Dimensions
 x_t State Variables  L(\tau+\theta) \times 1
 z_t Exogenous Variables  M \times 1
 \theta Longest Lead  1 \times 1
 \tau Longest Lag  1 \times 1
 H_i Structural Coefficients Matrix  (L \times L)(\tau+\theta+1)
 \Psi Exogenous Shock Coefficients Matrix L x M
 \Upsilon Optional Exogenous VAR Coefficients Matrix(  z_{t+1} = \Upsilon z_t)  M \times M
Outputs
LaTex Encoded Math: \displaystyle x_{t} = B\begin{bmatrix}x_{t-\tau}\\ \vdots\\ x_{t-1} \end{bmatrix} + \begin{bmatrix}0&\dots 0&I \end{bmatrix} \sum_{s=0}^\infty ( F^{s} \begin{bmatrix}0\\ \Phi \Psi z_{t+s} \end{bmatrix})
Model Variable Description Dimensions
 B reduced form coefficients matrix  L \times L(\tau+\theta)
 \Phi exogenous shock scaling matrix  L\times L
 F exogenous shock transfer matrix  L\theta\times L\theta
 \vartheta autoregressive shock transfer matrix when
 z_{t+1} = \Upsilon z_t the infinite sum simplifies to give
 x_{t} = B \begin{bmatrix} x_{t-\tau}\\ \vdots\\ x_{t-1} \end{bmatrix} + \vartheta z_t
L x M

 $\fbox{
\begin{minipage}{\textwidth}
\par

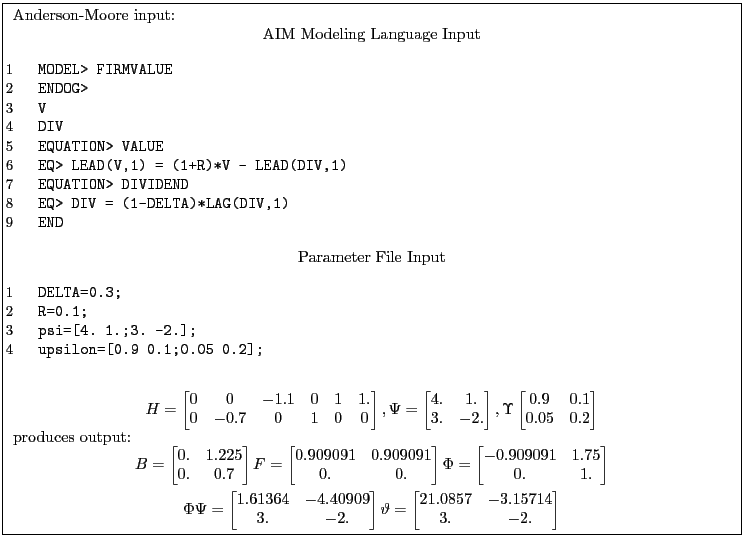

Anderson-Moore input:
\par
\centerline{AIM Modeling Language Input}
\listinginput{1}{firmValue.tex}
\par
\centerline{Parameter File Input}
\listinginput{1}{setParams.tex}
\par
\begin{gather*}
H=
\begin{bmatrix}
0 &0 &-1.1 &0 &1 &1.\\
 0 &-0.7 &0 &1 &0 &0
\end{bmatrix},
\Psi=
\begin{bmatrix}
 4. &1.\\
 3. &-2.
\end{bmatrix},
\Upsilon
\begin{bmatrix}
 0.9 &0.1\\
 0.05 &0.2
\end{bmatrix}
\end{gather*}
produces output:
\begin{gather*}
B=
\begin{bmatrix}
 0. &1.225\\
 0. &0.7
\end{bmatrix}
F=
\begin{bmatrix}
 0.909091 &0.909091\\
 0. &0.
\end{bmatrix}
\Phi=
\begin{bmatrix}
 -0.909091 &1.75\\
 0. &1.
\end{bmatrix}\\
\Phi \Psi=\begin{bmatrix}%{\bf RawData}
 1.61364 &-4.40909\\
 3. &-2.
\end{bmatrix}
\vartheta=
\begin{bmatrix}
 21.0857 &-3.15714\\
 3. &-2.
\end{bmatrix}
\end{gather*}
\end{minipage}
}$

Usage Notes for Anderson-Moore Algorithm
  1. "Align" model variables so that the data history (without applying model equations), completely determines all of  x_{t-1}, but none of  x_t.
  2. Develop a "model file" containing the model equations written in the "AIM modeling language"
  3. Apply the model pre-processor to create MATLAB programs for initializing the algorithm's input matrix, (H). Create  \Psi and, optionally,  \Upsilon matrices.
  4. Execute the MATLAB programs to generate  B,  \phi,  F and optionally  \vartheta

Users can obtain code for the algorithm and the preprocessor from the author8


Appendix B.2 King-Watson

Inputs
LaTex Encoded Math: \displaystyle AE_ty_{t+1}=By_t+ \sum_{i=0}^\theta C_i E_t(x_{t+i})
LaTex Encoded Math: \displaystyle x_t= Q \delta_t
LaTex Encoded Math: \displaystyle \delta_t = \rho \delta_{t-1} + G \epsilon_t
LaTex Encoded Math: \displaystyle y_t= \begin{bmatrix}\Lambda_t\\ k_t \end{bmatrix}
Model Variable Description Dimensions
 \theta longest lead  1 \times 1
 y_t Endogenous Variables  m \times 1
 \Lambda_t Non-predetermined Endogenous Variables  (m-p) \times 1
 k_t Predetermined Endogenous Variables  p \times 1
 x_t Exogenous Variables  n_x \times 1
 \delta_t Exogenous Variables  n_\delta \times 1
A Structural Coefficients Matrix associated with lead endogenous variables,  y_{t+1}  m \times m
B Structural Coefficients Matrix associated with contemporaneous endogenous variables,  y_{t}  m \times m
 C_i Structural Coefficients Matrix associated with contemporaneous and lead exogenous variables,  x_{t}  m \times n
Q Structural Coefficients Matrix associated with contemporaneous exogenous variables,  x_{t}  n_x \times n_\delta
 \rho Vector Autoregression matrix for exogenous variables  n_\delta \times n_\delta
G Matrix multiplying Exogenous Shock  n_\delta \times 1
Outputs
LaTex Encoded Math: \displaystyle y_t=\Pi s_t
LaTex Encoded Math: \displaystyle s_t=M s_{t-1} + \bar{G} \epsilon_t
LaTex Encoded Math: \displaystyle s_t= \begin{bmatrix}k_t\\ \delta_t \end{bmatrix}
Model Variable Description Dimensions
 s_t Exogenous Variables and predetermined variables  (n_x+p) \times 1
 \Pi Matrix relating endogenous variables to exogenous and predetermined variables  m \times (p+n_x)
 M    (p+n_x) \times (p+n_x)
 \bar{G} Matrix multiplying Exogenous Shock  (n_x+p) \times l

\fbox{ \begin{minipage}{\textwidth} \par King-Watson input: \begin{gather*} A= \... ...0. &0. &0.9 &0.1\ 0. &0. &0.05 &0.2 \end{bmatrix}\end{gather*}\end{minipage}}



Usage Notes for King-Watson Algorithm
  1. Identify predetermined variables
  2. Cast the model in King-Watson form: endogenous variable must have at most one lead and no lag.
  3. Create matlab "system" and "driver" programs generating the input matrices. "system" generates (  A, B, C_i,nx=n_x,ny=m), and a matlab vector containing indices corresponding to predetermined variables. "driver" generates (  Q, \rho, G).
  4. Call resolkw with sytem and driver filenames as inputs to generate  \Pi, M, \bar{G}


Appendix B.2.1 King-Watson to Anderson-Moore

\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Anderson-Moore inputs ... ...&0&0&0&\dots&0&0&0&0\ -G&0&0&0&&0&0&0&0 \end{matrix}\right ] \end{gather*} }}
\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining King-Watson outputs from Anderson-Moore outputs }\par \begin{gather*} \begin{bmatrix} 0& \hat{\Pi}_{\Lambda k}&0&\hat{\Pi}_{\Lambda \delta}\ 0&M_{kk}&0&M_{k\delta}\ 0&\hat{\Pi}_{x k}&0&\hat{\Pi}_{x\delta}\ 0&0&0&\rho \end{bmatrix}:=B\ \boldsymbol{M}:= \begin{bmatrix} M_{kk}&M_{k\delta}\ 0&\rho\ \end{bmatrix}\ \boldsymbol{\Pi} := \begin{bmatrix} \hat{\Pi}_{\Lambda k}& \hat{\Pi}_{\Lambda \delta} \end{bmatrix} M^{-1}\ \boldsymbol{\bar{G}}:= \begin{bmatrix} 0&0&0&I \end{bmatrix} \Phi \Psi \end{gather*} }}


Appendix B.2.2 Anderson-Moore to King-Watson

\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining King-Watson inputs fro... ...L\tau,\boldsymbol{\theta}:=1,\boldsymbol{m}:=L(\tau +\theta)\ \end{gather*} }}
\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Anderson-Moore outputs from King-Watson outputs } \begin{gather*} \begin{bmatrix} \boldsymbol{B}&\vartheta\ 0&\rho \end{bmatrix}:=M, \begin{bmatrix} I&0\ B_{1}&\vartheta\ \vdots&\vdots\ B_{\theta }&B_{(\theta-1)R}\vartheta\ \end{bmatrix}:=\Pi \end{gather*} }}


Appendix B.3 Sims

Inputs
LaTex Encoded Math: \displaystyle \Gamma_0 y_t=\Gamma_1 y_{t-1} + C + \Psi z_t + \Pi \eta_t
Model Variable Description Dimensions
 y_t State Variables  L \times 1
 z_t Exogenous Variables  M_1 \times 1
 \eta_t Expectational Error  M_2 \times 1
 \Gamma_0 Structural Coefficients Matrix  L\times L
 \Gamma_1 Structural Coefficients Matrix  L\times L
 C Constants  L \times 1
 \Psi Structural Exogenous Variables Coefficients Matrix  L \times M_1
 \Pi Structural Expectational Errors Coefficients Matrix  L \times M_2
Outputs
LaTex Encoded Math: \displaystyle y_t= \Theta_1 y_{t-1} + \Theta_c + \Theta_0 z_t + \Theta_y \sum_{s=1}^\infty \Theta_f^{s-1}\Theta_z E_t z_{t+s}
Model Variable Description Dimensions
 \Theta_1    L\times L
 \Theta_c    L \times 1
 \Theta_0    L \times M_1
 \Theta_y    L \times M_2
 \Theta_f    M_2 \times M_2
 \Theta_z    M_2 \times M_1

\fbox{ \begin{minipage}{\textwidth} Sims input: \begin{gather*} \Gamma_0= \begi... ... 1.61364 &-4.40909\ 3. &-2. \end{bmatrix}, \end{gather*}\par \end{minipage}}



Usage Notes for Sims Algorithm
  1. Identify predetermined variables
  2. Cast the model in Sims form: at most 1 lag and 0 leads of endogenous variables.
  3. Create the input matrices  \Gamma_0, \Gamma_1, C, \Psi,    and  \Pi
  4. Call gensys to generate  \Theta_1, \Theta_c, \Theta_0, \Theta_y, \Theta_f, \Theta_z


Appendix B.3.1 Sims to Anderson-Moore

\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Anderson-Moore inputs from Sims inputs }\begin{gather*} \boldsymbol{x_{t+s}}:=\begin{bmatrix}y_{t+s}\\ \eta_{t+s}\end{bmatrix}-x^\ast, \boldsymbol{z_t}:= \begin{bmatrix} z_t\\ 1 \end{bmatrix}, \boldsymbol{\Psi}:= \begin{bmatrix} \Psi&C \\ 0 &0 \end{bmatrix}\ \boldsymbol{ H}:=\begin{bmatrix}-\Gamma_1&0&\Gamma_0&-\Pi&0&0\\ 0&0&0&0&0&I\end{bmatrix}\end{gather*} }}
% latex2html id marker 2125 \fbox{\parbox{0.9\textwidth}{\small \centerline{Obt... ... +1$\ time periods with $z_{t+s}=0, s \ne 1$\ and $z_{t+1}=I$} \end{gather*} }}


Appendix B.3.2 Anderson-Moore to Sims

\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Sims inputs from Ander... ...:= \begin{bmatrix} 0_{L\tau\times L\theta}\\ \Psi \end{bmatrix}\end{gather*} }}
\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Anderson-Moore outputs from Sims outputs }\begin{gather*} \begin{bmatrix} \boldsymbol{B}& \end{bmatrix}:=\Theta_1, \begin{bmatrix} \boldsymbol{\Phi}\boldsymbol{\Psi} \end{bmatrix}:=\Theta_y \Theta_f \end{gather*} }}


Appendix B.4 Klein

Inputs
LaTex Encoded Math: \displaystyle A \mathcal{E} x_{t+1} = B x_t + C z_{t+1} + D z_t
LaTex Encoded Math: \displaystyle z_{t+1} = \phi z_t + \epsilon_t x_t= \begin{bmatrix}k_t\\ u_t \end{bmatrix}
Model Variable Description Dimensions
 x_t Endogenous Variables  L \times 1
 z_t Exogenous Variables  M \times 1
 n_k The number of state Variables  M \times 1
 k_t State Variables  n_k \times 1
 u_t The Non-state Variables  (L-n_k) \times 1
 A Structural Coefficients Matrix for Future Variables  L\times L
 B Structural Coefficient Matrix for contemporaneous Variables  L\times L
Outputs
LaTex Encoded Math: \displaystyle u_t=F k_t
LaTex Encoded Math: \displaystyle k_t=P k_{t-1}
Model Variable Description Dimensions
 F Decision Rule  (L-n_k)\times n_k
 P Law of Motion  n_k \times n_k

\fbox{ \begin{minipage}{\textwidth} Klein input: \begin{gather*} A= \begin{bmatrix} 1 &0 &0 &0\ 0 &1 &0 &0\ 0 &0 &-1 &-1.\ 0 &0 &0 &0 \end{bmatrix}, B= \begin{bmatrix} 0 &0 &1 &0\ 0 &0 &0 &1\ 0 &0 &-1.1 &0\ 0 &-0.7 &0 &1 \end{bmatrix}, C= \begin{bmatrix} 0 &0\ 0 &0\ 4. &1.\ 3. &-2. \end{bmatrix}, \end{gather*}produces output: \begin{gather*} P= \begin{bmatrix} 0.9 &0.1\ 0.05 &0.2 \end{bmatrix}, F= \begin{bmatrix} -21.0857 &3.15714\ -3. &2. \end{bmatrix}, \end{gather*}\end{minipage}}



Usage Notes for Klein Algorithm
  1. Identify predetermined variables. Order the system so that predetermined variables come last.
  2. Create the input matrices  A, B.1
  3. Call solab with the input matrices and the number of predetermined variables to generate  F and  P
1 The Gauss version allows additional functionality.


Appendix B.4.1 Klein to Anderson-Moore

\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Anderson-Moore inputs ... ...&0&0&0&\dots&0&0&0&0\ -G&0&0&0&&0&0&0&0 \end{matrix}\right ] \end{gather*} }}
\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Klein outputs from Anderson-Moore outputs }\begin{gather*} \begin{bmatrix} 0& \hat{F}_{\Lambda k}&0&\hat{F}_{\Lambda \delta}\ 0&P_{kk}&0&P_{k\delta}\ 0&\hat{F}_{x k}&0&\hat{F}_{x\delta}\ 0&0&0&\rho \end{bmatrix}:=B\ \boldsymbol{P}:= \begin{bmatrix} P_{kk}&P_{k\delta}\ 0&\rho\ \end{bmatrix}\ \boldsymbol{F} := \begin{bmatrix} \hat{F}_{\Lambda k}& \hat{F}_{\Lambda \delta} \end{bmatrix} P^{-1}\ \boldsymbol{\bar{G}}:= \begin{bmatrix} 0&0&0&I \end{bmatrix} \Phi \Psi \end{gather*} }}


Appendix B.4.2 Anderson-Moore to Klein

\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Klein inputs from Ande... ...ix}, \boldsymbol{Q}:=I, \boldsymbol{\rho}:=0, \boldsymbol{G}:=0 \end{gather*} }}
\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Anderson-Moore outputs from Klein outputs }\begin{gather*} \begin{bmatrix} 0&I&0\\ \multicolumn{2}{c}{B}&\Phi \Psi\ \multicolumn{2}{c}{0}&0 \end{bmatrix}:=P, \begin{bmatrix} \multicolumn{2}{c}{I}&0\ B_{1L}&B_{1R}&\Phi\Psi\ \vdots&\vdots& \vdots\ B_{\theta L}&B_{\theta R}&B_{(\theta-1)R}\Phi\Psi\ \end{bmatrix}:=F \end{gather*} }}


Appendix B.5 Binder-Pesaran

Inputs
LaTex Encoded Math: \displaystyle \hat{C}x_t= \hat{ A} x_{t-1} + \hat{B} \mathcal{E} x_{t+1} + D_1 w_t + D_2 w_{t+1}
LaTex Encoded Math: \displaystyle w_t= \Gamma w_{t-1}
Model Variable Description Dimensions
 x_t State Variables  L \times 1
 w_t Exogenous Variables  M \times 1
 \hat{A} Structural Coefficients Matrix  L\times L
 \hat{B} Exogenous Shock Coefficients Matrix  L\times L
 \hat{C} Exogenous Shock Coefficients Matrix L x M
 D_1 Exogenous Shock Coefficients Matrix L x M
 D_2 Exogenous Shock Coefficients Matrix L x M
 \Gamma Exogenous Shock Coefficients Matrix L x M
Outputs
LaTex Encoded Math: \displaystyle x_{t}=C x_{t-1} +H w_t
LaTex Encoded Math: \displaystyle x_t = C x_{t-1} + \sum_{i=0}^\infty F^i E(w_{t+1})
Model Variable Description Dimensions
 C reduced form codifying convergence constraints  L \times L(\tau+\theta)
 H exogenous shock scaling matrix L x M





\fbox{ \begin{minipage}{\textwidth} Binder-Peseran input: \begin{gather*} A= \begin{bmatrix} 0 &0\ 0 &0.7 \end{bmatrix}B= \begin{bmatrix} -1 &-1.\ 0 &0 \end{bmatrix}C= \begin{bmatrix} -1.1 &0\ 0 &1 \end{bmatrix}D_1 =\begin{bmatrix} 4. &1.\ 3. &-2. \end{bmatrix}\ D_2 =\begin{bmatrix} 0 &0\ 0 &0 \end{bmatrix}\Gamma= \begin{bmatrix} 0.9 &0.1\ 0.05 &0.2 \end{bmatrix} \end{gather*}produces output: \begin{gather*} C= \begin{bmatrix} 0. &1.225\ 0. &0.7 \end{bmatrix}H= \begin{bmatrix} 21.0857 &-3.15714\ 3. &-2. \end{bmatrix}\end{gather*}\end{minipage}}



Usage Notes for Binder-Pesaran Algorithm
  1. Cast model in Binder-Pesaran form: at most one lead and one lag of endogenous variables. The matrix  \hat{C} must be nonsingular.
  2. Modify existing Matlab script implementing Binder-Pesaran's Recursive Method to create the input matrices  \hat{A}, \hat{B}, \hat{C}, D_1, D_2 \Gamma and to update the appropriate matrices in the "while loop."Appendix B
  3. Call the modified script to generate  C and  H and  F.


Appendix B.5.1 Binder-Pesaran to Anderson-Moore

\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Anderson-Moore inputs from Binder-Pesaran inputs }\begin{gather*} \boldsymbol{x_t}:=x_t, \boldsymbol{z_t}:= \begin{bmatrix} w_t\\ w_{t+1} \end{bmatrix}\ \boldsymbol{H}:= \begin{bmatrix} -\hat{A}&\hat{C}&\-\hat{B}\ \end{bmatrix}\ \boldsymbol{\Upsilon}:= \begin{bmatrix} \Gamma&\ &\Gamma \end{bmatrix},\boldsymbol{\Psi}:= \begin{bmatrix} D_1&D_2 \end{bmatrix}\end{gather*} }}
\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Binder-Pesaran outputs from Anderson-Moore outputs }\begin{gather*} \boldsymbol{C}:=B,\boldsymbol{H}:=\Phi \Psi \end{gather*} }}


Appendix B.5.2 Anderson-Moore to Binder-Pesaran

\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Binder-Pesaran inputs ... ...1}:= \begin{bmatrix} 0\\ \Psi \end{bmatrix},D_2=0,\Gamma=0\ \end{gather*} }}
\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Anderson-Moore outputs from Binder-Pesaran outputs }\begin{gather*} \begin{bmatrix} 0\ \Phi\Psi \ B_R \Phi\Psi \ \vdots\ B_{(\theta-1)R} \Phi\Psi \ \end{bmatrix}:=H\ \begin{bmatrix} 0&I&0\ \multicolumn{2}{c}{B}&0\ \multicolumn{2}{c}{\vdots}&0\ \multicolumn{2}{c}{B_{\theta}}&0\ \end{bmatrix}:=C \end{gather*} }}


Appendix B.6 Uhlig

Inputs
LaTex Encoded Math: \displaystyle A x_t + B x_{t-1} + C y_t + D z_t = 0
LaTex Encoded Math: \displaystyle \mathcal{E}(F x_{t+1} +G x_t + H x_{t-1} + J y_{t+1} + K y_t + L z_{t+1} + M z_t)
LaTex Encoded Math: \displaystyle z_{t+1} = N z_t + \epsilon_{t+1}
LaTex Encoded Math: \displaystyle \mathcal{E} \epsilon_{t+1} = 0
Model Variable Description Dimensions
 x_t State Variables  m \times 1
 y_t Endogenous "jump" Variables  n \times 1
 z_t Exogenous Variables  k \times 1
 A, B Structural Coefficients Matrix  l \times m
 C Structural Coefficients Matrix  l \times n
 D Structural Coefficients Matrix  l \times k
 F,G,H Structural Coefficients Matrix  (m+n-l) \times m
 J,K Structural Coefficients Matrix  (m+n-l) \times n
 L,M Structural Coefficients Matrix  m+n-l \times k
 N Structural Coefficients Matrix  k\times k
Outputs
LaTex Encoded Math: \displaystyle x_t= P x_{t-1} + Q z_t LaTex Encoded Math: \displaystyle y_t= R x_{t-1} + S z_t
Model Variable Description Dimensions
 P    m \times m
 Q    m \times k
 R    n \times m
 S    n \times k
\fbox{ \begin{minipage}{\textwidth} For Uhlig cannot find $C$\ with the appropri... ... \begin{bmatrix} 21.0857 &-3.15714\ \end{bmatrix}\end{gather*}\end{minipage}}



Usage Notes for Uhlig Algorithm
  1. Cast model in Uhlig Form. One must be careful to choose endogenous "jump" and and "non jump" variables to guarantee that the  C matrix is appropriate rank. The rank null space must be  (l-n) where  l is the number of equations with no lead variables,(the row dimension of C) and  n is the total number of "jump" variables(thee column dimension of C).
  2. Create matrices  A, B, C, D, F, G, H, J, K, L, M, N
  3. Call the function do_it to generate  P, Q, R, S, W


Appendix B.6.1 Uhlig to Anderson-Moore

\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Anderson-Moore inputs from Uhlig inputs }\begin{gather*} \boldsymbol{x_t}:= \begin{bmatrix} x_t\\ y_t \end{bmatrix}\boldsymbol{H}:= \begin{bmatrix} B&0&A&C&D&0&0\ H&0&G&K&F&J&0\ \end{bmatrix}\ \boldsymbol{\Upsilon }:= N,\boldsymbol{\Psi}:=L, \end{gather*} }}
\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Uhlig outputs from Anderson-Moore outputs }\begin{gather*} \begin{bmatrix} \boldsymbol{ R}\\ \boldsymbol{P} \end{bmatrix}:=B, \begin{bmatrix} \boldsymbol{Q}\\ \boldsymbol{S} \end{bmatrix}:= \Phi \Psi \end{gather*} }}


Appendix B.6.2 Anderson-Moore to Uhlig

\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Uhlig inputs from Ande... ...d{bmatrix} = \begin{bmatrix} 0\\ \varrho_L \Psi \end{bmatrix} \end{gather*} }}
\fbox{\parbox{0.9\textwidth}{\small \centerline{Obtaining Anderson-Moore outputs from Uhlig outputs }\begin{gather*} \boldsymbol{B}:= \begin{bmatrix} P\\ R \end{bmatrix}\boldsymbol{\Phi}{\Psi}:= \begin{bmatrix} Q\\ S \end{bmatrix} \end{gather*}}}


Appendix C Computational Efficiency


Table 2: Matlab Flop Counts: Uhlig Examples
Model AIM
 (L,\tau,\theta)
KW
 (m,p)
Sims
 (L,M_2)
Klein
 (L,n_k)
BP
 L
Uhlig
 (m,n)
Computes  (B,\vartheta,\phi,F)  (B,\vartheta)  (B,\phi,F)  (B)  (B,\vartheta,\phi,F)  (B,\vartheta)
uhlig 0  (2514,4098)
(4,1,1)
 3.38385
(8,4)
 23.9387
(8,4)
 28.8007
(8,3)
 88.7832
4
 0.922832
(3,1)
uhlig 1  (6878,9817)
(6,1,1)
 3.81346
(12,6)
 46.9301
(12,6)
 29.1669
(12,5)
 15347.3
6
 1.88979
(5,1)
uhlig 2  (6798,9773)
(6,1,1)
 3.292
(12,6)
 52.2499
(12,6)
 35.7318
(12,5)
 6468.78
6
 1.80494
(5,1)
uhlig 3  (112555,276912)
(14,1,1)
 3.62782
(28,14)
 40.5874
(28,14)
 22.6611
(28,13)
 205753.
14
 16.7633
(10,4)
uhlig 4  (6850,9789)
(6,1,1)
 3.58292
(12,6)
 45.675
(12,6)
 29.5441
(12,5)
 16250.5
6
 1.89752
(5,1)
uhlig 5  (6850,9789)
(6,1,1)
 3.58292
(12,6)
 45.675
(12,6)
 29.5441
(12,5)
 16250.5
6
 1.89752
(5,1)
uhlig 6  (7809,26235)
(6,1,1)
 2.53182
(12,6)
 47.5947
(12,6)
 46.3196
(12,4)
 190.905
6
 3.42169
(4,2)
uhlig 7  (82320,108000)
(13,1,1)
 2.8447
(26,13)
 48.1792
(26,13)
 28.9946
(26,11)
 131.785
13
 2.60423
(11,2)

Note:
 L, \tau, \theta, B, \vartheta, \phi, F
See Appendix B.1
 m, p
See Appendix B.2
 L, M_2
See Appendix B.3
 L, n_k
See Appendix B.4
 L
See Appendix B.5
 m, n
See Appendix B.6
KW, Sims, Klein, BP, Uhlig column normalized by dividing by comparable AIM value.


Table 3: Matlab Flop Counts: King & Watson, Klein, Binder & Peseran and Sims Examples
Model AIM
 (L,\tau,\theta)
KW
 (m,p)
Sims
 (L,M_2)
Klein
 (L,n_k)
BP
 L
Uhlig
 (m,n)
Computes  (B,\vartheta,\phi,F)  (B,\vartheta)  (B,\phi,F)  (B)  (B,\vartheta,\phi,F)  (B,\vartheta)
king 2  (2288,2566)
(3,1,1)
 2.36713
(6,3)
 9.64904
(6,3)
 20.7072
(6,1)
 165.623
3
 1.76311
(2,1)
king 3  (1028,2306)
(3,1,1)
 2.81809
(6,3)
 21.1284
(6,3)
 77.1858
(6,-1)
 368.545
3
 \Mvariable{NA}
(2,1)
king 4  (40967,146710)
(9,1,1)
 5.2211
(18,9)
 39.8819
(18,9)
 30.493
(18,5)
 185.299
9
 14.2569
(3,6)
sims 0  (3501,5576)
(5,1,1)
 4.70923
(10,5)
 59.9526
(10,5)
 59.2871
(10,3)
 \Mvariable{NA}
5
 5.72694
(4,1)
sims 1  (16662,39249)
(8,1,1)
 4.20292
(16,8)
 56.8375
(16,8)
 48.4135
(16,5)
 \Mvariable{NA}
8
 9.2849
(6,2)
klein 1  (3610,15147)
(3,1,1)
 2.13213
(6,3)
 10.2756
(6,3)
 16.7828
(6,2)
 35555.2
3
 2.30526
(1,2)
bp 1  (533,1586)
(2,1,1)
 3.1257
(4,2)
 13.8987
(4,2)
 59.7749>
(4,0)
 613.814
2
 2.88743
(1,1)
bp 2  (3510,5659)
(5,1,1)
 3.5265
(10,5)
 77.2456
(10,5)
 67.7846
(10,1)
 800.98
5
 21.4259
(4,1)

Note:
 L, \tau, \theta, B, \vartheta, \phi, F
See Appendix B.1
 m, p
See Appendix B.2
 L, M_2
See Appendix B.3
 L, n_k
See Appendix B.4
 L
See Appendix B.5
 m, n
See Appendix B.6
KW, Sims, Klein, BP, Uhlig column normalized by dividing by comparable AIM value.


Table 4: Matlab Flop Counts: General Examples
Model AIM
 (L,\tau,\theta)
KW
 (m,p)
Sims
 (L,M_2)
Klein
 (L,n_k)
BP
 L
Uhlig
 (m,n)
Computes  (B,\vartheta,\phi,F)  (B,\vartheta)  (B,\phi,F)  (B)  (B,\vartheta,\phi,F)  (B,\vartheta)
firmValue 1  (535,1586)
(2,1,1)
 2.90467
(4,2)
 11.5252
(4,2)
 92.9738
(4,0)
 534.686
2
 \Mvariable{NA}
(1,1)
athan 1  (18475,70162)
(9,1,1)
 3.75578
(18,9)
 135.329
(18,9)
 113.463
(18,1)
 1385.73
9
 196.251
(8,1)
fuhrer 1  (352283,1885325)
(12,1,4)
 \Mvariable{NA}
(60,12)
 125.141
(60,48)
 148.459
(60,1)
 \Mvariable{NA}
48
 \Mvariable{NA}
(9,39)

Note:
 L, \tau, \theta, B, \vartheta, \phi, F
See Appendix B.1
 m, p
See Appendix B.2
 L, M_2
See Appendix B.3
 L, n_k
See Appendix B.4
 L
See Appendix B.5
 m, n
See Appendix B.6
KW, Sims, Klein, BP, Uhlig column normalized by dividing by comparable AIM value.


Table 5: Using Anderson-Moore to Improve Matrix Polynomial Methods
Model(m,n) Uhlig AM/Uhlig
uhlig 0(3,1)  2320  2053
uhlig 1(5,1)  12998  12731
uhlig 2(5,1)  12270  12003
uhlig 3(10,4)  1886798  304534
uhlig 4(5,1)  12998  12731
uhlig 5(5,1)  12998  12731
uhlig 6(4,2)  26720  24233
uhlig 7(11,2)  214380  213450

Note:
 m, n
See Appendix B.6


11 Accuracy


Table 6: Matlab Relative Errors in  B: Uhlig Examples
LaTex Encoded Math: \displaystyle \frac{ \parallel B_i- B_{exact} \parallel}{\parallel B_{exact} \parallel}
Model AIM
 (L,\tau,\theta)
KW
 (m,p)
Sims
 (L,M_2)
Klein
 (L,n_k)
BP
 L
Uhlig
 (m,n)
Computes  (B,\vartheta,\phi,F)  (B,\vartheta)  (B,\phi,F)  (B)  (B,\vartheta,\phi,F)  (B,\vartheta)
uhlig 0  1:=1.69446\,{10}^{-16}
(4,1,1)
 8.
(8,4)
 40.
(8,4)
 11.
(8,3)
 134848.
4
 49.
(3,1)
uhlig 1  1:=3.82375\,{10}^{-15}
(6,1,1)
 0.518098
(12,6)
 2.63371
(12,6)
 0.617504
(12,5)
 10217.1
6
 3.32793
(5,1)
uhlig 2  1:=4.88785\,{10}^{-15}
(6,1,1)
 1.
(12,6)
 2.00589
(12,6)
 6.43964
(12,5)
 9520.85
6
 2.82951
(5,1)
uhlig 3  1:=1.15015\,{10}^{-15}
(14,1,1)
 2.65517
(28,14)
 1.78046
(28,14)
 1.45676
(28,13)
 8.57994\,{10}^{14}
14
 20.9358
(10,4)
uhlig 4  1:=1.18357\,{10}^{-15}
(6,1,1)
 2.2561
(12,6)
 1.00348
(12,6)
 14.7909
(12,5)
 10673.4
6
 34.6115
(5,1)
uhlig 5  1:=1.18357\,{10}^{-15}
(6,1,1)
 2.2561
(12,6)
 1.00348
(12,6)
 14.7909
(12,5)
 10673.4
6
 34.6115
(5,1)
uhlig 6  1:=1.60458\,{10}^{-15}
(6,1,1)
 7.32281
(12,6)
 38.3459
(12,6)
 13.4887
(12,4)
 7.63524\,{10}^{13}
6
 203.291
(4,2)
uhlig 7  1:=2.33332\,{10}^{-14}
(13,1,1)
 7.59657
(26,13)
 4.15248
(26,13)
 0.335751
(26,11)
 \Mvariable{NA}
13
 2.63499
(11,2)

Note:
 L, \tau, \theta, B, \vartheta, \phi, F
See Appendix B.1
 m, p
See Appendix B.2
 L, M_2
See Appendix B.3
 L, n_k
See Appendix B.4
 L
See Appendix B.5
 m, n
See Appendix B.6
KW, Sims, Klein, BP, Uhlig column normalized by dividing by comparable AIM value.


Table 7: Matlab Relative Errors in  B: King & Watson and Sims Examples
LaTex Encoded Math: \displaystyle \frac{ \parallel B_i- B_{exact} \parallel}{\parallel B_{exact} \parallel}
Model AIM
 (L,\tau,\theta)
KW
 (m,p)
Sims
 (L,M_2)
Klein
 (L,n_k)
BP
 L
Uhlig
 (m,n)
Computes  (B,\vartheta,\phi,F)  (B,\vartheta)  (B,\phi,F)  (B)  (B,\vartheta,\phi,F)  (B,\vartheta)
king 2  1:=0.
(3,1,1)
 3.65169\,{10}^{-16}
(6,3)
 1.61642\,{10}^{-16}
(6,3)
 0.
(6,1)
 0.
3
0
(2,1)
king 3  1:=0.
(3,1,1)
 0.
(6,3)
 2.22045\,{10}^{-16}
(6,3)
 2.49183\,{10}^{-15}
(6,1)
 0.
3
 \Mvariable{NA}
(2,1)
king 4  1:=2.25\,{10}^{-15}
(9,1,1)
 3.99199\,{10}^{-15}
(18,9)
 1.48492\,{10}^{-15}
(18,9)
 2.0552\,{10}^{-15}
(18,5)
 6.38338\,{10}^{-16}
9
 2.63969\,{10}^{-9}
(3,6)
sims 0  1:=0.
(5,1,1)
 8.84516\,{10}^{-17}
(10,5)
 3.57788\,{10}^{-16}
(10,5)
 2.34864\,{10}^{-16}
(10,3)
 \Mvariable{NA}
5
 5.55112\,{10}^{-17}
(4,1)
sims 1  1:=1.18603\,{10}^{-15}
(8,1,1)
 7.58081\,{10}^{-16}
(16,8)
 9.08685\,{10}^{-16}
(16,8)
 1.28298\,{10}^{-15}
(16,6)
 \Mvariable{NA}
8
 8.11729\,{10}^{-16}
(6,2)
klein 1  1:=1.29398\,{10}^{-14}
(3,1,1)
 3.2259\,{10}^{-14}
(6,3)
 8.72119\,{10}^{-14}
(6,3)
 1.76957\,{10}^{-13}
(6,1)
 4.54742\,{10}^{-10}
3
 4.61522\,{10}^{-13}
(1,2)
bp 1  1:=1.54607\,{10}^{-15}
(2,1,1)
 2.82325\,{10}^{-15}
(4,2)
 5.10874\,{10}^{-15}
(4,2)
 1.23685\,{10}^{-14}
(4,0)
 5.95443\,{10}^{-10}
2
 1.06208\,{10}^{-14}
(1,1)
bp 2  1:=5.00765\,{10}^{-16}
(5,1,1)
 5.15101\,{10}^{-15}
(10,5)
 5.52053\,{10}^{-15}
(10,5)
 5.21764\,{10}^{-15}
(10,1)
 7.14801\,{10}^{-16}
5
 3.98148\,{10}^{-14}
(4,1)

Note:
 L, \tau, \theta, B, \vartheta, \phi, F
See Appendix B.1
 m, p
See Appendix B.2
 L, M_2
See Appendix B.3
 L, n_k
See Appendix B.4
 L
See Appendix B.5
 m, n
See Appendix B.6
KW, Sims, Klein, BP, Uhlig column not normalized by dividing by comparable AIM value.


Table 8: Matlab Relative Errors in  \vartheta : Uhlig Examples
LaTex Encoded Math: \displaystyle \frac{ \parallel \vartheta_i- \vartheta_{exact} \parallel}{\parallel \vartheta_{exact} \parallel}
Model AIM
 (L,\tau,\theta)
KW
 (m,p)
Sims
 (L,M_2)
Klein
 (L,n_k)
BP
 L
Uhlig
 (m,n)
Computes  (B,\vartheta,\phi,F)  (B,\vartheta)  (B,\phi,F)  (B)  (B,\vartheta,\phi,F)  (B,\vartheta)
uhlig 0 1 := 9.66331 10-16
(4,1,1)
0.532995
(8,4)
NA
(8,4)
1.34518
(8,3)
159728.
4
9.54822
(3,1)
uhlig 1  1:=2.25938\,{10}^{-15}
(6,1,1
 3.78248
(12,6)
 \Mvariable{NA}
(12,6)
 2.32241
(12,5)
 5.30459\,{10}^6
6
 2.33909
(5,1)
uhlig 2  1:=5.05614\,{10}^{-15}
(6,1,1)
 0.43572
(12,6)
 \Mvariable{NA}
(12,6)
 2.62987
(12,5)
 1.51637\,{10}^6
6
 1.
(5,1)
uhlig 3  1:=8.93\,{10}^{-16}
(14,1,1)
 2.08127
(28,14)
 \Mvariable{NA}
(28,14)
 1.39137
(28,13)
 \Mvariable{NA}
14
 14.3934
(10,4)
uhlig 4  1:=0.0114423
(6,1,1)
 1.
(12,6)
 \Mvariable{NA}
(12,6)
 1.
(12,5
 0.999999
6
 1.
(5,1)
uhlig 5  1:=1.37388\,{10}^{-15}
(6,1,1)
 3.79327
(12,6)
 \Mvariable{NA}
(12,6)
 9.97923
(12,5)
 8.03937\,{10}^6
6
 12.2245
(5,1)
uhlig 6  1:=6.97247\,{10}^{-14}
(6,1,1)
 1.00929
(12,6)
 \Mvariable{NA}
(12,6)
 1.83538
(12,4)
 1.12899\,{10}^{13}
6
 27.5959
(4,2)
uhlig 7  1:=7.47708\,{10}^{-14}
(13,1,1)
 1.67717
(26,13)
 \Mvariable{NA}
(26,13)
 0.131889
(26,11)
 \Mvariable{NA}
13>
 0.665332
(11,2)

Note:
 L, \tau, \theta, B, \vartheta, \phi, F
See Appendix B.1
 m, p
See Appendix B.2
 L, M_2
See Appendix B.3
 L, n_k
See Appendix B.4
 L
See Appendix B.5
 m, n
See Appendix B.6
KW, Sims, Klein, BP, Uhlig column normalized by dividing by comparable AIM value.


Table 9: Matlab Relative Errors in  \vartheta : King & Watson and Sims Examples
LaTex Encoded Math: \displaystyle \frac{ \parallel \vartheta_i- \vartheta_{exact} \parallel}{\parallel \vartheta_{exact} \parallel}
Model AIM
 (L,\tau,\theta)
KW
 (m,p)
Sims
 (L,M_2)
Klein
 (L,n_k)
BP
 L
Uhlig
 (m,n)
Computes  (B,\vartheta,\phi,F)  (B,\vartheta)  (B,\phi,F)  (B)  (B,\vartheta,\phi,F)  (B,\vartheta)
king 2  1:=4.996\,{10}^{-16}
(3,1,1)
 4.996\,{10}^{-16}
(6,3)
 \Mvariable{NA}
(6,3)
 4.996\,{10}^{-16}
(6,1)
 4.996\,{10}^{-16}
3
 4.996\,{10}^{-16}
(2,1)
king 3  1:=2.58297\,{10}^{-15}
(3,1,1)
 5.02999\,{10}^{-15}
(6,3)
 \Mvariable{NA}
(6,3)
 6.42343\,{10}^{-15}
(6,1)
 2.58297\,{10}^{-15}
3
 \Mvariable{NA}
(2,1)
king 4  1:=3.45688\,{10}^{-16}
(9,1,1)
 1.12445\,{10}^{-15}
(18,9)
 \Mvariable{NA}
(18,9)
 8.40112\,{10}^{-16}
(18,5)>
 2.65811\,{10}^{-16}
9
 2.47355\,{10}^{-9}
(3,6)
sims 0  1:=7.66638\,{10}^{-16}
(5,1,1)
 7.85337\,{10}^{-16}
(10,5)
 \Mvariable{NA}
(10,5)
 9.53623\,{10}^{-16}
(10,3)
 \Mvariable{NA}
5
 7.66638\,{10}^{-16}
(4,1)
sims 1  1:=9.73294\,{10}^{-16}
(8,1,1)
 1.57671\,{10}^{-15}
(16,8)
 \Mvariable{NA}
(16,8)
 4.23589\,{10}^{-15}
(16,6)
 \Mvariable{NA}
8
 9.73294\,{10}^{-16}
(6,2)
klein 1  1:=2.33779\,{10}^{-15}
(3,1,1)
 1.9107\,{10}^{-14}
(6,3)
 \Mvariable{NA}
(6,3)
 1.07269\,{10}^{-13}
(6,1)
 2.3967\,{10}^{-9}
3
 2.66823\,{10}^{-13}
(1,2)
bp 1  1:=1.4802\,{10}^{-15}
(2,1,1)
 8.91039\,{10}^{-15}
(4,2)
 \Mvariable{NA}
(4,2)
 1.20169\,{10}^{-14}
(4,0)
 5.55737\,{10}^{-9}
2
 1.16858\,{10}^{-14}
(1,1)
bp 2  1:=6.1809\,{10}^{-16}
(5,1,1)
 1.25347\,{10}^{-15}
(10,5)
 \Mvariable{NA}
(10,5)
 1.3268\,{10}^{-15}
(10,1)
 6.1809\,{10}^{-16}
5
 8.9026\,{10}^{-15}
(4,1)

Note:
 L, \tau, \theta, B, \vartheta, \phi, F
See Appendix B.1
 m, p
See Appendix B.2
 L, M_2
See Appendix B.3
 L, n_k
See Appendix B.4
 L
See Appendix B.5
 m, n
See Appendix B.6
KW, Sims, Klein, BP, Uhlig column not normalized by dividing by comparable AIM value.
Table 10: Matlab Relative Errors in  F: Uhlig Examples
LaTex Encoded Math: \displaystyle \frac{ \parallel F_i- F_{exact} \parallel}{\parallel F_{exact} \parallel}
Model AIM
 (L,\tau,\theta)
KW
 (m,p)
Sims
 (L,M_2)
Klein
 (L,n_k)
BP
 L
Uhlig
 (m,n)
Computes  (B,\vartheta,\phi,F)  (B,\vartheta)  (B,\phi,F)  (B)  (B,\vartheta,\phi,F)  (B,\vartheta)
uhlig 0  1:=4.60411\,{10}^{-16}
(4,1,1)
 \Mvariable{NA}
(8,4)
 38.383
(8,4)
 \Mvariable{NA}
(8,3)
 6280.03
4
 \Mvariable{NA}
(3,1)
uhlig 1  1:=6.12622\,{10}^{-16}
(6,1,1)
 \Mvariable{NA}
(12,6)
 4.25457
(12,6)
 \Mvariable{NA}
(12,5)
 3126.17
6
 \Mvariable{NA}
(5,1)
uhlig 2  1:=6.13246\,{10}^{-16}
(6,1,1)
 \Mvariable{NA}
(12,6)
 3.58093
(12,6)
 \Mvariable{NA}
(12,5)
 3918.23
6
 \Mvariable{NA}
(5,1)
uhlig 3  1:=7.28843\,{10}^{-16}
(14,1,1)
 \Mvariable{NA}
(28,14)
 12.9392
(28,14)
 \Mvariable{NA}
(28,13)>
 1.40986\,{10}^{15}
14
 \Mvariable{NA}
(10,4)
uhlig 4  1:=6.03573\,{10}^{-16}
(6,1,1)
 \Mvariable{NA}
(12,6
 2.73637
(12,6
 \Mvariable{NA}
(12,5)
 1028.17
6
 \Mvariable{NA}
(5,1)
uhlig 5  1:=6.03573\,{10}^{-16}
(6,1,1)
 \Mvariable{NA}
(12,6)
 2.73637
(12,6)
 \Mvariable{NA}
(12,5)
 1028.17
6
 \Mvariable{NA}
(5,1)
uhlig 6  1:=6.0499\,{10}^{-16}
(6,1,1)
 \Mvariable{NA}
(12,6)
 308.153
(12,6)
 \Mvariable{NA}
(12,4)
 1.65292\,{10}^{13}
6
 \Mvariable{NA}
(4,2)
uhlig 7  1:=7.52423\,{10}^{-14}
(13,1,1)
 \Mvariable{NA}
(26,13)
 1.72491
(26,13)
 \Mvariable{NA}
(26,13)
 \Mvariable{NA}
13
 \Mvariable{NA}
(11,2)

Note:
 L, \tau, \theta, B, \vartheta, \phi, F
See Appendix B.1
 m, p
See Appendix B.2
 L, M_2
See Appendix B.3
 L, n_k
See Appendix B.4
 L
See Appendix B.5
 m, n
See Appendix B.6
KW, Sims, Klein, BP, Uhlig column normalized by dividing by comparable AIM value.



Table 11: Matlab Relative Errors in  F: King & Watson and Sims Examples
LaTex Encoded Math: \displaystyle \frac{ \parallel F_i- F_{exact} \parallel}{\parallel F_{exact} \parallel}
Model AIM
 (L,\tau,\theta)
KW
 (m,p)
Sims
 (L,M_2)
Klein
 (L,n_k)
BP
 L
Uhlig
 (m,n)
Computes  (B,\vartheta,\phi,F)  (B,\vartheta)  (B,\phi,F)  (B)  (B,\vartheta,\phi,F)  (B,\vartheta)
king 2  1:=7.49401\,{10}^{-16}
(3,1,1)
 \Mvariable{NA}
(6,3)
 1.36349\,{10}^{-15}
(6,3)
 \Mvariable{NA}
(6,1)
 7.49401\,{10}^{-16}
3
 \Mvariable{NA}
(2,1)
king 3  1:=3.9968\,{10}^{-16}
(3,1,1)
 \Mvariable{NA}
(6,3)
 6.53472\,{10}^{-15}
(6,3)
 \Mvariable{NA}
(6,1)
 3.9968\,{10}^{-16}
3
 \Mvariable{NA}
(2,1)
king 4  1:=2.13883\,{10}^{-15}
(9,1,1)
 \Mvariable{NA}
(18,9)
 2.58686\,{10}^{-15}
(18,9)
 \Mvariable{NA}
(18,5)
 7.29456\,{10}^{-16}
9
 \Mvariable{NA}
(3,6)
sims 0  1:=7.13715\,{10}^{-16}
(5,1,1)
 \Mvariable{NA}
(10,5)
 1.1917\,{10}^{-15}
(10,5)
 \Mvariable{NA}
(10,3)
 \Mvariable{NA}
5
 \Mvariable{NA}
(4,1)
sims 1  1:=2.41651\,{10}^{-15}
(8,1,1)
 \Mvariable{NA}
(16,8)
 2.92152\,{10}^{-15}
(16,8)
 \Mvariable{NA}
(16,6)
 \Mvariable{NA}
8
 \Mvariable{NA}
(6,2)
klein 1  1:=1.24387\,{10}^{-15}
(3,1,1)
 \Mvariable{NA}
(6,3)
 1.66911\,{10}^{-13}
(6,3)
 \Mvariable{NA}
(6,1)
 3.70873\,{10}^{-10}
3
 \Mvariable{NA}
(1,2)
bp 1  1:=4.43937\,{10}^{-16}
(2,1,1)
 \Mvariable{NA}(4,2)  7.51277\,{10}^{-15}
(4,2)
 \Mvariable{NA}
(4,0)
 5.03025\,{10}^{-11}
2
 \Mvariable{NA}
(1,1)
bp 2  1:=5.82645\,{10}^{-16}
(5,1,1)
 \Mvariable{NA}
(10,5)
 1.71285\,{10}^{-15}
(10,5)
 \Mvariable{NA}
(10,1)
 5.82645\,{10}^{-16}
5
 \Mvariable{NA}
(4,1)
Note:
 L, \tau, \theta, B, \vartheta, \phi, F
See Appendix B.1
 m, p
See Appendix B.2
 L, M_2
See Appendix B.3
 L, n_k
See Appendix B.4
 L
See Appendix B.5
 m, n
See Appendix B.6
KW, Sims, Klein, BP, Uhlig column not normalized by dividing by comparable AIM value.


Footnotes

1. I would like to thank Robert Tetlow, Andrew Levin and Brian Madigan for useful discussions and suggestions. I would like to thank Ed Yao for valuable help in obtaining and installing the MATLAB code. The views expressed in this document are my own and do not necessarily reflect the position of the Federal Reserve Board or the Federal Reserve System. Return to Text
2. Although (Broze, Gouriéroux, and Szafarz, 1995) and (Zadrozny, 1998) describe algorithms, I was unable to locate code implementing the algorithms. Return to Text
3.  (Blanchard and Kahn, 1980) developed conditions for existence and uniqueness of linear rational expectations models. In their setup, the solution of the rational expectations model is unique if the number of unstable eigenvectors of the system is exactly equal to the number of forward-looking (control) variables. Return to Text
4. I modified Klein's MATLAB version to include this functionality by translating the approach he used in his Gauss version. Return to Text
5. I computed exact solutions when this took less than 5 minutes and solutions correct to 30 decimal places in all other cases. Return to Text
6. To compare  F for Sims note that
LaTex Encoded Math: \displaystyle \Psi=I_{L}
LaTex Encoded Math: \displaystyle F = ( \Theta_y . \Theta_f) \Phi^{-1}_{exact}

Return to Text
7. I modified Klein's MATLAB version to include this functionality by translating the approach he used in his Gauss version. Return to Text
8. http://www.bog.frb.fed.us/pubs/oss/oss4/aimindex.html July, 1999. Return to Text
9. The Gauss version allows additional functionality. Return to Text

This version is optimized for use by screen readers. A printable pdf version is available.
