Is There a Fiscal Free Lunch in a Liquidity Trap?^**

Christopher J. Erceg¹ and Jesper Lindé

NOTE: International Finance Discussion Papers are preliminary materials circulated to stimulate discussion and critical comment. References in publications to International Finance Discussion Papers (other than an acknowledgment that the writer has had access to unpublished material) should be cleared with the author or authors. Recent IFDPs are available on the Web at http://www.federalreserve.gov/pubs/ifdp/. This paper can be downloaded without charge from the Social Science Research Network electronic library at http://www.ssrn.com/.

Abstract:

This paper uses a DSGE model to examine the effects of an expansion in government spending in a liquidity trap. If the liquidity trap is very prolonged, the spending multiplier can be much larger than in normal circumstances, and the budgetary costs minimal. But given this "fiscal free lunch," it is unclear why policymakers would want to limit the size of fiscal expansion. Our paper addresses this question in a model environment in which the duration of the liquidity trap is determined endogenously, and depends on the size of the fiscal stimulus. We show that even if the multiplier is high for small increases in government spending, it may decrease substantially at higher spending levels; thus, it is crucial to distinguish between the marginal and average responses of output and government debt.

Keywords: Monetary policy, fiscal policy, liquidity trap, zero bound constraint, DSGE model

JEL classification: E52, E58

1.  Introduction

During the past two decades, a voluminous empirical literature has attempted to gauge the effects of fiscal policy shocks. This literature has been instrumental in identifying the channels through which fiscal policy affects the economy, and, in principle, would seem a natural guidepost for policymakers seeking to assess how alternative fiscal policy actions could mitigate business cycle fluctuations.

However, it is unclear whether estimates of the effects of fiscal policy from this empirical literature - which focuses almost exclusively on the postwar period - should be regarded as applicable under conditions of a recession-induced liquidity trap.² Keynes (1933, 1936) argued in support of aggressive fiscal expansion during the Great Depression exactly on the grounds that the fiscal multiplier was likely to be much larger during a severe economic downturn than in normal times, and the burden of financing it correspondingly lighter.

In this paper, we use a New-Keynesian DSGE modeling framework to examine the implications of an increase in government spending for output and the government budget when monetary policy faces a liquidity trap. A key advantage of the DSGE framework is that it allows explicit consideration of how the conduct of monetary policy - and, in particular, the zero bound constraint on nominal interest rates - affects the multiplier.

We begin by showing that the government spending multiplier can be amplified substantially in the presence of a prolonged liquidity trap. This corroborates analysis by Eggertson (2008) and Davig and Leeper (2009), which shows that government spending can have outsized effects when monetary policy allows real interest rates to fall, and recent work by Christiano, Eichenbaum and Rebelo (2009) in a model with endogenous capital accumulation.³ While our workhorse model is a variant of the Christiano, Eichenbaum and Evans (2005) and Smets-Wouters (2007) models, we show that the spending multiplier is even larger in versions that embed hand-to-mouth agents (as in Galí, López-Salido, and Vallés 2007) and financial frictions (as in Bernanke, Gertler, and Gilchrist 1999, and Christiano, Motto, and Rostagno 2007). Moreover, an increase in government spending against the backdrop of a deep liquidity trap puts less upward pressure on public debt than under normal circumstances, reflecting that the larger output response translates into much higher tax revenues.

At first blush, these results seem highly supportive of Keynes' argument for fiscal expansion in response to a recession-induced liquidity trap - the benefits are extremely high, and the budgetary expense to achieve it very low. But this raises the important question of why policymakers would want to limit the magnitude of fiscal expansion, and thus pass up on what appears to be a "fiscal free lunch."

Our paper addresses this question by showing that the spending multiplier in a liquidity trap decreases with the level of government spending. The novel feature of our approach is to allow the economy's exit from a liquidity trap - and return to conventional monetary policy - to be determined endogenously, with the consequence that the multiplier depends on the size of the fiscal response. Quite intuitively, a large fiscal response pushes the economy out of a liquidity trap more quickly. Because the multiplier is smaller upon exiting the liquidity trap - reflecting that monetary policy reacts by raising real interest rates - the marginal impact of a given-sized increase in government spending on output decreases with the magnitude of the spending hike. This dependence of the government spending multiplier on the scale of fiscal expansion evidently contrasts with a standard linear framework in which the multiplier is invariant to the size of the spending shock.⁴

The implication that the multiplier declines in the level of spending provides a potentially important rationale for limiting the size of fiscal spending packages in a liquidity trap. If so, it becomes crucial to characterize the marginal response of output and public debt to higher government spending to make informed choices about the appropriate scale of fiscal intervention in a liquidity trap. A major focus of our paper consists of providing such a quantitative characterization in an array of nested DSGE models.

Section 2 analyzes the effects of government spending shocks in a simple three equation New Keynesian model in which policy rates are constrained by the zero lower bound. Similar to previous research (e.g., Eggertson 2008), the liquidity trap is generated by an adverse taste shock that sharply depresses the potential real interest rate. A key result of our analysis is that the government spending multiplier - measured as the contemporaneous impact on output of a very small increment in government spending - is a step function in the level of government spending. If the level of spending is sufficiently small, higher government spending does not affect the economy's exit date from the liquidity trap, and the multiplier is constant at a value that is higher than in a normal situation in which monetary policy would raise real interest rates. However, as spending rises to higher levels, the economy emerges from the liquidity trap more quickly, and the multiplier drops. The multiplier continues to drop discretely as government spending rises further - reflecting a progressive shortening of the liquidity trap - until spending is high enough to keep the economy from falling into a liquidity trap. Beyond this level of spending, the multiplier levels out at a value equal to that under normal conditions in which policy rates are unconstrained.

The simple New Keynesian model is a convenient tool for illustrating the salient role of inflation expectations in determining how the multiplier varies with the level of government spending. If prices are fairly responsive to marginal cost - as implied by relatively short-lived price contracts - the multiplier is extremely high for small increments to government spending, but drops quickly at higher spending levels. Thus, the large multipliers that apply to small fiscal expansion should not be inferred to carry over to much larger fiscal expansions, and it is particularly important to take account of the endogeneity of the multiplier under such conditions. By contrast, the multiplier function is much flatter if the slope of the Phillips Curve is lower, and even at low spending levels it isn't dramatically different than in normal times.

The simple model is also convenient tool for assessing other empirically relevant factors that may affect the multiplier, including implementation lags in spending. Implementation lags may dampen the multiplier significantly, and even cause the multiplier to be negative if the lags are sufficiently long. Thus, echoing Friedman (1953), the efficacy of fiscal policy in macroeconomic stabilization - even in a liquidity trap - can be hampered by "long and variable lags."

The implications of the stylized model prove useful in interpreting the behavior of the government spending multiplier in more empirically-realistic models. In Section 3, we analyze a workhorse model that is very similar to the estimated models of Christiano, Eichenbaum and Evans (2005) and Smets and Wouters (2007). Section 4 extends the workhorse model by including both "Keynesian" hand-to-mouth agents and financial frictions. These additional features boost the multiplier by amplifying the effects of government spending shocks on the potential real interest rate; moreover, as argued by Galí, López-Salido, and Vallés (2007), the inclusion of Keynesian households can help account for the positive response of private consumption to a government spending shock documented in structural VAR studies by e.g., Blanchard and Perotti (2002) and Perotti (2007).⁵ Given the relevance of initial conditions that determine the duration and depth of the liquidity trap for the spending multiplier, we analyze the multiplier against the backdrop of a "severe recession scenario" that attempts to capture some of the features of the U.S. experience during the recent financial crisis. For each model variant, such a scenario is constructed by a sequence of adverse consumption demand shocks that depress output by about 8 percent relative to steady state, and that generate a liquidity trap lasting eight quarters.

In our workhorse model, the multiplier implied by a standard-sized 1 percent of GDP increase in government spending is 1.0 in the first four quarters following the shock The multiplier is 1.6 in the augmented model when the share of "Keynesian" households - those that consume their entire after-tax income - equals 50 percent, which would seem at the upper end of the plausible range. Under either model variant, the multiplier is considerably larger and more persistent that under normal conditions in which monetary policy would rates interest rates immediately, and the outsized output effects imply a smaller rise in government debt. Even so, the multiplier declines noticeably as the fiscal spending package exceeds 2-3 percent of GDP, reflecting that stimulus of that magnitude is sufficient to reduce the duration of the liquidity trap by a couple of quarters; for example, the multiplier drops from 1.0 to 0.7 in the workhorse model. Moreover, implementation lags can markedly reduce the multiplier. Thus, against the backdrop of an eight quarter liquidity trap, there may be substantial benefits of increasing some forms of spending that have short implementation lags; but arguments favoring such programs based on an outsized multiplier would seem to apply only for spending packages fairly modest in scale.

The government spending multiplier under our benchmark calibration increases markedly as the liquidity trap duration extends much beyond two years, mainly reflecting that expected inflation becomes much more responsive to shocks. With the high multiplier, government debt falls sharply, so that the fiscal expansion more than pays for itself. However, while such conditions of deep recession provide a strong rationale for fiscal activism, our analysis shows that the multiplier under these conditions tends to drop sharply in the level of government spending. For example, in the workhorse model with an 11 quarter liquidity trap, the multiplier is 3.3 for small increases in government spending, but declines to 1.2 as spending rises above 2 percent of GDP. Intuitively, just as small adverse shocks can exert a large contractionary impact in a long-lived liquidity trap and deep recession, small fiscal expansions may be highly effective in mitigating the recession; but with a shallower recession, the benefits of additional stimulus drop substantially.

We conduct extensive sensitivity analysis to assess how the relationship between the multiplier and level of government spending is affected by the slopes of the price- and wage-setting schedules. Our benchmark calibration implies a fairly sluggish price and wage adjustment, with the slopes of the price- and wage-setting schedules at the lower end of empirical estimates: for example, price contracts have an effective duration of ten quarters.⁶ If both prices and wages were more responsive, the multiplier could be very high even for a liquidity trap lasting under two years; under such conditions, fiscal policy would be a very potent tool for reversing the sizeable deflationary pressures that would occur in the wake of recession.⁷ However, the multiplier also drops abruptly with the size of the fiscal stimulus, as greater stimulus shortens the duration of the liquidity trap. Thus, with four quarter price and wage contracts, the multiplier exceeds $10$ in our workhorse model for a very small increase in spending, but drops to unity when government spending is boosted more than 1 percent of GDP. Given the resilence of short-run expected inflation during the past recession, we are somewhat skeptical of calibrations that imply such extreme variations in the multiplier across spending levels. But at the least, our analysis underscores that the multiplier tends to decline sharply in the level of government spending under exactly the same conditions that are favorable to a high multiplier, i.e., when expected inflation is highly responsive.

Taken together, our results suggest a somewhat nuanced view of the role of fiscal policy in a liquidity trap. For an economy facing a deep recession that appears likely to keep monetary policy constrained by the zero bound for well over two years, there is a strong argument for increasing government spending on a temporary basis. Consistent with the views originally espoused by Keynes, this temporary boost can have much larger effects than under usual conditions, and comes at a low cost to the Treasury. But as the multiplier can drop quickly with the level of fiscal spending, larger spending programs may suffer from sharply diminishing returns, and may increase government debt at the margin. Against the backdrop of a shorter-lived liquidity trap of less than two years, the multiplier is probably only slightly above unity even in the ideal situation in which fiscal stimulus can be implemented immediately. Such an environment clearly presents more risks that a fiscal spending program will fall short of the objective of producing a large output gain at minimal public cost, especially if the stimulus plan is large in scale and has substantial implementation lags.

2.  A Stylized New Keynesian Model

As in Eggertsson and Woodford (2003), we use a standard log-linearized version of the New Keynesian model that imposes a zero bound constraint on interest rates. Our framework allows exit from the liquidity trap to be determined endogenously, rather than fixed arbitrarily, an innovation that is crucial in showing how the multiplier varies with the level of fiscal spending.

2.1  The Model

The key equations of the model are:

$$x_{t}=x_{t+1\vert t}-\hat{\sigma}{(i_{t}-\pi_{t+1\vert t}-r_{t}^{pot}),}$$ (1)

$$\pi_{t}=\beta\pi_{t+1\vert t}+\kappa_{p}{x_{t},}$$ (2)

$$i_{t}=\max\left( -i, \gamma_{\pi}\pi_{t}+ \gamma_{x}x_{t} \right) ,$$ (3)

$$r_{t}^{pot}=\frac{1}{\hat{\sigma}}\left( 1-\frac{1}{\phi_{mc}\hat{\sigma} }\right) \left[ g_{y}{(g_{t}-g_{t+1\vert t})}+(1-g_{y})\nu_{c}(\nu_{t} -\nu_{t+1\vert t})\right]$$ (4)

where $\hat{\sigma}$, $\kappa_{p}$, and $\phi_{mc}$ are composite parameters defined as:

$$\hat{\sigma}=\sigma(1-g_{y})(1-\nu_{c})$$ (5)

$$\kappa_{p}=\frac{(1-\xi_{p})(1-\beta\xi_{p})}{\xi_{p}}\phi_{mc}$$ (6)

$$\phi_{mc}=\frac{\chi}{1-\alpha}+\frac{1}{\hat{\sigma}}+\frac{\alpha}{1-\alpha }$$ (7)

and where $x_{t}$ is the output gap, $\pi_{t}$ is the inflation rate, $i_{t}$ is the short-term nominal interest rate, and $r_{t}^{pot}$ is the potential (or "natural") real interest rate. All variables are measured as percent or percentage point deviations from their steady state level.⁸

Equation (1) expresses the "New Keynesian" IS curve in terms of the output and real interest rate gaps. Thus, the output gap $x_{t}$ depends inversely on the deviation of the real interest rate ( $i_{t} -\pi_{t+1\vert t}$) from its potential rate $r_{t}^{pot}$, as well as directly on the expected output gap in the following period. The parameter $\hat{\sigma }$ determines the sensitivity of the output gap to the real interest rate; as indicated by (5), it depends on the household's intertemporal elasticity of substitution in consumption $\sigma$, the steady state government spending share of output $g_{y}$, and a (small) adjustment factor $\nu_{c}$ which scales the consumption taste shock $\nu_{t}$. The price-setting equation (2) specifies current inflation to depend on expected inflation and the output gap, where the sensitivity to the latter is determined by the composite parameter $\kappa_{p}$. Given the Calvo-Yun contract structure, equation (6) implies that $\kappa_{p}$ varies directly with the sensitivity of marginal cost to the output gap $\phi_{mc},$ and inversely with the mean contract duration ( $\frac{1}{1-\xi_{p}}$). The marginal cost sensitivity equals the sum of the absolute value of the slopes of the labor supply and labor demand schedules that would prevail under flexible prices: accordingly, as seen in equation (7), $\phi_{mc}$ varies inversely with the Frisch elasticity of labor supply $\frac{1}{\chi}$, the composite parameter $\hat{\sigma}$ determining the interest-sensitivity of aggregate demand, and the labor share in production $(1-\alpha).$

Equation (4) indicates that the potential real interest rate is driven by two exogenous shocks, including a consumption taste shock $\nu_{t}$ and government spending shock $g_{t}$. Each shock, if positive, raises the marginal utility of consumption associated with any given output level, which puts upward pressure on the real interest rate if the shock is front-loaded.⁹ The consumption taste shock and government spending shock are assumed to follow an AR(1) process with the same persistence parameter $(1-\rho_{\nu}),$ e.g., the taste shock follows:

$$\nu_{t}=(1-\rho_{\nu})\nu_{t-1}+\varepsilon_{\nu,t},$$ (9)

Given the same stochastic structure for the shocks, it is evident from equation (4) that these shocks affect the potential real interest rate in an identical way.

The log-linearized equation for the stock of government debt - assuming for simplicity that the steady state government debt stock is zero - is given by:

$$b_{t}=(1+r)b_{t-1}+g_{y}(g_{t}-l_{t}-\zeta_{t})-\tau_{t},$$ (10)

where $l_{t}$ is labor hours, $\zeta_{t}$ is the real wage, $b_{t}$ is end-of-period government debt, and $\tau_{t}$ is a lump-sum tax (with both $b_{t}$ and $\tau_{t}$ expressed as a share of steady state GDP). The government derives tax revenue from a fixed tax on labor income $\tau_{L}$, and from the time-varying lump-sum tax $\tau_{t}$. The tax rate $\tau_{L}$ is set so that government spending is financed exclusively by the distortionary labor tax in the steady state. Lump-sum taxes adjust according to the reaction function:

$$\tau_{t}=\varphi_{\tau}\tau_{t-1}+\varphi_{b}b_{t-1},$$ (11)

Given that agents are Ricardian and that only lump-sum taxes adjust dynamically, the fiscal rule only affects the evolution of the stock of debt and lump-sum taxes, with no effect on other macro variables. In Section 3, we consider the implications of rules in which distortionary taxes adjust dynamically.

Our benchmark calibration is fairly standard. The model is calibrated at a quarterly frequency. We set the discount factor $\beta=0.995,$ and the steady state net inflation $\pi=.005$; this implies a steady state interest rate of $i=.01$ (one percent at a quarterly rate, or four percent at an annualized rate). We set the intertemporal substitution elasticity $\sigma=1$ (i.e., logarithmic period utility)$,$ the capital share parameter $\alpha=0.3,$ the Frisch elasticity of labor supply $\frac{1}{\chi} =0.4,$ the government share of steady state output $g_{y}=0.2,$ and the scale parameter on the consumption taste shock $\nu_{c}=0.01.$ We examine a range of values of the price contract duration parameter $\xi_{p}$ to highlight the senstivity of the fiscal multiplier to the Phillips Curve slope $\kappa_{p}.$ It is convenient to assume that monetary policy would completely stabilize output and inflation in the absence of a zero bound constraint, which can be regarded as a limiting case in which the coefficient on inflation $\gamma_{\pi}$ in the interest rate reaction function becomes arbitrarily large. The parameters of the tax rule are set so that $\varphi_{b}=$ .01, and $\varphi_{\tau}=$ .98. Importantly, the very small value of the coefficient $\varphi_{b}$ implies that the contribution of lump-sum taxes to the response of government debt is extremely small in the first couple of years following a shock (so that almost all variation in tax revenue comes from fluctuations in labor tax revenues). Finally, the preference and government spending shocks are assumed to follow the AR(1) process in equation (9) with persistence of $0.9$, so that $\rho_{\nu}=0.1$.

2.2  Impulse Responses to a Front-Loaded Rise in Government Spending

The effects of fiscal policy in a liquidity trap depend on agents' perceptions about how long the liquidity trap would last in the absence of fiscal stimulus, as well as the severity of the associated recession.¹⁰ Thus, we must first specify a shock(s) that pushes the economy into a liquidity trap, and then consider how fiscal policy operates against the backdrop of these initial conditions. Clearly, a number of different shocks could cause the "notional" interest rate - the level of the interest rate if monetary policy were unconstrained - to fall persistently below zero, and consequently generate a liquidity trap.

For simplicity, we follow the recent literature - including Eggertson and Woodford $(2003$), and Eggertson ($2009$), and Adam and Billi ($2008$) - by assuming that the liquidity trap is caused by an adverse taste shock $\nu_{t}$ that sharply depresses the potential real interest rate $r_{t}^{pot}.$ The response of $r_{t}^{pot}$ to the adverse taste shock is depicted by the solid line in Figure 1a. Given the assumption that monetary policy would fully stabilize inflation and the output gap if feasible, the nominal interest rate $i_{t}$ simply tracks $r_{t}^{pot}$ provided that the implied nominal rate is non-negative (i.e., $i_{t}$ = $r_{t}^{pot}$, recalling that both variables are measured as percentage point deviations from baseline). The concurrence of the nominal and potential real interest rate is apparent in Figure 1a beginning in period $T_{n}$, which is the first period in which $r_{t}^{pot}$ exceeds $-i=-1$ percent (the figure shows the annualized interest rate, so -4 percent). However, because $r_{t}^{pot}<-i$ $\$prior to $T_{n}$, equations (1)-(3) imply that the nominal interest rate must equal its lower bound of $-i$. The taste shock is scaled so that the liquidity trap lasts for $T_{n}=8$ quarters.

The solid lines in Figure 2 shows the effects of the taste shock on the output gap, inflation, the real interest rate, and government debt (relative to baseline GDP). To highlight the role of expected inflation in amplifying the effects of the shock, it is useful to begin by illustrating the effects in a limiting case in which inflation (and hence expected inflation) is constant. This is achieved by assuming that the average duration of price contracts is arbitrarily long, so that $\kappa_{p}$ (in equation 2) is close to zero.¹¹ The left column of Figure 2 shows this limiting case. The real interest rate declines in lockstep with the nominal interest rate (i.e., by $i$ = 4 percent). However, because the potential interest rate declines by more, and remains persistently below $-i,$ output falls persistently below potential. The government debt/GDP ratio increases substantially, mainly because revenue from the labor income tax declines in response to lower labor demand and falling real wages.

We next consider the effect of a one percentage point of (steady state) GDP rise in government spending against this backdrop. As seen in Figure 1a, the higher government spending simply offsets some of the decline in $r_{t}^{pot}$ induced by the negative taste shock, so that the path of $r_{t}^{pot}$ shifts upward in a proportional manner. Because the government spending hike is too small to affect the duration of the liquidity trap, monetary policy continues to hold the nominal interest rate unchanged for $T_{n}=$ 8 quarters. As seen in the left column of Figure 2, this invariance of the nominal rate implies that the higher government spending has no effect on the path of the real interest rate (dashed lines) over this period. Accordingly, the output gap is less negative in response to the combined shocks, since the real interest rate remains unchanged even though the potential real interest rate path is higher. The (partial) effect of the government spending rise - the difference between the response to the combined shocks and taste shock alone - is depicted by the dash-dotted line(s) in the figure. Recalling that government spending has no effect on the output gap outside of the liquidity trap, and only affects potential output, the spending multiplier is clearly larger in a liquidity trap. The higher government spending has virtually no effect on the path of government debt: with the outsized multiplier, tax revenues rise enough to finance the fiscal expansion.

The government spending multiplier $\frac{1}{g_{y}}\frac{dy_{t}}{dg_{t}}$, i.e., the percentage increase in output in response to a one percent of baseline GDP rise in government spending, is about 0.7 in this case. The multiplier is the sum of the output gap response of nearly 0.5 shown in the figure, plus the effect on potential output (not shown)$.$ The multiplier is amplified substantially more when expected inflation responds to shocks, as illustrated in the right column of Figure 2 for a calibration implying a mean duration of price contracts of 5 quarters ( $\xi_{p}=0.8$). In this case, the negative output gap due to the taste shock causes inflation to fall persistently (solid lines). With expected inflation falling more than the nominal interest rate, the real interest rate rises, which reinforces the contraction in output. Thus, the same-sized fall in $r_{t}^{pot}$ has much larger adverse effects on output when expected inflation reacts. $\$Conversely, in addition to boosting $r_{t}^{pot},$ higher government spending causes expected inflation to rise, and hence exerts a more stimulative effect on output than when expected inflation remains constant. The peak output gap response of 1.8 seen in the figure implies a spending multiplier of 2.1, and translates into a substantial and persistent reduction in government debt.

2.3  The Multiplier and the Size of Fiscal Spending

In the log-linearized model that ignores the zero bound constraint, the government spending multiplier is invariant to the size of the change in spending. By contrast - as we next proceed to show - the multiplier in a liquidity trap declines in the level of government spending. Intuitively, this behavior reflects that the multiplier varies positively with the duration of the liquidity trap, and that the duration shortens as the level of spending rises.

Because government spending and taste shocks have the same linear effects on $r_{t}^{pot}$, and only $r_{t}^{pot}$ matters for the output gap and inflation response, it is convenient to simply analyze how $r_{t}^{pot}$ affects those variables in a liquidity trap. Solving the IS curve forward yields:

$$x_{t}=-\hat{\sigma}\sum_{j=0}^{T_{n}-1}(-i-r_{t+j\vert t}^{pot})+\hat{\sigma} \sum_{j=1}^{T_{n}}\pi_{t+j\vert t}+x_{T_{t}\vert t}$$ (12)

The output gap $x_{t}$ in the current period depends on four terms. First, it depends on the cumulative gap between the nominal interest rate $-i$ and the potential real interest rate over the interval in which the economy remains in a liquidity trap. This cumulative interest rate gap $\sum _{j=0}^{T_{n}-1}(-i-r_{t+j\vert t}^{pot})$ can be interpreted as indicating how shocks to the potential real interest rate would affect the output gap if expected inflation remained constant. Second, the output gap depends on cumulative expected inflation over the liquidity trap (or equivalently, the log change in the price level $log(P_{Tn})-log(P_{t})$); as indicated above, the effects of shocks to the potential real rate on the output gap can be amplified through changes in expected inflation. Third, the current output gap also depends on the expected output gap $x_{T_{n}\vert t}$ when the economy exits the liquidity trap, though both the terminal output gap and inflation terms drop under the assumption that monetary policy completely stabilizes the economy ( $x_{T_{n\vert t}}=\pi_{Tn\vert t}=0$). Finally, the exit date $T_{n}$ is determined endogenously as the first period in which the expected potential real interest rate exceeds $-i.$ Thus:

$$T_{n}=\min_{j}(r_{t+j\vert t}^{pot}>-i)$$ (13)

In general, this exit date depends both on the size and persistence of the shocks to $r_{t}^{pot}.$ The relation between the exit date and $r_{t}^{pot}$ under our baseline calibration - in which both the taste and government spending shocks follow an AR(1) with persistence equal to $(1-\rho_{\nu})=0.9$ - is shown in Figure 1b. Because the exit date is only affected as $r_{t}^{pot}$ exceeds certain threshold values, it is a step function in the level of $\ r_{t}^{pot}$ (rising as $r_{t}^{pot}$ assumes more negative values)$.$ Thus, a slightly larger adverse taste shock that caused $r_{t}^{pot}$ to drop more than shown in Figure 1a would leave the duration of the liquidity trap unchanged at 8 quarters; but a large enough adverse shock would extend the duration of the trap, and a sufficiently smaller shock would shorten it.

In the limiting case in which expected inflation remains constant, we can derive a simple closed form solution for the multiplier. Because $r_{t}^{pot}$ follows an AR(1) with persistence parameter 1- $\rho_{v} ,$ equation (12) implies that the output gap $x_{t}$ equals:

$$x_{t}=-\hat{\sigma}\sum_{j=0}^{T_{n}-1}(-i-(1-\rho_{v})^{j}r_{t}^{pot} )=-\hat{\sigma}iT_{n}+\hat{\sigma}r_{t}^{pot}\frac{1-(1-\rho_{v})^{T_{n}} }{\rho_{v}}<0$$ (14)

For changes in government spending that are small enough to keep the liquidity trap duration unchanged at $T_{n}$ periods, the multiplier $\frac {1}{g_{y}}\frac{dy_{t}}{dg_{t}}$ is derived by differentiating equation (14) with respect to $g_{t},$ and adding the effect on potential output: ( $\frac{dy_{t}^{pot}}{dg_{t}})$

$$\frac{1}{g_{y}}\frac{dy_{t}}{dg_{t}}=\frac{1}{g_{y}}\frac{d(y_{t}-y_{t} ^{pot}+y_{t}^{pot})}{dg_{t}}=\frac{1}{g_{y}}(\frac{dx_{t}}{dg_{t}} +\frac{dy_{t}^{pot}}{dg_{t}})=\hat{\sigma}\frac{1-(1-\rho_{v})^{T_{n}}} {\rho_{v}}\frac{1}{g_{y}}\frac{dr_{t}^{pot}}{dg_{t}}+\frac{1}{g_{y}} \frac{dy_{t}^{pot}}{dg_{t}}$$ (15)

The first term - the output gap component - is positive. It varies directly with the duration of the underlying liquidity trap $T_{n}$ (induced by the taste shock), reflecting that fiscal policy can only affect the output gap over the period in which the economy remains in the trap. The second term $\frac{1}{g_{y}}\frac{dy_{t}^{pot}}{dg_{t}}$ is equal to the spending multiplier in the flexible price equilibrium, as well as during normal times given our assumption that monetary policy, if unconstrained, keeps output at potential. The latter may be expressed as $\frac{1}{g_{y}}\frac{dy_{t} ^{pot}}{dg_{t}}=\frac{1}{\phi_{mc}\hat{\sigma}}<1$ $($since $\phi_{mc} \hat{\sigma}=1+\frac{(\alpha+\chi)\hat{\sigma}}{1-\alpha}>1).$

Substituting $\frac{1}{g_{y}}\frac{dr_{t}^{pot}}{dg_{t}}=\frac{1}{\hat{\sigma }}(1-\frac{1}{\phi_{mc}\hat{\sigma}})\rho_{v}$ into equation (15), the multiplier can be expressed in the simple form:

$$\frac{1}{g_{y}}\frac{dy_{t}}{dg_{t}}=1-(1-\frac{1}{\phi_{mc}\hat{\sigma} })(1-\rho_{v})^{T_{n}}$$ (16)

The solid lines in the upper left panel of Figure 3 show how the marginal multiplier varies with the duration of the liquidity trap, where the latter is indicated by the tick marks along the upper axis. The multiplier associated with a tiny increment to government spending in an 8 quarter liquidity trap is about 0.7, but rises to about 0.8 against the backdrop of an 11 quarter liquidity trap (caused by a larger contractionary taste shock than in Figure 1a). The multiplier increases monotonically with the duration of the trap, but in a concave manner; and importantly, the multiplier remains less than or equal to unity provided that the liquidity trap is of finite duration, however long.

These results provide a key stepping stone for understanding how the multiplier varies with the size of the increase in government spending. While the foregoing analysis examined the effects of tiny increments to government spending against the backdrop of different initial conditions (i.e., associated with liquidity traps of varying length), we now take "initial conditions" - summarized by a given-sized taste shock - as fixed, and assess how increases in government spending affect the multiplier by reducing the duration of the liquidity trap. For a liquidity trap of duration $T_{n}$ induced by the taste shock, the government spending multiplier remains constant at the value implied by equation (15) until government spending exceeds a threshold level g$_{t}(0)$ that boosts the potential real interest rate just enough to shorten the liquidity trap by one period (with this threshold determined by equation 13). The multiplier then jumps down to the level implied by a $T_{n-1}$ period trap, where it remains constant for sufficiently small additional increments to spending.

In this vein, the upper left panel of Figure 3 can be reinterpeted as showing how the multiplier varies with alternative levels of government spending. For concreteness, we assume that the liquidity trap is generated by the same adverse taste shock shown in Figure 1a, so that the "0" government spending level on the lower horizontal axis implies an 8 quarter liquidity trap (shown by the tick mark on the upper horizontal axis). For a government spending hike of less than 1.2 percent of GDP, the duration of the liquidity trap remains unchanged at $T_{n}$ = 8 quarters, and the multiplier of about 0.7 equals to the impact multiplier shown in Figure 2. If government spending increases more than 1.2 percent, but less than 3.1 percent, the liquidity trap is shortened by one period, and the multiplier falls discontinuously (to the value implied by equation (15) with $T_{n}$ = 7). The multiplier continues to decline in a step-wise fashion - with equation (13) implicitly determining the threshold levels of spending at which the multiplier drops discontinuously - until leveling off at a constant value of $\frac{1}{g_{y}}\frac{dy_{t}^{pot} }{dg_{t}}$ corresponding to a spending level high enough to keep the economy from entering a liquidity trap.¹² Given that the multiplier declines with spending, the average change in output per unit increase in government spending $\frac {1}{g_{y}}\frac{\Delta y_{t}}{\Delta g_{t}}$ lies well above the marginal response $\frac{1}{g_{y}}\frac{dy_{t}}{dg_{t}};$ to differentiate between these concepts in the figure, the former is labeled the "average multiplier," and the latter the "marginal multiplier" (in a slight abuse of terminology, since the multiplier is inherently a marginal concept).

The relationship between the multiplier and level of government spending can be given an alternative graphical interpretation using Figure 1a. Recall that absent any fiscal response, the adverse taste shock would depress the path of the potential real interest rate as shown by the solid line (labeled "taste shock only"). The effect on the output gap is proportional to $\sum_{j=0}^{T_{n}-1}(-i-r_{t+j\vert t}^{pot}),$ which is simply the sum of the bold vertical line segments between $-i$ and the path of $r_{t+j}^{pot}$ (the "interest rate gaps") implied by the taste shock through period $T_{n-1}.$ Our assumption that the economy would gradually recover even in the absence of a fiscal response is reflected in the substantial narrowing of the interest rate gap at longer horizons, which in turn allows modest fiscal stimulus to shrink the duration of the trap. Even so, the 1 percent of GDP rise in government spending shown by the dashed line leaves the liquidity trap duration unchanged, implying that the the higher government spending narrows the gap between between $-i$ and $r_{t+j}^{pot}$ over a full $T_{n}=8$ periods. The quantitative effect on the output gap of incremental spending is equal to $\hat{\sigma}\frac{1-(1-\rho_{v})^{8}}{\rho_{v}} \frac{dr_{t}^{pot}}{dg_{t}}dg_{t}>0.$ But as government spending rises above the threshold of 1.2 percent of GDP, the potential interest rate at $T_{n-1}$ rises above $-i$ , and the liquidity trap duration shortens to 7 quarters. Thus, increments to spending in the range of 2 percent of GDP (the dash-dotted line) have no effect on the interest rate gap at $T_{n-1},$ as the increase in the potential real rate due to the spending increment is completely offset by monetary policy. Accordingly, the fiscal impulse only shrinks the interest rate gaps for 7 periods, and the incremental effect on the output gap falls to $\hat{\sigma}\frac{1-(1-\rho_{v})^{7}}{\rho_{v}} \frac{dr_{t}^{pot}}{dg_{t}}dg_{t}.$

The "outsized" multiplier in a liquidity trap implies that small increases in government spending have essentially no impact on government debt. This is shown in the upper right panel of Figure 3, which plots the response of government debt after four quarters (relative to baseline GDP) as a function of the level of government spending. However, larger spending increments clearly boost government debt, reflecting that the multiplier falls as spending rises.

The variation in the multiplier with the level of spending is more pronounced in the plausible case in which the Phillips Curve is upward-sloping. When expected inflation responds, movements in the potential real interest rate $r_{t}^{pot}$ have larger effects on the output gap than implied by equation (14), so that the same taste shock has a larger contractionary effect, and higher government spending has a more stimulative effect. To see how the effects of variation in $r_{t}^{pot}$ are magnified, equations (1) and (2) can be solved forward (imposing the zero bound constraint that $i_{t}=$ $-i$ ) to express inflation in terms of current and future interest rate gaps:

$$\pi_{t}=-\hat{\sigma}\kappa_{p}\sum_{j=0}^{T_{n}-1}\psi(j)(-i-r_{t+j\vert t} ^{pot}),$$ (17)

where the weighting function $\psi(j)$ is given by

$$\psi(j)=\lambda_{1}\psi(j-1)+\lambda_{2}^{j},$$ (18)

with the initial condition $\psi(0)=1$, and where $\lambda_{1}$ and $\lambda_{2}$ are determined as:

$$\lambda_{1}+\lambda_{2}=1+\beta+\hat{\sigma}\kappa_{p},$$ (19)

$$\lambda_{1}\lambda_{2}=\beta.$$ (20)

Given that $\kappa_{p}>0$, the coefficients $\psi(j)$ premultiplying the interest rate gap grow exponentially with the duration of the liquidity trap $T_{n}$. Moreover, the contour is extremely sensitive to $\kappa_{p}$, as illustrated in Figure 4a for several values of $\kappa_{p}$ associated with price contraction durations ranging from four to ten quarters.

The convex pattern of weights reflects that deflationary pressure associated with any given-sized interest rate gap ( $-i-r_{t+j\vert t}^{pot})$ is compounded as the liquidity trap lengthens by the interaction between the response of the output gap and expected inflation. A small interest rate gap of $\varepsilon$ at $T_{n-1}$ would reduce the output gap x $_{T_{n-1}}$by $-\hat{\sigma}\varepsilon,$ as inflation would be expected to return to baseline at $T_{n}.$ But because the lower output gap at $T_{n-1}$ also reduces inflation by $\kappa_{p}\hat{\sigma}\varepsilon,$ the same-sized interest rate gap of $\epsilon$ at $T_{n-2}$ would imply a fall in $x_{T_{n}-2\text{ }}$of $2\hat{\sigma}\varepsilon+\beta\kappa_{p}\hat{\sigma }^{2}\varepsilon$ , with $\beta\kappa_{p}\hat{\sigma}^{2}\varepsilon$ reflecting the contribution from lower expected inflation. This nonlinear effect on the output gap arising from the expected inflation channel contributes to a self-reinforcing spiral as the duration of the liquidity trap lengthens.

Thus, consistent with recent analysis by Eggertson (2008 and 2009), Christiano, Eichenbaum, and Rebelo (2009), and Woodford (2010), the multiplier can be amplified substantially relative to normal circumstances in a long-lived liquidity trap, and to the extent that the Phillips Curve slope is relatively high. To illustrate this in our model, the lower left panel of Figure 3 plots the impact government spending multiplier under alternative specifications of the parameter $\xi_{p}$ implying price contracts with a mean duration between 4 and 10 quarters. With short enough price contracts, the multiplier increases in a convex manner with the duration of the liquidity trap, in contrast to the concave relation when expected inflation is less responsive. For example, in a liquidity trap lasting 11 quarters (see the tick marks on the upper axis), the multiplier is about 6 with five quarter contracts, and 17 with four quarter contracts.

However, under precisely the same conditions in which the government spending multiplier is very large - a long-lived trap, and shorter-lived price contracts - the multiplier drops quickly as government spending increases. Intuitively, the multiplier is large under these conditions because fiscal stimulus helps reverse the strong deflationary pressure arising from from the adverse taste shock: recalling Figure 4a, this deflationary pressure can increase dramatically as the liquidity trap duration lengthens. But insofar as the duration of the recession is abbreviated by the stimulus, the deflationary pressure abates, and the benefits of additional stimulus diminish substantially. The lower left panel of Figure 3 shows how the impact marginal multiplier varies with the level of government spending assuming that the taste shock induces an eight quarter liquidity trap.¹³ The multiplier associated with four quarter price contracts drops from about 3-1/2 for a spending level of 1 percent of GDP to about 1-1/2 for spending increments above 3 percent of GDP. The dropoff is even more precipitous when the initial liquidity trap is longer-lived. By contrast, the marginal multiplier for the case of 10 quarter price contracts is relatively flat, decreasing only gradually in the level of spending.

It is important to emphasize that the precise relationship between the multiplier and level of government spending depends on the characteristics of the underlying preference shock: recalling equation (13), the duration of the liquidity trap depends on all of the shocks affecting the potential real interest rate. As discussed above in the context of Figure 1a, the economy is expected to recover eventually even in the absence of any fiscal impetus, and real interest rate gap to narrow as a result. Given this eventual improvement, even fairly modest increases in government spending can boost the potential real interest rate enough to shorten the duration of the liquidity trap, which helps account for the rapid dropoff in the multiplier when expected inflation is highly responsive.¹⁴

The lower right panel shows the implications for government debt. Small increments to government spending can reduce the government debt substantially when price contracts are shorter-lived. But the policy response reduces the benefit of additional stimulus, causing the marginal impact on government debt to turn positive as spending rises. With longer-lived price contracts (the figure shows 10 quarter contracts), government debt rises even for relatively low levels of spending.

2.4  Effects of Implementation Lags

We conclude this section by examining the implications of lags between the announcement of higher fiscal spending and its implementation. In particular, we assume that the government announces a new stimulus plan immediately in response to the adverse preference shock, but that it takes some time for spending to peak. To capture such delays, we assume that government spending follows an AR(2) as in Uhlig (2009):

$$g_{t}-g_{t-1}=\rho_{g_{1}}(g_{t-1}-g_{t-2})-\rho_{g_{2}}g_{t-1}+\varepsilon _{g,t},$$ (21)

This representation makes clear that there is some persistence in the growth rate of government spending, even though the level is stationary due to the "error correction" term $\rho_{g2}$.

The solid lines in Figure 4b show the effects of a rise in government spending that peaks after eight quarters (achieved by setting $\rho_{g1}=.90$ and $\rho_{g2}=0.025$) against the backdrop of the same adverse preference shock considered previously (again depicted by the dashed lines).¹⁵Given the implementation lag, the higher spending depresses $r_{t}^{pot}$ over the entire period in which the economy is in the liquidity trap, while leaving the duration of the trap unchanged at 8 quarters. As seen by equation (4), the expectation that government spending will grow in the future depresses the potential real interest rate $r_{t}^{pot}$ by encouraging saving. Interestingly, the response of output is significantly negative , reflecting that aggregate demand is weaker over the entire period in which the economy is in the liquidity trap. The negative output response induces a larger deterioration of the fiscal balance, and consequent boost in the government debt/GDP ratio.

The rather dramatic consequences for the multiplier shown in the figure are dependent on the monetary policy specification; it can be shown that the output response is in fact uniformly positive under a less aggressive monetary policy rule. Even so, implementation lags may have substantial implications for the multiplier, with the spending multiplier shrinking considerably if the bulk of the higher spending occurs after monetary policy is no longer constrained by the zero bound.

3.  An Empirically-Validated New Keynesian Model with Capital

In this section, we present a fully-fledged model with endogenous capital accumulation. Our objectives are to assess whether the factors identified as playing a major role in influencing the multiplier in the simple New Keynesian model continue to be important in a more empirically realistic framework, as well as to provide a more reasonable quantitative assessment of the multiplier.

Our "workhorse" model is a slightly simplified variant of the models developed and estimated by Christiano, Eichenbaum and Evans (2005), and Smets and Wouters (2003, 2007). Christiano, Eichenbaum and Evans (2005) show that their model can account well for the dynamic effects of a monetary policy innovation during the post-war period. Smets and Wouters (2003, 2007) consider a much broader set of shocks, and estimate their model using Bayesian methods. They argue that it is able to fit many key features of U.S. and euro area-business cycles.

3.1  The Model

As outlined below, our model incorporates nominal rigidities by assuming that labor and product markets exhibit monopolistic competition, and that wages and prices are determined by staggered nominal contracts of random duration (following Calvo (1983) and Yun (1996)). The model includes an array of real rigidities, including habit persistence in consumption, and costs of changing the rate of investment. Monetary policy follows a Taylor rule, and fiscal policy specifies that taxes respond to government debt.

3.1.1  Firms and Price Setting

We assume that a single final output good $Y_{t}$ is produced using a continuum of differentiated intermediate goods $Y_{t}(f)$. The technology for transforming these intermediate goods into the final output good is constant returns to scale, and is of the Dixit-Stiglitz form:

$$Y_{t}=\left[ \int_{0}^{1}Y_{t}{}\left( f\right) ^{\frac{1}{1+\theta_{p}} }df\right] ^{1+\theta_{p}}$$ (22)

where $\theta_{p}>0$.

Firms that produce the final output good are perfectly competitive in both product and factor markets. Thus, final goods producers minimize the cost of producing a given quantity of the output index $Y_{t}$, taking as given the price $P_{t}\left( f\right)$ of each intermediate good $Y_{t}(f)$. Moreover, final goods producers sell units of the final output good at a price $P_{t}$ that can be interpreted as the aggregate price index:

$$P_{t}=\left[ \int_{0}^{1}P_{t}{}\left( f\right) ^{\frac{-1}{\theta_{p}} }df\right] ^{-\theta_{p}}$$ (23)

The intermediate goods $Y_{t}(f)$ for $f\in\lbrack0,1]$ are assumed to be produced by monopolistically competitive firms, each of which produces a single differentiated good. Each intermediate goods producer faces a demand function for its output good that varies inversely with its output price $P_{t}\left( f\right) ,$ and directly with aggregate demand $Y_{t}:$

$$Y_{t}\left( f\right) =\left[ \frac{P_{t}\left( f\right) }{P_{t}}\right] ^{\frac{-\left( 1+\theta_{p}\right) }{\theta_{p}}}Y_{t}$$ (24)

Each intermediate goods producer utilizes capital services $K_{t}\left( f\right)$ and a labor index $L_{t}\left( f\right)$ (defined below) to produce its respective output good. The form of the production function is Cobb-Douglas:

$$Y_{t}\left( f\right) =K_{t}(f)^{\alpha}L_{t}(f)^{1-\alpha}$$ (25)

Firms face perfectly competitive factor markets for hiring capital and the labor index. Thus, each firm chooses $K_{t}\left( f\right)$ and $L_{t}\left( f\right)$, taking as given both the rental price of capital $R_{Kt}$ and the aggregate wage index $W_{t}$ (defined below). Firms can costlessly adjust either factor of production. Thus, the standard static first-order conditions for cost minimization imply that all firms have identical marginal cost per unit of output.

The prices of the intermediate goods are determined by Calvo-Yun style staggered nominal contracts. In each period, each firm f faces a constant probability, $1-\xi_{p}$, of being able to reoptimize its price $P_{t}(f)$. The probability that any firm receives a signal to reset its price is assumed to be independent of the time that it last reset its price. If a firm is not allowed to optimize its price in a given period, we follow Christiano, Eichenbaum and Evans (2005) by assuming that it adjusts its price by a weighted combination of the lagged and steady state rate of inflation, i.e., $P_{t}(f)=\pi_{t-1}^{\iota_{p}}\pi^{1-\iota_{p}}P_{t-1}(f)$ where $0\leq\iota_{p}\leq1.$ A positive value of $\iota_{p}$ introduces structural inertia into the inflation process.

3.1.2  Households and Wage Setting

We assume a continuum of monopolistically competitive households (indexed on the unit interval), each of which supplies a differentiated labor service to the production sector; that is, goods-producing firms regard each household's labor services $N_{t}\left( h\right)$, $h\in\lbrack0,1]$, as an imperfect substitute for the labor services of other households. It is convenient to assume that a representative labor aggregator combines households' labor hours in the same proportions as firms would choose. Thus, the aggregator's demand for each household's labor is equal to the sum of firms' demands. The labor index $L_{t}$ has the Dixit-Stiglitz form:

$$L_{t}=\left[ \int_{0}^{1}N_{t}\left( h\right) ^{\frac{1}{1+\theta_{w}} }dh\right] ^{1+\theta_{w}}$$ (26)

where $\theta_{w}>0$. The aggregator minimizes the cost of producing a given amount of the aggregate labor index, taking each household's wage rate $W_{t}\left( h\right)$ as given, and then sells units of the labor index to the production sector at their unit cost $W_{t}$:

$$W_{t}=\left[ \int_{0}^{1}W_{t}{}\left( h\right) ^{\frac{-1}{\theta_{w}} }dh\right] ^{-\theta_{w}}$$ (27)

It is natural to interpret $W_{t}$ as the aggregate wage index. The aggregator's demand for the labor hours of household $h$ - or equivalently, the total demand for this household's labor by all goods-producing firms - is given by

$$N_{t}\left( h\right) =\left[ \frac{W_{t}\left( h\right) }{W_{t}}\right] ^{-\frac{1+\theta_{w}}{\theta_{w}}}L_{t}$$ (28)

The utility functional of a typical member of household $h$ is

$$_{t}\sum_{j=0}^{\infty}\beta^{j}\{\frac{1}{1-\sigma}C_{t+j}\left( h\right) -\varkappa C_{t+j-1}-\nu_{c}\nu_{t}\}^{1-\sigma}-\frac{\chi_{0} }{1+\chi}N_{t+j}\left( h\right) ^{1+\chi}\}$$ (29)

where the discount factor $\beta$ satisfies $0<\beta<1.$ The period utility function depends on household $h$'s current consumption $C_{t}\left( h\right)$, as well as lagged aggregate per capita consumption to allow for the possibility of external habit persistence (Smets and Wouters 2003). As in the simple model considered in the previous section, a positive taste shock $\nu_{t}$ raises the marginal utility of consumption associated with any given consumption level. The period utility function also depends inversely on hours worked $N_{t}\left( h\right) .$

Household $h$'s budget constraint in period $t$ states that its expenditure on goods and net purchases of financial assets must equal its disposable income:

$$P_{t}C_{t}\left( h\right) +P_{t}I_{t}\left( h\right) +\frac{1}{2} \psi_{I}P_{t}\frac{\left( I_{t}(h)-I_{t-1}(h)\right) ^{2}}{I_{t-1} (h)}+$$

$$P_{B,t}B_{G,t+1}-B_{G,t}+\int_{s}\xi_{t,t+1}B_{D,t+1}(h)-B_{D,t} (h)$$ (30)

$$=\left( 1-\tau_{N,t}\right) W_{t}\left( h\right) N_{t}\left( h\right) +(1-\tau_{K})R_{K,t}K_{t}(h)+\delta\tau_{K}P_{t}K_{t}(h)+\Gamma_{t}\left( h\right) -T_{t}(h)$$

Thus, the household purchases the final output good (at a price of $P_{t}),$ which it chooses either to consume $C_{t}\left( h\right)$ or invest $I_{t}\left( h\right)$ in physical capital. The total cost of investment to each household $h$ is assumed to depend on how rapidly the household changes its rate of investment (as well as on the purchase price). Our specification of investment adjustment costs as depending on the square of the change in the household's gross investment rate follows Christiano, Eichenbaum, and Evans (2005). Investment in physical capital augments the household's (end-of-period) capital stock $K_{t+1}(h)$ according to a linear transition law of the form:

$$K_{t+1}\left( h\right) =(1-\delta)K_{t}(h)+I_{t}(h)$$ (31)

In addition to accumulating physical capital, households may augment their financial assets through increasing their government bond holdings ( $P_{B,t}B_{G,t+1}-B_{G,t}),$ and through the net acquisition of state-contingent bonds. We assume that agents can engage in frictionless trading of a complete set of contingent claims. The term $\int_{s}\xi _{t,t+1}B_{D,t+1}(h)-B_{D,t}(h)$ represents net purchases of state-contingent domestic bonds, with $\xi_{t,t+1}$ denoting the state price, and $B_{D,t+1}\left( h\right)$ the quantity of such claims purchased at time $t$. Each member of household $h$ earns after-tax labor income $\left( 1-\tau_{N,t}\right) W_{t}\left( h\right) N_{t}\left( h\right)$ , after-tax capital rental income of $(1-\tau_{K})R_{K,t}K_{t}(h),$ and a depreciation allowance of $\delta\tau_{K}P_{t}K_{t}(h)$. Each member also receives an aliquot share $\Gamma_{t}\left( h\right) \,$of the profits of all firms, and pays a lump-sum tax of $T_{t}\left( h\right)$ (this may be regarded as taxes net of any transfers).

In every period $t$, each member of household $h$ maximizes the utility functional (29) with respect to its consumption, investment, (end-of-period) capital stock, bond holdings, and holdings of contingent claims, subject to its labor demand function (28), budget constraint (30), and transition equation for capital (31). Households also set nominal wages in Calvo-style staggered contracts that are generally similar to the price contracts described above. Thus, the probability that a household receives a signal to reoptimize its wage contract in a given period is denoted by $1-\xi_{w}$. In addition, we specify a dynamic indexation scheme for the adjustment of the wages of those households that do not get a signal to reoptimize, i.e., $W_{t}(h)=\omega _{t-1}^{\iota_{w}}\pi^{1-\iota_{w}}W_{t-1}(h),$ where $\omega_{t-1}$ is gross nominal wage inflation in period $t-1.$ $\$Dynamic indexation of this form introduces some structural persistence into the wage-setting process.

3.1.3  Fiscal and Monetary Policy and the Aggregate Resource Constraint

Government purchases $G_{t}$ are assumed to follow an exogenous stochastic process given by eq. (21) . Government purchases have no effect on the marginal utility of private consumption, nor do they serve as an input into goods production. Government expenditures are financed by a combination of labor, capital, and lump-sum taxes. The government does not need to balance its budget each period, and issues nominal debt to finance budget deficits according to

$$P_{B,t}B_{G,t+1}-B_{G,t}=P_{t}G_{t}-T_{t}-\tau_{N,t}W_{t}L_{t}-\tau_{K}\left( R_{K,t}-\delta P_{t}\right) K_{t}.$$ (32)

In eq. (32), all quantity variables are aggregated across households, so that $B_{G,t}$ is the aggregate stock of government bonds, $K_{t}$ is the aggregate capital stock, and $T_{t}=(\int _{0}^{1}T_{t}\left( h\right) dh)$ aggregate lump-sum taxes. In our benchmark specification, the labor (and capital) tax rate is held fixed to abstract from the effects of time-varying tax distortions on equilibrium allocations. Accordingly, lump-sum taxes adjust endogenously according to a tax rate reaction function that allows taxes to respond both to government debt (as in Section 2) and the the gross budget deficit. In log-linearized form:

$$\tau_{t}-\tau=\varphi_{\tau}\left( \tau_{t}-\tau\right) +\varphi_{b}\left( b_{G,t}-b_{G}\right) +\varphi_{d}\left( b_{G,t}-b_{G,t-1}\right) ,$$ (33)

where $b_{G,t}=\frac{B_{G,t}}{4P_{t}\bar{Y}}.$ Although the form of the tax rate reaction function has no effect on equilibrium allocations given that all agents are Ricardian (as assumed in this section), we also perform sensitivity analysis in which the distortionary tax rate on labor income adjusts according to equation (33), in which case $\tau_{N,t}$ replaces $\tau_{t}.$

Monetary policy is assumed to be given by a Taylor-style interest rate reaction function similar to equation (3) except allowing for a smoothing coefficient $\gamma_{i}$:

$$i_{t}=\max\{-i,\left( 1-\gamma_{i}\right) \left( \gamma_{\pi}\pi_{t} +\gamma_{x}x_{t}\right) +\gamma_{i}i_{t-1}\}$$ (34)

Finally, total output of the service sector is subject to the resource constraint:

$$Y_{t}=C_{t}+I_{t}+G_{t}+\psi_{I,t}$$ (35)

where $\psi_{I,t}$ is the adjustment cost on investment aggregated across all households (from eq. 30, $\psi_{I,t}\equiv\frac{1}{2}\psi_{I} \frac{\left( I_{t}(h)-I_{t-1}(h)\right) ^{2}}{I_{t-1}(h)}$ ).

3.1.4  Solution and Calibration

To analyze the behavior of the model, we log-linearize the model's equations around the non-stochastic steady state. Nominal variables, such as the contract price and wage, are rendered stationary by suitable transformations. To solve the unconstrained version of the model, we compute the reduced-form solution of the model for a given set of parameters using the numerical algorithm of Anderson and Moore (1985), which provides an efficient implementation of the solution method proposed by Blanchard and Kahn (1980).

When we solve the model subject to the non-linear monetary policy rule (34), we use the techniques described in Hebden, Lindé and Svensson (2009). An important feature of the Hebden, Lindé and Svensson algorithm is that the duration of the liquidity trap is endogenous, and is affected by the size of the fiscal impetus. Their algorithm consists of adding a sequence of current and future innvoations to the linear component of the policy rule to guarantee that the zero bound constraint is satisfied given the economy's state vector. The innovations are assumed to be correctly anticipated by private agents at each date, and in the case where they are all positive HLS shows that the solution satisfies (34). This solution method is easy to use, and well-suited to examine the implications of the zero bound constraint in models with large dimensional state spaces; moreover, it yields identical results to the method of Jung, Terinishi, and Watanabe (2005) under the assumption of perfect foresight.

As in Section 2, we set the discount factor $\beta=0.995,$ and steady state (net) inflation $\pi=.005,$ implying a steady state nominal interest rate of $i=.01$ at a quarterly rate. The subutility function over consumption is logarithmic, so that $\sigma=1,$ and the parameter determining the degree of habit persistence in consumption $\varkappa$ is set at 0.6 (similar to the empirical estimate of Smets and Wouters 2003). The Frisch elasticity of labor supply $\frac{1}{\chi}$ of 0.4 is well within the range of most estimates from the empirical labor supply literature (see e.g. Domeij and Flodén, 2006).

The capital share parameter $\alpha$ is set to 0.35 The quarterly depreciation rate of the capital stock $\delta=0.025$, implying an annual depreciation rate of 10 percent. We set the cost of adjusting investment parameter $\psi_{I}$ $=3$, which is somewhat smaller than the value estimated by Christiano, Eichenbaum, and Evans (2005) using a limited information approach; however, the analysis of Erceg, Guerrieri, and Gust (2006) suggests that a lower value may be better able to capture the unconditional volatility of investment.

We maintain the assumption of a relatively flat Phillips curve by setting the price contract duration parameter $\xi_{p}=0.9$. As in Christiano, Eichenbaum and Evans (2005), we also allow for a fair amount of intrinsic persistence by setting the price indexation parameter $\iota_{p}=0.9$. It bears emphasizing that our choice of $\xi_{p}$ does not necessarily imply an average price contract duration of 10 quarters. Altig et al. (2010) show in a model very similar to ours that a low slope of the Phillips curve can be consistent with frequent price reoptimization if capital is firm-specific, at least provided that the markup is not too high, and it is costly to vary capital utilization; both of these conditions are satisfied in our model, as the steady state markup is 10 percent ( $\theta_{p}=.10$), and capital utilization is fixed. Specifically, our choice of $\xi_{p}$ implies a Phillips curve slope of about $0.007$. For reasons discussed in further detail in Section 3.1.5, this slope coefficient is a bit lower than the median estimates of recent empirical studies. For example, the median estimates of Adolfson et al (2005), Altig et al. (2010), Galí and Gertler (1999), Galí, Gertler, and López-Salido, Lindé (2005), and Smets and Wouters (2003, 2007) cluster in the range of 0.009-.014; even so, our slope coefficient is well within the confidence intervals provided by these studies.

Given strategic complementarities in wage-setting across households, the wage markup influences the slope of the wage Phillips curve. Our choices of a wage markup of $\theta_{W}$ = $1/3$ and a wage contract duration parameter of $\xi_{w}=0.85-$ along with a wage indexation parameter of $\iota_{w}=0.9$ - imply that wage inflation is about as responsive to the wage markup as price inflation is to the price markup.

The share of government spending of total expenditure is set equal to 20 percent. The government debt to GDP ratio is 0.5, close to the total estimated U.S. federal government debt to output ratio at end-2009. The steady state capital income tax rate, $\tau_{K}$, is set to 0.2, while the lump-sum tax revenue to GDP ratio is set to 0.02. The government's intertemporal budget constraint implies that labor income tax rate $\tau_{N}$ equals 0.27 in steady state. The parameters in the fiscal policy rule in equation (33) are set to $\varphi_{\tau}=1,$ $\varphi_{b}=0.05$ and $\varphi_{d}=0.10,$ implying that the tax rule is not very aggressive. Importantly, given the low share of government revenue accounted for by lump-sum taxes and low sensitivity of lump-sum taxes to government debt/deficits, most of the variation in the primary government budget deficit reflects fluctuations in revenue from the capital and labor income tax (due to variations in the tax base).

Finally, the parameters of the monetary policy rule are set as $\gamma _{i}=0.7$, $\gamma_{\pi}=3$ and $\gamma_{x}=0.25.$ These parameter choices are supported by simple regression analysis using instrumental variables over the 1993:Q1-2008:Q4 period. This analysis suggests that the response of the policy rate to inflation and the output gap has increased in recent years, which helps account for somewhat higher response coefficients than typically estimated when using sample periods which include the 1970s and 1980s.

3.1.5  Initial Economic Conditions

As emphasized in Section 2, the effects of fiscal policy depend on the perceived depth and duration of the underlying liquidity trap. Accordingly, we begin by using our workhorse model to generate initial macroeconomic conditions that capture some key features of the recent U.S. recession, including a sharp and persistent fall in output, some decline in inflation, and a protracted period of near-zero policy rates.

The solid lines in Figure 5a depict this "severe U.S. recession" scenario under the benchmark calibration of our model. The scenario is generated by a sequence of three unanticipated negative taste shocks $\nu_{t}\$that begin in 2008:Q3 and continue through 2009:Q1. $\$Each shock $\nu_{t}$ follows an AR(2) to allow for some persistence in the growth rate.¹⁶ The shock innovations are scaled to induce a maximum output contraction of about 8 percent relative to steady state. Although the initial shock is too small to push the economy into a liquidity trap, the subsequent shocks deepen the recession and generate a liquidity trap. Upon the arrival of the final shock in 2009:Q1, agents expect that the short-term nominal interest rate will remain at its lower bound of zero for 8 quarters through 2010:Q4 (to highlight the zero bound constraint, the short-term nominal interest rate and inflation rates are shown in levels). Inflation falls from its steady state level of 2 percent to a trough of slightly below zero, and remains close to zero for about a year.

The peak output contraction in this scenario comes close to matching the maximum decline in U.S. output relative to trend that occurred following the intensification of the financial crisis in 2008:Q3 (the detrended U.S. output series is depicted by cross-hatches). The implication of a prolonged liquidity trap seems consistent with historical experience thus far, as actual policy rates have remained near zero since late 2008 (the cross-hatches show realized values of the federal funds rate). Moreover, given that the perceived duration of the liquidity trap plays a crucial role in determining the effects of fiscal stimulus, we also compare the expected duration of the liquidity trap based on our model simulation with an empirical proxy for the expected path of the policy rate based on overnight index swap rates. These projections are available 1-24 months ahead, and 36 months ahead. As seen in the lower panel, the "projected" path of the federal funds rate in the first quarter of 2009 - shortly after the current federal funds rate target was reduced to nearly zero - is below 1 percent for a horizon extending out eight quarters.¹⁷ Although there are difficulties with interpreting this path as measuring the expected policy rate due to e.g., time-varying risk premia, this evidence suggests that the implications of our benchmark calibration are not unreasonable; in addition, we investigate the sensitivity of our results to the duration of the liquidity trap.

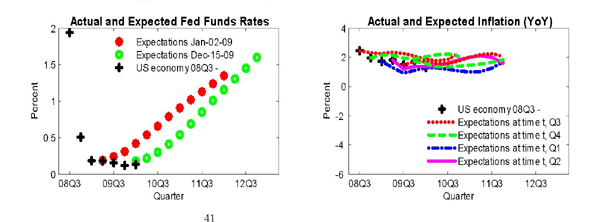

As seen in Figure 5a, the decline in price inflation implied by our benchmark calibration is somewhat larger than in the corresponding data (the price inflation measure is the core CPI inflation rate, and is depicted by cross-hatches). In fact, a striking feature of the recession is that both actual inflation and inflation forecasts have responded very little to large and persistent output declines. The right panel of Figure 5b plots the median forecast path of expected inflation over the next six quarters from the Survey of Professional Forecasters, beginning in 2008-Q3 (the solid line) and continuing through 2009-Q2. Clearly even short-term inflation expectations remained quite stable as the recession deepened.

Although our benchmark calibration implies a larger decline in inflation than occurred during the financial crisis episode, it bears emphasizing that it implies much less movement in inflation (and expected inflation) than other commonly-adopted calibrations. As noted previously, our chosen values of both the contract duration parameters and the coefficient on inflation in the monetary rule are towards the higher side of empirical estimates. To highlight this, Figure 5a also reports results for two alternative calibrations. In the case labelled "more flexible p and w," the mean duration of price and wage contracts is reduced to four quarters$,$ while another alternative labelled "loose rule" adopts the standard Taylor rule coefficients in the monetary policy rule (i.e., the parameters $\gamma_{\pi}$ and $\gamma_{x}$ in equation (34) are set to 1.5 and 0.125, respectively, compared with 3 and 0.25 under our benchmark). Under each of these alternatives, the taste shock is rescaled (reduced modestly) to account for roughly the same-sized output contraction as in the benchmark, and to imply an eight quarter liquidity trap. Inflation declines by considerably more under either of these alternative calibrations. Overall, we take these results as providing support for our benchmark calibration relative to these alternatives, while acknowledging the possibility suggested by fitting the recent recession that even our benchmark may perhaps overstate the response of inflation to highly persistent economic shocks.

3.2  Dynamic Effects of Government Spending

The solid lines in Figure 6 (labeled "ZLB benchmark") show the effects of a front-loaded increase in government expenditures equal to $1$ percent of steady state output against the backdrop of the negative taste shocks described above above. The government spending shock follows an AR(1) with a persistence of 0.9. The impulse response functions shown are computed as the difference between this scenario which includes both the consumption taste shocks and government spending shock, and the previous scenario (i.e., the benchmark in Figure 5a) with only the taste shocks. While the government spending shock occurs in 2009:Q1 - at which point agents expect the liquidity trap would last 8 quarters in the absence of stimulus- this corresponds to "period 0" in the figure.¹⁸ The fiscal expansion is assumed to be financed by lump-sum taxes as specified by equation (33)

As in the stylized model analyzed in Section 2, the fiscal policy expansion implies larger and more persistent effects on output relative to a normal situation in which policy is unconstrained (the dotted line). The outsized effects on output reflect that higher government spending boosts the potential real interest rate, while the (ex ante) real interest rate falls as nominal interest rates do not respond and expected inflation rises. The lower right panel shows the government spending multiplier. The impact multiplier is simply defined as $\frac{1}{g_{y}}\frac{\Delta y_{t}}{\Delta g_{t}},$ i.e. the increase in output per unit increase in government spending (both relative to steady state). More generally, the multiplier at horizon $K$ is defined as $\frac{1}{g_{y}}\frac{\sum_{0}^{K}\Delta y_{t+K}}{\sum_{0}^{K}\Delta g_{t+K}}.$ The implied government spending multiplier equals unity in the four quarters following the spending shock before declining gradually.¹⁹ Given the amplified multiplier, the government debt/GDP ratio rises by less than in a normal situation, though it still increases above zero after only a couple of quarters.²⁰

The same factors identified as key determinants of the multiplier in Section 2 - including the duration of the liquidity trap and structural parameters determining the response of expected inflation - also have a major influence on the multiplier in this more empirically-realistic model. The dashed lines in Figure 6 show impulse responses to the same government spending shock against the backdrop of a longer-lived liquidity trap of 11 quarters. The multiplier is well over 2, reflecting the more persistent rise in inflation and larger implied fall in the real interest rate. The bigger multiplier contributes to a highly persistent fall in the government debt/GDP ratio, which is tantamount to a "fiscal free lunch." Similarly, the multiplier is larger under a more accomodative monetary policy rule (not shown), again due to a larger expected inflation response.

Conversely, the multiplier shows considerably less variation with the duration of the liquidity trap under conditions that give rise to a small inflation response. As in Section 2, the multiplier depends on the gap that the higher fiscal spending induces between the potential real interest rate and actual real interest rate over the period in which the economy remains in a liquidity trap. In the limiting case in which inflation is constant, the effect of increasing the liquidity trap duration on the multiplier hinges on how government spending affects the potential real interest rate at relatively distant horizons; and since these effects are small, the peak value of the multiplier shows relatively little increase with the duration of the trap. To illustrate this, Figure 6 shows the multiplier under a calibration labelled 'ZLB long duration, very sticky $p$ and $w$' which imposes extremely long-lived price and wage contracts with a mean duration of 40 quarters, and against the backdrop of a Great Depression-sized output decline of almost 30 percent (the initial conditions are depicted in Figure 5a with the same label). Although the liquidity trap lasts 16 quarters, the multiplier peaks at a value of unity before declining slowly, and the higher spending boosts government debt significantly.

3.2.1  Marginal vs. Average Responses

In Section 2, we used the simple New Keynesian model to illustrate that the marginal effects of government spending shocks can diverge substantially from the average effects captured by impulse response functions. We next provide a parallel analysis in our workhorse model. The solid line in the upper left panel of Figure 7 shows the multiplier as a function of government spending under our benchmark calibration. The output and government spending responses used in computing the multiplier are an average over the first four quarters following the spending hike. Because it is useful to first show how the multiplier behaves in a long-lived liquidity trap, the negative taste shocks which generate the initial conditions are scaled so that the liquidity trap would last 11 quarters in the absence of fiscal stimulus (as in the "ZLB longer duration" case in Figure 6).

As in the stylized model in Section 2, the multiplier follows a step function. The multiplier is constant until government spending reaches a threshold value that is large enough to shorten the duration of the liquidity trap by one period, and then drops discretely as spending surpasses this threshold. Quantitatively, the multiplier is 3.3 for small additions to spending less than 0.5 percent of GDP. However, as seen from the tick marks on the upper axis, the multiplier drops abruptly to around unity as the duration of the liquidity trap shortens by a couple of quarters. Using the terminology of Section 2, the multiplier is labeled the "marginal multiplier" to differentiate it from the average response of output per unit increase in spending, which is labeled the "average multiplier" (though when the meaning is reasonably clear from context, we simply refer to the multiplier). For the one percent of GDP rise in spending considered in Figure 6, the average multiplier of nearly 2.5 reflects a (marginal) multiplier of 3.3 for small additions to spending less than 0.5 percent of GDP, and a multiplier of 1.7 on the additional spending. As in Section 2, the rapid falloff in the multiplier reflects that fiscal stimulus is extremely effective in mitigating the effects of the recession in an environment in which monetary policy is constrained for a prolonged period; but with a shallower recession, the benefits of additional stimulus drop substantially.

The solid line in the right upper panel plots the marginal response of the government deficit/GDP ratio, inclusive of interest payments, to government spending (the deficit and spending levels are averaged over the four quarters following the spending hike). Given the long duration of the underlying liquidity trap, the marginal response is negative for spending increments less than 3 percent of GDP. As additional spending shrinks the duration of the liquidity trap below 9 quarters (as seen by the upper tick marks), the marginal effect on the government deficit turns positive, even though the average response - shown by the dotted line - remains negative. This underscores how marginal increments to fiscal spending can put upward pressure on budget deficits even when the average effects appear small.

The lower panel of Figure 7 shows the multiplier under our benchmark calibration (solid lines) and several alternatives; in each case, the initial conditions are chosen to imply a shorter-lived liquidity trap of 8 quarters. The multiplier under our benchmark calibration is about or below unity at all spending levels (as can be surmised from the upper panel as well). The multiplier can be much higher under calibrations that imply a larger response of expected inflation. The amplification of the multiplier is particularly dramatic under the case of "more flexible prices and wages," which specifies that both price and wage contracts last only four quarters. In this case, the multiplier exceeds 10 for low spending levels below 0.2 percent of GDP. The high potency of fiscal policy reflects that it offsets the strong deflationary pressure that would otherwise occur in response to the contractionary (taste) shocks. However, the multiplier drops precipitously as spending increases and the liquidity trap duration shortens (the duration is indicated by the upper tick markets for this particular calibration²¹). For a spending increment a little over 1 percent of GDP, the liquidity trap shortens to only 6 quarters, and the multiplier is only about unity. A second alternative examines a case in which only prices are less sticky than under our baseline (i.e. $\xi_{p}$ is lowered from 0.90 to 0.75), but wage-setting remains unaltered. The multiplier function in this case (the dotted line) is only slightly higher than under our benchmark, reflecting that the sluggish behavior of wages keeps price inflation from moving as much as under the previous alternative. This calibration underscores that the dramatically higher multiplier under the "more flexible $p$ and $w$" calibration hinges on both prices and wages being considerably more flexible than under our benchmark. The third alternative ("looser policy rule") assumes that monetary policy is less aggressive in responding to inflation and the output gap than under our benchmark (i.e,. $\gamma_{\pi}$ = $1.5$ and $\gamma_{x}$ = $0.125).$ The multiplier is about 1.5 for a low level of spending, and the multiplier exceeds that under our benchmark calibration by a noticeable margin at all spending levels.

Overall, these results provide a strong rationale for expanding fiscal spending in a very deep liquidity trap lasting roughly 3 years, with the caveats that it is important to take account of how the multiplier declines with higher spending, and that the high multipliers assume no implementation lags. For a shorter-lived liquidity trap of two years or less, our benchmark calibration implies a multiplier of only about unity for small increases in spending. Although we have shown that the workhorse model can generate very high multipliers if prices and wages adjust more quickly, we are skeptical of this implication it implies that the adverse taste shocks that generate the underlying liquidity trap would induce an extremely large decline in inflation. Recalling Figure 5a, inflation falls 7 percentage points below baseline under the "more flexible price and wage" calibration in response to the shocks that depress output about 8 percent. This behavior seems in contrast with the resilence of both inflation and expected inflation during the past recession that was documented in Figure 5a and 5b.

3.2.2  Effects of Implementation Lags

Figure 8 examines the sensitivity of the results to alternative assumptions about how the fiscal stimulus is financed and how quickly it can be implemented. First, we consider the implications of gradual rise in government spending of 1 percent of GDP that peaks after eight quarters, rather than immediately, while continuing to assume lump-sum tax adjustment. The (average) multiplier - the dotted line, labelled "8 quarter implementation lag lump-sum"- is only about half as large as under our benchmark with immediate implementation (the solid line), and government debt rises immediately. The smaller output response reflects that the higher spending reduces the potential real interest rate in the short-run, as the promise to increase future public spending encourages households to save. Second, we replace the benchmark assumption of lump-sum tax adjustment with the alternative in which labor taxes adjust dynamically in response to higher government debt, while retaining the assumption that government spending is front-loaded as in the benchmark.²² The multiplier (dashed line) is reduced modestly relative to the benchmark, reflecting that the higher labor taxes dampen labor supply. But it is worth emphasizing that the parameters in the tax rate reaction function are small, and that output would be affected more if the parameters of the tax rate reaction function implied a larger tax rate response. Finally, we also consider a third variant that merges these alternatives by embedding both implementation lags, and the assumption of labor tax adjustment. The multiplier (dash-dotted line) under this alternative is only slightly positive. Clearly, implementation lags and the requirement that government purchases be financed by distortionary taxes can significantly reduce the multiplier.²³

4.  Robustness Analysis: The Empirical Model Augmented with Financial Frictions and Keynesian Households

The workhorse model in Section 3 has been criticized by Galí, López-Salido and Vallés (2007), among others, for its inability to account for VAR-based empirical evidence indicating that private consumption rises in response to higher government spending. As shown by GLV, the inclusion of non-Ricardian households helps account for this empirical evidence, and allows their model to generate a somewhat higher government spending multiplier even in normal times when monetary policy raises interest rates. In addition, the workhorse model of Section 3 omits potentially important financial channels, such as movements in private credit spreads due to balance sheet effects. Given these potential shortcomings of the workhorse model, we investigate the sensitivity of our results to the inclusion of non-Ricardian households and financial frictions.

4.1  Key Model Equations and Calibration

To incorporate these features, we modify the model in Section 3 along two dimensions. First, we assume that a fraction $s_{kh}$ of the population consists of "Keynesian" households whose members consume their current after-tax income each period, and set their wage equal to the average wage of the optimizing households. Because all households face the same labor demand schedule, each Keynesian household works the same number of hours as the average optimizing household. Thus, the consumption of Keynesian households $C_{t}^{K}\left( h\right)$ is simply determined as

$$P_{t}C_{t}^{K}\left( h\right) =\left( 1-\tau_{Nt}\right) W_{t}\left( h\right) N_{t}\left( h\right) -T_{t}.$$

Second, we incorporate a financial accelerator following the basic approach of Bernanke, Gertler and Gilchrist (1999). Thus, entrepreneurs acquire capital to supply to homogeneous factor markets, but must pay an external finance premium on the funds they borrow from households due to an agency problem. We follow Christiano, Motto and Rostagno (2007) by assuming that the debt contract between the entrepreneurs and lenders (households) is written in nominal terms (rather than real terms as in BGG 1999). At an aggregate level, the corporate finance premium varies with the degree of leverage of the economy.

We set the population share of the Keynesian households to optimizing households, $s_{kh}$, to 1/2, which implies that the Keynesian households' share of total consumption is about 1/3. This calibration perhaps probably overstates the role of non-Ricardian households in affecting consumption behavior, but seems useful to help put plausible bounds on how the multiplier may vary with the degree of non-Ricardian behavior in consumption (recognizing that the workhorse model is a special case in which $s_{kh}$ = 0 and there are no financial frictions). Our calibration of the parameters affecting the financial accelerator follow BGG (1999).²⁴

4.2  Dynamic Effects of Fiscal Policy Expansions

We analyze the effects of a government spending shock against the backdrop of initial economic conditions that are generated in the same manner as described in Section 3.1.5. In particular, we calibrate the same AR(2) process for the consumption taste shock, and again feed in a sequence of three innovations beginning in 2008:Q3 to roughly match the peak decline in U.S. output relative to trend that occurred during the financial crisis. The short-term interest rate falls to zero in 2009:Q1, and remains at this level for 8 quarters, while inflation falls about 2.5 percent below its steady state value of 2 percent. Given the stronger propagation mechanisms in this model, the size of the consumption innovations are considerably smaller than those considered in the previous section.

Figure 9 shows the effects of a front-loaded increase in government expenditures of 1 percent to trend GDP (as in Figure 6, the impulse responses show the "partial effect" of the rise in government spending). We report results both for the benchmark parameterization of the model where monetary policy is constrained by the zero lower bound (labeled 'ZLB Full Model'), and for the case in which policy is unconstrained (labeled 'Normal Full Model'). The (average) spending multiplier is about 1.6 in the four quarters following the shock, considerably larger than in a normal situation in which policy raises real interest rates.

The figure also shows the spending multiplier for the benchmark calibration of the model analyzed in the previous section for both the constrained ('ZLB Workhorse') and unconstrained ('Normal Workhorse') settings of the policy rule. The government spending multiplier in the liquidity trap case is substantially enhanced by the inclusion of Keynesian households and financial frictions. This is mainly due to a much larger rise in the potential real interest rate relative to the workhorse model: because government spending boosts wage income and hence the consumption of Keynesian households, real interest rates must rise more to keep output at potential.²⁵ In the normal case when monetary policy is unconstrained, the larger increase in the potential real rate in the full model is largely offset by a larger monetary policy response, so that the disparity in the multiplier across the two models is more modest; but in a liquidity trap, the disparity in the potential real rate translates into a much larger difference in the output responses.

The upper left panel of Figure 10 reports the government spending multiplier as a function of the size of the increment to government spending for the full model under our benchmark calibration. The initial conditions imply a liquidity trap lasting 10 quarters to emphasize how the multiplier behaves in a very long-lived trap. The multiplier is about 4 for increments to spending below 1/2 percent of GDP, and remains above unity even for relatively large spending increases above 4 percent of GDP. Moreover, even the marginal impact on the government budget balance is negative for spending increments in this range. These results provide an even stronger rationale for increasing fiscal spending in a very deep liquidity trap than the workhorse model.

The lower left panel shows the multiplier when initial conditions imply a liquidity trap lasting only 8 quarters. Under our benchmark calibration, the multiplier is about 1.6 for a small increase in spending, and declines to 1.2 for spending increases exceeding 2.5 percent of GDP. As seen in the right panel, the government deficit falls in the first year following the shock for spending increments in this range. As with the workhorse model, while the multiplier can be much higher under conditions that induce a sizeable inflation response, the multiplier tends to drop extremely sharply. Thus, the multiplier is dramatically higher under the calibration with four quarter price and wage contracts ("more flexible prices and wages"), exceeding 10 for spending below 0.2 percent of GDP, but falls to about unity as spending rises a bit above 2 percent of GDP.

5.  Conclusions

Our results suggest that for an economy facing a deep recession that appears likely to keep monetary policy constrained by the zero bound for well over two years, there is a strong argument for increasing government spending on a temporary basis. But even under such conditions, it is important to recognize that the marginal benefits of fiscal stimulus may drop substantially as spending rises, so that there is some risk that larger spending programs may have a low marginal payoff. Against the backdrop of a shallower recession and expected liquidity trap duration of under two years, there may still be substantial benefits of increasing some forms of spending with short implementation lags; but "outsized" multipliers are only likely to apply to relatively small spending programs.

Governments and central banks clearly have an array of options in addition to stimulative fiscal policy for mitigating the effects of a liquidity trap. For example, many central banks have used the asset side of their balance sheet to support credit markets by providing liquidity and purchasing long-term securities. Although the models we have examined are not designed to assess the effectiveness of such actions, our analysis highlights the importance of analyzing the effects of such actions jointly with the fiscal stimulus packages in order to properly assess their marginal impact.

Several extensions of our framework would be useful to explore in future research. First, it would be desirable to build on the work of Christiano, Eichenbaum and Rebelo (2009), Nakata (2009), and Woodford (2010) by investigating the normative question of the optimal level of government spending in a liquidity trap in our framework with endogenous exit. Second, while our paper has focused on government consumption spending exclusively as the tool of fiscal policy, it would be interesting to consider alternative fiscal measures such as tax cuts and targeted transfers.²⁶ Finally, as the multiplier may be affected through cross-country linkages, it would desirable to extend our analysis to an open economy setting.

Figure 1a. Negative Taste Shock and Fiscal Response

Data for Figure 1a

Quarters	Potential real rate (taste shock only)	Nominal interest rate (taste shock only)	Pot real rate - 1% g(t) increase	Pot real rate - 2% g(t) increase
0	-8.83615	-4.00003	-8.42707	-8.01799
1	-7.95254	-4.00003	-7.58437	-7.21619
2	-7.15728	-4.00003	-6.82593	-6.49457
3	-6.44156	-4.00003	-6.14334	-5.84512
4	-5.7974	-4.00003	-5.529	-5.2606
5	-5.21766	-4.00003	-4.9761	-4.73454
6	-4.69589	-4.00003	-4.47849	-4.26109
7	-4.22631	-4.00003	-4.03064	-3.83498
8	-3.80367	-3.80368	-3.62758	-3.45148
9	-3.42331	-3.42331	-3.26482	-3.10633
10	-3.08098	-3.08098	-2.93834	-2.7957
11	-2.77288	-2.77288	-2.6445	-2.51613

Figure 1b. Liquidity Trap Duration and Potential Real Rate

Data for Figure 1b

Potential Real Interest Rate	Liquidity trap duration
-13.0775	12
-12.9466	12
-12.8157	12
-12.6848	11
-12.5539	11
-12.423	11
-12.2921	11
-12.1612	11
-12.0303	11
-11.8994	11
-11.7684	11
-11.6375	11
-11.5066	11
-11.3757	10
-11.2448	10
-11.1139	10
-10.983	10
-10.8521	10
-10.7212	10
-10.5903	10
-10.4594	10
-10.3285	10
-10.1976	9
-10.0667	9
-9.93576	9
-9.80486	9
-9.67395	9
-9.54305	9
-9.41214	9
-9.28123	8
-9.15033	8
-9.01942	8
-8.88852	8
-8.75761	8
-8.6267	8
-8.4958	8
-8.36489	8
-8.23399	7
-8.10308	7
-7.97217	7
-7.84127	7
-7.71036	7
-7.57946	7
-7.44855	6
-7.31764	6
-7.18674	6
-7.05583	6
-6.92493	6
-6.79402	6
-6.66311	5
-6.53221	5
-6.4013	5
-6.2704	5
-6.13949	5
-6.00858	4
-5.87768	4
-5.74677	4
-5.61587	4
-5.48496	3
-5.35405	3
-5.22315	3
-5.09224	3
-4.96134	3
-4.83043	2
-4.69953	2
-4.56862	2
-4.43771	1
-4.30681	1
-4.1759	1
-4.045	1
-3.91409	0
-3.78318	0
-3.65228	0
-3.52137	0
-3.39047	0
-3.25956	0
-3.12865	0
-2.99775	0
-2.86684	0
-2.73594	0
-2.60503	0
-2.47412	0
-2.34322	0
-2.21231	0
-2.08141	0
-1.9505	0
-1.81959	0
-1.68869	0
-1.55778	0
-1.42688	0
-1.29597	0
-1.16506	0
-1.03416	0
-0.90325	0
-0.77235	0
-0.64144	0
-0.51053	0
-0.37963	0
-0.24872	0
-0.11782	0

Figure 2. Immediate Rise in Government Spending

Data for Figure 2

Quarters	No Inflation Response:  Real Interest Rate (Taste shock only)	No Inflation Response:  Real Interest Rate (Both shocks)	No Inflation Response:  Real Interest Rate (Government only)	5 Quarter Price Contracts:  Real Interest Rate (Taste shock only)	5 Quarter Price Contracts:  Real Interest Rate (Both shocks)	5 Quarter Price Contracts:  Real Interest Rate (Government only)	No Inflation Response:  Output Gap (Taste shock only)	No Inflation Response:  Output Gap (Both shocks)	No Inflation Response:  Output Gap (Government only)	5 Quarter Price Contracts:  Output Gap (Taste shock only)	5 Quarter Price Contracts:  Output Gap (Both shocks)	5 Quarter Price Contracts:  Output Gap (Government only)	No Inflation Response:  Inflation (Taste shock only)	No Inflation Response:  Inflation (Both shocks)	No Inflation Response:  Inflation (Government only)	5 Quarter Price Contracts:  Inflation (Taste shock only)	5 Quarter Price Contracts:  Inflation (Both shocks)	5 Quarter Price Contracts:  Inflation (Government only)	No Inflation Response:  Government Debt/GDP (Taste shock only)	No Inflation Response:  Government Debt/GDP (Both shocks)	No Inflation Response:  Government Debt/GDP (Government only)	5 Quarter Price Contracts:  Government Debt/GDP (Taste shock only)	5 Quarter Price Contracts:  Government Debt/GDP (Both shocks)	5 Quarter Price Contracts:  Government Debt/GDP (Government only)
0	-3.99962	-3.99969	-7.8E-05	9.025122	5.849192	-3.17593	-3.62845	-3.1671	0.461355	-8.96679	-7.06144	1.905351	-0.00063	-0.00052	0.000104	-22.5866	-17.381	5.205588	2.087772	2.068089	-0.01968	4.140682	3.565696	-0.57499
1	-3.99977	-3.99983	-5.6E-05	3.231491	1.329531	-1.90196	-2.67082	-2.29047	0.380341	-5.43025	-4.23474	1.195519	-0.00042	-0.00034	7.82E-05	-13.0252	-9.84923	3.175929	3.727543	3.703657	-0.02389	6.831306	5.941423	-0.88988
2	-3.99988	-3.99992	-3.9E-05	-0.20194	-1.30851	-1.10657	-1.88817	-1.58074	0.307432	-3.21582	-2.46978	0.746032	-0.00026	-0.00021	5.64E-05	-7.23152	-5.32956	1.901959	4.975219	4.961186	-0.01403	8.553726	7.514849	-1.03888
3	-3.99995	-3.99998	-2.5E-05	-2.16671	-2.78109	-0.61438	-1.263	-1.02119	0.241815	-1.83866	-1.37733	0.461323	-0.00016	-0.00012	3.88E-05	-3.79809	-2.69152	1.10657	5.883823	5.892282	0.008459	9.615337	8.533578	-1.08176
4	-4	-4.00001	-1.4E-05	-3.2281	-3.54277	-0.31467	-0.77956	-0.5968	0.182763	-0.99224	-0.71161	0.280629	-8.3E-05	-5.8E-05	2.49E-05	-1.83332	-1.21894	0.614377	6.503609	6.545787	0.042178	10.21354	9.157043	-1.05649
5	-4.00002	-4.00003	-7E-06	-3.74592	-3.88395	-0.13803	-0.42368	-0.29406	0.129617	-0.48352	-0.31834	0.165181	-3.8E-05	-2.3E-05	1.44E-05	-0.77194	-0.45726	0.314674	6.882134	6.967856	0.085722	10.47675	9.489613	-0.98713
6	-4.00003	-4.00003	-2.2E-06	-3.95192	-3.99351	-0.04159	-0.18258	-0.1008	0.081787	-0.19211	-0.10209	0.090022	-1.3E-05	-6.2E-06	6.97E-06	-0.25412	-0.11609	0.13803	7.064312	7.202015	0.137702	10.4907	9.601878	-0.88882
7	-4.00003	-4.00003	-2.4E-11	-4.00002	-4.00002	-4.5E-07	-0.0448	-0.00606	0.038741	-0.0448	-0.00606	0.038741	-2.6E-06	-3.5E-07	2.24E-06	-0.04811	-0.00652	0.041592	7.092437	7.289184	0.196747	10.31545	9.544627	-0.77082
8	-3.80367	-3.62758	0.176096	-3.80367	-3.62758	0.176096	-9.5E-07	-9.1E-07	4.4E-08	-9.4E-07	-9E-07	4.35E-08	-5.3E-10	-5E-10	2.44E-11	-9.6E-06	-9.2E-06	4.47E-07	7.006191	7.2677	0.261509	9.996824	9.358458	-0.63837
9	-3.42331	-3.26482	0.158486	-3.42331	-3.26482	0.158486	-8.6E-07	-8.2E-07	3.96E-08	-8.4E-07	-8.1E-07	3.91E-08	-4.7E-10	-4.5E-10	2.19E-11	-8.7E-06	-8.3E-06	4.02E-07	6.82769	7.144951	0.317261	9.559693	9.052704	-0.50699
10	-3.08098	-2.93834	0.142638	-3.08098	-2.93834	0.142638	-7.7E-07	-7.3E-07	3.57E-08	-7.6E-07	-7.3E-07	3.52E-08	-4.3E-10	-4.1E-10	1.98E-11	-7.8E-06	-7.5E-06	3.62E-07	6.562486	6.926613	0.364126	9.012575	8.635138	-0.37744
11	-2.77288	-2.6445	0.128374	-2.77288	-2.6445	0.128374	-6.9E-07	-6.6E-07	3.21E-08	-6.8E-07	-6.5E-07	3.17E-08	-3.8E-10	-3.7E-10	1.78E-11	-7E-06	-6.7E-06	3.26E-07	6.216671	6.618934	0.402263	8.364718	8.114236	-0.25048
12	-2.49559	-2.38005	0.115537	-2.49559	-2.38005	0.115537	-6.2E-07	-6E-07	2.89E-08	-6.2E-07	-5.9E-07	2.85E-08	-3.5E-10	-3.3E-10	1.6E-11	-6.3E-06	-6E-06	2.93E-07	5.796831	6.228693	0.431862	7.626018	7.499108	-0.12691
13	-2.24603	-2.14205	0.103983	-2.24603	-2.14205	0.103983	-5.6E-07	-5.4E-07	2.6E-08	-5.5E-07	-5.3E-07	2.57E-08	-3.1E-10	-3E-10	1.44E-11	-5.7E-06	-5.4E-06	2.64E-07	5.309999	5.763153	0.453154	6.806932	6.799431	-0.0075
14	-2.02143	-1.92784	0.093585	-2.02143	-1.92784	0.093585	-5.1E-07	-4.8E-07	2.34E-08	-5E-07	-4.8E-07	2.31E-08	-2.8E-10	-2.7E-10	1.3E-11	-5.1E-06	-4.9E-06	2.37E-07	4.763593	5.230002	0.466409	5.918386	6.025362	0.106975
15	-1.81929	-1.73506	0.084226	-1.81929	-1.73506	0.084226	-4.5E-07	-4.3E-07	2.11E-08	-4.5E-07	-4.3E-07	2.08E-08	-2.5E-10	-2.4E-10	1.17E-11	-4.6E-06	-4.4E-06	2.14E-07	4.165355	4.637291	0.471936	4.971678	5.187452	0.215774
16	-1.63736	-1.56155	0.075804	-1.63736	-1.56155	0.075804	-4.1E-07	-3.9E-07	1.9E-08	-4E-07	-3.9E-07	1.87E-08	-2.3E-10	-2.2E-10	1.05E-11	-4.2E-06	-4E-06	1.92E-07	3.523287	3.993374	0.470087	3.978369	4.296557	0.318188
17	-1.47362	-1.4054	0.068223	-1.47362	-1.4054	0.068223	-3.7E-07	-3.5E-07	1.71E-08	-3.6E-07	-3.5E-07	1.68E-08	-2E-10	-1.9E-10	9.45E-12	-3.7E-06	-3.6E-06	1.73E-07	2.845578	3.306827	0.46125	2.950186	3.36374	0.413553
18	-1.32626	-1.26486	0.061401	-1.32626	-1.26486	0.061401	-3.3E-07	-3.2E-07	1.54E-08	-3.3E-07	-3.1E-07	1.52E-08	-1.8E-10	-1.8E-10	8.5E-12	-3.4E-06	-3.2E-06	1.56E-07	2.140534	2.586386	0.445852	1.898913	2.400174	0.501262
19	-1.19363	-1.13837	0.055261	-1.19363	-1.13837	0.055261	-3E-07	-2.8E-07	1.38E-08	-2.9E-07	-2.8E-07	1.36E-08	-1.7E-10	-1.6E-10	7.65E-12	-3E-06	-2.9E-06	1.4E-07	1.416508	1.840864	0.424356	0.836279	1.417046	0.580767

Figure 3. Spending Multipliers and Government Debt Responses in Simple New-Keynesian Model

Data for Figure 3

% Change in Govt Spend (Share of GDP)	ZLB Duration	Government Spending Multiplier:  No Inflation Response: Marginal multiplier	Government Spending Multiplier:  No Inflation Response: Average multiplier (for positive % Change in Govt Spend)	Government Spending Multiplier:  Alternative Price Contract Durations: 10 qtr contracts	Government Spending Multiplier:  Alternative Price Contract Durations: 5 qtr contracts	Government Spending Multiplier:  Alternative Price Contract Durations: 4 qtr contracts	Governement Debt to Actual GDP (for positive % Change in Govt Spend):  No Inflation Response: Marginal response	Governement Debt to Actual GDP (for positive % Change in Govt Spend):  Alternative Price Contract Durations: 10 qtr contracts	Governement Debt to Actual GDP (for positive % Change in Govt Spend):  Alternative Price Contract Durations: 5 qtr contracts	Governement Debt to Actual GDP (for positive % Change in Govt Spend):  Alternative Price Contract Durations: 4 qtr contracts
-8.8	12	0.795914	NaN	1.293625	5.769407	16.60261	NaN	NaN	NaN	NaN
-8.778	12	0.795914	NaN	1.293625	5.769405	16.6026	NaN	NaN	NaN	NaN
-8.756	12	0.795914	NaN	1.293625	5.769402	16.60259	NaN	NaN	NaN	NaN
-8.734	12	0.795914	NaN	1.293625	5.7694	16.60258	NaN	NaN	NaN	NaN
-8.712	12	0.795914	NaN	1.293624	5.769398	16.60257	NaN	NaN	NaN	NaN
-8.69	12	0.795914	NaN	1.293624	5.769395	16.60257	NaN	NaN	NaN	NaN
-8.668	12	0.795914	NaN	1.293624	5.769393	16.60256	NaN	NaN	NaN	NaN
-8.646	12	0.795914	NaN	1.293624	5.769391	16.60255	NaN	NaN	NaN	NaN
-8.624	12	0.795914	NaN	1.293624	5.769388	16.60254	NaN	NaN	NaN	NaN
-8.602	12	0.795914	NaN	1.293623	5.769386	16.60253	NaN	NaN	NaN	NaN
-8.58	12	0.795914	NaN	1.293623	5.769384	16.60252	NaN	NaN	NaN	NaN
-8.558	12	0.795914	NaN	1.293623	5.769381	16.60251	NaN	NaN	NaN	NaN
-8.536	12	0.795913	NaN	1.293623	5.769379	16.6025	NaN	NaN	NaN	NaN
-8.514	12	0.795913	NaN	1.293622	5.769376	16.6025	NaN	NaN	NaN	NaN
-8.492	12	0.795913	NaN	1.293622	5.769374	16.60249	NaN	NaN	NaN	NaN
-8.47	12	0.795913	NaN	1.293622	5.769371	16.60248	NaN	NaN	NaN	NaN
-8.448	12	0.795913	NaN	1.293622	5.769369	16.60247	NaN	NaN	NaN	NaN
-8.426	12	0.795913	NaN	1.293621	5.769366	16.60246	NaN	NaN	NaN	NaN
-8.404	12	0.795913	NaN	1.293621	5.769364	16.60245	NaN	NaN	NaN	NaN
-8.382	12	0.795913	NaN	1.293621	5.769361	16.60244	NaN	NaN	NaN	NaN
-8.36	12	0.795913	NaN	1.293621	5.769359	16.60243	NaN	NaN	NaN	NaN
-8.338	12	0.795913	NaN	1.29362	5.769356	16.60242	NaN	NaN	NaN	NaN
-8.316	12	0.795913	NaN	1.29362	5.769353	16.60241	NaN	NaN	NaN	NaN
-8.294	12	0.795913	NaN	1.29362	5.769351	16.6024	NaN	NaN	NaN	NaN
-8.272	12	0.795913	NaN	1.29362	5.769348	16.60239	NaN	NaN	NaN	NaN
-8.25	12	0.795913	NaN	1.293619	5.769345	16.60238	NaN	NaN	NaN	NaN
-8.228	12	0.795913	NaN	1.293619	5.769342	16.60237	NaN	NaN	NaN	NaN
-8.206	12	0.795913	NaN	1.293619	5.76934	16.60236	NaN	NaN	NaN	NaN
-8.184	12	0.795913	NaN	1.293619	5.769337	16.60235	NaN	NaN	NaN	NaN
-8.162	12	0.795913	NaN	1.293618	5.769334	16.60234	NaN	NaN	NaN	NaN
-8.14	12	0.795912	NaN	1.293618	5.769331	16.60233	NaN	NaN	NaN	NaN
-8.118	12	0.795912	NaN	1.293618	5.769329	16.60232	NaN	NaN	NaN	NaN
-8.096	12	0.795912	NaN	1.293618	5.769326	16.60231	NaN	NaN	NaN	NaN
-8.074	12	0.795912	NaN	1.293617	5.769323	16.6023	NaN	NaN	NaN	NaN
-8.052	12	0.795912	NaN	1.293617	5.76932	16.60229	NaN	NaN	NaN	NaN
-8.03	12	0.795912	NaN	1.293617	5.769317	16.60228	NaN	NaN	NaN	NaN
-8.008	12	0.795912	NaN	1.293616	5.769314	16.60227	NaN	NaN	NaN	NaN
-7.986	12	0.795912	NaN	1.293616	5.769311	16.60226	NaN	NaN	NaN	NaN
-7.964	12	0.795912	NaN	1.293616	5.769308	16.60225	NaN	NaN	NaN	NaN
-7.942	12	0.795912	NaN	1.293616	5.769305	16.60224	NaN	NaN	NaN	NaN
-7.92	12	0.795912	NaN	1.293615	5.769302	16.60223	NaN	NaN	NaN	NaN
-7.898	12	0.795912	NaN	1.293615	5.769299	16.60222	NaN	NaN	NaN	NaN
-7.876	12	0.795912	NaN	1.293615	5.769296	16.60221	NaN	NaN	NaN	NaN
-7.854	12	0.795912	NaN	1.293614	5.769293	16.60219	NaN	NaN	NaN	NaN
-7.832	12	0.795912	NaN	1.293614	5.769289	16.60218	NaN	NaN	NaN	NaN
-7.81	12	0.795911	NaN	1.293614	5.769286	16.60217	NaN	NaN	NaN	NaN
-7.788	12	0.795911	NaN	1.293614	5.769283	16.60216	NaN	NaN	NaN	NaN
-7.766	12	0.795911	NaN	1.293613	5.76928	16.60215	NaN	NaN	NaN	NaN
-7.744	12	0.795911	NaN	1.293613	5.769277	16.60214	NaN	NaN	NaN	NaN
-7.722	12	0.795911	NaN	1.293613	5.769273	16.60212	NaN	NaN	NaN	NaN
-7.7	12	0.795911	NaN	1.293612	5.76927	16.60211	NaN	NaN	NaN	NaN
-7.678	12	0.795911	NaN	1.293612	5.769267	16.6021	NaN	NaN	NaN	NaN
-7.656	12	0.795911	NaN	1.293612	5.769263	16.60209	NaN	NaN	NaN	NaN
-7.634	12	0.795911	NaN	1.293611	5.76926	16.60208	NaN	NaN	NaN	NaN
-7.612	12	0.795911	NaN	1.293611	5.769256	16.60206	NaN	NaN	NaN	NaN
-7.59	12	0.795911	NaN	1.293611	5.769253	16.60205	NaN	NaN	NaN	NaN
-7.568	12	0.795911	NaN	1.29361	5.769249	16.60204	NaN	NaN	NaN	NaN
-7.546	12	0.795911	NaN	1.29361	5.769246	16.60202	NaN	NaN	NaN	NaN
-7.524	12	0.795911	NaN	1.29361	5.769242	16.60201	NaN	NaN	NaN	NaN
-7.502	12	0.79591	NaN	1.293609	5.769239	16.602	NaN	NaN	NaN	NaN
-7.48	12	0.79591	NaN	1.293609	5.769235	16.60199	NaN	NaN	NaN	NaN
-7.458	12	0.79591	NaN	1.293609	5.769231	16.60197	NaN	NaN	NaN	NaN
-7.436	12	0.79591	NaN	1.293608	5.769228	16.60196	NaN	NaN	NaN	NaN
-7.414	12	0.79591	NaN	1.293608	5.769224	16.60195	NaN	NaN	NaN	NaN
-7.392	12	0.79591	NaN	1.293608	5.76922	16.60193	NaN	NaN	NaN	NaN
-7.37	12	0.79591	NaN	1.293607	5.769216	16.60192	NaN	NaN	NaN	NaN
-7.348	12	0.79591	NaN	1.293607	5.769213	16.6019	NaN	NaN	NaN	NaN
-7.326	12	0.79591	NaN	1.293606	5.769209	16.60189	NaN	NaN	NaN	NaN
-7.304	12	0.79591	NaN	1.293606	5.769205	16.60188	NaN	NaN	NaN	NaN
-7.282	12	0.79591	NaN	1.293606	5.769201	16.60186	NaN	NaN	NaN	NaN
-7.26	12	0.79591	NaN	1.293605	5.769197	16.60185	NaN	NaN	NaN	NaN
-7.238	12	0.79591	NaN	1.293605	5.769193	16.60183	NaN	NaN	NaN	NaN
-7.216	12	0.795909	NaN	1.293605	5.769189	16.60182	NaN	NaN	NaN	NaN
-7.194	12	0.795909	NaN	1.293604	5.769185	16.6018	NaN	NaN	NaN	NaN
-7.172	12	0.795909	NaN	1.293604	5.769181	16.60179	NaN	NaN	NaN	NaN
-7.15	12	0.795909	NaN	1.293603	5.769177	16.60177	NaN	NaN	NaN	NaN
-7.128	12	0.795909	NaN	1.293603	5.769172	16.60176	NaN	NaN	NaN	NaN
-7.106	12	0.795909	NaN	1.293603	5.769168	16.60174	NaN	NaN	NaN	NaN
-7.084	12	0.795909	NaN	1.293602	5.769164	16.60173	NaN	NaN	NaN	NaN
-7.062	12	0.795909	NaN	1.293602	5.76916	16.60171	NaN	NaN	NaN	NaN
-7.04	12	0.795909	NaN	1.293601	5.769155	16.6017	NaN	NaN	NaN	NaN
-7.018	12	0.795909	NaN	1.293601	5.769151	16.60168	NaN	NaN	NaN	NaN
-6.996	12	0.795909	NaN	1.293601	5.769146	16.60167	NaN	NaN	NaN	NaN
-6.974	12	0.795908	NaN	1.2936	5.769142	16.60165	NaN	NaN	NaN	NaN
-6.952	12	0.795908	NaN	1.2936	5.769137	16.60163	NaN	NaN	NaN	NaN
-6.93	12	0.795908	NaN	1.293599	5.769133	16.60162	NaN	NaN	NaN	NaN
-6.908	12	0.795908	NaN	1.293599	5.769128	16.6016	NaN	NaN	NaN	NaN
-6.886	12	0.795908	NaN	1.293598	5.769124	16.60158	NaN	NaN	NaN	NaN
-6.864	12	0.795908	NaN	1.293598	5.769119	16.60157	NaN	NaN	NaN	NaN
-6.842	12	0.795908	NaN	1.293598	5.769114	16.60155	NaN	NaN	NaN	NaN
-6.82	12	0.795908	NaN	1.293597	5.769109	16.60153	NaN	NaN	NaN	NaN
-6.798	12	0.795908	NaN	1.293597	5.769105	16.60151	NaN	NaN	NaN	NaN
-6.776	12	0.795908	NaN	1.293596	5.7691	16.6015	NaN	NaN	NaN	NaN
-6.754	12	0.795907	NaN	1.293596	5.769095	16.60148	NaN	NaN	NaN	NaN
-6.732	12	0.795907	NaN	1.293595	5.76909	16.60146	NaN	NaN	NaN	NaN
-6.71	12	0.795907	NaN	1.293595	5.769085	16.60144	NaN	NaN	NaN	NaN
-6.688	12	0.795907	NaN	1.293594	5.76908	16.60142	NaN	NaN	NaN	NaN
-6.666	12	0.795907	NaN	1.293594	5.769075	16.60141	NaN	NaN	NaN	NaN
-6.644	12	0.795907	NaN	1.293593	5.769069	16.60139	NaN	NaN	NaN	NaN
-6.622	12	0.795907	NaN	1.293593	5.769064	16.60137	NaN	NaN	NaN	NaN
-6.6	12	0.795907	NaN	1.293592	5.769059	16.60135	NaN	NaN	NaN	NaN
-6.578	12	0.795907	NaN	1.293592	5.769054	16.60133	NaN	NaN	NaN	NaN
-6.556	12	0.795906	NaN	1.293591	5.769048	16.60131	NaN	NaN	NaN	NaN
-6.534	12	0.795906	NaN	1.293591	5.769043	16.60129	NaN	NaN	NaN	NaN
-6.512	12	0.795906	NaN	1.29359	5.769037	16.60127	NaN	NaN	NaN	NaN
-6.49	12	0.795906	NaN	1.29359	5.769032	16.60125	NaN	NaN	NaN	NaN
-6.468	12	0.795906	NaN	1.293589	5.769026	16.60123	NaN	NaN	NaN	NaN
-6.446	12	0.795906	NaN	1.293589	5.76902	16.60121	NaN	NaN	NaN	NaN
-6.424	11	0.767635	NaN	1.153221	4.123476	10.37258	NaN	NaN	NaN	NaN
-6.402	11	0.767635	NaN	1.153221	4.123474	10.37257	NaN	NaN	NaN	NaN
-6.38	11	0.767635	NaN	1.15322	4.123472	10.37257	NaN	NaN	NaN	NaN
-6.358	11	0.767635	NaN	1.15322	4.123471	10.37256	NaN	NaN	NaN	NaN
-6.336	11	0.767635	NaN	1.15322	4.123469	10.37256	NaN	NaN	NaN	NaN
-6.314	11	0.767635	NaN	1.15322	4.123467	10.37255	NaN	NaN	NaN	NaN
-6.292	11	0.767635	NaN	1.153219	4.123465	10.37254	NaN	NaN	NaN	NaN
-6.27	11	0.767634	NaN	1.153219	4.123463	10.37254	NaN	NaN	NaN	NaN
-6.248	11	0.767634	NaN	1.153219	4.123461	10.37253	NaN	NaN	NaN	NaN
-6.226	11	0.767634	NaN	1.153219	4.123459	10.37252	NaN	NaN	NaN	NaN
-6.204	11	0.767634	NaN	1.153219	4.123457	10.37252	NaN	NaN	NaN	NaN
-6.182	11	0.767634	NaN	1.153218	4.123454	10.37251	NaN	NaN	NaN	NaN
-6.16	11	0.767634	NaN	1.153218	4.123452	10.3725	NaN	NaN	NaN	NaN
-6.138	11	0.767634	NaN	1.153218	4.12345	10.37249	NaN	NaN	NaN	NaN
-6.116	11	0.767634	NaN	1.153218	4.123448	10.37249	NaN	NaN	NaN	NaN
-6.094	11	0.767634	NaN	1.153217	4.123446	10.37248	NaN	NaN	NaN	NaN
-6.072	11	0.767634	NaN	1.153217	4.123444	10.37247	NaN	NaN	NaN	NaN
-6.05	11	0.767634	NaN	1.153217	4.123441	10.37247	NaN	NaN	NaN	NaN
-6.028	11	0.767634	NaN	1.153217	4.123439	10.37246	NaN	NaN	NaN	NaN
-6.006	11	0.767634	NaN	1.153216	4.123437	10.37245	NaN	NaN	NaN	NaN
-5.984	11	0.767634	NaN	1.153216	4.123435	10.37244	NaN	NaN	NaN	NaN
-5.962	11	0.767634	NaN	1.153216	4.123432	10.37244	NaN	NaN	NaN	NaN
-5.94	11	0.767633	NaN	1.153216	4.12343	10.37243	NaN	NaN	NaN	NaN
-5.918	11	0.767633	NaN	1.153215	4.123427	10.37242	NaN	NaN	NaN	NaN
-5.896	11	0.767633	NaN	1.153215	4.123425	10.37241	NaN	NaN	NaN	NaN
-5.874	11	0.767633	NaN	1.153215	4.123423	10.37241	NaN	NaN	NaN	NaN
-5.852	11	0.767633	NaN	1.153214	4.12342	10.3724	NaN	NaN	NaN	NaN
-5.83	11	0.767633	NaN	1.153214	4.123418	10.37239	NaN	NaN	NaN	NaN
-5.808	11	0.767633	NaN	1.153214	4.123415	10.37238	NaN	NaN	NaN	NaN
-5.786	11	0.767633	NaN	1.153214	4.123413	10.37237	NaN	NaN	NaN	NaN
-5.764	11	0.767633	NaN	1.153213	4.12341	10.37236	NaN	NaN	NaN	NaN
-5.742	11	0.767633	NaN	1.153213	4.123407	10.37236	NaN	NaN	NaN	NaN
-5.72	11	0.767633	NaN	1.153213	4.123405	10.37235	NaN	NaN	NaN	NaN
-5.698	11	0.767633	NaN	1.153212	4.123402	10.37234	NaN	NaN	NaN	NaN
-5.676	11	0.767633	NaN	1.153212	4.123399	10.37233	NaN	NaN	NaN	NaN
-5.654	11	0.767632	NaN	1.153212	4.123397	10.37232	NaN	NaN	NaN	NaN
-5.632	11	0.767632	NaN	1.153211	4.123394	10.37231	NaN	NaN	NaN	NaN
-5.61	11	0.767632	NaN	1.153211	4.123391	10.3723	NaN	NaN	NaN	NaN
-5.588	11	0.767632	NaN	1.153211	4.123388	10.37229	NaN	NaN	NaN	NaN
-5.566	11	0.767632	NaN	1.15321	4.123385	10.37228	NaN	NaN	NaN	NaN
-5.544	11	0.767632	NaN	1.15321	4.123382	10.37227	NaN	NaN	NaN	NaN
-5.522	11	0.767632	NaN	1.15321	4.123379	10.37226	NaN	NaN	NaN	NaN
-5.5	11	0.767632	NaN	1.153209	4.123377	10.37226	NaN	NaN	NaN	NaN
-5.478	11	0.767632	NaN	1.153209	4.123374	10.37225	NaN	NaN	NaN	NaN
-5.456	11	0.767632	NaN	1.153209	4.12337	10.37224	NaN	NaN	NaN	NaN
-5.434	11	0.767632	NaN	1.153208	4.123367	10.37223	NaN	NaN	NaN	NaN
-5.412	11	0.767632	NaN	1.153208	4.123364	10.37222	NaN	NaN	NaN	NaN
-5.39	11	0.767631	NaN	1.153208	4.123361	10.3722	NaN	NaN	NaN	NaN
-5.368	11	0.767631	NaN	1.153207	4.123358	10.37219	NaN	NaN	NaN	NaN
-5.346	11	0.767631	NaN	1.153207	4.123355	10.37218	NaN	NaN	NaN	NaN
-5.324	11	0.767631	NaN	1.153207	4.123351	10.37217	NaN	NaN	NaN	NaN
-5.302	11	0.767631	NaN	1.153206	4.123348	10.37216	NaN	NaN	NaN	NaN
-5.28	11	0.767631	NaN	1.153206	4.123345	10.37215	NaN	NaN	NaN	NaN
-5.258	11	0.767631	NaN	1.153205	4.123341	10.37214	NaN	NaN	NaN	NaN
-5.236	11	0.767631	NaN	1.153205	4.123338	10.37213	NaN	NaN	NaN	NaN
-5.214	11	0.767631	NaN	1.153205	4.123334	10.37212	NaN	NaN	NaN	NaN
-5.192	11	0.767631	NaN	1.153204	4.123331	10.37211	NaN	NaN	NaN	NaN
-5.17	11	0.76763	NaN	1.153204	4.123327	10.37209	NaN	NaN	NaN	NaN
-5.148	11	0.76763	NaN	1.153203	4.123324	10.37208	NaN	NaN	NaN	NaN
-5.126	11	0.76763	NaN	1.153203	4.12332	10.37207	NaN	NaN	NaN	NaN
-5.104	11	0.76763	NaN	1.153203	4.123316	10.37206	NaN	NaN	NaN	NaN
-5.082	11	0.76763	NaN	1.153202	4.123313	10.37205	NaN	NaN	NaN	NaN
-5.06	11	0.76763	NaN	1.153202	4.123309	10.37203	NaN	NaN	NaN	NaN
-5.038	11	0.76763	NaN	1.153201	4.123305	10.37202	NaN	NaN	NaN	NaN
-5.016	11	0.76763	NaN	1.153201	4.123301	10.37201	NaN	NaN	NaN	NaN
-4.994	11	0.76763	NaN	1.1532	4.123297	10.372	NaN	NaN	NaN	NaN
-4.972	11	0.767629	NaN	1.1532	4.123293	10.37198	NaN	NaN	NaN	NaN
-4.95	11	0.767629	NaN	1.153199	4.123289	10.37197	NaN	NaN	NaN	NaN
-4.928	11	0.767629	NaN	1.153199	4.123285	10.37196	NaN	NaN	NaN	NaN
-4.906	11	0.767629	NaN	1.153198	4.123281	10.37194	NaN	NaN	NaN	NaN
-4.884	11	0.767629	NaN	1.153198	4.123276	10.37193	NaN	NaN	NaN	NaN
-4.862	11	0.767629	NaN	1.153198	4.123272	10.37191	NaN	NaN	NaN	NaN
-4.84	11	0.767629	NaN	1.153197	4.123268	10.3719	NaN	NaN	NaN	NaN
-4.818	11	0.767629	NaN	1.153197	4.123263	10.37189	NaN	NaN	NaN	NaN
-4.796	11	0.767628	NaN	1.153196	4.123259	10.37187	NaN	NaN	NaN	NaN
-4.774	11	0.767628	NaN	1.153195	4.123254	10.37186	NaN	NaN	NaN	NaN
-4.752	11	0.767628	NaN	1.153195	4.12325	10.37184	NaN	NaN	NaN	NaN
-4.73	11	0.767628	NaN	1.153194	4.123245	10.37183	NaN	NaN	NaN	NaN
-4.708	11	0.767628	NaN	1.153194	4.12324	10.37181	NaN	NaN	NaN	NaN
-4.686	11	0.767628	NaN	1.153193	4.123235	10.3718	NaN	NaN	NaN	NaN
-4.664	11	0.767628	NaN	1.153193	4.123231	10.37178	NaN	NaN	NaN	NaN
-4.642	11	0.767627	NaN	1.153192	4.123226	10.37176	NaN	NaN	NaN	NaN
-4.62	11	0.767627	NaN	1.153192	4.123221	10.37175	NaN	NaN	NaN	NaN
-4.598	11	0.767627	NaN	1.153191	4.123216	10.37173	NaN	NaN	NaN	NaN
-4.576	11	0.767627	NaN	1.15319	4.12321	10.37171	NaN	NaN	NaN	NaN
-4.554	11	0.767627	NaN	1.15319	4.123205	10.3717	NaN	NaN	NaN	NaN
-4.532	11	0.767627	NaN	1.153189	4.1232	10.37168	NaN	NaN	NaN	NaN
-4.51	11	0.767626	NaN	1.153189	4.123194	10.37166	NaN	NaN	NaN	NaN
-4.488	11	0.767626	NaN	1.153188	4.123189	10.37164	NaN	NaN	NaN	NaN
-4.466	11	0.767626	NaN	1.153187	4.123183	10.37163	NaN	NaN	NaN	NaN
-4.444	11	0.767626	NaN	1.153187	4.123178	10.37161	NaN	NaN	NaN	NaN
-4.422	11	0.767626	NaN	1.153186	4.123172	10.37159	NaN	NaN	NaN	NaN
-4.4	11	0.767626	NaN	1.153185	4.123166	10.37157	NaN	NaN	NaN	NaN
-4.378	11	0.767625	NaN	1.153185	4.12316	10.37155	NaN	NaN	NaN	NaN
-4.356	11	0.767625	NaN	1.153184	4.123154	10.37153	NaN	NaN	NaN	NaN
-4.334	11	0.767625	NaN	1.153183	4.123148	10.37151	NaN	NaN	NaN	NaN
-4.312	11	0.767625	NaN	1.153183	4.123142	10.37149	NaN	NaN	NaN	NaN
-4.29	11	0.767625	NaN	1.153182	4.123136	10.37147	NaN	NaN	NaN	NaN
-4.268	11	0.767625	NaN	1.153181	4.12313	10.37145	NaN	NaN	NaN	NaN
-4.246	11	0.767624	NaN	1.153181	4.123123	10.37143	NaN	NaN	NaN	NaN
-4.224	11	0.767624	NaN	1.15318	4.123117	10.37141	NaN	NaN	NaN	NaN
-4.202	11	0.767624	NaN	1.153179	4.12311	10.37139	NaN	NaN	NaN	NaN
-4.18	11	0.767624	NaN	1.153178	4.123103	10.37136	NaN	NaN	NaN	NaN
-4.158	11	0.767624	NaN	1.153177	4.123096	10.37134	NaN	NaN	NaN	NaN
-4.136	11	0.767623	NaN	1.153177	4.123089	10.37132	NaN	NaN	NaN	NaN
-4.114	11	0.767623	NaN	1.153176	4.123082	10.3713	NaN	NaN	NaN	NaN
-4.092	11	0.767623	NaN	1.153175	4.123075	10.37127	NaN	NaN	NaN	NaN
-4.07	11	0.767623	NaN	1.153174	4.123068	10.37125	NaN	NaN	NaN	NaN
-4.048	11	0.767622	NaN	1.153173	4.12306	10.37123	NaN	NaN	NaN	NaN
-4.026	11	0.767622	NaN	1.153172	4.123053	10.3712	NaN	NaN	NaN	NaN
-4.004	11	0.767622	NaN	1.153172	4.123045	10.37118	NaN	NaN	NaN	NaN
-3.982	11	0.767622	NaN	1.153171	4.123037	10.37115	NaN	NaN	NaN	NaN
-3.96	11	0.767622	NaN	1.15317	4.123029	10.37112	NaN	NaN	NaN	NaN
-3.938	11	0.767621	NaN	1.153169	4.123021	10.3711	NaN	NaN	NaN	NaN
-3.916	11	0.767621	NaN	1.153168	4.123013	10.37107	NaN	NaN	NaN	NaN
-3.894	11	0.767621	NaN	1.153167	4.123005	10.37104	NaN	NaN	NaN	NaN
-3.872	11	0.767621	NaN	1.153166	4.122996	10.37102	NaN	NaN	NaN	NaN
-3.85	11	0.76762	NaN	1.153165	4.122988	10.37099	NaN	NaN	NaN	NaN
-3.828	11	0.76762	NaN	1.153164	4.122979	10.37096	NaN	NaN	NaN	NaN
-3.806	11	0.76762	NaN	1.153163	4.12297	10.37093	NaN	NaN	NaN	NaN
-3.784	11	0.767619	NaN	1.153162	4.122961	10.3709	NaN	NaN	NaN	NaN
-3.762	11	0.767619	NaN	1.153161	4.122951	10.37087	NaN	NaN	NaN	NaN
-3.74	11	0.767619	NaN	1.15316	4.122942	10.37084	NaN	NaN	NaN	NaN
-3.718	11	0.767619	NaN	1.153159	4.122932	10.37081	NaN	NaN	NaN	NaN
-3.696	11	0.767618	NaN	1.153158	4.122923	10.37078	NaN	NaN	NaN	NaN
-3.674	11	0.767618	NaN	1.153156	4.122913	10.37074	NaN	NaN	NaN	NaN
-3.652	11	0.767618	NaN	1.153155	4.122903	10.37071	NaN	NaN	NaN	NaN
-3.63	10	0.736221	NaN	1.027026	2.96322	6.510605	NaN	NaN	NaN	NaN
-3.608	10	0.736221	NaN	1.027026	2.963218	6.510599	NaN	NaN	NaN	NaN
-3.586	10	0.736221	NaN	1.027025	2.963217	6.510594	NaN	NaN	NaN	NaN
-3.564	10	0.736221	NaN	1.027025	2.963215	6.510588	NaN	NaN	NaN	NaN
-3.542	10	0.736221	NaN	1.027025	2.963213	6.510582	NaN	NaN	NaN	NaN
-3.52	10	0.736221	NaN	1.027024	2.963211	6.510576	NaN	NaN	NaN	NaN
-3.498	10	0.736221	NaN	1.027024	2.963209	6.51057	NaN	NaN	NaN	NaN
-3.476	10	0.736221	NaN	1.027024	2.963207	6.510564	NaN	NaN	NaN	NaN
-3.454	10	0.736221	NaN	1.027024	2.963204	6.510558	NaN	NaN	NaN	NaN
-3.432	10	0.736221	NaN	1.027023	2.963202	6.510552	NaN	NaN	NaN	NaN
-3.41	10	0.73622	NaN	1.027023	2.9632	6.510545	NaN	NaN	NaN	NaN
-3.388	10	0.73622	NaN	1.027023	2.963198	6.510539	NaN	NaN	NaN	NaN
-3.366	10	0.73622	NaN	1.027022	2.963195	6.510532	NaN	NaN	NaN	NaN
-3.344	10	0.73622	NaN	1.027022	2.963193	6.510525	NaN	NaN	NaN	NaN
-3.322	10	0.73622	NaN	1.027022	2.963191	6.510518	NaN	NaN	NaN	NaN
-3.3	10	0.73622	NaN	1.027021	2.963188	6.510511	NaN	NaN	NaN	NaN
-3.278	10	0.73622	NaN	1.027021	2.963186	6.510504	NaN	NaN	NaN	NaN
-3.256	10	0.73622	NaN	1.027021	2.963183	6.510496	NaN	NaN	NaN	NaN
-3.234	10	0.73622	NaN	1.02702	2.963181	6.510489	NaN	NaN	NaN	NaN
-3.212	10	0.73622	NaN	1.02702	2.963178	6.510481	NaN	NaN	NaN	NaN
-3.19	10	0.736219	NaN	1.02702	2.963175	6.510473	NaN	NaN	NaN	NaN
-3.168	10	0.736219	NaN	1.027019	2.963173	6.510465	NaN	NaN	NaN	NaN
-3.146	10	0.736219	NaN	1.027019	2.96317	6.510457	NaN	NaN	NaN	NaN
-3.124	10	0.736219	NaN	1.027018	2.963167	6.510448	NaN	NaN	NaN	NaN
-3.102	10	0.736219	NaN	1.027018	2.963164	6.51044	NaN	NaN	NaN	NaN
-3.08	10	0.736219	NaN	1.027018	2.963161	6.510431	NaN	NaN	NaN	NaN
-3.058	10	0.736219	NaN	1.027017	2.963158	6.510422	NaN	NaN	NaN	NaN
-3.036	10	0.736219	NaN	1.027017	2.963155	6.510413	NaN	NaN	NaN	NaN
-3.014	10	0.736218	NaN	1.027016	2.963152	6.510404	NaN	NaN	NaN	NaN
-2.992	10	0.736218	NaN	1.027016	2.963148	6.510394	NaN	NaN	NaN	NaN
-2.97	10	0.736218	NaN	1.027015	2.963145	6.510384	NaN	NaN	NaN	NaN
-2.948	10	0.736218	NaN	1.027015	2.963142	6.510374	NaN	NaN	NaN	NaN
-2.926	10	0.736218	NaN	1.027014	2.963138	6.510364	NaN	NaN	NaN	NaN
-2.904	10	0.736218	NaN	1.027014	2.963135	6.510354	NaN	NaN	NaN	NaN
-2.882	10	0.736218	NaN	1.027013	2.963131	6.510343	NaN	NaN	NaN	NaN
-2.86	10	0.736217	NaN	1.027013	2.963127	6.510332	NaN	NaN	NaN	NaN
-2.838	10	0.736217	NaN	1.027012	2.963123	6.510321	NaN	NaN	NaN	NaN
-2.816	10	0.736217	NaN	1.027012	2.963119	6.510309	NaN	NaN	NaN	NaN
-2.794	10	0.736217	NaN	1.027011	2.963115	6.510298	NaN	NaN	NaN	NaN
-2.772	10	0.736217	NaN	1.027011	2.963111	6.510286	NaN	NaN	NaN	NaN
-2.75	10	0.736217	NaN	1.02701	2.963107	6.510273	NaN	NaN	NaN	NaN
-2.728	10	0.736216	NaN	1.02701	2.963103	6.510261	NaN	NaN	NaN	NaN
-2.706	10	0.736216	NaN	1.027009	2.963098	6.510248	NaN	NaN	NaN	NaN
-2.684	10	0.736216	NaN	1.027008	2.963094	6.510235	NaN	NaN	NaN	NaN
-2.662	10	0.736216	NaN	1.027008	2.963089	6.510221	NaN	NaN	NaN	NaN
-2.64	10	0.736216	NaN	1.027007	2.963085	6.510207	NaN	NaN	NaN	NaN
-2.618	10	0.736215	NaN	1.027006	2.96308	6.510193	NaN	NaN	NaN	NaN
-2.596	10	0.736215	NaN	1.027006	2.963075	6.510178	NaN	NaN	NaN	NaN
-2.574	10	0.736215	NaN	1.027005	2.96307	6.510163	NaN	NaN	NaN	NaN
-2.552	10	0.736215	NaN	1.027004	2.963064	6.510148	NaN	NaN	NaN	NaN
-2.53	10	0.736214	NaN	1.027003	2.963059	6.510132	NaN	NaN	NaN	NaN
-2.508	10	0.736214	NaN	1.027003	2.963053	6.510116	NaN	NaN	NaN	NaN
-2.486	10	0.736214	NaN	1.027002	2.963048	6.510099	NaN	NaN	NaN	NaN
-2.464	10	0.736214	NaN	1.027001	2.963042	6.510082	NaN	NaN	NaN	NaN
-2.442	10	0.736213	NaN	1.027	2.963036	6.510065	NaN	NaN	NaN	NaN
-2.42	10	0.736213	NaN	1.026999	2.96303	6.510047	NaN	NaN	NaN	NaN
-2.398	10	0.736213	NaN	1.026998	2.963023	6.510028	NaN	NaN	NaN	NaN
-2.376	10	0.736213	NaN	1.026998	2.963017	6.510009	NaN	NaN	NaN	NaN
-2.354	10	0.736212	NaN	1.026997	2.96301	6.50999	NaN	NaN	NaN	NaN
-2.332	10	0.736212	NaN	1.026996	2.963003	6.50997	NaN	NaN	NaN	NaN
-2.31	10	0.736212	NaN	1.026995	2.962996	6.509949	NaN	NaN	NaN	NaN
-2.288	10	0.736211	NaN	1.026994	2.962989	6.509928	NaN	NaN	NaN	NaN
-2.266	10	0.736211	NaN	1.026993	2.962982	6.509906	NaN	NaN	NaN	NaN
-2.244	10	0.736211	NaN	1.026992	2.962974	6.509883	NaN	NaN	NaN	NaN
-2.222	10	0.736211	NaN	1.02699	2.962966	6.50986	NaN	NaN	NaN	NaN
-2.2	10	0.73621	NaN	1.026989	2.962958	6.509836	NaN	NaN	NaN	NaN
-2.178	10	0.73621	NaN	1.026988	2.962949	6.509811	NaN	NaN	NaN	NaN
-2.156	10	0.736209	NaN	1.026987	2.962941	6.509786	NaN	NaN	NaN	NaN
-2.134	10	0.736209	NaN	1.026986	2.962932	6.50976	NaN	NaN	NaN	NaN
-2.112	10	0.736209	NaN	1.026984	2.962922	6.509732	NaN	NaN	NaN	NaN
-2.09	10	0.736208	NaN	1.026983	2.962913	6.509705	NaN	NaN	NaN	NaN
-2.068	10	0.736208	NaN	1.026982	2.962903	6.509676	NaN	NaN	NaN	NaN
-2.046	10	0.736207	NaN	1.02698	2.962893	6.509646	NaN	NaN	NaN	NaN
-2.024	10	0.736207	NaN	1.026979	2.962882	6.509615	NaN	NaN	NaN	NaN
-2.002	10	0.736206	NaN	1.026977	2.962871	6.509584	NaN	NaN	NaN	NaN
-1.98	10	0.736206	NaN	1.026976	2.96286	6.509551	NaN	NaN	NaN	NaN
-1.958	10	0.736206	NaN	1.026974	2.962849	6.509517	NaN	NaN	NaN	NaN
-1.936	10	0.736205	NaN	1.026972	2.962837	6.509482	NaN	NaN	NaN	NaN
-1.914	10	0.736204	NaN	1.026971	2.962824	6.509445	NaN	NaN	NaN	NaN
-1.892	10	0.736204	NaN	1.026969	2.962811	6.509408	NaN	NaN	NaN	NaN
-1.87	10	0.736203	NaN	1.026967	2.962798	6.509369	NaN	NaN	NaN	NaN
-1.848	10	0.736203	NaN	1.026965	2.962784	6.509329	NaN	NaN	NaN	NaN
-1.826	10	0.736202	NaN	1.026963	2.96277	6.509287	NaN	NaN	NaN	NaN
-1.804	10	0.736202	NaN	1.026961	2.962755	6.509244	NaN	NaN	NaN	NaN
-1.782	10	0.736201	NaN	1.026959	2.96274	6.509199	NaN	NaN	NaN	NaN
-1.76	10	0.7362	NaN	1.026957	2.962724	6.509152	NaN	NaN	NaN	NaN
-1.738	10	0.736199	NaN	1.026955	2.962708	6.509104	NaN	NaN	NaN	NaN
-1.716	10	0.736199	NaN	1.026952	2.96269	6.509053	NaN	NaN	NaN	NaN
-1.694	10	0.736198	NaN	1.02695	2.962672	6.509001	NaN	NaN	NaN	NaN
-1.672	10	0.736197	NaN	1.026947	2.962654	6.508947	NaN	NaN	NaN	NaN
-1.65	10	0.736196	NaN	1.026944	2.962635	6.50889	NaN	NaN	NaN	NaN
-1.628	10	0.736196	NaN	1.026942	2.962615	6.508832	NaN	NaN	NaN	NaN
-1.606	10	0.736195	NaN	1.026939	2.962594	6.50877	NaN	NaN	NaN	NaN
-1.584	10	0.736194	NaN	1.026936	2.962572	6.508706	NaN	NaN	NaN	NaN
-1.562	10	0.736193	NaN	1.026932	2.962549	6.50864	NaN	NaN	NaN	NaN
-1.54	10	0.736192	NaN	1.026929	2.962525	6.508571	NaN	NaN	NaN	NaN
-1.518	10	0.736191	NaN	1.026926	2.962501	6.508498	NaN	NaN	NaN	NaN
-1.496	10	0.73619	NaN	1.026922	2.962475	6.508422	NaN	NaN	NaN	NaN
-1.474	10	0.736188	NaN	1.026918	2.962448	6.508343	NaN	NaN	NaN	NaN
-1.452	10	0.736187	NaN	1.026914	2.962419	6.508261	NaN	NaN	NaN	NaN
-1.43	10	0.736186	NaN	1.02691	2.96239	6.508174	NaN	NaN	NaN	NaN
-1.408	10	0.736185	NaN	1.026906	2.962359	6.508083	NaN	NaN	NaN	NaN
-1.386	10	0.736183	NaN	1.026902	2.962326	6.507988	NaN	NaN	NaN	NaN
-1.364	10	0.736182	NaN	1.026897	2.962292	6.507889	NaN	NaN	NaN	NaN
-1.342	10	0.73618	NaN	1.026892	2.962257	6.507784	NaN	NaN	NaN	NaN
-1.32	10	0.736179	NaN	1.026887	2.962219	6.507674	NaN	NaN	NaN	NaN
-1.298	10	0.736177	NaN	1.026881	2.96218	6.507559	NaN	NaN	NaN	NaN
-1.276	10	0.736175	NaN	1.026875	2.962138	6.507437	NaN	NaN	NaN	NaN
-1.254	10	0.736173	NaN	1.026869	2.962094	6.507309	NaN	NaN	NaN	NaN
-1.232	10	0.736171	NaN	1.026863	2.962048	6.507174	NaN	NaN	NaN	NaN
-1.21	10	0.736169	NaN	1.026856	2.962	6.507032	NaN	NaN	NaN	NaN
-1.188	10	0.736167	NaN	1.026849	2.961948	6.506881	NaN	NaN	NaN	NaN
-1.166	10	0.736165	NaN	1.026841	2.961894	6.506722	NaN	NaN	NaN	NaN
-1.144	10	0.736162	NaN	1.026833	2.961836	6.506554	NaN	NaN	NaN	NaN
-1.122	10	0.73616	NaN	1.026825	2.961775	6.506376	NaN	NaN	NaN	NaN
-1.1	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-1.078	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-1.056	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-1.034	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-1.012	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.99	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.968	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.946	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.924	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.902	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.88	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.858	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.836	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.814	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.792	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.77	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.748	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.726	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.704	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.682	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.66	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.638	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.616	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.594	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.572	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.55	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.528	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.506	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.484	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.462	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.44	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.418	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.396	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.374	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.352	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.33	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.308	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.286	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.264	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.242	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.22	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.198	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.176	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.154	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.132	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.11	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.088	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.066	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.044	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
-0.022	9	0.70133	NaN	0.91329	2.145274	4.116695	NaN	NaN	NaN	NaN
0	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.028	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.056	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.084	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.112	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.14	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.168	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.196	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.224	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.252	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.28	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.308	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.336	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.364	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.392	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.42	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.448	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.476	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.504	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.532	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.56	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.588	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.616	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.644	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.672	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.7	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.728	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.756	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.784	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.812	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.84	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.868	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.896	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.924	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.952	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
0.98	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
1.008	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
1.036	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
1.064	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
1.092	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
1.12	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
1.148	9	0.70133	0.70133	0.91329	2.145274	4.116695	0.008415	-0.16604	-1.08176	-2.41312
1.176	8	0.662653	0.700685	0.810547	1.569631	2.635787	0.066867	-0.04726	-0.58586	-1.28131
1.204	8	0.662649	0.699798	0.810536	1.569569	2.635627	0.066873	-0.04725	-0.5858	-1.28119
1.232	8	0.662645	0.698952	0.810525	1.569511	2.635477	0.066879	-0.04724	-0.58575	-1.28107
1.26	8	0.662641	0.698143	0.810516	1.569457	2.635338	0.066885	-0.04722	-0.58571	-1.28097
1.288	8	0.662638	0.69737	0.810507	1.569406	2.635207	0.06689	-0.04721	-0.58566	-1.28087
1.316	8	0.662634	0.696629	0.810498	1.569358	2.635085	0.066895	-0.0472	-0.58562	-1.28077
1.344	8	0.662631	0.69592	0.81049	1.569314	2.63497	0.066899	-0.0472	-0.58558	-1.28069
1.372	8	0.662629	0.695239	0.810483	1.569272	2.634862	0.066904	-0.04719	-0.58555	-1.2806
1.4	8	0.662626	0.694585	0.810476	1.569232	2.63476	0.066908	-0.04718	-0.58551	-1.28053
1.428	8	0.662623	0.693957	0.810469	1.569195	2.634665	0.066911	-0.04717	-0.58548	-1.28045
1.456	8	0.662621	0.693354	0.810463	1.56916	2.634575	0.066915	-0.04716	-0.58545	-1.28038
1.484	8	0.662619	0.692773	0.810457	1.569127	2.63449	0.066918	-0.04716	-0.58542	-1.28032
1.512	8	0.662617	0.692213	0.810451	1.569096	2.63441	0.066921	-0.04715	-0.5854	-1.28026
1.54	8	0.662615	0.691674	0.810446	1.569066	2.634334	0.066924	-0.04714	-0.58537	-1.2802
1.568	8	0.662613	0.691154	0.810441	1.569039	2.634262	0.066927	-0.04714	-0.58535	-1.28015
1.596	8	0.662611	0.690653	0.810436	1.569012	2.634193	0.06693	-0.04713	-0.58532	-1.28009
1.624	8	0.662609	0.690168	0.810432	1.568987	2.634129	0.066933	-0.04713	-0.5853	-1.28004
1.652	8	0.662608	0.6897	0.810428	1.568963	2.634067	0.066935	-0.04712	-0.58528	-1.28
1.68	8	0.662606	0.689248	0.810423	1.56894	2.634009	0.066937	-0.04712	-0.58526	-1.27995
1.708	8	0.662605	0.688811	0.81042	1.568919	2.633954	0.066939	-0.04711	-0.58524	-1.27991
1.736	8	0.662604	0.688387	0.810416	1.568898	2.633901	0.066942	-0.04711	-0.58523	-1.27987
1.764	8	0.662602	0.687977	0.810412	1.568879	2.63385	0.066944	-0.04711	-0.58521	-1.27983
1.792	8	0.662601	0.68758	0.810409	1.56886	2.633802	0.066945	-0.0471	-0.58519	-1.27979
1.82	8	0.6626	0.687195	0.810406	1.568842	2.633756	0.066947	-0.0471	-0.58518	-1.27976
1.848	8	0.662599	0.686822	0.810403	1.568825	2.633713	0.066949	-0.04709	-0.58516	-1.27973
1.876	8	0.662598	0.68646	0.8104	1.568809	2.633671	0.066951	-0.04709	-0.58515	-1.27969
1.904	8	0.662596	0.686108	0.810397	1.568793	2.633631	0.066952	-0.04709	-0.58514	-1.27966
1.932	8	0.662595	0.685767	0.810395	1.568779	2.633593	0.066954	-0.04708	-0.58512	-1.27963
1.96	8	0.662595	0.685436	0.810392	1.568764	2.633556	0.066955	-0.04708	-0.58511	-1.27961
1.988	8	0.662594	0.685114	0.81039	1.568751	2.633521	0.066957	-0.04708	-0.5851	-1.27958
2.016	8	0.662593	0.6848	0.810387	1.568738	2.633487	0.066958	-0.04708	-0.58509	-1.27955
2.044	8	0.662592	0.684496	0.810385	1.568725	2.633455	0.066959	-0.04707	-0.58508	-1.27953
2.072	8	0.662591	0.684199	0.810383	1.568713	2.633424	0.06696	-0.04707	-0.58507	-1.27951
2.1	8	0.66259	0.683911	0.810381	1.568701	2.633395	0.066962	-0.04707	-0.58506	-1.27948
2.128	8	0.66259	0.68363	0.810379	1.56869	2.633366	0.066963	-0.04707	-0.58505	-1.27946
2.156	8	0.662589	0.683356	0.810377	1.56868	2.633339	0.066964	-0.04706	-0.58504	-1.27944
2.184	8	0.662588	0.68309	0.810375	1.568669	2.633312	0.066965	-0.04706	-0.58503	-1.27942
2.212	8	0.662588	0.68283	0.810373	1.56866	2.633287	0.066966	-0.04706	-0.58502	-1.2794
2.24	8	0.662587	0.682576	0.810372	1.56865	2.633262	0.066967	-0.04706	-0.58501	-1.27938
2.268	8	0.662586	0.682329	0.81037	1.568641	2.633239	0.066968	-0.04706	-0.58501	-1.27936
2.296	8	0.662586	0.682088	0.810368	1.568632	2.633216	0.066969	-0.04705	-0.585	-1.27935
2.324	8	0.662585	0.681853	0.810367	1.568624	2.633194	0.066969	-0.04705	-0.58499	-1.27933
2.352	8	0.662585	0.681623	0.810365	1.568615	2.633173	0.06697	-0.04705	-0.58498	-1.27931
2.38	8	0.662584	0.681399	0.810364	1.568607	2.633153	0.066971	-0.04705	-0.58498	-1.2793
2.408	8	0.662583	0.68118	0.810363	1.5686	2.633133	0.066972	-0.04705	-0.58497	-1.27928
2.436	8	0.662583	0.680966	0.810361	1.568592	2.633114	0.066973	-0.04705	-0.58496	-1.27927
2.464	8	0.662583	0.680757	0.81036	1.568585	2.633096	0.066973	-0.04704	-0.58496	-1.27925
2.492	8	0.662582	0.680553	0.810359	1.568578	2.633078	0.066974	-0.04704	-0.58495	-1.27924
2.52	8	0.662582	0.680353	0.810358	1.568572	2.633061	0.066975	-0.04704	-0.58495	-1.27923
2.548	8	0.662581	0.680157	0.810357	1.568565	2.633044	0.066975	-0.04704	-0.58494	-1.27921
2.576	8	0.662581	0.679966	0.810355	1.568559	2.633028	0.066976	-0.04704	-0.58493	-1.2792
2.604	8	0.66258	0.679779	0.810354	1.568553	2.633013	0.066977	-0.04704	-0.58493	-1.27919
2.632	8	0.66258	0.679596	0.810353	1.568547	2.632998	0.066977	-0.04704	-0.58492	-1.27918
2.66	8	0.66258	0.679416	0.810352	1.568542	2.632983	0.066978	-0.04704	-0.58492	-1.27917
2.688	8	0.662579	0.679241	0.810351	1.568536	2.632969	0.066978	-0.04703	-0.58491	-1.27916
2.716	8	0.662579	0.679069	0.81035	1.568531	2.632955	0.066979	-0.04703	-0.58491	-1.27915
2.744	8	0.662579	0.6789	0.810349	1.568526	2.632942	0.066979	-0.04703	-0.58491	-1.27914
2.772	8	0.662578	0.678735	0.810349	1.568521	2.632929	0.06698	-0.04703	-0.5849	-1.27913
2.8	8	0.662578	0.678574	0.810348	1.568516	2.632917	0.06698	-0.04703	-0.5849	-1.27912
2.828	8	0.662578	0.678415	0.810347	1.568511	2.632905	0.066981	-0.04703	-0.58489	-1.27911
2.856	8	0.662577	0.67826	0.810346	1.568507	2.632893	0.066981	-0.04703	-0.58489	-1.2791
2.884	8	0.662577	0.678107	0.810345	1.568502	2.632882	0.066982	-0.04703	-0.58489	-1.27909
2.912	8	0.662577	0.677958	0.810345	1.568498	2.63287	0.066982	-0.04703	-0.58488	-1.27908
2.94	8	0.662576	0.677811	0.810344	1.568494	2.63286	0.066983	-0.04703	-0.58488	-1.27907
2.968	8	0.662576	0.677667	0.810343	1.56849	2.632849	0.066983	-0.04703	-0.58487	-1.27907
2.996	8	0.662576	0.677526	0.810342	1.568486	2.632839	0.066983	-0.04702	-0.58487	-1.27906
3.024	8	0.662576	0.677387	0.810342	1.568482	2.632829	0.066984	-0.04702	-0.58487	-1.27905
3.052	8	0.662575	0.677251	0.810341	1.568478	2.63282	0.066984	-0.04702	-0.58486	-1.27904
3.08	8	0.662575	0.677118	0.81034	1.568474	2.63281	0.066985	-0.04702	-0.58486	-1.27904
3.108	8	0.662575	0.676987	0.81034	1.568471	2.632801	0.066985	-0.04702	-0.58486	-1.27903
3.136	8	0.662575	0.676858	0.810339	1.568467	2.632792	0.066985	-0.04702	-0.58486	-1.27902
3.164	8	0.662574	0.676731	0.810338	1.568464	2.632784	0.066986	-0.04702	-0.58485	-1.27902
3.192	8	0.662574	0.676607	0.810338	1.568461	2.632775	0.066986	-0.04702	-0.58485	-1.27901
3.22	7	0.619543	0.676228	0.716569	1.161484	1.713094	0.132021	0.063209	-0.23262	-0.57496
3.248	7	0.619542	0.675739	0.716568	1.161474	1.713072	0.132022	0.063211	-0.23261	-0.57495
3.276	7	0.619541	0.675258	0.716566	1.161466	1.713051	0.132023	0.063213	-0.23261	-0.57493
3.304	7	0.619541	0.674786	0.716564	1.161457	1.71303	0.132024	0.063215	-0.2326	-0.57491
3.332	7	0.61954	0.674321	0.716562	1.161448	1.71301	0.132026	0.063217	-0.23259	-0.5749
3.36	7	0.619539	0.673864	0.71656	1.16144	1.712991	0.132027	0.063219	-0.23258	-0.57488
3.388	7	0.619538	0.673415	0.716558	1.161432	1.712972	0.132028	0.063221	-0.23258	-0.57487
3.416	7	0.619538	0.672973	0.716557	1.161424	1.712953	0.132029	0.063223	-0.23257	-0.57486
3.444	7	0.619537	0.672538	0.716555	1.161417	1.712935	0.13203	0.063225	-0.23256	-0.57484
3.472	7	0.619536	0.67211	0.716554	1.161409	1.712917	0.132031	0.063227	-0.23256	-0.57483
3.5	7	0.619535	0.671689	0.716552	1.161402	1.7129	0.132032	0.063229	-0.23255	-0.57481
3.528	7	0.619535	0.671275	0.716551	1.161395	1.712883	0.132033	0.063231	-0.23255	-0.5748
3.556	7	0.619534	0.670867	0.716549	1.161388	1.712867	0.132034	0.063233	-0.23254	-0.57479
3.584	7	0.619534	0.670466	0.716548	1.161381	1.712851	0.132035	0.063234	-0.23253	-0.57478
3.612	7	0.619533	0.670071	0.716546	1.161374	1.712835	0.132036	0.063236	-0.23253	-0.57476
3.64	7	0.619532	0.669682	0.716545	1.161368	1.71282	0.132037	0.063238	-0.23252	-0.57475
3.668	7	0.619532	0.669299	0.716543	1.161361	1.712805	0.132038	0.063239	-0.23252	-0.57474
3.696	7	0.619531	0.668921	0.716542	1.161355	1.71279	0.132039	0.063241	-0.23251	-0.57473
3.724	7	0.619531	0.66855	0.716541	1.161349	1.712776	0.13204	0.063242	-0.23251	-0.57472
3.752	7	0.61953	0.668184	0.71654	1.161343	1.712762	0.13204	0.063244	-0.2325	-0.57471
3.78	7	0.61953	0.667823	0.716538	1.161337	1.712748	0.132041	0.063245	-0.2325	-0.5747
3.808	7	0.619529	0.667468	0.716537	1.161332	1.712734	0.132042	0.063246	-0.23249	-0.57469
3.836	7	0.619528	0.667118	0.716536	1.161326	1.712721	0.132043	0.063248	-0.23249	-0.57468
3.864	7	0.619528	0.666772	0.716535	1.161321	1.712709	0.132044	0.063249	-0.23248	-0.57467
3.892	7	0.619527	0.666432	0.716534	1.161315	1.712696	0.132044	0.063251	-0.23248	-0.57466
3.92	7	0.619527	0.666097	0.716533	1.16131	1.712684	0.132045	0.063252	-0.23247	-0.57465
3.948	7	0.619527	0.665766	0.716531	1.161305	1.712672	0.132046	0.063253	-0.23247	-0.57464
3.976	7	0.619526	0.665441	0.71653	1.1613	1.71266	0.132046	0.063254	-0.23246	-0.57463
4.004	7	0.619526	0.665119	0.716529	1.161295	1.712648	0.132047	0.063256	-0.23246	-0.57462
4.032	7	0.619525	0.664802	0.716528	1.161291	1.712637	0.132048	0.063257	-0.23246	-0.57461
4.06	7	0.619525	0.66449	0.716527	1.161286	1.712626	0.132048	0.063258	-0.23245	-0.5746
4.088	7	0.619524	0.664182	0.716526	1.161281	1.712615	0.132049	0.063259	-0.23245	-0.5746
4.116	7	0.619524	0.663878	0.716525	1.161277	1.712605	0.13205	0.06326	-0.23244	-0.57459
4.144	7	0.619524	0.663578	0.716525	1.161272	1.712594	0.13205	0.063261	-0.23244	-0.57458
4.172	7	0.619523	0.663282	0.716524	1.161268	1.712584	0.132051	0.063262	-0.23244	-0.57457
4.2	7	0.619523	0.66299	0.716523	1.161264	1.712574	0.132051	0.063263	-0.23243	-0.57456
4.228	7	0.619522	0.662702	0.716522	1.16126	1.712564	0.132052	0.063264	-0.23243	-0.57456
4.256	7	0.619522	0.662418	0.716521	1.161256	1.712555	0.132053	0.063265	-0.23243	-0.57455
4.284	7	0.619522	0.662137	0.71652	1.161252	1.712545	0.132053	0.063266	-0.23242	-0.57454
4.312	7	0.619521	0.66186	0.716519	1.161248	1.712536	0.132054	0.063267	-0.23242	-0.57454
4.34	7	0.619521	0.661587	0.716518	1.161244	1.712527	0.132054	0.063268	-0.23242	-0.57453
4.368	7	0.619521	0.661317	0.716518	1.16124	1.712518	0.132055	0.063269	-0.23241	-0.57452
4.396	7	0.61952	0.661051	0.716517	1.161237	1.712509	0.132055	0.06327	-0.23241	-0.57452
4.424	7	0.61952	0.660788	0.716516	1.161233	1.712501	0.132056	0.063271	-0.23241	-0.57451
4.452	7	0.61952	0.660528	0.716515	1.161229	1.712493	0.132056	0.063272	-0.2324	-0.5745
4.48	7	0.619519	0.660272	0.716515	1.161226	1.712484	0.132057	0.063273	-0.2324	-0.5745
4.508	7	0.619519	0.660018	0.716514	1.161223	1.712476	0.132057	0.063274	-0.2324	-0.57449
4.536	7	0.619519	0.659768	0.716513	1.161219	1.712468	0.132058	0.063274	-0.23239	-0.57448
4.564	7	0.619518	0.659521	0.716512	1.161216	1.712461	0.132058	0.063275	-0.23239	-0.57448
4.592	7	0.619518	0.659277	0.716512	1.161213	1.712453	0.132059	0.063276	-0.23239	-0.57447
4.62	7	0.619518	0.659036	0.716511	1.16121	1.712445	0.132059	0.063277	-0.23239	-0.57447
4.648	7	0.619517	0.658798	0.71651	1.161206	1.712438	0.13206	0.063278	-0.23238	-0.57446
4.676	7	0.619517	0.658562	0.71651	1.161203	1.712431	0.13206	0.063278	-0.23238	-0.57446
4.704	7	0.619517	0.65833	0.716509	1.1612	1.712424	0.13206	0.063279	-0.23238	-0.57445
4.732	7	0.619517	0.6581	0.716509	1.161197	1.712417	0.132061	0.06328	-0.23237	-0.57444
4.76	7	0.619516	0.657873	0.716508	1.161195	1.71241	0.132061	0.063281	-0.23237	-0.57444
4.788	7	0.619516	0.657648	0.716507	1.161192	1.712403	0.132062	0.063281	-0.23237	-0.57443
4.816	7	0.619516	0.657427	0.716507	1.161189	1.712397	0.132062	0.063282	-0.23237	-0.57443
4.844	7	0.619516	0.657207	0.716506	1.161186	1.71239	0.132062	0.063283	-0.23237	-0.57442
4.872	7	0.619515	0.656991	0.716506	1.161183	1.712384	0.132063	0.063283	-0.23236	-0.57442
4.9	7	0.619515	0.656776	0.716505	1.161181	1.712377	0.132063	0.063284	-0.23236	-0.57441
4.928	7	0.619515	0.656565	0.716504	1.161178	1.712371	0.132063	0.063285	-0.23236	-0.57441
4.956	7	0.619515	0.656355	0.716504	1.161176	1.712365	0.132064	0.063285	-0.23236	-0.57441
4.984	7	0.619514	0.656148	0.716503	1.161173	1.712359	0.132064	0.063286	-0.23235	-0.5744
5.012	7	0.619514	0.655943	0.716503	1.161171	1.712353	0.132065	0.063287	-0.23235	-0.5744
5.04	7	0.619514	0.655741	0.716502	1.161168	1.712348	0.132065	0.063287	-0.23235	-0.57439
5.068	6	0.571694	0.655283	0.630181	0.873113	1.141447	0.204341	0.167243	0.019816	-0.13502
5.096	6	0.571693	0.654823	0.63018	0.873109	1.141438	0.204341	0.167244	0.01982	-0.13501
5.124	6	0.571693	0.654369	0.630179	0.873105	1.141429	0.204342	0.167245	0.019823	-0.135
5.152	6	0.571692	0.653919	0.630178	0.873101	1.14142	0.204343	0.167246	0.019826	-0.135
5.18	6	0.571692	0.653475	0.630177	0.873097	1.141412	0.204343	0.167248	0.01983	-0.13499
5.208	6	0.571691	0.653035	0.630176	0.873093	1.141403	0.204344	0.167249	0.019833	-0.13498
5.236	6	0.571691	0.652599	0.630175	0.873089	1.141395	0.204345	0.16725	0.019836	-0.13498
5.264	6	0.57169	0.652169	0.630174	0.873086	1.141387	0.204346	0.167251	0.01984	-0.13497
5.292	6	0.57169	0.651743	0.630173	0.873082	1.141379	0.204346	0.167252	0.019843	-0.13496
5.32	6	0.571689	0.651321	0.630172	0.873078	1.141371	0.204347	0.167253	0.019846	-0.13496
5.348	6	0.571689	0.650904	0.630171	0.873075	1.141363	0.204348	0.167254	0.019849	-0.13495
5.376	6	0.571688	0.650491	0.63017	0.873071	1.141355	0.204348	0.167255	0.019852	-0.13495
5.404	6	0.571688	0.650083	0.630169	0.873068	1.141348	0.204349	0.167256	0.019855	-0.13494
5.432	6	0.571688	0.649678	0.630169	0.873065	1.14134	0.20435	0.167257	0.019858	-0.13493
5.46	6	0.571687	0.649278	0.630168	0.873061	1.141333	0.20435	0.167258	0.019861	-0.13493
5.488	6	0.571687	0.648882	0.630167	0.873058	1.141326	0.204351	0.167259	0.019864	-0.13492
5.516	6	0.571686	0.64849	0.630166	0.873055	1.141319	0.204351	0.16726	0.019867	-0.13492
5.544	6	0.571686	0.648102	0.630165	0.873052	1.141312	0.204352	0.167261	0.019869	-0.13491
5.572	6	0.571686	0.647718	0.630164	0.873048	1.141305	0.204353	0.167262	0.019872	-0.13491
5.6	6	0.571685	0.647337	0.630164	0.873045	1.141298	0.204353	0.167263	0.019875	-0.1349
5.628	6	0.571685	0.646961	0.630163	0.873042	1.141291	0.204354	0.167264	0.019877	-0.1349
5.656	6	0.571684	0.646588	0.630162	0.873039	1.141285	0.204354	0.167265	0.01988	-0.13489
5.684	6	0.571684	0.646219	0.630161	0.873036	1.141278	0.204355	0.167266	0.019883	-0.13489
5.712	6	0.571684	0.645853	0.630161	0.873033	1.141272	0.204355	0.167266	0.019885	-0.13488
5.74	6	0.571683	0.645491	0.63016	0.873031	1.141266	0.204356	0.167267	0.019888	-0.13488
5.768	6	0.571683	0.645133	0.630159	0.873028	1.141259	0.204356	0.167268	0.01989	-0.13487
5.796	6	0.571683	0.644778	0.630159	0.873025	1.141253	0.204357	0.167269	0.019892	-0.13487
5.824	6	0.571682	0.644426	0.630158	0.873022	1.141247	0.204357	0.16727	0.019895	-0.13486
5.852	6	0.571682	0.644078	0.630157	0.87302	1.141241	0.204358	0.167271	0.019897	-0.13486
5.88	6	0.571682	0.643733	0.630157	0.873017	1.141235	0.204358	0.167271	0.019899	-0.13485
5.908	6	0.571681	0.643392	0.630156	0.873014	1.14123	0.204359	0.167272	0.019902	-0.13485
5.936	6	0.571681	0.643053	0.630155	0.873012	1.141224	0.204359	0.167273	0.019904	-0.13485
5.964	6	0.571681	0.642718	0.630155	0.873009	1.141218	0.20436	0.167274	0.019906	-0.13484
5.992	6	0.57168	0.642386	0.630154	0.873007	1.141213	0.20436	0.167274	0.019908	-0.13484
6.02	6	0.57168	0.642057	0.630153	0.873004	1.141207	0.204361	0.167275	0.019911	-0.13483
6.048	6	0.57168	0.641731	0.630153	0.873002	1.141202	0.204361	0.167276	0.019913	-0.13483
6.076	6	0.571679	0.641408	0.630152	0.872999	1.141197	0.204362	0.167277	0.019915	-0.13482
6.104	6	0.571679	0.641088	0.630152	0.872997	1.141191	0.204362	0.167277	0.019917	-0.13482
6.132	6	0.571679	0.640771	0.630151	0.872995	1.141186	0.204363	0.167278	0.019919	-0.13482
6.16	6	0.571679	0.640457	0.63015	0.872992	1.141181	0.204363	0.167279	0.019921	-0.13481
6.188	6	0.571678	0.640145	0.63015	0.87299	1.141176	0.204364	0.167279	0.019923	-0.13481
6.216	6	0.571678	0.639837	0.630149	0.872988	1.141171	0.204364	0.16728	0.019925	-0.13481
6.244	6	0.571678	0.639531	0.630149	0.872985	1.141166	0.204364	0.167281	0.019927	-0.1348
6.272	6	0.571678	0.639228	0.630148	0.872983	1.141161	0.204365	0.167281	0.019929	-0.1348
6.3	6	0.571677	0.638927	0.630148	0.872981	1.141157	0.204365	0.167282	0.019931	-0.13479
6.328	6	0.571677	0.63863	0.630147	0.872979	1.141152	0.204366	0.167283	0.019932	-0.13479
6.356	6	0.571677	0.638335	0.630147	0.872977	1.141147	0.204366	0.167283	0.019934	-0.13479
6.384	6	0.571676	0.638042	0.630146	0.872975	1.141143	0.204366	0.167284	0.019936	-0.13478
6.412	6	0.571676	0.637752	0.630146	0.872973	1.141138	0.204367	0.167284	0.019938	-0.13478
6.44	6	0.571676	0.637465	0.630145	0.872971	1.141134	0.204367	0.167285	0.01994	-0.13478
6.468	6	0.571676	0.63718	0.630145	0.872969	1.141129	0.204367	0.167286	0.019941	-0.13477
6.496	6	0.571675	0.636897	0.630144	0.872967	1.141125	0.204368	0.167286	0.019943	-0.13477
6.524	6	0.571675	0.636617	0.630144	0.872965	1.141121	0.204368	0.167287	0.019945	-0.13477
6.552	6	0.571675	0.63634	0.630143	0.872963	1.141116	0.204369	0.167287	0.019946	-0.13476
6.58	6	0.571675	0.636064	0.630143	0.872961	1.141112	0.204369	0.167288	0.019948	-0.13476
6.608	6	0.571675	0.635792	0.630142	0.872959	1.141108	0.204369	0.167289	0.01995	-0.13476
6.636	6	0.571674	0.635521	0.630142	0.872957	1.141104	0.20437	0.167289	0.019951	-0.13475
6.664	6	0.571674	0.635253	0.630141	0.872955	1.1411	0.20437	0.16729	0.019953	-0.13475
6.692	6	0.571674	0.634986	0.630141	0.872954	1.141096	0.20437	0.16729	0.019954	-0.13475
6.72	5	0.51854	0.634538	0.549539	0.667944	0.785914	0.28468	0.267704	0.20444	0.14327
6.748	5	0.518539	0.634056	0.549538	0.667941	0.785909	0.284681	0.267705	0.204442	0.143273
6.776	5	0.518539	0.633579	0.549537	0.667939	0.785904	0.284682	0.267706	0.204444	0.143277
6.804	5	0.518538	0.633105	0.549537	0.667936	0.785899	0.284682	0.267706	0.204447	0.143281
6.832	5	0.518538	0.632635	0.549536	0.667934	0.785894	0.284683	0.267707	0.204449	0.143285
6.86	5	0.518538	0.632169	0.549535	0.667932	0.785889	0.284683	0.267708	0.204451	0.143289
6.888	5	0.518537	0.631707	0.549535	0.667929	0.785885	0.284684	0.267709	0.204453	0.143292
6.916	5	0.518537	0.631249	0.549534	0.667927	0.78588	0.284684	0.26771	0.204455	0.143296
6.944	5	0.518537	0.630794	0.549533	0.667925	0.785875	0.284685	0.267711	0.204457	0.1433
6.972	5	0.518536	0.630343	0.549533	0.667922	0.785871	0.284686	0.267711	0.204459	0.143303
7	5	0.518536	0.629896	0.549532	0.66792	0.785866	0.284686	0.267712	0.204461	0.143307
7.028	5	0.518535	0.629452	0.549531	0.667918	0.785862	0.284687	0.267713	0.204462	0.14331
7.056	5	0.518535	0.629012	0.549531	0.667916	0.785857	0.284687	0.267714	0.204464	0.143314
7.084	5	0.518535	0.628575	0.54953	0.667914	0.785853	0.284688	0.267714	0.204466	0.143317
7.112	5	0.518534	0.628141	0.54953	0.667912	0.785848	0.284688	0.267715	0.204468	0.14332
7.14	5	0.518534	0.627711	0.549529	0.66791	0.785844	0.284689	0.267716	0.20447	0.143324
7.168	5	0.518534	0.627285	0.549528	0.667907	0.78584	0.284689	0.267717	0.204472	0.143327
7.196	5	0.518533	0.626861	0.549528	0.667905	0.785836	0.28469	0.267717	0.204474	0.14333
7.224	5	0.518533	0.626441	0.549527	0.667903	0.785831	0.28469	0.267718	0.204475	0.143333
7.252	5	0.518533	0.626025	0.549527	0.667901	0.785827	0.284691	0.267719	0.204477	0.143337
7.28	5	0.518532	0.625611	0.549526	0.6679	0.785823	0.284691	0.267719	0.204479	0.14334
7.308	5	0.518532	0.625201	0.549525	0.667898	0.785819	0.284692	0.26772	0.20448	0.143343
7.336	5	0.518532	0.624793	0.549525	0.667896	0.785815	0.284692	0.267721	0.204482	0.143346
7.364	5	0.518532	0.624389	0.549524	0.667894	0.785811	0.284693	0.267721	0.204484	0.143349
7.392	5	0.518531	0.623988	0.549524	0.667892	0.785807	0.284693	0.267722	0.204485	0.143352
7.42	5	0.518531	0.62359	0.549523	0.66789	0.785804	0.284694	0.267723	0.204487	0.143355
7.448	5	0.518531	0.623195	0.549523	0.667888	0.7858	0.284694	0.267723	0.204489	0.143358
7.476	5	0.51853	0.622803	0.549522	0.667886	0.785796	0.284694	0.267724	0.20449	0.143361
7.504	5	0.51853	0.622413	0.549522	0.667885	0.785792	0.284695	0.267725	0.204492	0.143363
7.532	5	0.51853	0.622027	0.549521	0.667883	0.785789	0.284695	0.267725	0.204493	0.143366
7.56	5	0.518529	0.621644	0.549521	0.667881	0.785785	0.284696	0.267726	0.204495	0.143369
7.588	5	0.518529	0.621263	0.54952	0.667879	0.785782	0.284696	0.267726	0.204496	0.143372
7.616	5	0.518529	0.620885	0.54952	0.667878	0.785778	0.284697	0.267727	0.204498	0.143375
7.644	5	0.518529	0.62051	0.549519	0.667876	0.785774	0.284697	0.267728	0.204499	0.143377
7.672	5	0.518528	0.620138	0.549519	0.667874	0.785771	0.284697	0.267728	0.204501	0.14338
7.7	5	0.518528	0.619768	0.549518	0.667873	0.785768	0.284698	0.267729	0.204502	0.143383
7.728	5	0.518528	0.619401	0.549518	0.667871	0.785764	0.284698	0.267729	0.204504	0.143385
7.756	5	0.518528	0.619037	0.549517	0.667869	0.785761	0.284699	0.26773	0.204505	0.143388
7.784	5	0.518527	0.618675	0.549517	0.667868	0.785758	0.284699	0.267731	0.204507	0.14339
7.812	5	0.518527	0.618316	0.549516	0.667866	0.785754	0.284699	0.267731	0.204508	0.143393
7.84	5	0.518527	0.61796	0.549516	0.667865	0.785751	0.2847	0.267732	0.204509	0.143395
7.868	5	0.518527	0.617606	0.549515	0.667863	0.785748	0.2847	0.267732	0.204511	0.143398
7.896	5	0.518526	0.617254	0.549515	0.667861	0.785745	0.284701	0.267733	0.204512	0.1434
7.924	5	0.518526	0.616905	0.549515	0.66786	0.785741	0.284701	0.267733	0.204513	0.143403
7.952	5	0.518526	0.616559	0.549514	0.667858	0.785738	0.284701	0.267734	0.204515	0.143405
7.98	5	0.518526	0.616215	0.549514	0.667857	0.785735	0.284702	0.267734	0.204516	0.143407
8.008	5	0.518525	0.615873	0.549513	0.667855	0.785732	0.284702	0.267735	0.204517	0.14341
8.036	5	0.518525	0.615534	0.549513	0.667854	0.785729	0.284702	0.267735	0.204519	0.143412
8.064	5	0.518525	0.615197	0.549512	0.667853	0.785726	0.284703	0.267736	0.20452	0.143414
8.092	5	0.518525	0.614862	0.549512	0.667851	0.785723	0.284703	0.267736	0.204521	0.143417
8.12	5	0.518524	0.61453	0.549512	0.66785	0.78572	0.284703	0.267737	0.204522	0.143419
8.148	5	0.518524	0.6142	0.549511	0.667848	0.785717	0.284704	0.267737	0.204524	0.143421
8.176	5	0.518524	0.613872	0.549511	0.667847	0.785715	0.284704	0.267738	0.204525	0.143423
8.204	4	0.459487	0.613424	0.472704	0.519908	0.563046	0.373939	0.367872	0.346404	0.327018
8.232	4	0.459487	0.6129	0.472703	0.519906	0.563043	0.373939	0.367872	0.346405	0.32702
8.26	4	0.459487	0.61238	0.472702	0.519905	0.563039	0.37394	0.367873	0.346407	0.327023
8.288	4	0.459486	0.611863	0.472702	0.519903	0.563036	0.37394	0.367874	0.346408	0.327025
8.316	4	0.459486	0.61135	0.472701	0.519902	0.563033	0.373941	0.367874	0.34641	0.327028
8.344	4	0.459486	0.61084	0.472701	0.5199	0.56303	0.373941	0.367875	0.346411	0.32703
8.372	4	0.459485	0.610334	0.4727	0.519898	0.563027	0.373942	0.367876	0.346413	0.327033
8.4	4	0.459485	0.609831	0.4727	0.519897	0.563023	0.373942	0.367876	0.346414	0.327035
8.428	4	0.459485	0.609331	0.472699	0.519895	0.56302	0.373943	0.367877	0.346415	0.327038
8.456	4	0.459484	0.608835	0.472699	0.519894	0.563017	0.373943	0.367878	0.346417	0.32704
8.484	4	0.459484	0.608342	0.472698	0.519892	0.563014	0.373944	0.367878	0.346418	0.327042
8.512	4	0.459484	0.607852	0.472698	0.51989	0.563011	0.373944	0.367879	0.34642	0.327045
8.54	4	0.459483	0.607365	0.472697	0.519889	0.563008	0.373945	0.36788	0.346421	0.327047
8.568	4	0.459483	0.606882	0.472697	0.519887	0.563005	0.373945	0.36788	0.346422	0.327049
8.596	4	0.459483	0.606402	0.472696	0.519886	0.563002	0.373946	0.367881	0.346424	0.327052
8.624	4	0.459482	0.605924	0.472696	0.519884	0.563	0.373946	0.367882	0.346425	0.327054
8.652	4	0.459482	0.60545	0.472695	0.519883	0.562997	0.373947	0.367882	0.346426	0.327056
8.68	4	0.459482	0.604979	0.472695	0.519882	0.562994	0.373947	0.367883	0.346428	0.327058
8.708	4	0.459481	0.604511	0.472694	0.51988	0.562991	0.373948	0.367883	0.346429	0.327061
8.736	4	0.459481	0.604046	0.472694	0.519879	0.562988	0.373948	0.367884	0.34643	0.327063
8.764	4	0.459481	0.603584	0.472693	0.519877	0.562985	0.373948	0.367885	0.346431	0.327065
8.792	4	0.459481	0.603125	0.472693	0.519876	0.562983	0.373949	0.367885	0.346433	0.327067
8.82	4	0.45948	0.602669	0.472692	0.519874	0.56298	0.373949	0.367886	0.346434	0.327069
8.848	4	0.45948	0.602216	0.472692	0.519873	0.562977	0.37395	0.367886	0.346435	0.327071
8.876	4	0.45948	0.601765	0.472691	0.519872	0.562975	0.37395	0.367887	0.346436	0.327073
8.904	4	0.459479	0.601318	0.472691	0.51987	0.562972	0.373951	0.367887	0.346437	0.327075
8.932	4	0.459479	0.600873	0.47269	0.519869	0.56297	0.373951	0.367888	0.346439	0.327077
8.96	4	0.459479	0.600431	0.47269	0.519868	0.562967	0.373951	0.367889	0.34644	0.327079
8.988	4	0.459479	0.599992	0.472689	0.519866	0.562964	0.373952	0.367889	0.346441	0.327081
9.016	4	0.459478	0.599555	0.472689	0.519865	0.562962	0.373952	0.36789	0.346442	0.327083
9.044	4	0.459478	0.599121	0.472689	0.519864	0.562959	0.373953	0.36789	0.346443	0.327085
9.072	4	0.459478	0.59869	0.472688	0.519863	0.562957	0.373953	0.367891	0.346444	0.327087
9.1	4	0.459478	0.598262	0.472688	0.519861	0.562954	0.373953	0.367891	0.346446	0.327089
9.128	4	0.459477	0.597836	0.472687	0.51986	0.562952	0.373954	0.367892	0.346447	0.327091
9.156	4	0.459477	0.597413	0.472687	0.519859	0.56295	0.373954	0.367892	0.346448	0.327093
9.184	4	0.459477	0.596992	0.472687	0.519858	0.562947	0.373955	0.367893	0.346449	0.327095
9.212	4	0.459477	0.596574	0.472686	0.519856	0.562945	0.373955	0.367893	0.34645	0.327097
9.24	4	0.459476	0.596158	0.472686	0.519855	0.562942	0.373955	0.367894	0.346451	0.327098
9.268	4	0.459476	0.595745	0.472685	0.519854	0.56294	0.373956	0.367894	0.346452	0.3271
9.296	4	0.459476	0.595335	0.472685	0.519853	0.562938	0.373956	0.367895	0.346453	0.327102
9.324	4	0.459476	0.594927	0.472685	0.519852	0.562936	0.373957	0.367895	0.346454	0.327104
9.352	4	0.459475	0.594521	0.472684	0.519851	0.562933	0.373957	0.367896	0.346455	0.327105
9.38	4	0.459475	0.594118	0.472684	0.519849	0.562931	0.373957	0.367896	0.346456	0.327107
9.408	4	0.459475	0.593717	0.472683	0.519848	0.562929	0.373958	0.367897	0.346457	0.327109
9.436	4	0.459475	0.593318	0.472683	0.519847	0.562927	0.373958	0.367897	0.346458	0.327111
9.464	4	0.459474	0.592922	0.472683	0.519846	0.562924	0.373958	0.367898	0.346459	0.327112
9.492	4	0.459474	0.592529	0.472682	0.519845	0.562922	0.373959	0.367898	0.34646	0.327114
9.52	4	0.459474	0.592137	0.472682	0.519844	0.56292	0.373959	0.367899	0.346461	0.327116
9.548	3	0.39388	0.591612	0.397432	0.409533	0.419923	0.447887	0.446571	0.442079	0.438208
9.576	3	0.393879	0.591034	0.397431	0.409532	0.419921	0.447887	0.446571	0.44208	0.43821
9.604	3	0.393879	0.590459	0.397431	0.40953	0.419918	0.447888	0.446572	0.442081	0.438211
9.632	3	0.393878	0.589888	0.39743	0.409529	0.419916	0.447888	0.446573	0.442082	0.438213
9.66	3	0.393878	0.589319	0.39743	0.409528	0.419914	0.447888	0.446573	0.442083	0.438215
9.688	3	0.393878	0.588754	0.397429	0.409527	0.419911	0.447889	0.446574	0.442084	0.438217
9.716	3	0.393878	0.588192	0.397429	0.409525	0.419909	0.447889	0.446574	0.442086	0.438219
9.744	3	0.393877	0.587634	0.397429	0.409524	0.419907	0.44789	0.446575	0.442087	0.43822
9.772	3	0.393877	0.587079	0.397428	0.409523	0.419905	0.44789	0.446575	0.442088	0.438222
9.8	3	0.393877	0.586526	0.397428	0.409522	0.419902	0.447891	0.446576	0.442089	0.438224
9.828	3	0.393876	0.585977	0.397427	0.409521	0.4199	0.447891	0.446576	0.44209	0.438225
9.856	3	0.393876	0.585432	0.397427	0.409519	0.419898	0.447892	0.446577	0.442091	0.438227
9.884	3	0.393876	0.584889	0.397426	0.409518	0.419896	0.447892	0.446577	0.442092	0.438229
9.912	3	0.393875	0.584349	0.397426	0.409517	0.419894	0.447892	0.446578	0.442093	0.43823
9.94	3	0.393875	0.583812	0.397425	0.409516	0.419892	0.447893	0.446579	0.442094	0.438232
9.968	3	0.393875	0.583279	0.397425	0.409515	0.41989	0.447893	0.446579	0.442095	0.438234
9.996	3	0.393874	0.582748	0.397424	0.409514	0.419888	0.447894	0.44658	0.442096	0.438235
10.024	3	0.393874	0.58222	0.397424	0.409513	0.419886	0.447894	0.44658	0.442097	0.438237
10.052	3	0.393874	0.581695	0.397424	0.409512	0.419883	0.447894	0.446581	0.442098	0.438238
10.08	3	0.393874	0.581173	0.397423	0.409511	0.419881	0.447895	0.446581	0.442099	0.43824
10.108	3	0.393873	0.580655	0.397423	0.409509	0.419879	0.447895	0.446582	0.4421	0.438242
10.136	3	0.393873	0.580138	0.397422	0.409508	0.419877	0.447896	0.446582	0.442101	0.438243
10.164	3	0.393873	0.579625	0.397422	0.409507	0.419876	0.447896	0.446583	0.442102	0.438245
10.192	3	0.393872	0.579115	0.397422	0.409506	0.419874	0.447896	0.446583	0.442103	0.438246
10.22	3	0.393872	0.578607	0.397421	0.409505	0.419872	0.447897	0.446584	0.442103	0.438248
10.248	3	0.393872	0.578102	0.397421	0.409504	0.41987	0.447897	0.446584	0.442104	0.438249
10.276	3	0.393872	0.5776	0.39742	0.409503	0.419868	0.447898	0.446584	0.442105	0.438251
10.304	3	0.393871	0.577101	0.39742	0.409502	0.419866	0.447898	0.446585	0.442106	0.438252
10.332	3	0.393871	0.576604	0.39742	0.409501	0.419864	0.447898	0.446585	0.442107	0.438254
10.36	3	0.393871	0.57611	0.397419	0.4095	0.419862	0.447899	0.446586	0.442108	0.438255
10.388	3	0.39387	0.575619	0.397419	0.409499	0.41986	0.447899	0.446586	0.442109	0.438257
10.416	3	0.39387	0.57513	0.397418	0.409498	0.419859	0.447899	0.446587	0.44211	0.438258
10.444	3	0.39387	0.574644	0.397418	0.409497	0.419857	0.4479	0.446587	0.442111	0.438259
10.472	3	0.39387	0.57416	0.397418	0.409496	0.419855	0.4479	0.446588	0.442111	0.438261
10.5	3	0.393869	0.573679	0.397417	0.409495	0.419853	0.4479	0.446588	0.442112	0.438262
10.528	3	0.393869	0.573201	0.397417	0.409494	0.419851	0.447901	0.446589	0.442113	0.438264
10.556	3	0.393869	0.572725	0.397417	0.409493	0.41985	0.447901	0.446589	0.442114	0.438265
10.584	3	0.393869	0.572252	0.397416	0.409492	0.419848	0.447902	0.446589	0.442115	0.438266
10.612	3	0.393868	0.571781	0.397416	0.409491	0.419846	0.447902	0.44659	0.442116	0.438268
10.64	3	0.393868	0.571313	0.397415	0.409491	0.419844	0.447902	0.44659	0.442117	0.438269
10.668	3	0.393868	0.570847	0.397415	0.40949	0.419843	0.447903	0.446591	0.442117	0.43827
10.696	3	0.393868	0.570384	0.397415	0.409489	0.419841	0.447903	0.446591	0.442118	0.438272
10.724	3	0.393867	0.569923	0.397414	0.409488	0.419839	0.447903	0.446592	0.442119	0.438273
10.752	2	0.320986	0.569352	0.321008	0.321116	0.321265	0.50216	0.502144	0.502069	0.501973
10.78	2	0.320986	0.568707	0.321007	0.321115	0.321263	0.50216	0.502144	0.50207	0.501975
10.808	2	0.320985	0.568065	0.321007	0.321114	0.321261	0.502161	0.502145	0.502071	0.501976
10.836	2	0.320985	0.567426	0.321006	0.321113	0.32126	0.502161	0.502145	0.502072	0.501977
10.864	2	0.320985	0.566791	0.321006	0.321112	0.321258	0.502162	0.502146	0.502073	0.501979
10.892	2	0.320984	0.566159	0.321006	0.321111	0.321256	0.502162	0.502146	0.502074	0.50198
10.92	2	0.320984	0.56553	0.321005	0.32111	0.321254	0.502162	0.502147	0.502075	0.501981
10.948	2	0.320984	0.564904	0.321005	0.321109	0.321253	0.502163	0.502147	0.502075	0.501983
10.976	2	0.320983	0.564282	0.321004	0.321108	0.321251	0.502163	0.502148	0.502076	0.501984
11.004	2	0.320983	0.563663	0.321004	0.321107	0.321249	0.502163	0.502148	0.502077	0.501985
11.032	2	0.320983	0.563046	0.321003	0.321106	0.321248	0.502164	0.502149	0.502078	0.501987
11.06	2	0.320983	0.562433	0.321003	0.321105	0.321246	0.502164	0.502149	0.502079	0.501988
11.088	2	0.320982	0.561824	0.321003	0.321104	0.321244	0.502165	0.50215	0.502079	0.501989
11.116	2	0.320982	0.561217	0.321002	0.321103	0.321243	0.502165	0.50215	0.50208	0.50199
11.144	2	0.320982	0.560613	0.321002	0.321102	0.321241	0.502165	0.50215	0.502081	0.501992
11.172	2	0.320981	0.560012	0.321001	0.321101	0.32124	0.502166	0.502151	0.502082	0.501993
11.2	2	0.320981	0.559415	0.321001	0.3211	0.321238	0.502166	0.502151	0.502083	0.501994

Figure 4a. Weights on Leads of the Interest Rate Gap in Inflation Equation

Data for Figure 4a

j=0,1,… periods ahead	Psi(j): 10 quarter contracts	Psi(j): 5 quarter contracts	Psi(j): 4 quarter contracts
0	1	1	1
1	2.043395	2.207568	2.347543
2	3.180464	3.878356	4.51596
3	4.465766	6.365205	8.265605
4	5.960762	10.19266	14.91049
5	7.736756	16.16761	26.77874
6	9.878291	25.5494	48.02831
7	12.48718	40.31527	86.1037
8	15.68734	63.57704	154.344
9	19.63069	100.237	276.656
10	24.50436	158.0207	495.8898
11	30.53954	249.1057	888.8499
12	38.02252	392.6872	1593.203

Figure 4b. Government Spending Peaks After Eight Quarters

Data for Figure 4b

Quarters	Potential Real Interest Rate:  Taste shock alone	Potential Real Interest Rate: Both shocks	Government Spending Shock	Output Response to Government Spending	Government Debt/GDP:  Taste shock alone	Government Debt/GDP:  Both shocks
0	-8.83615	-9.67699	0.234907	-1.13628	16.36938	18.35215
1	-7.95254	-8.66425	0.44045	-0.60758	27.01671	30.36458
2	-7.15728	-7.73499	0.614428	-0.26283	33.86041	38.19063
3	-6.44156	-6.88421	0.755647	-0.0393	38.12023	43.19268
4	-5.7974	-6.10744	0.863853	0.102825	40.57547	46.2344
5	-5.21766	-5.4006	0.939642	0.188744	41.72937	47.86736
6	-4.69589	-4.75987	0.984362	0.234235	41.91443	48.45093
7	-4.22631	-4.18161	1	0.248773	41.36089	48.2306
8	-3.80367	-3.6623	0.989074	0.237302	40.24261	47.39122
9	-3.42331	-3.19845	0.954515	0.22901	38.65036	45.99322
10	-3.08098	-2.78661	0.899548	0.215822	36.61048	44.04897
11	-2.77288	-2.42331	0.827589	0.198558	34.15324	41.57786
12	-2.49559	-2.10508	0.742136	0.178056	31.31264	38.60625
13	-2.24603	-1.82844	0.646676	0.155153	28.12608	35.16721
14	-2.02143	-1.5899	0.544594	0.130661	24.63402	31.30018
15	-1.81929	-1.386	0.439106	0.105352	20.87954	27.05037
16	-1.63736	-1.21332	0.333189	0.07994	16.90792	22.4682
17	-1.47362	-1.06852	0.229534	0.05507	12.76614	17.60856
18	-1.32626	-0.94832	0.130506	0.031311	8.50235	12.52997
19	-1.19363	-0.84959	0.038118	0.009145	4.165345	7.293724

Figure 5a. Simulated and Actual Paths for Key Macroeconomic Variables in Workhorse Model

Data for Figure 5a - Real Output (dev. from trend)

QUARTER	ZLB - long duration, more sticky p and w	ZLB - benchmark	ZLB - more flex p and w	ZLB - loose rule	US economy
2008Q3	-3.255023718	-2.431190026	-1.61447535	-3.994938053	-1.53489665
2008Q4	-20.69442654	-7.625144021	-4.869835693	-8.416164593	-3.64455621
2009Q1	-26.82320932	-8.881702987	-8.210530619	-9.097942103	-5.76722568
2009Q2	-28.15665236	-8.564668105	-9.264132119	-8.627187202	-6.60896509
2009Q3	-27.06338224	-7.466570325	-8.772031326	-7.573105153	-6.74927346
2009Q4	-24.70467578	-6.041570806	-7.446255762	-6.259824803	-6.09539582
2010Q1	-21.73028508	-4.558715436	-5.799888208	-4.888582145	-5.83140917
2010Q2	-18.52572763	-3.174822516	-4.162151913	-3.585039007	-
2010Q3	-15.32418935	-1.974751806	-2.720184652	-2.424383634	-
2010Q4	-12.26618781	-0.995738871	-1.558642166	-1.446380812	-
2011Q1	-9.434110493	-0.242950769	-0.692832264	-0.665173046	-
2011Q2	-6.873013323	0.307958107	-0.094181283	-0.071855614	-
2011Q3	-4.603452891	0.702275935	0.315372748	0.362155613	-
2011Q4	-2.62957875	0.986217541	0.610016351	0.670960901	-
2012Q1	-0.944362468	1.198375077	0.842185738	0.886971581	-
2012Q2	0.466929295	1.367330985	1.042054639	1.037732606	-
2012Q3	1.624361213	1.512268534	1.223558236	1.14E+00	-
2012Q4	2.55166526	1.64477813	1.391238935	1.22489791	-
2013Q1	3.275053819	1.770904939	1.5455065	1.29E+00	-
2013Q2	3.828446569	1.892987459	1.68579136	1.344224565	-

Data for Figure 5a - Inflation (YoY)

QUARTER	ZLB - long duration, more sticky p and w	ZLB - benchmark	ZLB - more flex p and w	ZLB - loose rule	US economy
2008Q3	1.957376616	1.866959064	1.763719447	1.693345558	2.4681
2008Q4	1.767620351	1.406312994	1.013167718	1.023488896	1.964
2009Q1	1.497227784	0.808707745	-0.409581517	0.186419402	1.7233
2009Q2	1.16471668	0.137941235	-2.178723423	-0.747417321	1.8201
2009Q3	0.829897641	-0.418488077	-3.760861953	-1.411343532	1.4901
2009Q4	0.61229986	-0.624473136	-4.664364245	-1.70166661	1.7174
2010Q1	0.458009178	-0.642418198	-4.612930936	-1.780304505	1.323
2010Q2	0.358680882	-0.519863879	-3.896111741	-1.695625732	-
2010Q3	0.305076018	-0.30485179	-2.833010845	-1.495811921	-
2010Q4	0.288159074	-0.039918157	-1.692230855	-1.224344043	-
2011Q1	0.299656884	0.240681962	-0.658608558	-0.917703703	-
2011Q2	0.332320138	0.511802408	0.169117704	-0.604471489	-
2011Q3	0.380012006	0.756996681	0.763686911	-0.305366469	-
2011Q4	0.437695366	0.967315215	1.146761014	-0.033949422	-
2012Q1	0.501361788	1.139685581	1.365716564	0.202259775	-
2012Q2	0.567928947	1.275173518	1.474351625	0.400463578	-
2012Q3	0.635123191	1.377393671	1.519561252	0.561266164	-
2012Q4	0.701357816	1.451253628	1.535303062	0.687516528	-
2013Q1	0.765613727	1.502057189	1.542130609	0.783374061	-
2013Q2	0.827326614	1.534921793	1.549835931	0.853599262	-

Data for Figure 5a - Nominal Interest Rate (APR)

QUARTER	ZLB - long duration, more sticky p and w	ZLB - benchmark	ZLB - more flex p and w	ZLB - loose rule	US economy
2008Q3	3.990093349	3.771636842	3.434663524	3.315569298	1.94
2008Q4	0.662130355	1.597998221	0.770141627	1.699475765	0.5067
2009Q1	4.44E-16	-8.33E-17	1.78E-15	0.130459502	0.1833
2009Q2	1.78E-15	4.44E-16	8.88E-16	3.89E-16	0.18
2009Q3	0	2.22E-16	1.33E-15	2.22E-16	1.57E-01
2009Q4	-1.78E-15	0.00E+00	-3.55E-15	-4.44E-16	1.20E-01
2010Q1	0	-2.22E-16	3.77E-15	-2.22E-16	1.33E-01
2010Q2	8.88E-16	-6.66E-16	-2.22E-16	-2.22E-16	-
2010Q3	1.33E-15	0.00E+00	1.28E-15	-3.33E-16	-
2010Q4	1.33E-15	1.39E-16	1.78E-15	-4.16E-16	-
2011Q1	0	0.134171075	0.014684669	7.28E-02	-
2011Q2	-4.44E-16	4.73E-01	4.89E-01	0.297869321	-
2011Q3	0	0.884705246	1.063239063	5.94E-01	-
2011Q4	2.22E-16	1.29E+00	1.56E+00	0.907210047	-
2012Q1	3.33E-16	1.64E+00	1.93E+00	1.20E+00	-
2012Q2	9.99E-16	1.93E+00	2.18E+00	1.47E+00	-
2012Q3	1.05E-15	2.15E+00	2.33E+00	1.69E+00	-
2012Q4	1.05E-15	2.31E+00	2.43E+00	1.86E+00	-
2013Q1	0.104258261	2.418968743	2.489984759	2.000866435	-
2013Q2	0.281321076	2.487622308	2.536836742	2.10E+00	-

Figure 5b. Actual and Expected FFR and Core Inflation Rates

Data for Figure 5b - Actual and Expected Fed Funds Rates

QUARTER	Expectations Jan-02-09	Expectations Dec-15-09	US economy
2008Q3	-	-	1.94
2008Q4	-	-	0.5067
2009Q1	-	-	0.1833
2009Q2	0.19	-	0.18
2009Q3	0.24	-	1.57E-01
2009Q4	0.31	-	1.20E-01
2010Q1	0.42	0.18	1.33E-01
2010Q2	0.54	0.22	-
2010Q3	0.66	0.3	-
2010Q4	0.79	0.41	-
2011Q1	0.91	0.54	-
2011Q2	1.02	0.69	-
2011Q3	1.13	0.85	-
2011Q4	1.24	1.01	-
2012Q1	1.35	1.1575	-
2012Q2	-	1.305	-
2012Q3	-	1.4525	-
2012Q4	-	1.6	-
2013Q1	-	-	-
2013Q2	-	-	-

Data for Figure 5b - Actual and Expected Inflation (YoY)

QUARTER	Expectations at 2008Q3	Expectations at 2008Q4	Expectations at 2009Q1	Expectations at 2009Q2	Expectations at 2009Q3	Expectations at 2009Q4	US economy
2008Q3	2.4681	-	-	-	-	-	2.4681
2008Q4	2.32558297	1.964	-	-	-	-	1.964
2009Q1	2.27412124	2.170202961	1.7233	-	-	-	1.7233
2009Q2	2.354980039	2.147096723	1.309308856	1.8201	-	-	1.8201
2009Q3	2.292205421	1.945282869	0.935597117	1.205854027	1.4901	-	1.4901
2009Q4	2.099187646	1.912895124	1.122991365	1.392101988	1.716199353	1.7174	1.7174
2010Q1	1.887623368	2.037400671	1.282406927	1.367484707	1.729184589	1.584765325	1.323
2010Q2	1.769209243	2.190253475	1.283937476	1.412334308	1.575043648	1.349843464	-
2010Q3	1.855641926	2.242907499	1.194118325	1.589527001	1.584318279	1.350302211	-
2010Q4	2.258618074	2.06681671	1.079484791	1.817837998	1.760265367	1.406573962	-
2011Q1	-	-	1.006572185	2.016042512	1.999895579	1.465998616	-
2011Q2	-	-	1.041915824	2.102915755	2.200219582	1.544240434	-
2011Q3	-	-	1.252051021	1.997232939	2.258248042	1.656963676	-
2011Q4	-	-	1.703513091	1.617769277	2.070991627	1.819832604	-
2012Q1	-	-	-	-	-	-	-
2012Q2	-	-	-	-	-	-	-
2012Q3	-	-	-	-	-	-	-
2012Q4	-	-	-	-	-	-	-
2013Q1	-	-	-	-	-	-	-
2013Q2	-	-	-	-	-	-	-

Figure 6. Responses to a Front-Loaded Increase in Government Spending in a Liquidity Trap and in Normal Times in the Workhorse Model

Data for Figure 6 - Inflation (APR)

QUARTER	ZLB Benchmark (8q)	ZLB Longer Duration (11q)	ZLB Long Dur. (16q), Sticky p and w	Normal
1	0.113037	0.360105	0.008982	0.042119
2	0.188736	0.639546	0.015412	0.061527
3	0.232815	0.83585	0.019691	0.067027
4	0.251088	0.95307	0.022186	0.064588
5	0.249287	0.99969	0.023231	0.05812
6	0.23286	0.98697	0.023129	0.050077
7	0.206803	0.9276	0.02215	0.04191
8	0.175509	0.834609	0.020531	0.034414
9	0.142662	0.720499	0.018476	0.027956
10	0.111151	0.596584	0.016158	0.022647
11	0.082845	0.472523	0.013722	0.01845
12	0.058702	0.356018	0.011284	0.015252
13	0.038993	0.25247	0.008934	0.012903
14	0.023536	0.164702	0.006741	0.011251
15	0.011883	0.093403	0.004751	0.010149
16	0.003466	0.037765	0.002995	0.009467
17	-0.00231	-0.00391	0.001488	0.009094
18	-0.006	-0.03372	0.000232	0.008938
19	-0.00812	-0.05386	-0.00078	0.008923
20	-0.00907	-0.06641	-0.00158	0.008992

Data for Figure 6 - Nominal Interest Rate (APR)

QUARTER	ZLB Benchmark (8q)	ZLB Longer Duration (11q)	ZLB Long Dur. (16q), Sticky p and w	Normal
1	-3.47E-17	-9.71E-16	-2.22E-16	1.39E-01
2	0	-2.66E-15	8.88E-16	2.38E-01
3	2.22E-16	-4.44E-16	0.00E+00	2.79E-01
4	2.22E-16	0.00E+00	-8.88E-16	2.79E-01
5	6.66E-16	8.88E-16	-2.66E-15	2.56E-01
6	1.22E-15	-4.44E-16	8.88E-16	2.21E-01
7	4.44E-16	-1.11E-15	1.78E-15	1.84E-01
8	0.011476	-1.44E-15	8.88E-16	1.50E-01
9	0.154171	-1.82E-15	1.78E-15	1.20E-01
10	0.206972	-7.77E-16	1.33E-15	9.50E-02
11	0.207707	0.133958	1.11E-15	7.56E-02
12	0.182035	0.42376	1.11E-15	6.08E-02
13	0.146193	0.497313	6.66E-16	4.99E-02
14	0.109645	0.453508	1.11E-16	4.22E-02
15	0.077278	0.356863	0	0.036967
16	0.051088	0.246397	-2.78E-17	3.36E-02
17	0.031366	0.143457	0.019177	0.031531
18	0.017508	0.057893	0.026074	0.030436
19	0.008522	-0.00742	0.026208	0.029976
20	0.003325	-0.05346	0.023097	0.029914

Data for Figure 6 - Real Interest Rate (APR)

QUARTER	ZLB Benchmark (8q)	ZLB Longer Duration (11q)	ZLB Long Dur. (16q), Sticky p and w	Normal
1	-1.89E-01	-6.40E-01	-1.54E-02	7.73E-02
2	-2.33E-01	-8.36E-01	-1.97E-02	1.71E-01
3	-2.51E-01	-9.53E-01	-2.22E-02	2.15E-01
4	-2.49E-01	-1.00E+00	-2.32E-02	2.21E-01
5	-2.33E-01	-9.87E-01	-2.31E-02	2.06E-01
6	-2.07E-01	-9.28E-01	-2.22E-02	1.79E-01
7	-1.76E-01	-8.35E-01	-2.05E-02	1.50E-01
8	-1.31E-01	-7.20E-01	-1.85E-02	1.22E-01
9	4.30E-02	-5.97E-01	-1.62E-02	9.70E-02
10	1.24E-01	-4.73E-01	-1.37E-02	7.66E-02
11	1.49E-01	-2.22E-01	-1.13E-02	6.03E-02
12	1.43E-01	1.71E-01	-8.93E-03	4.79E-02
13	1.23E-01	3.33E-01	-6.74E-03	3.87E-02
14	9.78E-02	3.60E-01	-4.75E-03	3.21E-02
15	0.073812	0.319098	-0.00299	0.0275
16	5.34E-02	2.50E-01	-1.49E-03	2.45E-02
17	0.03737	0.177174	0.018946	0.022593
18	0.025626	0.111754	0.026857	0.021513
19	0.017594	0.058988	0.027784	0.020985
20	0.012538	0.019729	0.025267	0.020815

Data for Figure 6 - Potential Real Interest Rate (APR)

QUARTER	ZLB Benchmark (8q)	ZLB Longer Duration (11q)	ZLB Long Dur. (16q), Sticky p and w	Normal
1	3.56E+00	3.56E+00	3.56E+00	3.56E+00
2	1.16E+00	1.16E+00	1.16E+00	1.16E+00
3	4.71E-01	4.71E-01	4.71E-01	4.71E-01
4	2.49E-01	2.49E-01	2.49E-01	2.49E-01
5	1.62E-01	1.62E-01	1.62E-01	1.62E-01
6	1.18E-01	1.18E-01	1.18E-01	1.18E-01
7	9.15E-02	9.15E-02	9.15E-02	9.15E-02
8	7.27E-02	7.27E-02	7.27E-02	7.27E-02
9	5.91E-02	5.91E-02	5.91E-02	5.91E-02
10	4.91E-02	4.91E-02	4.91E-02	4.91E-02
11	4.17E-02	4.17E-02	4.17E-02	4.17E-02
12	3.62E-02	3.62E-02	3.62E-02	3.62E-02
13	3.23E-02	3.23E-02	3.23E-02	3.23E-02
14	2.94E-02	2.94E-02	2.94E-02	2.94E-02
15	0.027414	0.027414	0.027414	0.027414
16	2.60E-02	2.60E-02	2.60E-02	2.60E-02
17	0.024992	0.024992	0.024992	0.024992
18	0.024303	0.024303	0.024303	0.024303
19	0.023826	0.023826	0.023826	0.023826
20	0.023489	0.023489	0.023489	0.023489

Data for Figure 6 - Output

QUARTER	ZLB Benchmark (8q)	ZLB Longer Duration (11q)	ZLB Long Dur. (16q), Sticky p and w	Normal
1	1.05E+00	1.79E+00	1.03E+00	7.49E-01
2	9.50E-01	2.14E+00	9.42E-01	4.86E-01
3	8.30E-01	2.26E+00	8.58E-01	2.99E-01
4	6.94E-01	2.20E+00	7.73E-01	1.70E-01
5	5.50E-01	2.02E+00	6.89E-01	8.31E-02
6	4.08E-01	1.74E+00	6.07E-01	2.61E-02
7	2.72E-01	1.43E+00	5.26E-01	-1.04E-02
8	1.50E-01	1.09E+00	4.48E-01	-3.31E-02
9	4.62E-02	7.58E-01	3.75E-01	-4.71E-02
10	-2.84E-02	4.54E-01	3.06E-01	-5.56E-02
11	-7.49E-02	1.91E-01	2.42E-01	-6.09E-02
12	-9.88E-02	-1.29E-02	1.85E-01	-6.43E-02
13	-1.07E-01	-1.41E-01	1.33E-01	-6.68E-02
14	-1.06E-01	-2.02E-01	8.71E-02	-6.88E-02
15	-0.09873	-0.21369	0.047525	-0.07056
16	-8.99E-02	-1.94E-01	1.39E-02	-7.22E-02
17	-0.081	-0.15829	-0.01381	-0.07379
18	-0.07315	-0.11695	-0.03487	-0.07527
19	-0.06684	-0.07698	-0.04988	-0.07661
20	-0.06216	-0.04225	-0.06002	-0.07778

Data for Figure 6 - Govt Spending (trend GDP share)

QUARTER	ZLB Benchmark (8q)	ZLB Longer Duration (11q)	ZLB Long Dur. (16q), Sticky p and w	Normal
1	1.00E+00	1.00E+00	1.00E+00	1.00E+00
2	9.00E-01	9.00E-01	9.00E-01	9.00E-01
3	8.10E-01	8.10E-01	8.10E-01	8.10E-01
4	0.729	0.729	0.729	0.729
5	6.56E-01	6.56E-01	6.56E-01	6.56E-01
6	0.59049	0.59049	0.59049	0.59049
7	0.531441	0.531441	0.531441	0.531441
8	0.478297	0.478297	0.478297	0.478297
9	0.430467	0.430467	0.430467	0.430467
10	0.38742	0.38742	0.38742	0.38742
11	0.348678	0.348678	0.348678	0.348678
12	0.313811	0.313811	0.313811	0.313811
13	0.28243	0.28243	0.28243	0.28243
14	0.254187	0.254187	0.254187	0.254187
15	0.228768	0.228768	0.228768	0.228768
16	0.205891	0.205891	0.205891	0.205891
17	0.185302	0.185302	0.185302	0.185302
18	0.166772	0.166772	0.166772	0.166772
19	0.150095	0.150095	0.150095	0.150095
20	0.135085	0.135085	0.135085	0.135085

Data for Figure 6 - Government Debt to Actual Output

QUARTER	ZLB Benchmark (8q)	ZLB Longer Duration (11q)	ZLB Long Dur. (16q), Sticky p and w	Normal
1	-3.78E-01	-8.45E-01	-3.53E-01	-1.95E-01
2	-2.11E-01	-1.07E+00	-1.68E-01	1.30E-01
3	-4.98E-02	-1.23E+00	1.27E-03	4.23E-01
4	0.109004	-1.33325	0.15856	0.684213
5	2.66E-01	-1.38E+00	3.05E-01	9.15E-01
6	0.421041	-1.38099	0.443261	1.117513
7	0.57285	-1.33495	0.572946	1.295255
8	0.719635	-1.25171	0.695163	1.451348
9	0.860242	-1.1399	0.810371	1.588863
10	1.004092	-1.00883	0.918883	1.710536
11	1.138685	-0.86807	1.020911	1.818714
12	1.258836	-0.71474	1.116601	1.915366
13	1.363458	-0.54543	1.206057	2.002122
14	1.453544	-0.3898	1.28936	2.080317
15	1.530959	-0.25948	1.366581	2.151048
16	1.597764	-0.15628	1.437787	2.215212
17	1.655882	-0.07737	1.503051	2.273551
18	1.706946	-0.01816	1.564198	2.326679
19	1.752276	0.02611	1.619907	2.375112
20	1.792895	0.059625	1.669871	2.419285

Data for Figure 6 - Government Spending Multiplier

QUARTER	ZLB Benchmark (8q)	ZLB Longer Duration (11q)	ZLB Long Dur. (16q), Sticky p and w	Normal
1	1.05E+00	1.79E+00	1.03E+00	7.49E-01
2	9.50E-01	2.14E+00	9.42E-01	4.86E-01
3	8.30E-01	2.26E+00	8.58E-01	2.99E-01
4	0.693716	2.20202	0.773471	0.170135
5	5.50E-01	2.02E+00	6.89E-01	8.31E-02
6	0.407626	1.744564	0.606646	0.026081
7	0.272307	1.425454	0.525922	-0.01038
8	0.150134	1.08845	0.448318	-0.03314
9	0.046201	0.758301	0.374721	-0.0471
10	-0.02844	0.454459	0.305873	-0.05561
11	-0.07486	0.191429	0.242353	-0.06088
12	-0.09883	-0.01294	0.184571	-0.06432
13	-0.10707	-0.14112	0.132782	-0.06679
14	-0.10551	-0.20208	0.087102	-0.06879
15	-0.09873	-0.21369	0.047525	-0.07056
16	-0.0899	-0.19412	0.013947	-0.07222
17	-0.081	-0.15829	-0.01381	-0.07379
18	-0.07315	-0.11695	-0.03487	-0.07527
19	-0.06684	-0.07698	-0.04988	-0.07661
20	-0.06216	-0.04225	-0.06002	-0.07778

Figure 7. Spending Multipliers and Government Deficit Responses in Workhorse Model

Data for Figure 7

% Change in Govt Spend (Share of GDP)	Benchmark Calibration (11 quarter liquidity trap): ZLB duration	More flexible p and w Calibration (8 quarter liquidity trap): ZLB duration	Government Spending Multiplier:  Benchmark Calibration (11 quarter liquidity trap): Marginal multiplier	Government Spending Multiplier:  Benchmark Calibration (11 quarter liquidity trap): Average multiplier	Government Spending Multiplier:  Benchmark Calibration (8 quarter liquidity trap)	Government Spending Multiplier:  More flexible p and w (8 quarter liquidity trap)	Government Spending Multiplier:  More flexible prices (8 quarter liquidity trap)	Government Spending Multiplier:  Looser policy rule (8 quarter liquidity trap)	Governement Debt to Actual GDP:  Benchmark Calibration (11 quarter liquidity trap): Marginal response	Governement Debt to Actual GDP:  Benchmark Calibration (11 quarter liquidity trap): Average response	Governement Debt to Actual GDP:  Benchmark Calibration (8 quarter liquidity trap)	Governement Debt to Actual GDP:  More flexible p and w (8 quarter liquidity trap)	Governement Debt to Actual GDP:  More flexible prices (8 quarter liquidity trap)	Governement Debt to Actual GDP:  Looser policy rule (8 quarter liquidity trap)
0.01	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.02	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.03	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.04	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.05	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.06	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.07	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.08	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.09	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.1	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.11	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.12	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.13	11	8	3.343635	3.343635	1.034152	11.81625	1.341369	1.455675	-2.62095	-2.62095	0.114252	-15.5336	0.114252	-0.38023
0.14	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.15	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.16	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.17	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.18	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.19	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.2	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.21	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.22	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.23	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.24	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.25	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.26	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.27	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.28	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.29	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.3	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.31	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.32	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.33	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.34	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.35	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.36	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.37	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.38	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.39	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.4	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.41	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.42	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.43	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.44	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.45	11	8	3.343635	3.343635	1.034152	1.715592	1.341369	1.455675	-2.62095	-2.62095	0.114252	-1.04406	0.114252	-0.38023
0.45	10	8	1.673587	3.341434	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.61835	0.114252	-1.04406	0.114252	-0.38023
0.47	10	8	1.673587	3.305948	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.57628	0.114252	-1.04406	0.114252	-0.38023
0.48	10	8	1.673587	3.271941	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.53597	0.114252	-1.04406	0.114252	-0.38023
0.49	10	8	1.673587	3.239321	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.4973	0.114252	-1.04406	0.114252	-0.38023
0.5	10	8	1.673587	3.208007	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.46018	0.114252	-1.04406	0.114252	-0.38023
0.51	10	8	1.673587	3.17792	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.42452	0.114252	-1.04406	0.114252	-0.38023
0.52	10	8	1.673587	3.14899	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.39023	0.114252	-1.04406	0.114252	-0.38023
0.53	10	8	1.673587	3.121153	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.35723	0.114252	-1.04406	0.114252	-0.38023
0.54	10	8	1.673587	3.094346	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.32545	0.114252	-1.04406	0.114252	-0.38023
0.55	10	8	1.673587	3.068514	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.29483	0.114252	-1.04406	0.114252	-0.38023
0.56	10	8	1.673587	3.043605	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.2653	0.114252	-1.04406	0.114252	-0.38023
0.57	10	8	1.673587	3.019569	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.23681	0.114252	-1.04406	0.114252	-0.38023
0.58	10	8	1.673587	2.996363	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.2093	0.114252	-1.04406	0.114252	-0.38023
0.59	10	8	1.673587	2.973943	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.18273	0.114252	-1.04406	0.114252	-0.38023
0.6	10	8	1.673587	2.95227	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.15704	0.114252	-1.04406	0.114252	-0.38023
0.61	10	8	1.673587	2.931308	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.13219	0.114252	-1.04406	0.114252	-0.38023
0.62	10	8	1.673587	2.911022	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.10814	0.114252	-1.04406	0.114252	-0.38023
0.63	10	8	1.673587	2.89138	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.08486	0.114252	-1.04406	0.114252	-0.38023
0.64	10	8	1.673587	2.872352	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.0623	0.114252	-1.04406	0.114252	-0.38023
0.65	10	8	1.673587	2.85391	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.04044	0.114252	-1.04406	0.114252	-0.38023
0.66	10	8	1.673587	2.836026	1.034152	1.715592	1.341369	1.455675	-0.64131	-2.01924	0.114252	-1.04406	0.114252	-0.38023
0.67	10	8	1.673587	2.818676	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.99868	0.114252	-1.04406	0.114252	-0.38023
0.68	10	8	1.673587	2.801837	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.97872	0.114252	-1.04406	0.114252	-0.38023
0.69	10	8	1.673587	2.785485	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.95933	0.114252	-1.04406	0.114252	-0.38023
0.7	10	8	1.673587	2.769601	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.9405	0.114252	-1.04406	0.114252	-0.38023
0.71	10	8	1.673587	2.754164	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.92221	0.114252	-1.04406	0.114252	-0.38023
0.72	10	8	1.673587	2.739156	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.90442	0.114252	-1.04406	0.114252	-0.38023
0.73	10	8	1.673587	2.724559	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.88711	0.114252	-1.04406	0.114252	-0.38023
0.74	10	8	1.673587	2.710357	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.87028	0.114252	-1.04406	0.114252	-0.38023
0.75	10	8	1.673587	2.696533	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.85389	0.114252	-1.04406	0.114252	-0.38023
0.76	10	8	1.673587	2.683074	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.83794	0.114252	-1.04406	0.114252	-0.38023
0.77	10	8	1.673587	2.669963	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.8224	0.114252	-1.04406	0.114252	-0.38023
0.78	10	8	1.673587	2.657189	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.80725	0.114252	-1.04406	0.114252	-0.38023
0.79	10	8	1.673587	2.644739	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.79249	0.114252	-1.04406	0.114252	-0.38023
0.8	10	8	1.673587	2.632599	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.7781	0.114252	-1.04406	0.114252	-0.38023
0.81	10	8	1.673587	2.62076	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.76407	0.114252	-1.04406	0.114252	-0.38023
0.82	10	8	1.673587	2.609209	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.75038	0.114252	-1.04406	0.114252	-0.38023
0.83	10	8	1.673587	2.597936	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.73702	0.114252	-1.04406	0.114252	-0.38023
0.84	10	8	1.673587	2.586932	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.72397	0.114252	-1.04406	0.114252	-0.38023
0.85	10	8	1.673587	2.576187	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.71123	0.114252	-1.04406	0.114252	-0.38023
0.86	10	8	1.673587	2.565692	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.69879	0.114252	-1.04406	0.114252	-0.38023
0.87	10	8	1.673587	2.555437	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.68664	0.114252	-1.04406	0.114252	-0.38023
0.88	10	8	1.673587	2.545416	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.67476	0.114252	-1.04406	0.114252	-0.38023
0.89	10	8	1.673587	2.535621	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.66315	0.114252	-1.04406	0.114252	-0.38023
0.9	10	8	1.673587	2.526042	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.65179	0.114252	-1.04406	0.114252	-0.38023
0.91	10	8	1.673587	2.516675	1.034152	1.715592	1.341369	1.455675	-0.64131	-1.64069	0.114252	-1.04406	0.114252	-0.38023
0.92	10	8	1.673587	2.507511	0.986056	1.715592	1.341369	1.455675	-0.64131	-1.62983	0.263879	-1.04406	0.263879	-0.38023
0.93	10	8	1.673587	2.498544	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.6192	0.263879	-1.04406	0.263879	-0.38023
0.94	10	8	1.673587	2.489768	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.60879	0.263879	-1.04406	0.263879	-0.38023
0.95	10	8	1.673587	2.481176	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.59861	0.263879	-1.04406	0.263879	-0.38023
0.96	10	8	1.673587	2.472764	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.58864	0.263879	-1.04406	0.263879	-0.38023
0.97	10	8	1.673587	2.464525	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.57887	0.263879	-1.04406	0.263879	-0.38023
0.98	10	8	1.673587	2.456454	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.56931	0.263879	-1.04406	0.263879	-0.38023
0.99	10	8	1.673587	2.448546	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.55993	0.263879	-1.04406	0.263879	-0.38023
1	10	8	1.673587	2.440797	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.55075	0.263879	-1.04406	0.263879	-0.38023
1.01	10	8	1.673587	2.433201	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.54174	0.263879	-1.04406	0.263879	-0.38023
1.02	10	8	1.673587	2.425754	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.53291	0.263879	-1.04406	0.263879	-0.38023
1.03	10	8	1.673587	2.418451	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.52426	0.263879	-1.04406	0.263879	-0.38023
1.04	10	8	1.673587	2.411289	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.51577	0.263879	-1.04406	0.263879	-0.38023
1.05	10	8	1.673587	2.404263	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.50744	0.263879	-1.04406	0.263879	-0.38023
1.06	10	8	1.673587	2.39737	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.49927	0.263879	-1.04406	0.263879	-0.38023
1.07	10	8	1.673587	2.390606	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.49125	0.263879	-1.04406	0.263879	-0.38023
1.08	10	8	1.673587	2.383967	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.48338	0.263879	-1.04406	0.263879	-0.38023
1.09	10	8	1.673587	2.377449	0.90629	1.715592	1.341369	1.455675	-0.64131	-1.47565	0.263879	-1.04406	0.263879	-0.38023
1.1	10	8	1.673587	2.371051	0.90629	1.106988	1.341369	1.455675	-0.64131	-1.46807	0.263879	-0.17444	0.263879	-0.38023
1.11	10	8	1.673587	2.364767	0.90629	1.106988	1.341369	1.455675	-0.64131	-1.46062	0.263879	-0.17444	0.263879	-0.38023
1.12	10	8	1.673587	2.358596	0.90629	1.106988	1.341369	1.455675	-0.64131	-1.45331	0.263879	-0.17444	0.263879	-0.38023
1.13	10	8	1.673587	2.352534	0.90629	1.106988	1.341369	1.455675	-0.64131	-1.44612	0.263879	-0.17444	0.263879	-0.38023
1.14	10	8	1.673587	2.346578	0.90629	1.106988	1.341369	1.455675	-0.64131	-1.43906	0.263879	-0.17444	0.263879	-0.38023
1.15	10	8	1.673587	2.340726	0.90629	1.106988	1.341369	1.455675	-0.64131	-1.43212	0.263879	-0.17444	0.263879	-0.38023
1.16	10	8	1.673587	2.334975	0.90629	1.106988	1.341369	1.455675	-0.64131	-1.42531	0.263879	-0.17444	0.263879	-0.38023
1.17	10	7	1.673587	2.329322	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.4186	0.263879	-0.17444	0.263879	-0.38023
1.18	10	7	1.673587	2.323765	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.41202	0.263879	-0.17444	0.263879	-0.38023
1.19	10	7	1.673587	2.318301	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.40554	0.263879	-0.17444	0.263879	-0.38023
1.2	10	7	1.673587	2.312929	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.39917	0.263879	-0.17444	0.263879	-0.38023
1.21	10	7	1.673587	2.307645	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.39291	0.263879	-0.17444	0.263879	-0.38023
1.22	10	7	1.673587	2.302448	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.38675	0.263879	-0.17444	0.263879	-0.38023
1.23	10	7	1.673587	2.297335	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.38069	0.263879	-0.17444	0.263879	-0.38023
1.24	10	7	1.673587	2.292305	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.37473	0.263879	-0.17444	0.263879	-0.38023
1.25	10	7	1.673587	2.287355	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.36886	0.263879	-0.17444	0.263879	-0.38023
1.26	10	7	1.673587	2.282484	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.36308	0.263879	-0.17444	0.263879	-0.38023
1.27	10	7	1.673587	2.277689	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.3574	0.263879	-0.17444	0.263879	-0.38023
1.28	10	7	1.673587	2.27297	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.35181	0.263879	-0.17444	0.263879	-0.38023
1.29	10	7	1.673587	2.268323	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.3463	0.263879	-0.17444	0.263879	-0.38023
1.3	10	7	1.673587	2.263749	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.34088	0.263879	-0.17444	0.263879	-0.38023
1.31	10	7	1.673587	2.259243	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.33553	0.263879	-0.17444	0.263879	-0.38023
1.32	10	7	1.673587	2.254807	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.33028	0.263879	-0.17444	0.263879	-0.38023
1.33	10	7	1.673587	2.250437	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.3251	0.263879	-0.17444	0.263879	-0.38023
1.34	10	7	1.673587	2.246132	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.31999	0.263879	-0.17444	0.263879	-0.38023
1.35	10	7	1.673587	2.241891	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.31497	0.263879	-0.17444	0.263879	-0.38023
1.36	10	7	1.673587	2.237712	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.31001	0.263879	-0.17444	0.263879	-0.38023
1.37	10	7	1.673587	2.233594	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.30513	0.263879	-0.17444	0.263879	-0.38023
1.38	10	7	1.673587	2.229536	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.30032	0.263879	-0.17444	0.263879	-0.38023
1.39	10	7	1.673587	2.225537	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.29558	0.263879	-0.17444	0.263879	-0.38023
1.4	10	7	1.673587	2.221594	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.29091	0.263879	-0.17444	0.263879	-0.38023
1.41	10	7	1.673587	2.217708	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.2863	0.263879	-0.17444	0.263879	-0.38023
1.42	10	7	1.673587	2.213876	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.28176	0.263879	-0.17444	0.263879	-0.38023
1.43	10	7	1.673587	2.210097	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.27728	0.263879	-0.17444	0.263879	-0.38023
1.44	10	7	1.673587	2.206372	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.27286	0.263879	-0.17444	0.263879	-0.38023
1.45	10	7	1.673587	2.202697	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.26851	0.263879	-0.17444	0.263879	-0.38023
1.46	10	7	1.673587	2.199073	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.26421	0.263879	-0.17444	0.263879	-0.38023
1.47	10	7	1.673587	2.195499	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.25997	0.263879	-0.17444	0.263879	-0.38023
1.48	10	7	1.673587	2.191972	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.25579	0.263879	-0.17444	0.263879	-0.38023
1.49	10	7	1.673587	2.188493	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.25167	0.263879	-0.17444	0.263879	-0.38023
1.5	10	7	1.673587	2.18506	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.2476	0.263879	-0.17444	0.263879	-0.38023
1.51	10	7	1.673587	2.181673	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.24358	0.263879	-0.17444	0.263879	-0.38023
1.52	10	7	1.673587	2.17833	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.23962	0.263879	-0.17444	0.263879	-0.38023
1.53	10	7	1.673587	2.175031	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.23571	0.263879	-0.17444	0.263879	-0.38023
1.54	10	7	1.673587	2.171775	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.23185	0.263879	-0.17444	0.263879	-0.38023
1.55	10	7	1.673587	2.168561	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.22804	0.263879	-0.17444	0.263879	-0.38023
1.56	10	7	1.673587	2.165388	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.22428	0.263879	-0.17444	0.263879	-0.38023
1.57	10	7	1.673587	2.162256	0.90629	1.106988	1.126583	1.455675	-0.64131	-1.22057	0.263879	-0.17444	0.263879	-0.38023
1.58	10	7	1.673587	2.159163	0.90629	1.106988	1.126583	1.219975	-0.64131	-1.2169	0.263879	-0.17444	0.263879	-0.10256
1.59	10	7	1.673587	2.156109	0.90629	1.106988	1.126583	1.219975	-0.64131	-1.21328	0.263879	-0.17444	0.263879	-0.10256
1.6	10	7	1.673587	2.153093	0.90629	1.106988	1.126583	1.219975	-0.64131	-1.20971	0.263879	-0.17444	0.263879	-0.10256
1.6	9	7	1.241366	2.148885	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.20472	0.263879	-0.17444	0.263879	-0.10256
1.62	9	7	1.241366	2.143283	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.19809	0.263879	-0.17444	0.263879	-0.10256
1.63	9	7	1.241366	2.13775	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.19153	0.263879	-0.17444	0.263879	-0.10256
1.64	9	7	1.241366	2.132284	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.18506	0.263879	-0.17444	0.263879	-0.10256
1.65	9	7	1.241366	2.126885	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.17867	0.263879	-0.17444	0.263879	-0.10256
1.66	9	7	1.241366	2.12155	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.17235	0.263879	-0.17444	0.263879	-0.10256
1.67	9	7	1.241366	2.11628	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.16611	0.263879	-0.17444	0.263879	-0.10256
1.68	9	7	1.241366	2.111072	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.15994	0.263879	-0.17444	0.263879	-0.10256
1.69	9	7	1.241366	2.105926	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.15384	0.263879	-0.17444	0.263879	-0.10256
1.7	9	7	1.241366	2.10084	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.14782	0.263879	-0.17444	0.263879	-0.10256
1.71	9	7	1.241366	2.095814	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.14187	0.263879	-0.17444	0.263879	-0.10256
1.72	9	7	1.241366	2.090846	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.13598	0.263879	-0.17444	0.263879	-0.10256
1.73	9	7	1.241366	2.085936	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.13017	0.263879	-0.17444	0.263879	-0.10256
1.74	9	7	1.241366	2.081082	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.12442	0.263879	-0.17444	0.263879	-0.10256
1.75	9	7	1.241366	2.076284	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.11874	0.263879	-0.17444	0.263879	-0.10256
1.76	9	7	1.241366	2.07154	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.11312	0.263879	-0.17444	0.263879	-0.10256
1.77	9	7	1.241366	2.06685	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.10756	0.263879	-0.17444	0.263879	-0.10256
1.78	9	7	1.241366	2.062212	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.10207	0.263879	-0.17444	0.263879	-0.10256
1.79	9	7	1.241366	2.057626	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.09664	0.263879	-0.17444	0.263879	-0.10256
1.8	9	7	1.241366	2.053092	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.09127	0.263879	-0.17444	0.263879	-0.10256
1.81	9	7	1.241366	2.048607	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.08596	0.263879	-0.17444	0.263879	-0.10256
1.82	9	7	1.241366	2.044171	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.08071	0.263879	-0.17444	0.263879	-0.10256
1.83	9	7	1.241366	2.039785	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.07551	0.263879	-0.17444	0.263879	-0.10256
1.84	9	7	1.241366	2.035445	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.07037	0.263879	-0.17444	0.263879	-0.10256
1.85	9	7	1.241366	2.031153	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.06529	0.263879	-0.17444	0.263879	-0.10256
1.86	9	7	1.241366	2.026907	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.06026	0.263879	-0.17444	0.263879	-0.10256
1.87	9	7	1.241366	2.022706	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.05528	0.263879	-0.17444	0.263879	-0.10256
1.88	9	7	1.241366	2.01855	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.05036	0.263879	-0.17444	0.263879	-0.10256
1.89	9	7	1.241366	2.014438	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.04549	0.263879	-0.17444	0.263879	-0.10256
1.9	9	7	1.241366	2.010369	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.04067	0.263879	-0.17444	0.263879	-0.10256
1.91	9	7	1.241366	2.006343	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.03591	0.263879	-0.17444	0.263879	-0.10256
1.92	9	7	1.241366	2.002359	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.03119	0.263879	-0.17444	0.263879	-0.10256
1.93	9	7	1.241366	1.998416	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.02652	0.263879	-0.17444	0.263879	-0.10256
1.94	9	7	1.241366	1.994513	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.0219	0.263879	-0.17444	0.263879	-0.10256
1.95	9	7	1.241366	1.990651	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.01732	0.263879	-0.17444	0.263879	-0.10256
1.96	9	7	1.241366	1.986828	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.01279	0.263879	-0.17444	0.263879	-0.10256
1.97	9	7	1.241366	1.983044	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.00831	0.263879	-0.17444	0.263879	-0.10256
1.98	9	7	1.241366	1.979298	0.90629	1.106988	1.126583	1.219975	-0.12993	-1.00388	0.263879	-0.17444	0.263879	-0.10256
1.99	9	7	1.241366	1.97559	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.99948	0.263879	-0.17444	0.263879	-0.10256
2	9	7	1.241366	1.971919	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.99514	0.263879	-0.17444	0.263879	-0.10256
2.01	9	7	1.241366	1.968284	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.99083	0.263879	-0.17444	0.263879	-0.10256
2.02	9	7	1.241366	1.964686	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.98657	0.263879	-0.17444	0.263879	-0.10256
2.03	9	7	1.241366	1.961123	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.98235	0.263879	-0.17444	0.263879	-0.10256
2.04	9	7	1.241366	1.957594	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.97817	0.263879	-0.17444	0.263879	-0.10256
2.05	9	7	1.241366	1.954101	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.97403	0.263879	-0.17444	0.263879	-0.10256
2.06	9	7	1.241366	1.950641	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.96994	0.263879	-0.17444	0.263879	-0.10256
2.07	9	7	1.241366	1.947214	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.96588	0.263879	-0.17444	0.263879	-0.10256
2.08	9	7	1.241366	1.943821	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.96186	0.263879	-0.17444	0.263879	-0.10256
2.09	9	7	1.241366	1.94046	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.95788	0.263879	-0.17444	0.263879	-0.10256
2.1	9	7	1.241366	1.937131	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.95394	0.263879	-0.17444	0.263879	-0.10256
2.11	9	7	1.241366	1.933833	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.95003	0.263879	-0.17444	0.263879	-0.10256
2.12	9	7	1.241366	1.930567	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.94616	0.263879	-0.17444	0.263879	-0.10256
2.13	9	7	1.241366	1.927331	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.94233	0.263879	-0.17444	0.263879	-0.10256
2.14	9	7	1.241366	1.924126	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.93853	0.263879	-0.17444	0.263879	-0.10256
2.15	9	7	1.241366	1.92095	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.93477	0.263879	-0.17444	0.263879	-0.10256
2.16	9	7	1.241366	1.917804	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.93105	0.263879	-0.17444	0.263879	-0.10256
2.17	9	7	1.241366	1.914687	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.92736	0.263879	-0.17444	0.263879	-0.10256
2.18	9	7	1.241366	1.911598	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.9237	0.263879	-0.17444	0.263879	-0.10256
2.19	9	7	1.241366	1.908538	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.92007	0.263879	-0.17444	0.263879	-0.10256
2.2	9	7	1.241366	1.905505	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.91648	0.263879	-0.17444	0.263879	-0.10256
2.21	9	7	1.241366	1.9025	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.91292	0.263879	-0.17444	0.263879	-0.10256
2.22	9	7	1.241366	1.899522	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.9094	0.263879	-0.17444	0.263879	-0.10256
2.23	9	7	1.241366	1.896571	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.9059	0.263879	-0.17444	0.263879	-0.10256
2.24	9	7	1.241366	1.893646	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.90244	0.263879	-0.17444	0.263879	-0.10256
2.25	9	7	1.241366	1.890746	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.899	0.263879	-0.17444	0.263879	-0.10256
2.26	9	7	1.241366	1.887873	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.8956	0.263879	-0.17444	0.263879	-0.10256
2.27	9	7	1.241366	1.885025	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.89223	0.263879	-0.17444	0.263879	-0.10256
2.28	9	7	1.241366	1.882202	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.88888	0.263879	-0.17444	0.263879	-0.10256
2.29	9	7	1.241366	1.879404	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.88557	0.263879	-0.17444	0.263879	-0.10256
2.3	9	7	1.241366	1.87663	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.88228	0.263879	-0.17444	0.263879	-0.10256
2.31	9	7	1.241366	1.873879	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.87903	0.263879	-0.17444	0.263879	-0.10256
2.32	9	7	1.241366	1.871153	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.8758	0.263879	-0.17444	0.263879	-0.10256
2.33	9	7	1.241366	1.86845	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.8726	0.263879	-0.17444	0.263879	-0.10256
2.34	9	7	1.241366	1.86577	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.86942	0.263879	-0.17444	0.263879	-0.10256
2.35	9	7	1.241366	1.863113	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.86628	0.263879	-0.17444	0.263879	-0.10256
2.36	9	7	1.241366	1.860479	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.86316	0.263879	-0.17444	0.263879	-0.10256
2.37	9	7	1.241366	1.857866	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.86006	0.263879	-0.17444	0.263879	-0.10256
2.38	9	7	1.241366	1.855276	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.85699	0.263879	-0.17444	0.263879	-0.10256
2.39	9	7	1.241366	1.852707	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.85395	0.263879	-0.17444	0.263879	-0.10256
2.4	9	7	1.241366	1.85016	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.85094	0.263879	-0.17444	0.263879	-0.10256
2.41	9	7	1.241366	1.847634	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.84794	0.263879	-0.17444	0.263879	-0.10256
2.42	9	7	1.241366	1.845129	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.84498	0.263879	-0.17444	0.263879	-0.10256
2.43	9	7	1.241366	1.842644	0.90629	1.106988	1.126583	1.219975	-0.12993	-0.84203	0.263879	-0.17444	0.263879	-0.10256
2.44	9	7	1.241366	1.84018	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.83912	0.263879	0.166852	0.263879	-0.10256
2.45	9	7	1.241366	1.837736	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.83622	0.263879	0.166852	0.263879	-0.10256
2.46	9	7	1.241366	1.835312	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.83335	0.263879	0.166852	0.263879	-0.10256
2.47	9	7	1.241366	1.832907	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.8305	0.263879	0.166852	0.263879	-0.10256
2.48	9	7	1.241366	1.830522	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.82768	0.263879	0.166852	0.263879	-0.10256
2.49	9	7	1.241366	1.828156	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.82488	0.263879	0.166852	0.263879	-0.10256
2.5	9	7	1.241366	1.825808	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.8221	0.263879	0.166852	0.263879	-0.10256
2.51	9	7	1.241366	1.82348	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.81934	0.263879	0.166852	0.263879	-0.10256
2.52	9	7	1.241366	1.82117	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.8166	0.263879	0.166852	0.263879	-0.10256
2.53	9	7	1.241366	1.818878	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.81389	0.263879	0.166852	0.263879	-0.10256
2.54	9	7	1.241366	1.816605	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.8112	0.263879	0.166852	0.263879	-0.10256
2.55	9	7	1.241366	1.814349	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.80852	0.263879	0.166852	0.263879	-0.10256
2.56	9	7	1.241366	1.812111	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.80587	0.263879	0.166852	0.263879	-0.10256
2.57	9	7	1.241366	1.80989	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.80324	0.263879	0.166852	0.263879	-0.10256
2.58	9	7	1.241366	1.807686	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.80063	0.263879	0.166852	0.263879	-0.10256
2.59	9	7	1.241366	1.8055	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.79804	0.263879	0.166852	0.263879	-0.10256
2.6	9	7	1.241366	1.80333	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.79547	0.263879	0.166852	0.263879	-0.10256
2.61	9	7	1.241366	1.801177	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.79292	0.263879	0.166852	0.263879	-0.10256
2.62	9	7	1.241366	1.79904	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.79039	0.263879	0.166852	0.263879	-0.10256
2.63	9	7	1.241366	1.79692	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.78788	0.263879	0.166852	0.263879	-0.10256
2.64	9	7	1.241366	1.794815	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.78539	0.263879	0.166852	0.263879	-0.10256
2.65	9	7	1.241366	1.792727	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.78292	0.263879	0.166852	0.263879	-0.10256
2.66	9	7	1.241366	1.790654	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.78046	0.263879	0.166852	0.263879	-0.10256
2.67	9	7	1.241366	1.788597	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.77803	0.263879	0.166852	0.263879	-0.10256
2.68	9	7	1.241366	1.786555	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.77561	0.263879	0.166852	0.263879	-0.10256
2.69	9	7	1.241366	1.784528	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.77321	0.263879	0.166852	0.263879	-0.10256
2.7	9	7	1.241366	1.782516	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.77082	0.263879	0.166852	0.263879	-0.10256
2.71	9	7	1.241366	1.78052	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.76846	0.263879	0.166852	0.263879	-0.10256
2.72	9	7	1.241366	1.778537	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.76611	0.263879	0.166852	0.263879	-0.10256
2.73	9	7	1.241366	1.77657	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.76378	0.263879	0.166852	0.263879	-0.10256
2.74	9	7	1.241366	1.774616	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.76147	0.263879	0.166852	0.263879	-0.10256
2.75	9	7	1.241366	1.772677	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.75917	0.263879	0.166852	0.263879	-0.10256
2.76	9	7	1.241366	1.770752	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.75689	0.263879	0.166852	0.263879	-0.10256
2.77	9	7	1.241366	1.768841	0.90629	0.865554	1.126583	1.219975	-0.12993	-0.75463	0.263879	0.166852	0.263879	-0.10256
2.78	9	7	1.241366	1.766944	0.830518	0.865554	1.126583	1.219975	-0.12993	-0.75238	0.369957	0.166852	0.369957	-0.10256
2.79	9	7	1.241366	1.76506	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.75015	0.369957	0.166852	0.369957	-0.10256
2.8	9	7	1.241366	1.76319	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.74794	0.369957	0.166852	0.369957	-0.10256
2.81	9	7	1.241366	1.761333	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.74574	0.369957	0.166852	0.369957	-0.10256
2.82	9	7	1.241366	1.759489	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.74355	0.369957	0.166852	0.369957	-0.10256
2.83	9	7	1.241366	1.757658	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.74138	0.369957	0.166852	0.369957	-0.10256
2.84	9	7	1.241366	1.75584	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.73923	0.369957	0.166852	0.369957	-0.10256
2.85	9	7	1.241366	1.754035	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.73709	0.369957	0.166852	0.369957	-0.10256
2.86	9	7	1.241366	1.752242	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.73497	0.369957	0.166852	0.369957	-0.10256
2.87	9	7	1.241366	1.750462	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.73286	0.369957	0.166852	0.369957	-0.10256
2.88	9	7	1.241366	1.748695	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.73077	0.369957	0.166852	0.369957	-0.10256
2.89	9	7	1.241366	1.746939	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.72869	0.369957	0.166852	0.369957	-0.10256
2.9	9	7	1.241366	1.745196	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.72663	0.369957	0.166852	0.369957	-0.10256
2.91	9	7	1.241366	1.743464	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.72457	0.369957	0.166852	0.369957	-0.10256
2.92	9	7	1.241366	1.741745	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.72254	0.369957	0.166852	0.369957	-0.10256
2.93	9	7	1.241366	1.740037	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.72052	0.369957	0.166852	0.369957	-0.10256
2.94	9	7	1.241366	1.738341	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.71851	0.369957	0.166852	0.369957	-0.10256
2.95	9	7	1.241366	1.736656	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.71651	0.369957	0.166852	0.369957	-0.10256
2.96	9	7	1.241366	1.734983	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.71453	0.369957	0.166852	0.369957	-0.10256
2.97	9	7	1.241366	1.733321	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.71256	0.369957	0.166852	0.369957	-0.10256
2.98	9	7	1.241366	1.73167	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.71061	0.369957	0.166852	0.369957	-0.10256
2.99	9	7	1.241366	1.73003	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.70866	0.369957	0.166852	0.369957	-0.10256
3	9	7	1.241366	1.728401	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.70674	0.369957	0.166852	0.369957	-0.10256
3.01	9	7	1.241366	1.726783	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.70482	0.369957	0.166852	0.369957	-0.10256
3.02	9	7	1.241366	1.725176	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.70292	0.369957	0.166852	0.369957	-0.10256
3.03	9	7	1.241366	1.723579	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.70102	0.369957	0.166852	0.369957	-0.10256
3.04	9	7	1.241366	1.721993	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.69915	0.369957	0.166852	0.369957	-0.10256
3.05	9	7	1.241366	1.720417	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.69728	0.369957	0.166852	0.369957	-0.10256
3.06	9	7	1.241366	1.718852	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.69543	0.369957	0.166852	0.369957	-0.10256
3.07	9	7	1.241366	1.717296	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.69358	0.369957	0.166852	0.369957	-0.10256
3.08	9	7	1.241366	1.715751	0.814653	0.865554	1.126583	1.219975	-0.12993	-0.69175	0.369957	0.166852	0.369957	-0.10256
3.09	9	7	1.241366	1.714216	0.810524	0.865554	1.126583	1.219975	-0.12993	-0.68994	0.410656	0.166852	0.410656	-0.10256
3.09	8	7	1.034152	1.712055	0.802878	0.865554	1.126583	1.219975	0.114252	-0.68738	0.410656	0.166852	0.410656	-0.10256
3.11	8	7	1.034152	1.709875	0.802878	0.865554	1.126583	1.219975	0.114252	-0.6848	0.410656	0.166852	0.410656	-0.10256
3.12	8	7	1.034152	1.707709	0.802878	0.865554	1.126583	1.219975	0.114252	-0.68224	0.410656	0.166852	0.410656	-0.10256
3.13	8	7	1.034152	1.705557	0.802878	0.865554	1.126583	1.219975	0.114252	-0.6797	0.410656	0.166852	0.410656	-0.10256
3.14	8	7	1.034152	1.703419	0.802878	0.865554	1.126583	1.219975	0.114252	-0.67717	0.410656	0.166852	0.410656	-0.10256
3.15	8	7	1.034152	1.701295	0.802878	0.865554	1.126583	1.219975	0.114252	-0.67466	0.410656	0.166852	0.410656	-0.10256
3.16	8	7	1.034152	1.699183	0.802878	0.865554	1.126583	1.219975	0.114252	-0.67216	0.410656	0.166852	0.410656	-0.10256
3.17	8	7	1.034152	1.697085	0.802878	0.865554	1.126583	1.219975	0.114252	-0.66968	0.410656	0.166852	0.410656	-0.10256
3.18	8	7	1.034152	1.695001	0.802878	0.865554	1.126583	1.219975	0.114252	-0.66721	0.410656	0.166852	0.410656	-0.10256
3.19	8	7	1.034152	1.692929	0.802878	0.865554	1.126583	1.219975	0.114252	-0.66476	0.410656	0.166852	0.410656	-0.10256
3.2	8	7	1.034152	1.69087	0.802878	0.865554	1.126583	1.219975	0.114252	-0.66233	0.410656	0.166852	0.410656	-0.10256
3.21	8	7	1.034152	1.688825	0.802878	0.865554	1.126583	1.219975	0.114252	-0.65991	0.410656	0.166852	0.410656	-0.10256
3.22	8	7	1.034152	1.686791	0.802878	0.865554	1.126583	1.219975	0.114252	-0.65751	0.410656	0.166852	0.410656	-0.10256
3.23	8	7	1.034152	1.684771	0.802878	0.865554	1.126583	1.219975	0.114252	-0.65512	0.410656	0.166852	0.410656	-0.10256
3.24	8	7	1.034152	1.682763	0.802878	0.865554	1.126583	1.219975	0.114252	-0.65274	0.410656	0.166852	0.410656	-0.10256
3.25	8	7	1.034152	1.680767	0.802878	0.865554	1.126583	1.219975	0.114252	-0.65038	0.410656	0.166852	0.410656	-0.10256
3.26	8	7	1.034152	1.678784	0.802878	0.865554	1.126583	1.219975	0.114252	-0.64804	0.410656	0.166852	0.410656	-0.10256
3.27	8	7	1.034152	1.676812	0.802878	0.865554	1.126583	1.219975	0.114252	-0.6457	0.410656	0.166852	0.410656	-0.10256
3.28	8	7	1.034152	1.674853	0.802878	0.865554	1.126583	1.219975	0.114252	-0.64339	0.410656	0.166852	0.410656	-0.10256
3.29	8	7	1.034152	1.672905	0.802878	0.865554	1.126583	1.219975	0.114252	-0.64108	0.410656	0.166852	0.410656	-0.10256
3.3	8	7	1.034152	1.67097	0.802878	0.865554	1.126583	1.219975	0.114252	-0.6388	0.410656	0.166852	0.410656	-0.10256
3.31	8	7	1.034152	1.669046	0.802878	0.865554	1.126583	1.219975	0.114252	-0.63652	0.410656	0.166852	0.410656	-0.10256
3.32	8	7	1.034152	1.667134	0.802878	0.865554	1.126583	1.219975	0.114252	-0.63426	0.410656	0.166852	0.410656	-0.10256
3.33	8	7	1.034152	1.665233	0.802878	0.865554	1.126583	1.219975	0.114252	-0.63201	0.410656	0.166852	0.410656	-0.10256
3.34	8	7	1.034152	1.663343	0.802878	0.865554	1.126583	1.219975	0.114252	-0.62978	0.410656	0.166852	0.410656	-0.10256
3.35	8	7	1.034152	1.661465	0.802878	0.865554	1.126583	1.219975	0.114252	-0.62756	0.410656	0.166852	0.410656	-0.10256
3.36	8	7	1.034152	1.659598	0.802878	0.865554	1.126583	1.219975	0.114252	-0.62535	0.410656	0.166852	0.410656	-0.10256
3.37	8	7	1.034152	1.657742	0.802878	0.865554	1.126583	1.219975	0.114252	-0.62315	0.410656	0.166852	0.410656	-0.10256
3.38	8	7	1.034152	1.655897	0.802878	0.865554	1.126583	1.219975	0.114252	-0.62097	0.410656	0.166852	0.410656	-0.10256
3.39	8	7	1.034152	1.654063	0.802878	0.865554	1.126583	1.219975	0.114252	-0.6188	0.410656	0.166852	0.410656	-0.10256
3.4	8	7	1.034152	1.65224	0.802878	0.865554	1.126583	1.219975	0.114252	-0.61665	0.410656	0.166852	0.410656	-0.10256
3.41	8	7	1.034152	1.650427	0.802878	0.865554	1.126583	1.219975	0.114252	-0.6145	0.410656	0.166852	0.410656	-0.10256
3.42	8	7	1.034152	1.648625	0.802878	0.865554	1.126583	1.219975	0.114252	-0.61237	0.410656	0.166852	0.410656	-0.10256
3.43	8	7	1.034152	1.646834	0.802878	0.865554	1.126583	1.219975	0.114252	-0.61025	0.410656	0.166852	0.410656	-0.10256
3.44	8	7	1.034152	1.645053	0.802878	0.865554	1.126583	1.219975	0.114252	-0.60815	0.410656	0.166852	0.410656	-0.10256
3.45	8	7	1.034152	1.643282	0.802878	0.865554	1.126583	1.219975	0.114252	-0.60605	0.410656	0.166852	0.410656	-0.10256
3.46	8	7	1.034152	1.641522	0.802878	0.865554	1.126583	1.219975	0.114252	-0.60397	0.410656	0.166852	0.410656	-0.10256
3.47	8	7	1.034152	1.639771	0.802878	0.865554	1.126583	1.219975	0.114252	-0.6019	0.410656	0.166852	0.410656	-0.10256
3.48	8	7	1.034152	1.638031	0.802878	0.865554	1.126583	1.219975	0.114252	-0.59985	0.410656	0.166852	0.410656	-0.10256
3.49	8	7	1.034152	1.636301	0.802878	0.865554	1.126583	1.219975	0.114252	-0.5978	0.410656	0.166852	0.410656	-0.10256
3.5	8	7	1.034152	1.63458	0.802878	0.865554	1.126583	1.219975	0.114252	-0.59576	0.410656	0.166852	0.410656	-0.10256
3.51	8	7	1.034152	1.63287	0.802878	0.865554	1.126583	1.219975	0.114252	-0.59374	0.410656	0.166852	0.410656	-0.10256
3.52	8	7	1.034152	1.631169	0.802878	0.865554	1.126583	1.219975	0.114252	-0.59173	0.410656	0.166852	0.410656	-0.10256
3.53	8	7	1.034152	1.629477	0.802878	0.865554	1.126583	1.219975	0.114252	-0.58973	0.410656	0.166852	0.410656	-0.10256
3.54	8	7	1.034152	1.627796	0.802878	0.865554	1.126583	1.219975	0.114252	-0.58774	0.410656	0.166852	0.410656	-0.10256
3.55	8	7	1.034152	1.626123	0.802878	0.865554	1.126583	1.219975	0.114252	-0.58576	0.410656	0.166852	0.410656	-0.10256
3.56	8	7	1.034152	1.624461	0.802878	0.865554	1.126583	1.219975	0.114252	-0.5838	0.410656	0.166852	0.410656	-0.10256
3.57	8	7	1.034152	1.622807	0.802878	0.865554	1.126583	1.219975	0.114252	-0.58184	0.410656	0.166852	0.410656	-0.10256
3.58	8	7	1.034152	1.621163	0.802878	0.865554	1.126583	1.219975	0.114252	-0.5799	0.410656	0.166852	0.410656	-0.10256
3.59	8	7	1.034152	1.619528	0.802878	0.865554	1.126583	1.219975	0.114252	-0.57796	0.410656	0.166852	0.410656	-0.10256
3.6	8	7	1.034152	1.617902	0.802878	0.865554	1.126583	1.219975	0.114252	-0.57604	0.410656	0.166852	0.410656	-0.10256
3.61	8	7	1.034152	1.616285	0.802878	0.865554	1.126583	1.219975	0.114252	-0.57413	0.410656	0.166852	0.410656	-0.10256
3.62	8	7	1.034152	1.614677	0.802878	0.865554	1.126583	1.219975	0.114252	-0.57223	0.410656	0.166852	0.410656	-0.10256
3.63	8	7	1.034152	1.613077	0.802878	0.865554	1.126583	1.219975	0.114252	-0.57034	0.410656	0.166852	0.410656	-0.10256
3.64	8	7	1.034152	1.611487	0.802878	0.865554	1.126583	1.219975	0.114252	-0.56846	0.410656	0.166852	0.410656	-0.10256
3.65	8	7	1.034152	1.609905	0.802878	0.865554	1.126583	1.219975	0.114252	-0.56659	0.410656	0.166852	0.410656	-0.10256
3.66	8	7	1.034152	1.608332	0.802878	0.865554	1.126583	1.219975	0.114252	-0.56473	0.410656	0.166852	0.410656	-0.10256
3.67	8	7	1.034152	1.606767	0.802878	0.865554	1.126583	1.219975	0.114252	-0.56288	0.410656	0.166852	0.410656	-0.10256
3.68	8	7	1.034152	1.605211	0.802878	0.865554	1.126583	1.219975	0.114252	-0.56104	0.410656	0.166852	0.410656	-0.10256
3.69	8	7	1.034152	1.603664	0.802878	0.865554	1.126583	1.219975	0.114252	-0.55921	0.410656	0.166852	0.410656	-0.10256
3.7	8	7	1.034152	1.602125	0.802878	0.865554	1.126583	1.219975	0.114252	-0.55739	0.410656	0.166852	0.410656	-0.10256
3.71	8	7	1.034152	1.600594	0.802878	0.865554	1.126583	1.219975	0.114252	-0.55557	0.410656	0.166852	0.410656	-0.10256
3.72	8	7	1.034152	1.599071	0.802878	0.865554	1.126583	1.219975	0.114252	-0.55377	0.410656	0.166852	0.410656	-0.10256
3.73	8	7	1.034152	1.597556	0.802878	0.865554	1.126583	1.219975	0.114252	-0.55198	0.410656	0.166852	0.410656	-0.10256
3.74	8	7	1.034152	1.59605	0.802878	0.865554	1.126583	1.219975	0.114252	-0.5502	0.410656	0.166852	0.410656	-0.10256
3.75	8	7	1.034152	1.594552	0.802878	0.865554	1.126583	1.219975	0.114252	-0.54843	0.410656	0.166852	0.410656	-0.10256
3.76	8	7	1.034152	1.593061	0.802878	0.865554	1.126583	1.219975	0.114252	-0.54667	0.410656	0.166852	0.410656	-0.10256
3.77	8	7	1.034152	1.591579	0.802878	0.865554	1.126583	1.219975	0.114252	-0.54491	0.410656	0.166852	0.410656	-0.10256
3.78	8	7	1.034152	1.590104	0.802878	0.865554	1.126583	1.219975	0.114252	-0.54317	0.410656	0.166852	0.410656	-0.10256
3.79	8	7	1.034152	1.588637	0.802878	0.865554	1.126583	1.219975	0.114252	-0.54144	0.410656	0.166852	0.410656	-0.10256
3.8	8	7	1.034152	1.587178	0.802878	0.721329	1.126583	1.219975	0.114252	-0.53971	0.410656	0.366352	0.410656	-0.10256
3.81	8	7	1.034152	1.585726	0.802878	0.721329	1.126583	1.219975	0.114252	-0.53799	0.410656	0.366352	0.410656	-0.10256
3.82	8	7	1.034152	1.584283	0.802878	0.72133	1.126583	1.219975	0.114252	-0.53629	0.410656	0.366352	0.410656	-0.10256
3.83	8	7	1.034152	1.582846	0.802878	0.721329	1.126583	1.219975	0.114252	-0.53459	0.410656	0.366352	0.410656	-0.10256
3.84	8	7	1.034152	1.581417	0.802878	0.721329	1.126583	1.219975	0.114252	-0.5329	0.410656	0.366352	0.410656	-0.10256
3.85	8	7	1.034152	1.579996	0.802878	0.721329	1.126583	1.219975	0.114252	-0.53122	0.410656	0.366352	0.410656	-0.10256
3.86	8	7	1.034152	1.578582	0.802878	0.721329	1.126583	1.219975	0.114252	-0.52955	0.410656	0.366352	0.410656	-0.10256
3.87	8	7	1.034152	1.577175	0.802878	0.721329	1.126583	1.219975	0.114252	-0.52788	0.410656	0.366352	0.410656	-0.10256
3.88	8	7	1.034152	1.575775	0.802878	0.72133	1.126583	1.219975	0.114252	-0.52623	0.410656	0.366352	0.410656	-0.10256
3.89	8	7	1.034152	1.574383	0.802878	0.721329	1.126583	1.219975	0.114252	-0.52458	0.410656	0.366352	0.410656	-0.10256
3.9	8	7	1.034152	1.572998	0.802878	0.72133	1.126583	1.219975	0.114252	-0.52294	0.410656	0.366352	0.410656	-0.10256
3.91	8	7	1.034152	1.57162	0.802878	0.721329	1.126583	1.219975	0.114252	-0.52131	0.410656	0.366352	0.410656	-0.10256
3.92	8	7	1.034152	1.570249	0.802878	0.721329	1.126583	1.219975	0.114252	-0.51969	0.410656	0.366352	0.410656	-0.10256
3.93	8	7	1.034152	1.568884	0.802878	0.72133	1.126583	1.219975	0.114252	-0.51808	0.410656	0.366352	0.410656	-0.10256
3.94	8	7	1.034152	1.567527	0.802878	0.721329	1.126583	1.219975	0.114252	-0.51647	0.410656	0.366352	0.410656	-0.10256
3.95	8	7	1.034152	1.566177	0.802878	0.72133	1.126583	1.219975	0.114252	-0.51488	0.410656	0.366352	0.410656	-0.10256
3.96	8	7	1.034152	1.564833	0.802878	0.721329	1.126583	1.219975	0.114252	-0.51329	0.410656	0.366352	0.410656	-0.10256
3.97	8	7	1.034152	1.563497	0.802878	0.721329	1.126583	1.219975	0.114252	-0.51171	0.410656	0.366352	0.410656	-0.10256
3.98	8	7	1.034152	1.562167	0.802878	0.72133	1.126583	1.219975	0.114252	-0.51013	0.410656	0.366352	0.410656	-0.10256
3.99	8	7	1.034152	1.560843	0.802878	0.721329	1.126583	1.219975	0.114252	-0.50857	0.410656	0.366352	0.410656	-0.10256
4	8	7	1.034152	1.559527	0.802878	0.72133	1.126583	1.219975	0.114252	-0.50701	0.410656	0.366352	0.410656	-0.10256
4.01	8	7	1.034152	1.558216	0.802878	0.721329	1.126583	1.066698	0.114252	-0.50546	0.410656	0.366352	0.410656	0.077309
4.02	8	7	1.034152	1.556913	0.802878	0.72133	1.126583	1.066698	0.114252	-0.50392	0.410656	0.366352	0.410656	0.077309
4.03	8	7	1.034152	1.555616	0.802878	0.721329	1.126583	1.066698	0.114252	-0.50239	0.410656	0.366352	0.410656	0.077309
4.04	8	7	1.034152	1.554325	0.802878	0.721329	1.126583	1.066698	0.114252	-0.50086	0.410656	0.366352	0.410656	0.077309
4.05	8	7	1.034152	1.553041	0.802878	0.72133	1.126583	1.066698	0.114252	-0.49934	0.410656	0.366352	0.410656	0.077309
4.06	8	7	1.034152	1.551762	0.802878	0.721329	1.126583	1.066698	0.114252	-0.49783	0.410656	0.366352	0.410656	0.077309
4.07	8	7	1.034152	1.550491	0.802878	0.72133	1.126583	1.066698	0.114252	-0.49633	0.410656	0.366352	0.410656	0.077309
4.08	8	7	1.034152	1.549225	0.802878	0.721329	1.126583	1.066698	0.114252	-0.49483	0.410656	0.366352	0.410656	0.077309
4.09	8	7	1.034152	1.547966	0.802878	0.72133	1.126583	1.066698	0.114252	-0.49334	0.410656	0.366352	0.410656	0.077309
4.1	8	7	1.034152	1.546713	0.802878	0.721329	1.126583	1.066698	0.114252	-0.49186	0.410656	0.366352	0.410656	0.077309
4.11	8	7	1.034152	1.545466	0.802878	0.721329	1.126583	1.066698	0.114252	-0.49038	0.410656	0.366352	0.410656	0.077309
4.12	8	7	1.034152	1.544224	0.802878	0.72133	1.126583	1.066698	0.114252	-0.48892	0.410656	0.366352	0.410656	0.077309
4.13	8	7	1.034152	1.542989	0.802878	0.72133	1.126583	1.066698	0.114252	-0.48746	0.410656	0.366352	0.410656	0.077309
4.14	8	7	1.034152	1.54176	0.802878	0.721329	1.126583	1.066698	0.114252	-0.486	0.410656	0.366352	0.410656	0.077309
4.15	8	7	1.034152	1.540537	0.802878	0.721329	1.126583	1.066698	0.114252	-0.48456	0.410656	0.366352	0.410656	0.077309
4.16	8	7	1.034152	1.53932	0.802878	0.72133	1.126583	1.066698	0.114252	-0.48312	0.410656	0.366352	0.410656	0.077309
4.17	8	7	1.034152	1.538108	0.802878	0.721329	1.126583	1.066698	0.114252	-0.48169	0.410656	0.366352	0.410656	0.077309
4.18	8	7	1.034152	1.536903	0.802878	0.72133	1.126583	1.066698	0.114252	-0.48026	0.410656	0.366352	0.410656	0.077309
4.19	8	7	1.034152	1.535703	0.802878	0.721329	1.126583	1.066698	0.114252	-0.47884	0.410656	0.366352	0.410656	0.077309
4.2	8	7	1.034152	1.534509	0.802878	0.721329	1.126583	1.066698	0.114252	-0.47743	0.410656	0.366352	0.410656	0.077309
4.21	8	7	1.034152	1.53332	0.802878	0.72133	1.126583	1.066698	0.114252	-0.47602	0.410656	0.366352	0.410656	0.077309
4.22	8	7	1.034152	1.532137	0.802878	0.721329	1.126583	1.066698	0.114252	-0.47462	0.410656	0.366352	0.410656	0.077309
4.23	8	7	1.034152	1.53096	0.802878	0.721329	1.126583	1.066698	0.114252	-0.47323	0.410656	0.366352	0.410656	0.077309
4.24	8	7	1.034152	1.529788	0.802878	0.721329	1.126583	1.066698	0.114252	-0.47185	0.410656	0.366352	0.410656	0.077309
4.25	8	7	1.034152	1.528622	0.802878	0.72133	1.126583	1.066698	0.114252	-0.47047	0.410656	0.366352	0.410656	0.077309
4.26	8	6	1.034152	1.527462	0.802878	0.721329	0.970955	1.066698	0.114252	-0.46909	0.410656	0.366352	0.410656	0.077309
4.27	8	6	1.034152	1.526306	0.802878	0.721329	0.970955	1.066698	0.114252	-0.46773	0.410656	0.366352	0.410656	0.077309
4.28	8	6	1.034152	1.525156	0.802878	0.721329	0.970955	1.066698	0.114252	-0.46637	0.410656	0.366352	0.410656	0.077309
4.29	8	6	1.034152	1.524012	0.802878	0.721329	0.970955	1.066698	0.114252	-0.46502	0.410656	0.366352	0.410656	0.077309
4.3	8	6	1.034152	1.522873	0.802878	0.72133	0.970955	1.066698	0.114252	-0.46367	0.410656	0.366352	0.410656	0.077309
4.31	8	6	1.034152	1.521739	0.802878	0.721329	0.970955	1.066698	0.114252	-0.46233	0.410656	0.366352	0.410656	0.077309
4.32	8	6	1.034152	1.52061	0.802878	0.721329	0.970955	1.066698	0.114252	-0.46099	0.410656	0.366352	0.410656	0.077309
4.33	8	6	1.034152	1.519487	0.802878	0.72133	0.970955	1.066698	0.114252	-0.45966	0.410656	0.366352	0.410656	0.077309
4.34	8	6	1.034152	1.518368	0.802878	0.721329	0.970955	1.066698	0.114252	-0.45834	0.410656	0.366352	0.410656	0.077309
4.35	8	6	1.034152	1.517255	0.802878	0.721329	0.970955	1.066698	0.114252	-0.45703	0.410656	0.366352	0.410656	0.077309
4.36	8	6	1.034152	1.516147	0.802878	0.721329	0.970955	1.066698	0.114252	-0.45572	0.410656	0.366352	0.410656	0.077309
4.37	8	6	1.034152	1.515044	0.802878	0.721329	0.970955	1.066698	0.114252	-0.45441	0.410656	0.366352	0.410656	0.077309
4.38	8	6	1.034152	1.513946	0.802878	0.721329	0.970955	1.066698	0.114252	-0.45311	0.410656	0.366352	0.410656	0.077309
4.39	8	6	1.034152	1.512853	0.802878	0.72133	0.970955	1.066698	0.114252	-0.45182	0.410656	0.366352	0.410656	0.077309
4.39	7	6	1.016654	1.511735	0.802878	0.721329	0.970955	1.066698	0.169303	-0.45044	0.410656	0.366352	0.410656	0.077309
4.41	7	6	1.016654	1.510612	0.802878	0.721329	0.970955	1.066698	0.169303	-0.44903	0.410656	0.366352	0.410656	0.077309
4.42	7	6	1.016654	1.509494	0.802878	0.721329	0.970955	1.066698	0.169303	-0.44763	0.410656	0.366352	0.410656	0.077309
4.43	7	6	1.016654	1.508382	0.802878	0.721329	0.970955	1.066698	0.169303	-0.44624	0.410656	0.366352	0.410656	0.077309
4.44	7	6	1.016654	1.507274	0.802878	0.721329	0.970955	1.066698	0.169303	-0.44485	0.410656	0.366352	0.410656	0.077309
4.45	7	6	1.016654	1.506172	0.802878	0.72133	0.970955	1.066698	0.169303	-0.44347	0.410656	0.366352	0.410656	0.077309
4.46	7	6	1.016654	1.505074	0.802878	0.72133	0.970955	1.066698	0.169303	-0.4421	0.410656	0.366352	0.410656	0.077309
4.47	7	6	1.016654	1.503982	0.802878	0.721329	0.970955	1.066698	0.169303	-0.44073	0.410656	0.366352	0.410656	0.077309
4.48	7	6	1.016653	1.502894	0.802878	0.721329	0.970955	1.066698	0.169303	-0.43937	0.410656	0.366352	0.410656	0.077309
4.49	7	6	1.016654	1.501811	0.802878	0.721329	0.970955	1.066698	0.169303	-0.43801	0.410656	0.366352	0.410656	0.077309
4.5	7	6	1.016654	1.500733	0.802878	0.72133	0.970955	1.066698	0.169303	-0.43667	0.410656	0.366352	0.410656	0.077309
4.51	7	6	1.016654	1.499659	0.802878	0.721329	0.970955	1.066698	0.169303	-0.43532	0.410656	0.366352	0.410656	0.077309
4.52	7	6	1.016654	1.498591	0.802878	0.721329	0.970955	1.066698	0.169303	-0.43398	0.410656	0.366352	0.410656	0.077309
4.53	7	6	1.016654	1.497527	0.802878	0.721329	0.970955	1.066698	0.169303	-0.43265	0.410656	0.366352	0.410656	0.077309
4.54	7	6	1.016654	1.496468	0.802878	0.721329	0.970955	1.066698	0.169303	-0.43133	0.410656	0.366352	0.410656	0.077309
4.55	7	6	1.016654	1.495413	0.802878	0.721329	0.970955	1.066698	0.169303	-0.43001	0.410656	0.366352	0.410656	0.077309
4.56	7	6	1.016654	1.494363	0.743492	0.721329	0.970955	1.066698	0.169303	-0.42869	0.489341	0.366352	0.489341	0.077309
4.57	7	6	1.016654	1.493318	0.731672	0.721329	0.970955	1.066698	0.169303	-0.42738	0.489341	0.366352	0.489341	0.077309
4.58	7	6	1.016653	1.492277	0.731672	0.72133	0.970955	1.066698	0.169303	-0.42608	0.489341	0.366352	0.489341	0.077309
4.59	7	6	1.016654	1.491241	0.731672	0.721329	0.970955	1.066698	0.169303	-0.42478	0.489341	0.366352	0.489341	0.077309
4.6	7	6	1.016654	1.490209	0.731672	0.72133	0.970955	1.066698	0.169303	-0.42349	0.489341	0.366352	0.489341	0.077309
4.61	7	6	1.016654	1.489182	0.731672	0.721329	0.970955	1.066698	0.169303	-0.42221	0.489341	0.366352	0.489341	0.077309
4.62	7	6	1.016654	1.488159	0.731672	0.721329	0.970955	1.066698	0.169303	-0.42093	0.489341	0.366352	0.489341	0.077309
4.63	7	6	1.016654	1.487141	0.731672	0.721329	0.970955	1.066698	0.169303	-0.41965	0.489341	0.366352	0.489341	0.077309
4.64	7	6	1.016654	1.486127	0.731672	0.721329	0.970955	1.066698	0.169303	-0.41838	0.489341	0.366352	0.489341	0.077309
4.65	7	6	1.016654	1.485117	0.731672	0.72133	0.970955	1.066698	0.169303	-0.41712	0.489341	0.366352	0.489341	0.077309
4.66	7	6	1.016654	1.484112	0.731672	0.721329	0.970955	1.066698	0.169303	-0.41586	0.489341	0.366352	0.489341	0.077309
4.67	7	6	1.016654	1.483111	0.731672	0.72133	0.970955	1.066698	0.169303	-0.41461	0.489341	0.366352	0.489341	0.077309
4.68	7	6	1.016654	1.482114	0.731672	0.72133	0.970955	1.066698	0.169303	-0.41336	0.489341	0.366352	0.489341	0.077309
4.69	7	6	1.016654	1.481122	0.731672	0.721329	0.970955	1.066698	0.169303	-0.41212	0.489341	0.366352	0.489341	0.077309
4.7	7	6	1.016654	1.480134	0.731672	0.72133	0.970955	1.066698	0.169303	-0.41088	0.489341	0.366352	0.489341	0.077309
4.71	7	6	1.016654	1.47915	0.731672	0.721329	0.970955	1.066698	0.169303	-0.40965	0.489341	0.366352	0.489341	0.077309
4.72	7	6	1.016654	1.47817	0.731672	0.72133	0.970955	1.066698	0.169303	-0.40842	0.489341	0.366352	0.489341	0.077309
4.73	7	6	1.016654	1.477194	0.731672	0.72133	0.970955	1.066698	0.169303	-0.4072	0.489341	0.366352	0.489341	0.077309
4.73	6	6	0.892239	1.476153	0.731672	0.721329	0.970955	1.066698	0.310385	-0.4059	0.489341	0.366352	0.489341	0.077309
4.75	6	6	0.892239	1.474924	0.731672	0.721329	0.970955	1.066698	0.310385	-0.4044	0.489341	0.366352	0.489341	0.077309
4.76	6	6	0.892239	1.4737	0.731672	0.72133	0.970955	1.066698	0.310385	-0.40289	0.489341	0.366352	0.489341	0.077309
4.77	6	6	0.892239	1.472481	0.731672	0.721329	0.970955	1.066698	0.310385	-0.4014	0.489341	0.366352	0.489341	0.077309
4.78	6	6	0.892239	1.471267	0.731672	0.721329	0.970955	1.066698	0.310385	-0.39991	0.489341	0.366352	0.489341	0.077309
4.79	6	6	0.892239	1.470058	0.731672	0.72133	0.970955	1.066698	0.310385	-0.39843	0.489341	0.366352	0.489341	0.077309
4.8	6	6	0.892239	1.468854	0.731672	0.721329	0.970955	1.066698	0.310385	-0.39695	0.489341	0.366352	0.489341	0.077309
4.81	6	6	0.892239	1.467655	0.731672	0.721329	0.970955	1.066698	0.310385	-0.39548	0.489341	0.366352	0.489341	0.077309
4.82	6	6	0.892239	1.466462	0.731672	0.72133	0.970955	1.066698	0.310385	-0.39402	0.489341	0.366352	0.489341	0.077309
4.83	6	6	0.892239	1.465273	0.731672	0.721329	0.970955	1.066698	0.310385	-0.39256	0.489341	0.366352	0.489341	0.077309
4.84	6	6	0.892239	1.464089	0.731672	0.721329	0.970955	1.066698	0.310385	-0.39111	0.489341	0.366352	0.489341	0.077309
4.85	6	6	0.892239	1.46291	0.731672	0.721329	0.970955	1.066698	0.310385	-0.38966	0.489341	0.366352	0.489341	0.077309
4.86	6	6	0.892239	1.461735	0.731672	0.72133	0.970955	1.066698	0.310385	-0.38822	0.489341	0.366352	0.489341	0.077309
4.87	6	6	0.892239	1.460566	0.731672	0.721329	0.970955	1.066698	0.310385	-0.38678	0.489341	0.366352	0.489341	0.077309
4.88	6	6	0.892239	1.459401	0.731672	0.72133	0.970955	1.066698	0.310385	-0.38536	0.489341	0.366352	0.489341	0.077309
4.89	6	6	0.892239	1.458242	0.731672	0.721329	0.970955	1.066698	0.310385	-0.38393	0.489341	0.366352	0.489341	0.077309
4.9	6	6	0.892239	1.457087	0.731672	0.721329	0.970955	1.066698	0.310385	-0.38252	0.489341	0.366352	0.489341	0.077309
4.91	6	6	0.892239	1.455936	0.731672	0.721329	0.970955	1.066698	0.310385	-0.3811	0.489341	0.366352	0.489341	0.077309
4.92	6	6	0.892239	1.45479	0.731672	0.614879	0.970955	1.066698	0.310385	-0.3797	0.489341	0.508205	0.489341	0.077309
4.93	6	6	0.892239	1.453649	0.731672	0.614879	0.970955	1.066698	0.310385	-0.3783	0.489341	0.508205	0.489341	0.077309
4.94	6	6	0.892239	1.452513	0.731672	0.61488	0.970955	1.066698	0.310385	-0.3769	0.489341	0.508204	0.489341	0.077309
4.95	6	6	0.892239	1.451381	0.731672	0.614879	0.970955	1.066698	0.310385	-0.37552	0.489341	0.508205	0.489341	0.077309
4.96	6	6	0.892239	1.450254	0.731672	0.61488	0.970955	1.066698	0.310385	-0.37413	0.489341	0.508204	0.489341	0.077309
4.97	6	6	0.892239	1.449131	0.731672	0.614879	0.970955	1.066698	0.310385	-0.37276	0.489341	0.508205	0.489341	0.077309
4.98	6	6	0.892239	1.448013	0.731672	0.61488	0.970955	1.066698	0.310385	-0.37138	0.489341	0.508205	0.489341	0.077309
4.99	6	6	0.892239	1.446899	0.731672	0.61488	0.970955	1.066698	0.310385	-0.37002	0.489341	0.508205	0.489341	0.077309
5	6	6	0.892239	1.44579	0.731672	0.61488	0.970955	1.066698	0.310385	-0.36866	0.489341	0.508205	0.489341	0.077309
5.01	6	6	0.892239	1.444685	0.731672	0.614879	0.970955	1.066698	0.310385	-0.3673	0.489341	0.508205	0.489341	0.077309
5.02	6	6	0.892239	1.443584	0.731672	0.61488	0.970955	1.066698	0.310385	-0.36595	0.489341	0.508205	0.489341	0.077309
5.03	6	6	0.892239	1.442488	0.731672	0.614879	0.970955	1.066698	0.310385	-0.36461	0.489341	0.508205	0.489341	0.077309
5.04	6	6	0.892239	1.441396	0.731672	0.614879	0.970955	1.066698	0.310385	-0.36327	0.489341	0.508205	0.489341	0.077309
5.05	6	6	0.892239	1.440309	0.731672	0.61488	0.970955	1.066698	0.310385	-0.36193	0.489341	0.508205	0.489341	0.077309
5.06	6	6	0.892239	1.439226	0.731672	0.61488	0.970955	1.066698	0.310385	-0.36061	0.489341	0.508204	0.489341	0.077309
5.07	6	6	0.892239	1.438147	0.731672	0.614879	0.970955	1.066698	0.310385	-0.35928	0.489341	0.508205	0.489341	0.077309
5.08	6	6	0.892239	1.437072	0.731672	0.614879	0.970955	1.066698	0.310385	-0.35796	0.489341	0.508205	0.489341	0.077309
5.09	6	6	0.892239	1.436002	0.731672	0.614879	0.970955	1.066698	0.310385	-0.35665	0.489341	0.508205	0.489341	0.077309
5.1	6	6	0.892239	1.434936	0.731672	0.61488	0.970955	1.066698	0.310385	-0.35534	0.489341	0.508205	0.489341	0.077309
5.11	6	6	0.892239	1.433874	0.731672	0.61488	0.970955	1.066698	0.310385	-0.35404	0.489341	0.508205	0.489341	0.077309
5.12	6	6	0.892239	1.432816	0.731672	0.61488	0.970955	1.066698	0.310385	-0.35274	0.489341	0.508204	0.489341	0.077309
5.13	6	6	0.892239	1.431762	0.731672	0.61488	0.970955	1.066698	0.310385	-0.35145	0.489341	0.508205	0.489341	0.077309
5.14	6	6	0.892239	1.430712	0.731672	0.61488	0.970955	1.066698	0.310385	-0.35016	0.489341	0.508205	0.489341	0.077309
5.15	6	6	0.892239	1.429667	0.731672	0.61488	0.970955	1.066698	0.310385	-0.34888	0.489341	0.508205	0.489341	0.077309
5.16	6	6	0.892239	1.428625	0.731672	0.61488	0.970955	1.066698	0.310385	-0.3476	0.489341	0.508205	0.489341	0.077309
5.17	6	6	0.892239	1.427588	0.731672	0.614879	0.970955	1.066698	0.310385	-0.34633	0.489341	0.508205	0.489341	0.077309
5.18	6	6	0.892239	1.426554	0.731672	0.61488	0.970955	1.066698	0.310385	-0.34506	0.489341	0.508205	0.489341	0.077309
5.19	6	6	0.892239	1.425525	0.731672	0.614879	0.970955	1.066698	0.310385	-0.3438	0.489341	0.508205	0.489341	0.077309
5.2	6	6	0.892239	1.424499	0.731672	0.61488	0.970955	1.066698	0.310385	-0.34254	0.489341	0.508205	0.489341	0.077309
5.21	6	6	0.892239	1.423478	0.731672	0.61488	0.970955	1.066698	0.310385	-0.34129	0.489341	0.508204	0.489341	0.077309
5.22	6	6	0.892239	1.42246	0.731672	0.614879	0.970955	1.066698	0.310385	-0.34004	0.489341	0.508205	0.489341	0.077309
5.23	6	6	0.892239	1.421446	0.731672	0.614879	0.970955	1.066698	0.310385	-0.3388	0.489341	0.508205	0.489341	0.077309
5.24	6	6	0.892239	1.420436	0.731672	0.61488	0.970955	1.066698	0.310385	-0.33756	0.489341	0.508204	0.489341	0.077309
5.25	6	6	0.892239	1.41943	0.731672	0.614879	0.970955	1.066698	0.310385	-0.33632	0.489341	0.508205	0.489341	0.077309
5.26	6	6	0.892239	1.418428	0.731672	0.614879	0.970955	1.066698	0.310385	-0.33509	0.489341	0.508205	0.489341	0.077309
5.27	6	6	0.892239	1.417429	0.731672	0.61488	0.970955	1.066698	0.310385	-0.33387	0.489341	0.508204	0.489341	0.077309
5.28	6	6	0.892239	1.416435	0.731672	0.614879	0.970955	1.066698	0.310385	-0.33265	0.489341	0.508205	0.489341	0.077309
5.29	6	6	0.892239	1.415444	0.731672	0.61488	0.970955	1.066698	0.310385	-0.33143	0.489341	0.508205	0.489341	0.077309
5.3	6	6	0.892239	1.414457	0.731672	0.61488	0.970955	1.066698	0.310385	-0.33022	0.489341	0.508205	0.489341	0.077309
5.31	6	6	0.892239	1.413473	0.731672	0.614879	0.970955	1.066698	0.310385	-0.32901	0.489341	0.508205	0.489341	0.077309
5.32	6	6	0.892239	1.412493	0.731672	0.61488	0.970955	1.066698	0.310385	-0.32781	0.489341	0.508205	0.489341	0.077309
5.33	6	6	0.892239	1.411517	0.731672	0.61488	0.970955	1.066698	0.310385	-0.32662	0.489341	0.508204	0.489341	0.077309
5.34	6	6	0.892239	1.410545	0.731672	0.614879	0.970955	1.066698	0.310385	-0.32542	0.489341	0.508205	0.489341	0.077309
5.35	6	6	0.892239	1.409576	0.731672	0.61488	0.970955	1.066698	0.310385	-0.32423	0.489341	0.508205	0.489341	0.077309
5.36	6	6	0.892239	1.408611	0.731672	0.61488	0.970955	1.066698	0.310385	-0.32305	0.489341	0.508205	0.489341	0.077309
5.37	6	6	0.892239	1.407649	0.731672	0.61488	0.970955	1.066698	0.310385	-0.32187	0.489341	0.508205	0.489341	0.077309
5.38	6	6	0.892239	1.406691	0.731672	0.61488	0.970955	1.066698	0.310385	-0.3207	0.489341	0.508205	0.489341	0.077309
5.39	6	6	0.892239	1.405737	0.731672	0.614879	0.970955	1.066698	0.310385	-0.31952	0.489341	0.508205	0.489341	0.077309
5.4	6	6	0.892239	1.404786	0.731672	0.61488	0.970955	1.066698	0.310385	-0.31836	0.489341	0.508204	0.489341	0.077309
5.41	6	6	0.892239	1.403838	0.731672	0.614879	0.970955	1.066698	0.310385	-0.3172	0.489341	0.508205	0.489341	0.077309
5.42	6	6	0.892239	1.402894	0.731672	0.61488	0.970955	1.066698	0.310385	-0.31604	0.489341	0.508204	0.489341	0.077309
5.43	6	6	0.892239	1.401954	0.731672	0.61488	0.970955	1.066698	0.310385	-0.31488	0.489341	0.508205	0.489341	0.077309
5.44	6	6	0.892239	1.401017	0.731672	0.614879	0.970955	1.066698	0.310385	-0.31373	0.489341	0.508205	0.489341	0.077309
5.45	6	6	0.892239	1.400084	0.731672	0.600144	0.970955	1.066698	0.310385	-0.31259	0.489341	0.569202	0.489341	0.077309
5.46	6	6	0.892239	1.399153	0.731672	0.600144	0.970955	1.066698	0.310385	-0.31145	0.489341	0.569202	0.489341	0.077309
5.47	6	6	0.892239	1.398227	0.731672	0.600144	0.970955	1.066698	0.310385	-0.31031	0.489341	0.569203	0.489341	0.077309
5.48	6	6	0.892239	1.397303	0.731672	0.600144	0.970955	1.066698	0.310385	-0.30918	0.489341	0.569203	0.489341	0.077309
5.49	6	6	0.892239	1.396383	0.731672	0.600144	0.970955	1.066698	0.310385	-0.30805	0.489341	0.569203	0.489341	0.077309
5.5	6	6	0.892239	1.395467	0.731672	0.600144	0.970955	1.066698	0.310385	-0.30693	0.489341	0.569203	0.489341	0.077309
5.51	6	6	0.892239	1.394553	0.731672	0.600144	0.970955	1.066698	0.310385	-0.30581	0.489341	0.569203	0.489341	0.077309
5.52	6	6	0.892239	1.393643	0.731672	0.600144	0.970955	1.066698	0.310385	-0.30469	0.489341	0.569203	0.489341	0.077309
5.53	6	6	0.892239	1.392737	0.731672	0.600144	0.970955	1.066698	0.310385	-0.30358	0.489341	0.569203	0.489341	0.077309
5.54	6	6	0.892239	1.391833	0.731672	0.600144	0.970955	1.066698	0.310385	-0.30247	0.489341	0.569203	0.489341	0.077309
5.55	6	6	0.892239	1.390933	0.731672	0.600144	0.970955	1.066698	0.310385	-0.30136	0.489341	0.569203	0.489341	0.077309
5.56	6	6	0.892239	1.390036	0.731672	0.600144	0.970955	1.066698	0.310385	-0.30026	0.489341	0.569203	0.489341	0.077309
5.57	6	6	0.892239	1.389143	0.731672	0.600144	0.970955	1.066698	0.310385	-0.29917	0.489341	0.569203	0.489341	0.077309
5.58	6	6	0.892239	1.388252	0.731672	0.600144	0.970955	1.066698	0.310385	-0.29808	0.489341	0.569203	0.489341	0.077309
5.59	6	6	0.892239	1.387365	0.731672	0.600144	0.970955	1.066698	0.310385	-0.29699	0.489341	0.569203	0.489341	0.077309
5.6	6	6	0.892239	1.386481	0.731672	0.600144	0.970955	1.066698	0.310385	-0.2959	0.489341	0.569203	0.489341	0.077309
5.61	6	6	0.892239	1.3856	0.731672	0.600144	0.970955	1.066698	0.310385	-0.29482	0.489341	0.569203	0.489341	0.077309
5.62	6	6	0.892239	1.384722	0.731672	0.600144	0.970955	1.066698	0.310385	-0.29375	0.489341	0.569203	0.489341	0.077309
5.63	6	6	0.892239	1.383847	0.731672	0.600144	0.970955	1.066698	0.310385	-0.29267	0.489341	0.569203	0.489341	0.077309
5.64	6	6	0.892239	1.382975	0.731672	0.600144	0.970955	1.066698	0.310385	-0.2916	0.489341	0.569203	0.489341	0.077309
5.65	6	6	0.892239	1.382107	0.731672	0.600144	0.970955	1.066698	0.310385	-0.29054	0.489341	0.569203	0.489341	0.077309
5.66	6	6	0.892239	1.381241	0.731672	0.600144	0.970955	1.066698	0.310385	-0.28948	0.489341	0.569203	0.489341	0.077309
5.67	6	6	0.892239	1.380379	0.731672	0.600144	0.970955	1.066698	0.310385	-0.28842	0.489341	0.569203	0.489341	0.077309
5.68	6	6	0.892239	1.379519	0.731672	0.600144	0.970955	1.066698	0.310385	-0.28736	0.489341	0.569203	0.489341	0.077309
5.69	6	6	0.892239	1.378663	0.731672	0.600144	0.970955	1.066698	0.310385	-0.28631	0.489341	0.569203	0.489341	0.077309
5.7	6	6	0.892239	1.37781	0.731672	0.519596	0.970955	1.066698	0.310385	-0.28527	0.489341	0.697844	0.489341	0.077309
5.71	6	6	0.892239	1.376959	0.731672	0.519596	0.970955	1.066698	0.310385	-0.28422	0.489341	0.697844	0.489341	0.077309
5.72	6	6	0.892239	1.376112	0.731672	0.519596	0.970955	1.066698	0.310385	-0.28318	0.489341	0.697844	0.489341	0.077309
5.73	6	6	0.892239	1.375267	0.731672	0.519595	0.970955	1.066698	0.310385	-0.28215	0.489341	0.697844	0.489341	0.077309
5.74	6	6	0.892239	1.374426	0.731672	0.519596	0.970955	1.066698	0.310385	-0.28112	0.489341	0.697844	0.489341	0.077309
5.75	6	6	0.892239	1.373587	0.731672	0.519596	0.970955	1.066698	0.310385	-0.28009	0.489341	0.697844	0.489341	0.077309
5.76	6	6	0.892239	1.372752	0.731672	0.519596	0.970955	1.066698	0.310385	-0.27906	0.489341	0.697844	0.489341	0.077309
5.77	6	6	0.892239	1.371919	0.731672	0.519596	0.970955	1.066698	0.310385	-0.27804	0.489341	0.697844	0.489341	0.077309
5.78	6	6	0.892239	1.371089	0.731672	0.519596	0.970955	1.066698	0.310385	-0.27702	0.489341	0.697844	0.489341	0.077309
5.79	6	6	0.892239	1.370262	0.731672	0.519596	0.970955	1.066698	0.310385	-0.27601	0.489341	0.697844	0.489341	0.077309
5.8	6	6	0.892239	1.369438	0.731672	0.519596	0.970955	1.066698	0.310385	-0.275	0.489341	0.697844	0.489341	0.077309
5.81	6	6	0.892239	1.368616	0.731672	0.519596	0.970955	1.066698	0.310385	-0.27399	0.489341	0.697844	0.489341	0.077309
5.82	6	6	0.892239	1.367798	0.731672	0.519595	0.970955	1.066698	0.310385	-0.27298	0.489341	0.697844	0.489341	0.077309
5.83	6	6	0.892239	1.366982	0.731672	0.519596	0.970955	1.066698	0.310385	-0.27198	0.489341	0.697844	0.489341	0.077309
5.84	6	6	0.892239	1.366169	0.731672	0.519596	0.970955	1.066698	0.310385	-0.27099	0.489341	0.697844	0.489341	0.077309
5.85	6	6	0.892239	1.365359	0.731672	0.519596	0.970955	1.066698	0.310385	-0.26999	0.489341	0.697844	0.489341	0.077309
5.86	6	6	0.892239	1.364552	0.731672	0.519596	0.970955	1.066698	0.310385	-0.269	0.489341	0.697844	0.489341	0.077309
5.87	6	6	0.892239	1.363747	0.731672	0.519595	0.970955	1.066698	0.310385	-0.26802	0.489341	0.697844	0.489341	0.077309
5.88	6	6	0.892239	1.362945	0.731672	0.519596	0.970955	1.066698	0.310385	-0.26703	0.489341	0.697844	0.489341	0.077309
5.89	6	6	0.892239	1.362146	0.731672	0.519596	0.970955	1.066698	0.310385	-0.26605	0.489341	0.697844	0.489341	0.077309
5.9	6	6	0.892239	1.36135	0.731672	0.519595	0.970955	1.066698	0.310385	-0.26507	0.489341	0.697844	0.489341	0.077309
5.91	6	6	0.892239	1.360556	0.731672	0.426747	0.970955	1.066698	0.310385	-0.2641	0.489341	0.876615	0.489341	0.077309
5.92	6	6	0.892239	1.359765	0.731672	0.426747	0.970955	1.066698	0.310385	-0.26313	0.489341	0.876615	0.489341	0.077309
5.93	6	6	0.892239	1.358976	0.731672	0.426747	0.970955	1.066698	0.310385	-0.26216	0.489341	0.876615	0.489341	0.077309
5.94	6	6	0.892239	1.358191	0.731672	0.426747	0.970955	1.066698	0.310385	-0.2612	0.489341	0.876615	0.489341	0.077309
5.95	6	6	0.892239	1.357408	0.731672	0.426747	0.970955	1.066698	0.310385	-0.26024	0.489341	0.876615	0.489341	0.077309
5.96	6	6	0.892239	1.356627	0.731672	0.426747	0.970955	1.066698	0.310385	-0.25928	0.489341	0.876615	0.489341	0.077309
5.97	6	6	0.892239	1.355849	0.731672	0.426747	0.970955	1.066698	0.310385	-0.25833	0.489341	0.876615	0.489341	0.077309
5.98	6	6	0.892239	1.355074	0.731672	0.426747	0.970955	1.066698	0.310385	-0.25738	0.489341	0.876615	0.489341	0.077309
5.99	6	6	0.892239	1.354301	0.731672	0.426747	0.970955	1.066698	0.310385	-0.25643	0.489341	0.876615	0.489341	0.077309
6	6	6	0.892239	1.353531	0.731672	0.426747	0.970955	1.066698	0.310385	-0.25548	0.489341	0.876615	0.489341	0.077309
6.01	6	6	0.892239	1.352764	0.731672	0.426747	0.970955	1.066698	0.310385	-0.25454	0.489341	0.876615	0.489341	0.077309
6.02	6	6	0.892239	1.351999	0.731672	0.426747	0.970955	1.066698	0.310385	-0.2536	0.489341	0.876615	0.489341	0.077309
6.03	6	6	0.892239	1.351236	0.731672	0.426747	0.970955	1.066698	0.310385	-0.25267	0.489341	0.876615	0.489341	0.077309
6.04	6	6	0.892239	1.350476	0.720677	0.426747	0.970955	1.066698	0.310385	-0.25174	0.567396	0.876615	0.567396	0.077309
6.05	6	6	0.892239	1.349719	0.695026	0.426747	0.970955	1.066698	0.310385	-0.25081	0.567396	0.876615	0.567396	0.077309
6.06	6	6	0.892239	1.348964	0.695026	0.426747	0.970955	1.066698	0.310385	-0.24988	0.567396	0.876615	0.567396	0.077309
6.07	6	6	0.892239	1.348211	0.695026	0.426747	0.970955	1.066698	0.310385	-0.24896	0.567396	0.876615	0.567396	0.077309
6.08	6	6	0.892239	1.347461	0.695026	0.426747	0.970955	1.066698	0.310385	-0.24804	0.567396	0.876615	0.567396	0.077309
6.09	6	6	0.892239	1.346714	0.695026	0.426747	0.970955	1.066698	0.310385	-0.24712	0.567396	0.876615	0.567396	0.077309
6.1	6	6	0.892239	1.345969	0.695026	0.426747	0.970955	1.066698	0.310385	-0.24621	0.567396	0.876615	0.567396	0.077309
6.11	6	6	0.892239	1.345226	0.667727	0.426747	0.970955	1.066698	0.310385	-0.2453	0.623309	0.876615	0.623309	0.077309
6.12	6	6	0.892239	1.344486	0.639837	0.426747	0.970955	1.066698	0.310385	-0.24439	0.623309	0.876615	0.623309	0.077309
6.13	6	6	0.892239	1.343748	0.639837	0.426747	0.970955	1.066698	0.310385	-0.24348	0.623309	0.876615	0.623309	0.077309
6.14	6	6	0.892239	1.343013	0.639837	0.426747	0.970955	1.066698	0.310385	-0.24258	0.623309	0.876615	0.623309	0.077309
6.15	6	6	0.892239	1.34228	0.639837	0.426747	0.970955	1.066698	0.310385	-0.24168	0.623309	0.876615	0.623309	0.077309
6.16	6	6	0.892239	1.34155	0.639837	0.426747	0.970955	1.066698	0.310385	-0.24079	0.623309	0.876615	0.623309	0.077309
6.17	6	6	0.892239	1.340821	0.639837	0.426747	0.970955	1.066698	0.310385	-0.23989	0.623309	0.876615	0.623309	0.077309
6.18	6	6	0.892239	1.340095	0.639837	0.426747	0.970955	1.066698	0.310385	-0.239	0.623309	0.876615	0.623309	0.077309
6.19	6	6	0.892239	1.339372	0.639837	0.426747	0.970955	1.066698	0.310385	-0.23811	0.623309	0.876615	0.623309	0.077309
6.2	6	6	0.892239	1.338651	0.639837	0.426747	0.970955	1.066698	0.310385	-0.23723	0.623309	0.876615	0.623309	0.077309
6.21	6	6	0.892239	1.337932	0.639837	0.426747	0.970955	1.066698	0.310385	-0.23635	0.623309	0.876615	0.623309	0.077309
6.22	6	6	0.892239	1.337215	0.639837	0.426747	0.970955	1.066698	0.310385	-0.23547	0.623309	0.876615	0.623309	0.077309
6.23	6	6	0.892239	1.336501	0.639837	0.426747	0.970955	1.066698	0.310385	-0.23459	0.623309	0.876615	0.623309	0.077309
6.24	6	6	0.892239	1.335789	0.639837	0.426747	0.970955	1.066698	0.310385	-0.23372	0.623309	0.876615	0.623309	0.077309
6.25	6	6	0.892239	1.335079	0.639837	0.426747	0.970955	1.066698	0.310385	-0.23285	0.623309	0.876615	0.623309	0.077309
6.26	6	6	0.892239	1.334372	0.639837	0.426747	0.970955	1.066698	0.310385	-0.23198	0.623309	0.876615	0.623309	0.077309
6.27	6	6	0.892239	1.333667	0.639837	0.426747	0.970955	1.066698	0.310385	-0.23112	0.623309	0.876615	0.623309	0.077309
6.28	6	6	0.892239	1.332964	0.639837	0.426747	0.970955	1.066698	0.310385	-0.23025	0.623309	0.876615	0.623309	0.077309
6.29	6	6	0.892239	1.332263	0.639837	0.426747	0.970955	1.066698	0.310385	-0.22939	0.623309	0.876615	0.623309	0.077309
6.3	6	6	0.892239	1.331565	0.639837	0.426747	0.970955	1.066698	0.310385	-0.22854	0.623309	0.876615	0.623309	0.077309
6.31	6	6	0.892239	1.330869	0.639837	0.426747	0.970955	1.066698	0.310385	-0.22768	0.623309	0.876615	0.623309	0.077309
6.32	6	6	0.892239	1.330175	0.639837	0.426747	0.970955	1.066698	0.310385	-0.22683	0.623309	0.876615	0.623309	0.077309
6.33	6	6	0.892239	1.329483	0.639837	0.426747	0.970955	1.066698	0.310385	-0.22598	0.623309	0.876615	0.623309	0.077309
6.34	6	6	0.892239	1.328793	0.639837	0.426747	0.970955	1.066698	0.310385	-0.22514	0.623309	0.876615	0.623309	0.077309
6.35	6	6	0.892239	1.328106	0.639837	0.426747	0.970955	1.066698	0.310385	-0.22429	0.623309	0.876615	0.623309	0.077309
6.36	6	6	0.892239	1.32742	0.639837	0.426747	0.970955	1.066698	0.310385	-0.22345	0.623309	0.876615	0.623309	0.077309
6.37	6	6	0.892239	1.326737	0.639837	0.426747	0.970955	1.066698	0.310385	-0.22262	0.623309	0.876615	0.623309	0.077309
6.38	6	6	0.892239	1.326056	0.639837	0.426747	0.970955	1.066698	0.310385	-0.22178	0.623309	0.876615	0.623309	0.077309
6.39	6	6	0.892239	1.325377	0.639837	0.426747	0.970955	1.066698	0.310385	-0.22095	0.623309	0.876615	0.623309	0.077309
6.39	5	6	0.802878	1.324661	0.639837	0.426747	0.970955	1.066698	0.410656	-0.22007	0.623309	0.876615	0.623309	0.077309
6.41	5	6	0.802878	1.323847	0.639837	0.426747	0.970955	1.066698	0.410656	-0.21909	0.623309	0.876615	0.623309	0.077309
6.42	5	6	0.802878	1.323036	0.639837	0.426747	0.970955	1.066698	0.410656	-0.21811	0.623309	0.876615	0.623309	0.077309
6.43	5	6	0.802878	1.322227	0.639837	0.426747	0.970955	1.066698	0.410656	-0.21713	0.623309	0.876615	0.623309	0.077309
6.44	5	6	0.802878	1.321421	0.639837	0.426747	0.970955	1.066698	0.410656	-0.21616	0.623309	0.876615	0.623309	0.077309
6.45	5	6	0.802878	1.320617	0.639837	0.426747	0.970955	1.066698	0.410656	-0.21518	0.623309	0.876615	0.623309	0.077309
6.46	5	6	0.802878	1.319815	0.639837	0.426747	0.970955	1.066698	0.410656	-0.21422	0.623309	0.876615	0.623309	0.077309
6.47	5	6	0.802878	1.319016	0.639837	0.426747	0.970955	1.066698	0.410656	-0.21325	0.623309	0.876615	0.623309	0.077309
6.48	5	6	0.802878	1.31822	0.639837	0.426747	0.970955	1.066698	0.410656	-0.21229	0.623309	0.876615	0.623309	0.077309
6.49	5	6	0.802878	1.317426	0.639837	0.426747	0.970955	1.066698	0.410656	-0.21133	0.623309	0.876615	0.623309	0.077309
6.5	5	6	0.802878	1.316634	0.639837	0.426747	0.970955	1.066698	0.410656	-0.21037	0.623309	0.876615	0.623309	0.077309
6.51	5	6	0.802878	1.315845	0.639837	0.426747	0.970955	1.066698	0.410656	-0.20942	0.623309	0.876615	0.623309	0.077309
6.52	5	6	0.802878	1.315058	0.639837	0.426747	0.970955	1.066698	0.410656	-0.20846	0.623309	0.876615	0.623309	0.077309
6.53	5	6	0.802878	1.314274	0.639837	0.426747	0.970955	1.066698	0.410656	-0.20752	0.623309	0.876615	0.623309	0.077309
6.54	5	6	0.802878	1.313492	0.639837	0.426747	0.970955	1.066698	0.410656	-0.20657	0.623309	0.876615	0.623309	0.077309
6.55	5	6	0.802878	1.312712	0.639837	0.426747	0.970955	1.066698	0.410656	-0.20563	0.623309	0.876615	0.623309	0.077309
6.56	5	6	0.802878	1.311935	0.639837	0.426747	0.970955	1.066698	0.410656	-0.20469	0.623309	0.876615	0.623309	0.077309
6.57	5	6	0.802878	1.31116	0.639837	0.426747	0.970955	1.066698	0.410656	-0.20375	0.623309	0.876615	0.623309	0.077309
6.58	5	5	0.802878	1.310388	0.639837	0.426747	0.845917	1.066698	0.410656	-0.20282	0.623309	0.876615	0.623309	0.077309
6.59	5	5	0.802878	1.309618	0.639837	0.426747	0.845917	1.066698	0.410656	-0.20189	0.623309	0.876615	0.623309	0.077309
6.6	5	5	0.802878	1.30885	0.639837	0.426747	0.845917	1.066698	0.410656	-0.20096	0.623309	0.876615	0.623309	0.077309
6.61	5	5	0.802878	1.308084	0.639837	0.426747	0.845917	0.957161	0.410656	-0.20003	0.623309	0.876615	0.623309	0.205071
6.62	5	5	0.802878	1.307321	0.639837	0.426747	0.845917	0.957161	0.410656	-0.19911	0.623309	0.876615	0.623309	0.205071
6.63	5	5	0.802878	1.30656	0.639837	0.426747	0.845917	0.957161	0.410656	-0.19819	0.623309	0.876615	0.623309	0.205071
6.64	5	5	0.802878	1.305802	0.639837	0.426747	0.845917	0.957161	0.410656	-0.19728	0.623309	0.876615	0.623309	0.205071
6.65	5	5	0.802878	1.305046	0.639837	0.426747	0.845917	0.957161	0.410656	-0.19636	0.623309	0.876615	0.623309	0.205071
6.66	5	5	0.802878	1.304292	0.639837	0.426747	0.845917	0.957161	0.410656	-0.19545	0.623309	0.876615	0.623309	0.205071
6.67	5	5	0.802878	1.30354	0.639837	0.426747	0.845917	0.957161	0.410656	-0.19454	0.623309	0.876615	0.623309	0.205071
6.68	5	5	0.802878	1.30279	0.639837	0.426747	0.845917	0.957161	0.410656	-0.19364	0.623309	0.876615	0.623309	0.205071
6.69	5	5	0.802878	1.302043	0.639837	0.426747	0.845917	0.957161	0.410656	-0.19273	0.623309	0.876615	0.623309	0.205071
6.7	5	5	0.802878	1.301298	0.639837	0.426747	0.845917	0.957161	0.410656	-0.19183	0.623309	0.876615	0.623309	0.205071
6.71	5	5	0.802878	1.300555	0.639837	0.426747	0.845917	0.957161	0.410656	-0.19093	0.623309	0.876615	0.623309	0.205071
6.72	5	5	0.802878	1.299815	0.639837	0.426747	0.845917	0.957161	0.410656	-0.19004	0.623309	0.876615	0.623309	0.205071
6.73	5	5	0.802878	1.299076	0.639837	0.426747	0.845917	0.957161	0.410656	-0.18915	0.623309	0.876615	0.623309	0.205071
6.74	5	5	0.802878	1.29834	0.639837	0.426747	0.845917	0.957161	0.410656	-0.18826	0.623309	0.876615	0.623309	0.205071
6.75	5	5	0.802878	1.297606	0.639837	0.426747	0.845917	0.957161	0.410656	-0.18737	0.623309	0.876615	0.623309	0.205071
6.76	5	5	0.802878	1.296874	0.639837	0.426747	0.845917	0.957161	0.410656	-0.18648	0.623309	0.876615	0.623309	0.205071
6.77	5	5	0.802878	1.296144	0.639837	0.426747	0.845917	0.957161	0.410656	-0.1856	0.623309	0.876615	0.623309	0.205071
6.78	5	5	0.802878	1.295417	0.639837	0.426747	0.845917	0.957161	0.410656	-0.18472	0.623309	0.876615	0.623309	0.205071
6.79	5	5	0.802878	1.294692	0.639837	0.426747	0.845917	0.957161	0.410656	-0.18385	0.623309	0.876615	0.623309	0.205071
6.8	5	5	0.802878	1.293968	0.639837	0.426747	0.845917	0.957161	0.410656	-0.18297	0.623309	0.876615	0.623309	0.205071
6.81	5	5	0.802878	1.293247	0.639837	0.426747	0.845917	0.957161	0.410656	-0.1821	0.623309	0.876615	0.623309	0.205071
6.82	5	5	0.802878	1.292528	0.639837	0.426747	0.845917	0.957161	0.410656	-0.18123	0.623309	0.876615	0.623309	0.205071
6.83	5	5	0.802878	1.291811	0.639837	0.426747	0.845917	0.957161	0.410656	-0.18036	0.623309	0.876615	0.623309	0.205071
6.84	5	5	0.802878	1.291096	0.639837	0.426747	0.845917	0.957161	0.410656	-0.1795	0.623309	0.876615	0.623309	0.205071
6.85	5	5	0.802878	1.290384	0.639837	0.426747	0.845917	0.957161	0.410656	-0.17864	0.623309	0.876615	0.623309	0.205071
6.86	5	5	0.802878	1.289673	0.639837	0.426747	0.845917	0.957161	0.410656	-0.17778	0.623309	0.876615	0.623309	0.205071
6.87	5	5	0.802878	1.288964	0.639837	0.426747	0.845917	0.957161	0.410656	-0.17692	0.623309	0.876615	0.623309	0.205071
6.88	5	5	0.802878	1.288258	0.639837	0.426747	0.845917	0.957161	0.410656	-0.17607	0.623309	0.876615	0.623309	0.205071
6.89	5	5	0.802878	1.287553	0.639837	0.426747	0.845917	0.957161	0.410656	-0.17522	0.623309	0.876615	0.623309	0.205071
6.9	5	5	0.802878	1.286851	0.639837	0.426747	0.845917	0.957161	0.410656	-0.17437	0.623309	0.876615	0.623309	0.205071
6.91	5	5	0.802878	1.286151	0.598189	0.426747	0.845917	0.957161	0.410656	-0.17352	0.711268	0.876615	0.711268	0.205071
6.92	5	5	0.802878	1.285452	0.592351	0.426747	0.845917	0.957161	0.410656	-0.17268	0.711268	0.876615	0.711268	0.205071
6.93	5	5	0.802878	1.284756	0.592351	0.426747	0.845917	0.957161	0.410656	-0.17184	0.711268	0.876615	0.711268	0.205071
6.94	5	5	0.802878	1.284062	0.592351	0.426747	0.845917	0.957161	0.410656	-0.171	0.711268	0.876615	0.711268	0.205071
6.95	5	5	0.802878	1.283369	0.592351	0.426747	0.845917	0.957161	0.410656	-0.17016	0.711268	0.876615	0.711268	0.205071
6.96	5	5	0.802878	1.282679	0.592351	0.426747	0.845917	0.957161	0.410656	-0.16932	0.711268	0.876615	0.711268	0.205071
6.97	5	5	0.802878	1.281991	0.592351	0.426747	0.845917	0.957161	0.410656	-0.16849	0.711268	0.876615	0.711268	0.205071
6.98	5	5	0.802878	1.281304	0.592351	0.426747	0.845917	0.957161	0.410656	-0.16766	0.711268	0.876615	0.711268	0.205071
6.99	5	5	0.802878	1.28062	0.592351	0.426747	0.845917	0.957161	0.410656	-0.16684	0.711268	0.876615	0.711268	0.205071
7	5	5	0.802878	1.279937	0.592351	0.426747	0.845917	0.957161	0.410656	-0.16601	0.711268	0.876615	0.711268	0.205071
7.01	5	5	0.802878	1.279257	0.592351	0.426747	0.845917	0.957161	0.410656	-0.16519	0.711268	0.876615	0.711268	0.205071
7.02	5	5	0.802878	1.278578	0.592351	0.426747	0.845917	0.957161	0.410656	-0.16437	0.711268	0.876615	0.711268	0.205071
7.03	5	5	0.802878	1.277901	0.592351	0.426747	0.845917	0.957161	0.410656	-0.16355	0.711268	0.876615	0.711268	0.205071
7.04	5	5	0.802878	1.277227	0.592351	0.426747	0.845917	0.957161	0.410656	-0.16273	0.711268	0.876615	0.711268	0.205071
7.05	5	5	0.802878	1.276554	0.592351	0.426747	0.845917	0.957161	0.410656	-0.16192	0.711268	0.876615	0.711268	0.205071
7.06	5	5	0.802878	1.275883	0.592351	0.426747	0.845917	0.957161	0.410656	-0.16111	0.711268	0.876615	0.711268	0.205071
7.07	5	5	0.802878	1.275214	0.592351	0.426747	0.845917	0.957161	0.410656	-0.1603	0.711268	0.876615	0.711268	0.205071
7.08	5	5	0.802878	1.274547	0.51701	0.426747	0.845917	0.957161	0.410656	-0.15949	0.795828	0.876615	0.795828	0.205071
7.09	5	5	0.802878	1.273881	0.495833	0.426747	0.845917	0.957161	0.410656	-0.15869	0.795828	0.876615	0.795828	0.205071
7.1	5	5	0.802878	1.273218	0.495833	0.426747	0.845917	0.957161	0.410656	-0.15789	0.795828	0.876615	0.795828	0.205071
7.11	5	5	0.802878	1.272557	0.495833	0.426747	0.845917	0.957161	0.410656	-0.15709	0.795828	0.876615	0.795828	0.205071
7.12	5	5	0.802878	1.271897	0.495833	0.426747	0.845917	0.957161	0.410656	-0.15629	0.795828	0.876615	0.795828	0.205071
7.13	5	5	0.802878	1.271239	0.495833	0.426747	0.845917	0.957161	0.410656	-0.1555	0.795828	0.876615	0.795828	0.205071
7.14	5	5	0.802878	1.270583	0.495833	0.426747	0.845917	0.957161	0.410656	-0.1547	0.795828	0.876615	0.795828	0.205071
7.15	5	5	0.802878	1.269929	0.495833	0.426747	0.845917	0.957161	0.410656	-0.15391	0.795828	0.876615	0.795828	0.205071
7.16	5	5	0.802878	1.269277	0.495833	0.426747	0.845917	0.957161	0.410656	-0.15312	0.795828	0.876615	0.795828	0.205071
7.17	5	5	0.802878	1.268626	0.495833	0.426747	0.845917	0.957161	0.410656	-0.15234	0.795828	0.876615	0.795828	0.205071
7.18	5	5	0.802878	1.267977	0.495833	0.426747	0.845917	0.957161	0.410656	-0.15155	0.795828	0.876615	0.795828	0.205071
7.19	5	5	0.802878	1.267331	0.495833	0.426747	0.845917	0.957161	0.410656	-0.15077	0.795828	0.876615	0.795828	0.205071
7.2	5	5	0.802878	1.266686	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14999	0.795828	0.876615	0.795828	0.205071
7.21	5	5	0.802878	1.266042	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14921	0.795828	0.876615	0.795828	0.205071
7.22	5	5	0.802878	1.265401	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14844	0.795828	0.876615	0.795828	0.205071
7.23	5	5	0.802878	1.264761	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14767	0.795828	0.876615	0.795828	0.205071
7.24	5	5	0.802878	1.264123	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14689	0.795828	0.876615	0.795828	0.205071
7.25	5	5	0.802878	1.263487	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14613	0.795828	0.876615	0.795828	0.205071
7.26	5	5	0.802878	1.262852	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14536	0.795828	0.876615	0.795828	0.205071
7.27	5	5	0.802878	1.26222	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14459	0.795828	0.876615	0.795828	0.205071
7.28	5	5	0.802878	1.261589	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14383	0.795828	0.876615	0.795828	0.205071
7.29	5	5	0.802878	1.26096	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14307	0.795828	0.876615	0.795828	0.205071
7.3	5	5	0.802878	1.260332	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14231	0.795828	0.876615	0.795828	0.205071
7.31	5	5	0.802878	1.259706	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14156	0.795828	0.876615	0.795828	0.205071
7.32	5	5	0.802878	1.259082	0.495833	0.426747	0.845917	0.957161	0.410656	-0.1408	0.795828	0.876615	0.795828	0.205071
7.33	5	5	0.802878	1.25846	0.495833	0.426747	0.845917	0.957161	0.410656	-0.14005	0.795828	0.876615	0.795828	0.205071
7.33	4	5	0.758563	1.257814	0.495833	0.426747	0.845917	0.957161	0.501673	-0.13925	0.795828	0.876615	0.795828	0.205071
7.35	4	5	0.758563	1.257135	0.495833	0.426747	0.845917	0.957161	0.501673	-0.13837	0.795828	0.876615	0.795828	0.205071
7.36	4	5	0.758563	1.256457	0.495833	0.426747	0.845917	0.957161	0.501673	-0.13751	0.795828	0.876615	0.795828	0.205071
7.37	4	5	0.758563	1.255782	0.495833	0.426747	0.845917	0.957161	0.501673	-0.13664	0.795828	0.876615	0.795828	0.205071
7.38	4	5	0.758563	1.255108	0.495833	0.426747	0.845917	0.957161	0.501673	-0.13577	0.795828	0.876615	0.795828	0.205071
7.39	4	5	0.758563	1.254436	0.495833	0.426747	0.845917	0.957161	0.501672	-0.13491	0.795828	0.876615	0.795828	0.205071
7.4	4	5	0.758563	1.253766	0.495833	0.426747	0.845917	0.957161	0.501673	-0.13405	0.795828	0.876615	0.795828	0.205071
7.41	4	5	0.758563	1.253098	0.495833	0.426747	0.845917	0.957161	0.501673	-0.13319	0.795828	0.876615	0.795828	0.205071
7.42	4	5	0.758563	1.252431	0.495833	0.426747	0.845917	0.957161	0.501673	-0.13234	0.795828	0.876615	0.795828	0.205071
7.43	4	5	0.758563	1.251766	0.495833	0.426747	0.845917	0.957161	0.501673	-0.13148	0.795828	0.876615	0.795828	0.205071
7.44	4	5	0.758563	1.251104	0.495833	0.426747	0.845917	0.957161	0.501673	-0.13063	0.795828	0.876615	0.795828	0.205071
7.45	4	5	0.758563	1.250442	0.495833	0.426747	0.845917	0.957161	0.501673	-0.12978	0.795828	0.876615	0.795828	0.205071
7.46	4	5	0.758563	1.249783	0.495833	0.426747	0.845917	0.957161	0.501673	-0.12894	0.795828	0.876615	0.795828	0.205071
7.47	4	5	0.758563	1.249125	0.495833	0.426747	0.845917	0.957161	0.501673	-0.12809	0.795828	0.876615	0.795828	0.205071
7.48	4	5	0.758563	1.24847	0.495833	0.426747	0.845917	0.957161	0.501673	-0.12725	0.795828	0.876615	0.795828	0.205071
7.49	4	5	0.758563	1.247816	0.495833	0.426747	0.845917	0.957161	0.501672	-0.12641	0.795828	0.876615	0.795828	0.205071
7.5	4	5	0.758563	1.247163	0.495833	0.426747	0.845917	0.957161	0.501673	-0.12557	0.795828	0.876615	0.795828	0.205071
7.51	4	5	0.758563	1.246513	0.495833	0.426747	0.845917	0.957161	0.501673	-0.12474	0.795828	0.876615	0.795828	0.205071
7.52	4	5	0.758563	1.245864	0.495833	0.426747	0.845917	0.957161	0.501673	-0.12391	0.795828	0.876615	0.795828	0.205071
7.53	4	5	0.758563	1.245217	0.495833	0.426747	0.845917	0.957161	0.501673	-0.12307	0.795828	0.876615	0.795828	0.205071
7.54	4	5	0.758563	1.244571	0.495833	0.426747	0.845917	0.957161	0.501673	-0.12225	0.795828	0.876615	0.795828	0.205071
7.55	4	5	0.758563	1.243927	0.495833	0.426747	0.845917	0.957161	0.501672	-0.12142	0.795828	0.876615	0.795828	0.205071
7.56	4	5	0.758563	1.243285	0.495833	0.426747	0.845917	0.957161	0.501673	-0.1206	0.795828	0.876615	0.795828	0.205071
7.57	4	5	0.758563	1.242645	0.495833	0.426747	0.845917	0.957161	0.501673	-0.11977	0.795828	0.876615	0.795828	0.205071
7.58	4	5	0.758563	1.242006	0.495833	0.426747	0.845917	0.957161	0.501673	-0.11895	0.795828	0.876615	0.795828	0.205071
7.59	4	5	0.758563	1.24137	0.495833	0.426747	0.845917	0.957161	0.501672	-0.11814	0.795828	0.876615	0.795828	0.205071
7.6	4	5	0.758563	1.240734	0.495833	0.426747	0.845917	0.957161	0.501673	-0.11732	0.795828	0.876615	0.795828	0.205071
7.61	4	5	0.758563	1.240101	0.495833	0.426747	0.845917	0.957161	0.501672	-0.11651	0.795828	0.876615	0.795828	0.205071
7.62	4	5	0.758563	1.239469	0.495833	0.426747	0.845917	0.957161	0.501673	-0.1157	0.795828	0.876615	0.795828	0.205071
7.63	4	5	0.758563	1.238838	0.495833	0.426747	0.845917	0.957161	0.501673	-0.11489	0.795828	0.876615	0.795828	0.205071
7.64	4	5	0.758563	1.23821	0.495833	0.426747	0.845917	0.957161	0.501673	-0.11408	0.795828	0.876615	0.795828	0.205071
7.65	4	5	0.758563	1.237583	0.495833	0.426747	0.845917	0.957161	0.501673	-0.11327	0.795828	0.876615	0.795828	0.205071
7.66	4	5	0.758563	1.236957	0.495833	0.426747	0.845917	0.957161	0.501673	-0.11247	0.795828	0.876615	0.795828	0.205071
7.67	4	5	0.758563	1.236334	0.495833	0.426747	0.845917	0.957161	0.501673	-0.11167	0.795828	0.876615	0.795828	0.205071
7.68	4	5	0.758563	1.235712	0.495833	0.426747	0.845917	0.957161	0.501673	-0.11087	0.795828	0.876615	0.795828	0.205071
7.69	4	5	0.758563	1.235091	0.495833	0.426747	0.845917	0.957161	0.501672	-0.11008	0.795828	0.876615	0.795828	0.205071
7.7	4	5	0.758563	1.234472	0.495833	0.426747	0.845917	0.957161	0.501673	-0.10928	0.795828	0.876615	0.795828	0.205071
7.71	4	5	0.758563	1.233855	0.495833	0.426747	0.845917	0.957161	0.501673	-0.10849	0.795828	0.876615	0.795828	0.205071
7.72	4	5	0.758563	1.233239	0.495833	0.426747	0.845917	0.957161	0.501673	-0.1077	0.795828	0.876615	0.795828	0.205071
7.73	4	5	0.758563	1.232625	0.495833	0.426747	0.845917	0.957161	0.501673	-0.10691	0.795828	0.876615	0.795828	0.205071
7.74	4	5	0.758563	1.232013	0.495833	0.426747	0.845917	0.957161	0.501672	-0.10612	0.795828	0.876615	0.795828	0.205071
7.75	4	5	0.758563	1.231402	0.495833	0.426747	0.845917	0.957161	0.501673	-0.10534	0.795828	0.876615	0.795828	0.205071
7.76	4	5	0.758563	1.230793	0.495833	0.426747	0.845917	0.957161	0.501672	-0.10456	0.795828	0.876615	0.795828	0.205071
7.77	4	5	0.758563	1.230185	0.495833	0.426747	0.845917	0.957161	0.501673	-0.10378	0.795828	0.876615	0.795828	0.205071
7.78	4	5	0.758563	1.229579	0.495833	0.426747	0.845917	0.957161	0.501673	-0.103	0.795828	0.876615	0.795828	0.205071
7.79	4	5	0.758563	1.228974	0.495833	0.426747	0.845917	0.957161	0.501673	-0.10222	0.795828	0.876615	0.795828	0.205071
7.8	4	5	0.758563	1.228371	0.495833	0.426747	0.845917	0.957161	0.501673	-0.10145	0.795828	0.876615	0.795828	0.205071
7.81	4	5	0.758563	1.227769	0.495833	0.426747	0.845917	0.957161	0.501673	-0.10068	0.795828	0.876615	0.795828	0.205071
7.82	4	5	0.758563	1.227169	0.495833	0.426747	0.845917	0.957161	0.501673	-0.09991	0.795828	0.876615	0.795828	0.205071
7.83	4	5	0.758563	1.226571	0.495833	0.426747	0.845917	0.957161	0.501673	-0.09914	0.795828	0.876615	0.795828	0.205071
7.84	4	5	0.758563	1.225974	0.495833	0.426747	0.845917	0.957161	0.501672	-0.09837	0.795828	0.876615	0.795828	0.205071
7.85	4	5	0.758563	1.225378	0.495833	0.426747	0.845917	0.957161	0.501673	-0.09761	0.795828	0.876615	0.795828	0.205071
7.86	4	5	0.758563	1.224785	0.495833	0.426747	0.845917	0.957161	0.501673	-0.09685	0.795828	0.876615	0.795828	0.205071
7.87	4	5	0.758563	1.224192	0.495833	0.426747	0.845917	0.957161	0.501672	-0.09608	0.795828	0.876615	0.795828	0.205071
7.88	4	5	0.758563	1.223601	0.495833	0.426747	0.845917	0.957161	0.501673	-0.09533	0.795828	0.876615	0.795828	0.205071
7.89	4	5	0.758563	1.223012	0.495833	0.426747	0.845917	0.957161	0.501673	-0.09457	0.795828	0.876615	0.795828	0.205071
7.9	4	5	0.758563	1.222424	0.495833	0.426747	0.845917	0.957161	0.501672	-0.09381	0.795828	0.876615	0.795828	0.205071
7.91	4	5	0.758563	1.221838	0.495833	0.426747	0.845917	0.957161	0.501673	-0.09306	0.795828	0.876615	0.795828	0.205071
7.92	4	5	0.758563	1.221253	0.495833	0.426747	0.845917	0.957161	0.501673	-0.09231	0.795828	0.876615	0.795828	0.205071
7.92	3	5	0.695026	1.220649	0.495833	0.426747	0.845917	0.957161	0.567396	-0.09154	0.795828	0.876615	0.795828	0.205071
7.94	3	5	0.695026	1.219987	0.495833	0.426747	0.845917	0.957161	0.567396	-0.09071	0.795828	0.876615	0.795828	0.205071
7.95	3	5	0.695026	1.219326	0.495833	0.426747	0.845917	0.957161	0.567396	-0.08988	0.795828	0.876615	0.795828	0.205071
7.96	3	5	0.695026	1.218668	0.495833	0.426747	0.845917	0.957161	0.567396	-0.08906	0.795828	0.876615	0.795828	0.205071
7.97	3	5	0.695026	1.218011	0.495833	0.426747	0.845917	0.957161	0.567396	-0.08823	0.795828	0.876615	0.795828	0.205071
7.98	3	5	0.695026	1.217355	0.495833	0.426747	0.845917	0.957161	0.567396	-0.08741	0.795828	0.876615	0.795828	0.205071
7.99	3	5	0.695026	1.216702	0.495833	0.426747	0.845917	0.957161	0.567396	-0.08659	0.795828	0.876615	0.795828	0.205071
8	3	5	0.695026	1.216049	0.495833	0.426747	0.845917	0.957161	0.567396	-0.08577	0.795828	0.876615	0.795828	0.205071
8.01	3	-	0.695026	1.215399	-	-	-	-	0.567396	-0.08496	-	-	-	-
8.02	3	-	0.695026	1.21475	-	-	-	-	0.567396	-0.08415	-	-	-	-
8.03	3	-	0.695026	1.214103	-	-	-	-	0.567396	-0.08333	-	-	-	-
8.04	3	-	0.695026	1.213457	-	-	-	-	0.567396	-0.08253	-	-	-	-
8.05	3	-	0.695026	1.212813	-	-	-	-	0.567396	-0.08172	-	-	-	-
8.06	3	-	0.695026	1.212171	-	-	-	-	0.567396	-0.08091	-	-	-	-
8.07	3	-	0.695026	1.21153	-	-	-	-	0.567396	-0.08011	-	-	-	-
8.08	3	-	0.695026	1.210891	-	-	-	-	0.567396	-0.07931	-	-	-	-
8.09	3	-	0.695026	1.210253	-	-	-	-	0.567396	-0.07851	-	-	-	-
8.1	3	-	0.695026	1.209617	-	-	-	-	0.567396	-0.07771	-	-	-	-
8.11	3	-	0.695026	1.208983	-	-	-	-	0.567396	-0.07692	-	-	-	-
8.12	3	-	0.695026	1.20835	-	-	-	-	0.567396	-0.07612	-	-	-	-
8.13	3	-	0.695026	1.207718	-	-	-	-	0.567396	-0.07533	-	-	-	-
8.14	3	-	0.695026	1.207088	-	-	-	-	0.567396	-0.07454	-	-	-	-
8.15	3	-	0.695026	1.20646	-	-	-	-	0.567396	-0.07375	-	-	-	-
8.16	3	-	0.695026	1.205833	-	-	-	-	0.567396	-0.07297	-	-	-	-
8.17	3	-	0.695026	1.205208	-	-	-	-	0.567396	-0.07218	-	-	-	-
8.18	3	-	0.695026	1.204584	-	-	-	-	0.567396	-0.0714	-	-	-	-
8.19	3	-	0.695026	1.203962	-	-	-	-	0.567396	-0.07062	-	-	-	-
8.2	3	-	0.695026	1.203342	-	-	-	-	0.567396	-0.06984	-	-	-	-
8.21	3	-	0.695026	1.202722	-	-	-	-	0.567396	-0.06907	-	-	-	-
8.22	3	-	0.695026	1.202105	-	-	-	-	0.567396	-0.06829	-	-	-	-
8.23	3	-	0.695026	1.201489	-	-	-	-	0.567396	-0.06752	-	-	-	-
8.24	3	-	0.695026	1.200874	-	-	-	-	0.567396	-0.06675	-	-	-	-
8.25	3	-	0.695026	1.200261	-	-	-	-	0.567396	-0.06598	-	-	-	-
8.26	3	-	0.695026	1.199649	-	-	-	-	0.567396	-0.06522	-	-	-	-
8.27	3	-	0.695026	1.199039	-	-	-	-	0.567396	-0.06445	-	-	-	-
8.28	3	-	0.695026	1.19843	-	-	-	-	0.567396	-0.06369	-	-	-	-
8.29	3	-	0.695026	1.197823	-	-	-	-	0.567396	-0.06293	-	-	-	-
8.3	3	-	0.695026	1.197217	-	-	-	-	0.567396	-0.06217	-	-	-	-
8.31	3	-	0.695026	1.196613	-	-	-	-	0.567396	-0.06141	-	-	-	-
8.32	3	-	0.695026	1.19601	-	-	-	-	0.567396	-0.06065	-	-	-	-
8.33	3	-	0.695026	1.195409	-	-	-	-	0.567396	-0.0599	-	-	-	-
8.34	3	-	0.695026	1.194809	-	-	-	-	0.567396	-0.05915	-	-	-	-
8.35	3	-	0.695026	1.19421	-	-	-	-	0.567396	-0.0584	-	-	-	-
8.36	3	-	0.695026	1.193613	-	-	-	-	0.567396	-0.05765	-	-	-	-
8.37	3	-	0.695026	1.193017	-	-	-	-	0.567396	-0.0569	-	-	-	-
8.38	3	-	0.695026	1.192423	-	-	-	-	0.567396	-0.05616	-	-	-	-
8.39	3	-	0.695026	1.19183	-	-	-	-	0.567396	-0.05541	-	-	-	-
8.4	3	-	0.695026	1.191239	-	-	-	-	0.567396	-0.05467	-	-	-	-
8.41	3	-	0.695026	1.190649	-	-	-	-	0.567396	-0.05393	-	-	-	-
8.42	3	-	0.695026	1.19006	-	-	-	-	0.567396	-0.05319	-	-	-	-
8.43	3	-	0.695026	1.189473	-	-	-	-	0.567396	-0.05246	-	-	-	-
8.44	3	-	0.695026	1.188887	-	-	-	-	0.567396	-0.05172	-	-	-	-
8.45	3	-	0.695026	1.188303	-	-	-	-	0.567396	-0.05099	-	-	-	-
8.45	2	-	0.636071	1.187702	-	-	-	-	0.671913	-0.05023	-	-	-	-
8.47	2	-	0.636071	1.18705	-	-	-	-	0.671913	-0.04938	-	-	-	-
8.48	2	-	0.636071	1.186401	-	-	-	-	0.671913	-0.04852	-	-	-	-
8.49	2	-	0.636071	1.185752	-	-	-	-	0.671913	-0.04768	-	-	-	-
8.5	2	-	0.63607	1.185106	-	-	-	-	0.671913	-0.04683	-	-	-	-
8.51	2	-	0.636071	1.18446	-	-	-	-	0.671913	-0.04598	-	-	-	-
8.52	2	-	0.63607	1.183817	-	-	-	-	0.671913	-0.04514	-	-	-	-
8.53	2	-	0.636071	1.183175	-	-	-	-	0.671913	-0.0443	-	-	-	-
8.54	2	-	0.636071	1.182534	-	-	-	-	0.671913	-0.04346	-	-	-	-
8.55	2	-	0.636071	1.181895	-	-	-	-	0.671913	-0.04263	-	-	-	-
8.56	2	-	0.63607	1.181257	-	-	-	-	0.671913	-0.04179	-	-	-	-
8.57	2	-	0.636071	1.180621	-	-	-	-	0.671913	-0.04096	-	-	-	-
8.58	2	-	0.63607	1.179986	-	-	-	-	0.671913	-0.04013	-	-	-	-
8.59	2	-	0.636071	1.179353	-	-	-	-	0.671913	-0.0393	-	-	-	-
8.6	2	-	0.636071	1.178722	-	-	-	-	0.671913	-0.03847	-	-	-	-
8.61	2	-	0.636071	1.178091	-	-	-	-	0.671913	-0.03765	-	-	-	-
8.62	2	-	0.63607	1.177462	-	-	-	-	0.671913	-0.03682	-	-	-	-
8.63	2	-	0.63607	1.176835	-	-	-	-	0.671913	-0.036	-	-	-	-
8.64	2	-	0.636071	1.176209	-	-	-	-	0.671913	-0.03518	-	-	-	-
8.65	2	-	0.636071	1.175585	-	-	-	-	0.671913	-0.03437	-	-	-	-
8.66	2	-	0.636071	1.174962	-	-	-	-	0.671913	-0.03355	-	-	-	-
8.67	2	-	0.63607	1.17434	-	-	-	-	0.671913	-0.03274	-	-	-	-
8.68	2	-	0.636071	1.17372	-	-	-	-	0.671913	-0.03192	-	-	-	-
8.69	2	-	0.636071	1.173101	-	-	-	-	0.671913	-0.03111	-	-	-	-
8.7	2	-	0.636071	1.172484	-	-	-	-	0.671913	-0.03031	-	-	-	-
8.71	2	-	0.63607	1.171868	-	-	-	-	0.671913	-0.0295	-	-	-	-
8.72	2	-	0.636071	1.171254	-	-	-	-	0.671913	-0.0287	-	-	-	-
8.73	2	-	0.63607	1.170641	-	-	-	-	0.671913	-0.02789	-	-	-	-
8.74	2	-	0.636071	1.170029	-	-	-	-	0.671913	-0.02709	-	-	-	-
8.75	2	-	0.636071	1.169419	-	-	-	-	0.671913	-0.02629	-	-	-	-
8.76	2	-	0.636071	1.16881	-	-	-	-	0.671913	-0.0255	-	-	-	-
8.77	2	-	0.636071	1.168203	-	-	-	-	0.671913	-0.0247	-	-	-	-
8.78	2	-	0.636071	1.167597	-	-	-	-	0.671913	-0.02391	-	-	-	-
8.79	2	-	0.636071	1.166992	-	-	-	-	0.671913	-0.02312	-	-	-	-
8.8	2	-	0.636071	1.166389	-	-	-	-	0.671913	-0.02233	-	-	-	-
8.81	2	-	0.636071	1.165787	-	-	-	-	0.671913	-0.02154	-	-	-	-
8.82	2	-	0.63607	1.165186	-	-	-	-	0.671913	-0.02075	-	-	-	-
8.83	2	-	0.636071	1.164587	-	-	-	-	0.671913	-0.01997	-	-	-	-
8.84	2	-	0.636071	1.163989	-	-	-	-	0.671913	-0.01919	-	-	-	-
8.85	2	-	0.636071	1.163392	-	-	-	-	0.671913	-0.0184	-	-	-	-
8.86	2	-	0.63607	1.162797	-	-	-	-	0.671913	-0.01763	-	-	-	-
8.87	2	-	0.636071	1.162203	-	-	-	-	0.671913	-0.01685	-	-	-	-
8.88	2	-	0.636071	1.161611	-	-	-	-	0.671913	-0.01607	-	-	-	-
8.89	2	-	0.63607	1.16102	-	-	-	-	0.671913	-0.0153	-	-	-	-
8.9	2	-	0.636071	1.16043	-	-	-	-	0.671913	-0.01453	-	-	-	-
8.91	2	-	0.636071	1.159841	-	-	-	-	0.671913	-0.01376	-	-	-	-
8.92	2	-	0.636071	1.159254	-	-	-	-	0.671913	-0.01299	-	-	-	-
8.93	2	-	0.63607	1.158668	-	-	-	-	0.671913	-0.01222	-	-	-	-
8.94	2	-	0.636071	1.158084	-	-	-	-	0.671913	-0.01146	-	-	-	-
8.95	2	-	0.636071	1.157501	-	-	-	-	0.671913	-0.01069	-	-	-	-
8.96	2	-	0.63607	1.156919	-	-	-	-	0.671913	-0.00993	-	-	-	-
8.97	2	-	0.636071	1.156338	-	-	-	-	0.671913	-0.00917	-	-	-	-
8.98	2	-	0.636071	1.155759	-	-	-	-	0.671913	-0.00841	-	-	-	-
8.99	2	-	0.636071	1.15518	-	-	-	-	0.671913	-0.00765	-	-	-	-
8.99	1	-	0.575744	1.154597	-	-	-	-	0.7229	-0.00689	-	-	-	-
9.01	1	-	0.575744	1.153954	-	-	-	-	0.7229	-0.00608	-	-	-	-
9.02	1	-	0.575744	1.153313	-	-	-	-	0.7229	-0.00528	-	-	-	-
9.03	1	-	0.575744	1.152674	-	-	-	-	0.7229	-0.00447	-	-	-	-
9.04	1	-	0.575744	1.152036	-	-	-	-	0.7229	-0.00366	-	-	-	-
9.05	1	-	0.575744	1.151399	-	-	-	-	0.7229	-0.00286	-	-	-	-
9.06	1	-	0.575744	1.150763	-	-	-	-	0.7229	-0.00206	-	-	-	-
9.07	1	-	0.575744	1.150129	-	-	-	-	0.7229	-0.00126	-	-	-	-
9.08	1	-	0.575744	1.149497	-	-	-	-	0.7229	-0.00046	-	-	-	-
9.08	0	-	0.495833	1.148841	-	-	-	-	0.795828	0.000355	-	-	-	-
9.1	0	-	0.495833	1.148123	-	-	-	-	0.795828	0.001229	-	-	-	-
9.11	0	-	0.495833	1.147407	-	-	-	-	0.795828	0.002101	-	-	-	-
9.12	0	-	0.495833	1.146693	-	-	-	-	0.795828	0.002971	-	-	-	-
9.13	0	-	0.495833	1.14598	-	-	-	-	0.795828	0.00384	-	-	-	-
9.14	0	-	0.495833	1.145269	-	-	-	-	0.795828	0.004706	-	-	-	-
9.15	0	-	0.495833	1.144559	-	-	-	-	0.795828	0.005571	-	-	-	-
9.16	0	-	0.495833	1.143851	-	-	-	-	0.795828	0.006433	-	-	-	-
9.17	0	-	0.495833	1.143144	-	-	-	-	0.795828	0.007294	-	-	-	-
9.18	0	-	0.495833	1.142439	-	-	-	-	0.795828	0.008153	-	-	-	-
9.19	0	-	0.495833	1.141735	-	-	-	-	0.795828	0.00901	-	-	-	-
9.2	0	-	0.495833	1.141033	-	-	-	-	0.795828	0.009866	-	-	-	-
9.21	0	-	0.495833	1.140333	-	-	-	-	0.795828	0.010719	-	-	-	-
9.22	0	-	0.495833	1.139634	-	-	-	-	0.795828	0.011571	-	-	-	-
9.23	0	-	0.495833	1.138936	-	-	-	-	0.795828	0.01242	-	-	-	-
9.24	0	-	0.495833	1.13824	-	-	-	-	0.795828	0.013268	-	-	-	-
9.25	0	-	0.495833	1.137546	-	-	-	-	0.795828	0.014114	-	-	-	-
9.26	0	-	0.495833	1.136853	-	-	-	-	0.795828	0.014958	-	-	-	-
9.27	0	-	0.495833	1.136161	-	-	-	-	0.795828	0.015801	-	-	-	-
9.28	0	-	0.495833	1.135471	-	-	-	-	0.795828	0.016641	-	-	-	-
9.29	0	-	0.495833	1.134783	-	-	-	-	0.795828	0.01748	-	-	-	-
9.3	0	-	0.495833	1.134096	-	-	-	-	0.795828	0.018317	-	-	-	-
9.31	0	-	0.495833	1.13341	-	-	-	-	0.795828	0.019152	-	-	-	-
9.32	0	-	0.495833	1.132726	-	-	-	-	0.795828	0.019985	-	-	-	-
9.33	0	-	0.495833	1.132043	-	-	-	-	0.795828	0.020817	-	-	-	-
9.34	0	-	0.495833	1.131362	-	-	-	-	0.795828	0.021647	-	-	-	-
9.35	0	-	0.495833	1.130682	-	-	-	-	0.795828	0.022475	-	-	-	-
9.36	0	-	0.495833	1.130004	-	-	-	-	0.795828	0.023301	-	-	-	-
9.37	0	-	0.495833	1.129327	-	-	-	-	0.795828	0.024125	-	-	-	-
9.38	0	-	0.495833	1.128652	-	-	-	-	0.795828	0.024948	-	-	-	-
9.39	0	-	0.495833	1.127978	-	-	-	-	0.795828	0.025769	-	-	-	-
9.4	0	-	0.495833	1.127306	-	-	-	-	0.795828	0.026588	-	-	-	-
9.41	0	-	0.495833	1.126635	-	-	-	-	0.795828	0.027406	-	-	-	-
9.42	0	-	0.495833	1.125965	-	-	-	-	0.795828	0.028221	-	-	-	-
9.43	0	-	0.495833	1.125297	-	-	-	-	0.795828	0.029035	-	-	-	-
9.44	0	-	0.495833	1.12463	-	-	-	-	0.795828	0.029848	-	-	-	-
9.45	0	-	0.495833	1.123965	-	-	-	-	0.795828	0.030658	-	-	-	-
9.46	0	-	0.495833	1.123301	-	-	-	-	0.795828	0.031467	-	-	-	-
9.47	0	-	0.495833	1.122638	-	-	-	-	0.795828	0.032274	-	-	-	-
9.48	0	-	0.495833	1.121977	-	-	-	-	0.795828	0.03308	-	-	-	-
9.49	0	-	0.495833	1.121317	-	-	-	-	0.795828	0.033883	-	-	-	-
9.5	0	-	0.495833	1.120659	-	-	-	-	0.795828	0.034685	-	-	-	-
9.51	0	-	0.495833	1.120002	-	-	-	-	0.795828	0.035486	-	-	-	-
9.52	0	-	0.495833	1.119346	-	-	-	-	0.795828	0.036285	-	-	-	-
9.53	0	-	0.495833	1.118692	-	-	-	-	0.795828	0.037082	-	-	-	-
9.54	0	-	0.495833	1.118039	-	-	-	-	0.795828	0.037877	-	-	-	-
9.55	0	-	0.495833	1.117387	-	-	-	-	0.795828	0.038671	-	-	-	-
9.56	0	-	0.495833	1.116737	-	-	-	-	0.795828	0.039463	-	-	-	-
9.57	0	-	0.495833	1.116088	-	-	-	-	0.795828	0.040253	-	-	-	-
9.58	0	-	0.495833	1.115441	-	-	-	-	0.795828	0.041042	-	-	-	-
9.59	0	-	0.495833	1.114795	-	-	-	-	0.795828	0.041829	-	-	-	-
9.6	0	-	0.495833	1.11415	-	-	-	-	0.795828	0.042614	-	-	-	-
9.61	0	-	0.495833	1.113507	-	-	-	-	0.795828	0.043398	-	-	-	-
9.62	0	-	0.495833	1.112864	-	-	-	-	0.795828	0.04418	-	-	-	-
9.63	0	-	0.495833	1.112224	-	-	-	-	0.795828	0.044961	-	-	-	-
9.64	0	-	0.495833	1.111584	-	-	-	-	0.795828	0.045739	-	-	-	-
9.65	0	-	0.495833	1.110946	-	-	-	-	0.795828	0.046517	-	-	-	-
9.66	0	-	0.495833	1.110309	-	-	-	-	0.795828	0.047292	-	-	-	-
9.67	0	-	0.495833	1.109674	-	-	-	-	0.795828	0.048066	-	-	-	-
9.68	0	-	0.495833	1.10904	-	-	-	-	0.795828	0.048839	-	-	-	-
9.69	0	-	0.495833	1.108407	-	-	-	-	0.795828	0.04961	-	-	-	-
9.7	0	-	0.495833	1.107776	-	-	-	-	0.795828	0.050379	-	-	-	-
9.71	0	-	0.495833	1.107145	-	-	-	-	0.795828	0.051147	-	-	-	-
9.72	0	-	0.495833	1.106516	-	-	-	-	0.795828	0.051913	-	-	-	-
9.73	0	-	0.495833	1.105889	-	-	-	-	0.795828	0.052678	-	-	-	-
9.74	0	-	0.495833	1.105262	-	-	-	-	0.795828	0.053441	-	-	-	-
9.75	0	-	0.495833	1.104637	-	-	-	-	0.795828	0.054202	-	-	-	-
9.76	0	-	0.495833	1.104014	-	-	-	-	0.795828	0.054962	-	-	-	-
9.77	0	-	0.495833	1.103391	-	-	-	-	0.795828	0.05572	-	-	-	-
9.78	0	-	0.495833	1.10277	-	-	-	-	0.795828	0.056477	-	-	-	-
9.79	0	-	0.495833	1.10215	-	-	-	-	0.795828	0.057232	-	-	-	-
9.8	0	-	0.495833	1.101531	-	-	-	-	0.795828	0.057986	-	-	-	-
9.81	0	-	0.495833	1.100914	-	-	-	-	0.795828	0.058738	-	-	-	-
9.82	0	-	0.495833	1.100298	-	-	-	-	0.795828	0.059489	-	-	-	-
9.83	0	-	0.495833	1.099683	-	-	-	-	0.795828	0.060238	-	-	-	-
9.84	0	-	0.495833	1.099069	-	-	-	-	0.795828	0.060985	-	-	-	-
9.85	0	-	0.495833	1.098457	-	-	-	-	0.795828	0.061731	-	-	-	-
9.86	0	-	0.495833	1.097845	-	-	-	-	0.795828	0.062476	-	-	-	-
9.87	0	-	0.495833	1.097235	-	-	-	-	0.795828	0.063219	-	-	-	-
9.88	0	-	0.495833	1.096627	-	-	-	-	0.795828	0.06396	-	-	-	-
9.89	0	-	0.495833	1.096019	-	-	-	-	0.795828	0.0647	-	-	-	-
9.9	0	-	0.495833	1.095413	-	-	-	-	0.795828	0.065439	-	-	-	-
9.91	0	-	0.495833	1.094808	-	-	-	-	0.795828	0.066176	-	-	-	-
9.92	0	-	0.495833	1.094204	-	-	-	-	0.795828	0.066911	-	-	-	-
9.93	0	-	0.495833	1.093602	-	-	-	-	0.795828	0.067645	-	-	-	-
9.94	0	-	0.495833	1.093	-	-	-	-	0.795828	0.068378	-	-	-	-
9.95	0	-	0.495833	1.0924	-	-	-	-	0.795828	0.069109	-	-	-	-
9.96	0	-	0.495833	1.091801	-	-	-	-	0.795828	0.069839	-	-	-	-
9.97	0	-	0.495833	1.091203	-	-	-	-	0.795828	0.070567	-	-	-	-
9.98	0	-	0.495833	1.090607	-	-	-	-	0.795828	0.071294	-	-	-	-
9.99	0	-	0.495833	1.090011	-	-	-	-	0.795828	0.072019	-	-	-	-
10	0	-	0.495833	1.089417	-	-	-	-	0.795828	0.072743	-	-	-	-



Figure 8. Responses to Alternative Implementation and Financing of the Government Spending Increase in the Workhorse Model

Data for Figure 8 - Inflation (APR)

QUARTER	Front-Load Lump-Sum	Front-Load Labor-Tax	8q Impl. Lag Lump-Sum	8q Impl. Lag Labor-Tax
1	0.113037	0.085924	0.053556	0.024397
2	0.188736	0.139326	0.099215	0.046085
3	0.232815	0.166735	0.135345	0.064311
4	0.251088	0.174003	0.161138	0.078319
5	0.249287	0.166381	0.176625	0.087649
6	0.23286	0.148519	0.182587	0.092243
7	0.206803	0.124435	0.180393	0.092439
8	0.175509	0.097487	0.171809	0.088903
9	0.142662	0.070353	0.158802	0.082522
10	0.111151	0.045037	0.143342	0.074299
11	0.082845	0.022777	0.126982	0.065099
12	0.058702	0.004151	0.11078	0.055577
13	0.038993	-0.01074	0.095363	0.046192
14	0.023536	-0.02211	0.081041	0.03724
15	0.011883	-0.03035	0.067914	0.028904
16	0.003466	-0.03592	0.055964	0.021294
17	-0.00231	-0.03928	0.045114	0.014472
18	-0.006	-0.04088	0.035276	0.008474
19	-0.00812	-0.04111	0.026367	0.003321
20	-0.00907	-0.04028	0.018324	-0.00097

Data for Figure 8 - Nominal Interest Rate (APR)

QUARTER	Front-Load Lump-Sum	Front-Load Labor-Tax	8q Impl. Lag Lump-Sum	8q Impl. Lag Labor-Tax
1	-3.47E-17	2.50E-16	0.00E+00	2.22E-16
2	0	-2.22E-16	0.00E+00	-2.22E-16
3	2.22E-16	0.00E+00	2.22E-16	4.44E-16
4	2.22E-16	-4.44E-16	6.66E-16	8.88E-16
5	6.66E-16	-2.22E-16	4.44E-16	1.11E-15
6	1.22E-15	6.66E-16	6.66E-16	8.88E-16
7	4.44E-16	7.77E-16	-1.11E-16	3.33E-16
8	0.011476	4.72E-16	5.11E-03	3.33E-16
9	0.154171	0.082663	0.173106	0.091253
10	0.206972	0.106546	0.264209	0.143525
11	0.207707	0.097578	0.304517	0.168796
12	0.182035	0.073083	0.313018	0.176141
13	0.146193	0.043833	0.302744	0.172072
14	0.109645	0.015942	0.282182	0.161075
15	0.077278	-0.00757	0.256579	0.146137
16	0.051088	-0.02563	0.22901	0.129208
17	0.031366	-0.03827	0.201173	0.11155
18	0.017508	-0.04609	0.173948	0.093983
19	0.008522	-0.0499	0.14777	0.077064
20	0.003325	-0.05058	0.122853	0.061186

Data for Figure 8 - Real Interest Rate (APR)

QUARTER	Front-Load Lump-Sum	Front-Load Labor-Tax	8q Impl. Lag Lump-Sum	8q Impl. Lag Labor-Tax
1	-1.89E-01	-1.39E-01	-9.92E-02	-4.61E-02
2	-2.33E-01	-1.67E-01	-1.35E-01	-6.43E-02
3	-2.51E-01	-1.74E-01	-1.61E-01	-7.83E-02
4	-2.49E-01	-1.66E-01	-1.77E-01	-8.76E-02
5	-2.33E-01	-1.49E-01	-1.83E-01	-9.22E-02
6	-2.07E-01	-1.24E-01	-1.80E-01	-9.24E-02
7	-1.76E-01	-9.75E-02	-1.72E-01	-8.89E-02
8	-1.31E-01	-7.04E-02	-1.54E-01	-8.25E-02
9	0.04302	0.037626	0.029764	0.016954
10	0.124127	0.08377	0.137227	0.078426
11	0.149005	0.093427	0.193737	0.113218
12	0.143041	0.083824	0.217655	0.129949
13	0.122657	0.065944	0.221703	0.134833
14	0.097761	0.046291	0.214268	0.13217
15	0.073812	0.028342	0.200615	0.124842
16	0.053396	0.013648	0.183896	0.114736
17	0.03737	0.002612	0.165896	0.103076
18	0.025626	-0.00498	0.147581	0.090662
19	0.017594	-0.00962	0.129446	0.078038
20	0.012538	-0.0119	0.11175	0.065592

Data for Figure 8 - Potential Real Interest Rate (APR)

QUARTER	Front-Load Lump-Sum	Front-Load Labor-Tax	8q Impl. Lag Lump-Sum	8q Impl. Lag Labor-Tax
1	3.56E+00	3.46E+00	-6.37E-01	-7.32E-01
2	1.16E+00	1.10E+00	-3.56E-01	-4.14E-01
3	4.71E-01	4.17E-01	-2.18E-01	-2.64E-01
4	2.49E-01	2.02E-01	-1.27E-01	-1.69E-01
5	1.62E-01	1.20E-01	-5.70E-02	-9.86E-02
6	1.18E-01	7.93E-02	3.51E-05	-4.28E-02
7	9.15E-02	5.43E-02	4.71E-02	1.98E-03
8	7.27E-02	3.69E-02	8.54E-02	3.76E-02
9	0.059094	0.024189	0.115985	0.065376
10	0.049052	0.014828	0.139425	0.08615
11	0.041651	0.00796	0.156379	0.100799
12	0.036226	0.00301	0.167451	0.110085
13	0.03228	-0.00045	0.173242	0.11472
14	0.029439	-0.00273	0.174353	0.115379
15	0.027414	-0.00408	0.171388	0.11271
16	0.025987	-0.0047	0.164948	0.107329
17	0.024992	-0.00471	0.155628	0.099825
18	0.024303	-0.00423	0.144012	0.090755
19	0.023826	-0.00335	0.130659	0.080638
20	0.023489	-0.00214	0.116104	0.069952

Data for Figure 8 - Output

QUARTER	Front-Load Lump-Sum	Front-Load Labor-Tax	8q Impl. Lag Lump-Sum	8q Impl. Lag Labor-Tax
1	1.05E+00	9.60E-01	1.17E-01	2.47E-02
2	9.50E-01	8.13E-01	2.19E-01	7.31E-02
3	8.30E-01	6.68E-01	2.92E-01	1.20E-01
4	6.94E-01	5.25E-01	3.31E-01	1.51E-01
5	5.50E-01	3.86E-01	3.36E-01	1.61E-01
6	4.08E-01	2.55E-01	3.10E-01	1.46E-01
7	2.72E-01	1.35E-01	2.59E-01	1.09E-01
8	1.50E-01	2.86E-02	1.89E-01	5.27E-02
9	0.046201	-0.06222	0.1087	-0.01837
10	-0.02844	-0.13165	0.034144	-0.09374
11	-0.07486	-0.18134	-0.02856	-0.16862
12	-0.09883	-0.21573	-0.07912	-0.24111
13	-0.10707	-0.2396	-0.11931	-0.31054
14	-0.10551	-0.257	-0.15134	-0.37664
15	-0.09873	-0.27091	-0.17712	-0.43918
16	-0.0899	-0.28333	-0.19802	-0.49781
17	-0.081	-0.2954	-0.21492	-0.55207
18	-0.07315	-0.30769	-0.22828	-0.60144
19	-0.06684	-0.32032	-0.2383	-0.6454
20	-0.06216	-0.33317	-0.24507	-0.68344

Data for Figure 8 - Govt Spending (trend GDP share)

QUARTER	Front-Load Lump-Sum	Front-Load Labor-Tax	8q Impl. Lag Lump-Sum	8q Impl. Lag Labor-Tax
1	1.00E+00	1.00E+00	2.35E-01	2.35E-01
2	9.00E-01	9.00E-01	4.40E-01	4.40E-01
3	8.10E-01	8.10E-01	6.14E-01	6.14E-01
4	0.729	0.729	0.754661	0.754661
5	6.56E-01	6.56E-01	8.63E-01	8.63E-01
6	0.59049	0.59049	0.938416	0.938416
7	0.531441	0.531441	0.983077	0.983077
8	0.478297	0.478297	0.998694	0.998694
9	0.430467	0.430467	0.987783	0.987783
10	0.38742	0.38742	0.953268	0.953268
11	0.348678	0.348678	0.898373	0.898373
12	0.313811	0.313811	0.826509	0.826509
13	0.28243	0.28243	0.741168	0.741168
14	0.254187	0.254187	0.645831	0.645831
15	0.228768	0.228768	0.543883	0.543883
16	0.205891	0.205891	0.438533	0.438533
17	0.185302	0.185302	0.332754	0.332754
18	0.166772	0.166772	0.229234	0.229234
19	0.150095	0.150095	0.130335	0.130335
20	0.135085	0.135085	0.038068	0.038068

Data for Figure 8 - Government Debt to Actual Output

QUARTER	Front-Load Lump-Sum	Front-Load Labor-Tax	8q Impl. Lag Lump-Sum	8q Impl. Lag Labor-Tax
1	-3.78E-01	1.64E-01	-1.68E-02	5.56E-02
2	-2.11E-01	3.12E-01	1.14E-02	1.56E-01
3	-4.98E-02	4.44E-01	8.69E-02	2.93E-01
4	0.109004	0.563099	0.208481	0.456537
5	2.66E-01	6.70E-01	3.72E-01	6.40E-01
6	0.421041	0.763984	0.571773	0.834283
7	0.57285	0.84665	0.800238	1.032828
8	0.719635	0.917419	1.049189	1.22809
9	0.860242	0.975947	1.310218	1.413257
10	1.004092	1.021348	1.588968	1.581573
11	1.138685	1.052863	1.866904	1.726947
12	1.258836	1.070115	2.132119	1.844274
13	1.363458	1.073143	2.377065	1.929577
14	1.453544	1.062351	2.597061	1.980053
15	1.530959	1.038419	2.789342	1.99404
16	1.597764	1.002217	2.952473	1.970964
17	1.655882	0.954737	3.08599	1.911246
18	1.706946	0.897036	3.190181	1.816205
19	1.752276	0.8302	3.265949	1.687946
20	1.792895	0.755316	3.314707	1.529246

Data for Figure 8 - Government Spending Multiplier

QUARTER	Front-Load Lump-Sum	Front-Load Labor-Tax	8q Impl. Lag Lump-Sum	8q Impl. Lag Labor-Tax
1	1.05E+00	9.60E-01	1.18E-01	2.47E-02
2	9.50E-01	8.13E-01	2.19E-01	7.32E-02
3	8.30E-01	6.68E-01	2.92E-01	1.20E-01
4	0.693716	0.524985	0.331411	0.151596
5	5.50E-01	3.86E-01	3.36E-01	1.61E-01
6	0.407626	0.255073	0.310603	0.146363
7	0.272307	0.135027	0.259457	0.109224
8	0.150134	0.028637	0.189654	0.052802
9	0.046201	-0.06222	0.108842	-0.0184
10	-0.02844	-0.13165	0.034189	-0.09386
11	-0.07486	-0.18134	-0.0286	-0.16884
12	-0.09883	-0.21573	-0.07922	-0.24143
13	-0.10707	-0.2396	-0.11946	-0.31094
14	-0.10551	-0.257	-0.15154	-0.37713
15	-0.09873	-0.27091	-0.17735	-0.43975
16	-0.0899	-0.28333	-0.19828	-0.49846
17	-0.081	-0.2954	-0.2152	-0.55279
18	-0.07315	-0.30769	-0.22858	-0.60223
19	-0.06684	-0.32032	-0.23862	-0.64624
20	-0.06216	-0.33317	-0.24539	-0.68433

Figure 9. Responses to a Front-Loaded Government Spending Hike in Model With Keynesian Agents and Financial Frictions and Workhorse Model

Data for Figure 9 - Inflation (APR)

QUARTER	ZLB Full Model	Normal Full Model	ZLB CEE/SW	Normal CEE/SW
1	1.72E-01	4.65E-02	1.13E-01	4.21E-02
2	2.87E-01	6.15E-02	1.89E-01	6.15E-02
3	3.52E-01	5.79E-02	2.33E-01	6.70E-02
4	3.75E-01	4.46E-02	2.51E-01	6.46E-02
5	3.66E-01	2.72E-02	2.49E-01	5.81E-02
6	3.31E-01	9.08E-03	2.33E-01	5.01E-02
7	2.81E-01	-7.92E-03	2.07E-01	4.19E-02
8	2.22E-01	-2.29E-02	1.76E-01	3.44E-02
9	1.61E-01	-3.56E-02	1.43E-01	2.80E-02
10	1.03E-01	-4.60E-02	1.11E-01	2.26E-02
11	5.10E-02	-5.44E-02	8.28E-02	1.85E-02
12	7.03E-03	-6.11E-02	5.87E-02	1.53E-02
13	-2.85E-02	-6.63E-02	3.90E-02	1.29E-02
14	-5.59E-02	-7.03E-02	2.35E-02	1.13E-02
15	-0.07626	-0.07337	0.011883	0.010149
16	-9.05E-02	-7.57E-02	3.47E-03	9.47E-03
17	-0.09989	-0.07738	-0.00231	0.009094
18	-0.10543	-0.07859	-0.006	0.008938
19	-0.1081	-0.0794	-0.00812	0.008923
20	-0.10873	-0.07989	-0.00907	0.008992

Data for Figure 9 - Nominal Interest Rate (APR)

QUARTER	ZLB Full Model	Normal Full Model	ZLB CEE/SW	Normal CEE/SW
1	1.25E-16	2.21E-01	-3.47E-17	1.39E-01
2	-8.88E-16	3.75E-01	0.00E+00	2.38E-01
3	-4.44E-16	4.34E-01	2.22E-16	2.79E-01
4	0.00E+00	4.26E-01	2.22E-16	2.79E-01
5	0.00E+00	3.80E-01	6.66E-16	2.56E-01
6	2.22E-16	3.18E-01	1.22E-15	2.21E-01
7	2.78E-16	2.53E-01	4.44E-16	1.84E-01
8	6.39E-03	1.93E-01	1.15E-02	1.50E-01
9	2.71E-01	1.40E-01	1.54E-01	1.20E-01
10	3.70E-01	9.66E-02	2.07E-01	9.50E-02
11	3.72E-01	6.09E-02	2.08E-01	7.56E-02
12	3.25E-01	3.22E-02	1.82E-01	6.08E-02
13	2.57E-01	9.01E-03	1.46E-01	4.99E-02
14	1.87E-01	-9.82E-03	1.10E-01	4.22E-02
15	0.123846	-0.02543	0.077278	0.036967
16	7.12E-02	-3.87E-02	5.11E-02	3.36E-02
17	0.029769	-0.05022	0.031366	0.031531
18	-0.00165	-0.06053	0.017508	0.030436
19	-0.02478	-0.06993	0.008522	0.029976
20	-0.04152	-0.07861	0.003325	0.029914

Data for Figure 9 - Real Interest Rate (APR)

QUARTER	ZLB Full Model	Normal Full Model	ZLB CEE/SW	Normal CEE/SW
1	-2.87E-01	1.59E-01	-1.89E-01	7.73E-02
2	-3.52E-01	3.17E-01	-2.33E-01	1.71E-01
3	-3.75E-01	3.90E-01	-2.51E-01	2.15E-01
4	-3.66E-01	3.99E-01	-2.49E-01	2.21E-01
5	-3.31E-01	3.71E-01	-2.33E-01	2.06E-01
6	-2.81E-01	3.26E-01	-2.07E-01	1.79E-01
7	-2.22E-01	2.76E-01	-1.76E-01	1.50E-01
8	-1.55E-01	2.28E-01	-1.31E-01	1.22E-01
9	1.68E-01	1.86E-01	4.30E-02	9.70E-02
10	3.19E-01	1.51E-01	1.24E-01	7.66E-02
11	3.65E-01	1.22E-01	1.49E-01	6.03E-02
12	3.53E-01	9.84E-02	1.43E-01	4.79E-02
13	3.13E-01	7.93E-02	1.23E-01	3.87E-02
14	2.63E-01	6.35E-02	9.78E-02	3.21E-02
15	0.21437	0.050248	0.073812	0.0275
16	1.71E-01	3.87E-02	5.34E-02	2.45E-02
17	0.135194	0.02837	0.03737	0.022593
18	0.106453	0.01887	0.025626	0.021513
19	0.083954	0.009958	0.017594	0.020985
20	0.066448	0.001494	0.012538	0.020815

Data for Figure 9 - Potential Interest Rate (APR)

QUARTER	ZLB Full Model	Normal Full Model	ZLB CEE/SW	Normal CEE/SW
1	5.98E+00	5.98E+00	3.56E+00	3.56E+00
2	2.02E+00	2.02E+00	1.16E+00	1.16E+00
3	8.24E-01	8.24E-01	4.71E-01	4.71E-01
4	4.06E-01	4.06E-01	2.49E-01	2.49E-01
5	2.22E-01	2.22E-01	1.62E-01	1.62E-01
6	1.20E-01	1.20E-01	1.18E-01	1.18E-01
7	5.47E-02	5.47E-02	9.15E-02	9.15E-02
8	9.69E-03	9.69E-03	7.27E-02	7.27E-02
9	-2.22E-02	-2.22E-02	5.91E-02	5.91E-02
10	-4.51E-02	-4.51E-02	4.91E-02	4.91E-02
11	-6.16E-02	-6.16E-02	4.17E-02	4.17E-02
12	-7.36E-02	-7.36E-02	3.62E-02	3.62E-02
13	-8.26E-02	-8.26E-02	3.23E-02	3.23E-02
14	-8.95E-02	-8.95E-02	2.94E-02	2.94E-02
15	-0.09498	-0.09498	0.027414	0.027414
16	-9.95E-02	-9.95E-02	2.60E-02	2.60E-02
17	-0.10338	-0.10338	0.024992	0.024992
18	-0.10677	-0.10677	0.024303	0.024303
19	-0.10977	-0.10977	0.023826	0.023826
20	-0.11239	-0.11239	0.023489	0.023489

Data for Figure 9 - Output

QUARTER	ZLB Full Model	Normal Full Model	ZLB CEE/SW	Normal CEE/SW
1	1.58E+00	1.08E+00	1.05E+00	7.49E-01
2	1.51E+00	6.76E-01	9.50E-01	4.86E-01
3	1.37E+00	3.83E-01	8.30E-01	2.99E-01
4	1.19E+00	1.79E-01	6.94E-01	1.70E-01
5	9.71E-01	4.22E-02	5.50E-01	8.31E-02
6	7.43E-01	-4.62E-02	4.08E-01	2.61E-02
7	5.18E-01	-1.01E-01	2.72E-01	-1.04E-02
8	3.10E-01	-1.33E-01	1.50E-01	-3.31E-02
9	1.31E-01	-1.51E-01	4.62E-02	-4.71E-02
10	1.57E-03	-1.59E-01	-2.84E-02	-5.56E-02
11	-7.75E-02	-1.61E-01	-7.49E-02	-6.09E-02
12	-1.15E-01	-1.59E-01	-9.88E-02	-6.43E-02
13	-1.24E-01	-1.55E-01	-1.07E-01	-6.68E-02
14	-1.15E-01	-1.49E-01	-1.06E-01	-6.88E-02
15	-0.09551	-0.14256	-0.09873	-0.07056
16	-7.20E-02	-1.35E-01	-8.99E-02	-7.22E-02
17	-0.04814	-0.12582	-0.081	-0.07379
18	-0.02599	-0.11615	-0.07315	-0.07527
19	-0.00648	-0.10571	-0.06684	-0.07661
20	0.010198	-0.09459	-0.06216	-0.07778

Data for Figure 9 - Govt Spending (trend GDP share)

QUARTER	ZLB Full Model	Normal Full Model	ZLB CEE/SW	Normal CEE/SW
1	1	1	1	1
2	0.9	0.9	0.9	0.9
3	0.81	0.81	0.81	0.81
4	0.729	0.729	0.729	0.729
5	0.6561	0.6561	0.6561	0.6561
6	0.59049	0.59049	0.59049	0.59049
7	0.531441	0.531441	0.531441	0.531441
8	0.478297	0.478297	0.478297	0.478297
9	0.430467	0.430467	0.430467	0.430467
10	0.38742	0.38742	0.38742	0.38742
11	0.348678	0.348678	0.348678	0.348678
12	0.313811	0.313811	0.313811	0.313811
13	0.28243	0.28243	0.28243	0.28243
14	0.254187	0.254187	0.254187	0.254187
15	0.228768	0.228768	0.228768	0.228768
16	0.205891	0.205891	0.205891	0.205891
17	0.185302	0.185302	0.185302	0.185302
18	0.166772	0.166772	0.166772	0.166772
19	0.150095	0.150095	0.150095	0.150095
20	0.135085	0.135085	0.135085	0.135085

Data for Figure 9 - Government Debt to Actual Output

QUARTER	ZLB Full Model	Normal Full Model	ZLB CEE/SW	Normal CEE/SW
1	-0.70416	-0.39777	-0.37828	-0.19478
2	-0.61996	-0.02163	-0.21129	0.130146
3	-0.52345	0.310157	-0.04976	0.42306
4	-0.41193	0.591451	0.109004	0.684213
5	-0.28603	0.819978	0.266028	0.914872
6	-0.14896	0.996974	0.421041	1.117513
7	-0.00578	1.125765	0.57285	1.295255
8	0.137148	1.21062	0.719635	1.451348
9	0.273358	1.256033	0.860242	1.588863
10	0.419342	1.266348	1.004092	1.710536
11	0.548564	1.245602	1.138685	1.818714
12	0.64905	1.197493	1.258836	1.915366
13	0.717237	1.125415	1.363458	2.002122
14	0.754046	1.032513	1.453544	2.080317
15	0.762496	0.921745	1.530959	2.151048
16	0.746342	0.795927	1.597764	2.215212
17	0.709362	0.657773	1.655882	2.273551
18	0.655036	0.509918	1.706946	2.326679
19	0.586443	0.354931	1.752276	2.375112
20	0.506271	0.195315	1.792895	2.419285

Data for Figure 9 - Government Spending Multiplier

QUARTER	ZLB Full Model	Normal Full Model	ZLB CEE/SW	Normal CEE/SW
1	1.580021	1.083123	1.046214	0.749362
2	1.510595	0.67604	0.949971	0.486282
3	1.373604	0.382809	0.829715	0.29939
4	1.187537	0.178943	0.693716	0.170135
5	0.971264	0.042181	0.550396	0.083125
6	0.742669	-0.04622	0.407626	0.026081
7	0.517741	-0.10101	0.272307	-0.01038
8	0.31007	-0.13319	0.150134	-0.03314
9	0.130967	-0.15062	0.046201	-0.0471
10	0.001575	-0.15863	-0.02844	-0.05561
11	-0.07745	-0.16073	-0.07486	-0.06088
12	-0.1155	-0.15911	-0.09883	-0.06432
13	-0.1244	-0.1551	-0.10707	-0.06679
14	-0.11494	-0.14945	-0.10551	-0.06879
15	-0.09551	-0.14256	-0.09873	-0.07056
16	-0.07201	-0.13464	-0.0899	-0.07222
17	-0.04814	-0.12582	-0.081	-0.07379
18	-0.02599	-0.11615	-0.07315	-0.07527
19	-0.00648	-0.10571	-0.06684	-0.07661
20	0.010198	-0.09459	-0.06216	-0.07778

Figure 10. Spending Multipliers and Government Deficit Responses in Full Model With Keynesian Agents and Financial Frictions

Data for Figure 10

% Change in Govt Spend (Share of GDP)	Benchmark Calibration (11 quarter liquidity trap): ZLB duration	More flexible p and w Calibration (8 quarter liquidity trap): ZLB duration	Government Spending Multiplier:  Benchmark Calibration (11 quarter liquidity trap): Marginal multiplier	Government Spending Multiplier:  Benchmark Calibration (11 quarter liquidity trap): Average multiplier	Government Spending Multiplier:  Benchmark Calibration (8 quarter liquidity trap)	Government Spending Multiplier:  More flexible p and w (8 quarter liquidity trap)	Government Spending Multiplier:  Looser policy rule (8 quarter liquidity trap)	Governement Debt to Actual GDP:  Benchmark Calibration (11 quarter liquidity trap): Marginal response	Governement Debt to Actual GDP:  Benchmark Calibration (11 quarter liquidity trap): Average response	Governement Debt to Actual GDP:  Benchmark Calibration (8 quarter liquidity trap)	Governement Debt to Actual GDP:  More flexible p and w (8 quarter liquidity trap)	Governement Debt to Actual GDP:  Looser policy rule (8 quarter liquidity trap)
0.01	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.02	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.03	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.04	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.05	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.06	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.07	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.08	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.09	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.1	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.11	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.12	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.13	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.14	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.15	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.16	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.17	10	8	3.96858	3.96858	1.65078	10.10655	2.368246	-3.12708	-3.12708	-0.48743	-11.7289	-1.30624
0.18	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.19	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.2	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.21	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.22	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.23	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.24	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.25	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.26	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.27	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.28	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.29	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.3	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.31	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.32	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.33	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.34	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.35	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.36	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.37	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.38	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.39	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.4	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.41	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.42	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.43	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.44	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.45	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.46	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.47	10	7	3.96858	3.96858	1.65078	2.397088	2.368246	-3.12708	-3.12708	-0.48743	-1.67373	-1.30624
0.47	9	7	2.17025	3.943065	1.65078	2.397088	2.368246	-1.07775	-3.098	-0.48743	-1.67373	-1.30624
0.49	9	7	2.17025	3.906885	1.65078	2.397088	2.368246	-1.07775	-3.05677	-0.48743	-1.67373	-1.30624
0.5	9	7	2.17025	3.872153	1.65078	2.397088	2.368246	-1.07775	-3.01719	-0.48743	-1.67373	-1.30624
0.51	9	7	2.17025	3.838782	1.65078	2.397088	2.368246	-1.07775	-2.97916	-0.48743	-1.67373	-1.30624
0.52	9	7	2.17025	3.806695	1.65078	2.397088	2.368246	-1.07775	-2.9426	-0.48743	-1.67373	-1.30624
0.53	9	7	2.17025	3.775819	1.65078	2.397088	2.368246	-1.07775	-2.90741	-0.48743	-1.67373	-1.30624
0.54	9	7	2.17025	3.746086	1.65078	2.397088	2.368246	-1.07775	-2.87353	-0.48743	-1.67373	-1.30624
0.55	9	7	2.17025	3.717434	1.65078	2.397088	2.368246	-1.07775	-2.84088	-0.48743	-1.67373	-1.30624
0.56	9	7	2.17025	3.689806	1.65078	2.397088	2.368246	-1.07775	-2.8094	-0.48743	-1.67373	-1.30624
0.57	9	7	2.17025	3.663147	1.65078	2.397088	2.368246	-1.07775	-2.77902	-0.48743	-1.67373	-1.30624
0.58	9	7	2.17025	3.637407	1.65078	2.397088	2.368246	-1.07775	-2.74968	-0.48743	-1.67373	-1.30624
0.59	9	7	2.17025	3.61254	1.65078	2.397088	2.368246	-1.07775	-2.72135	-0.48743	-1.67373	-1.30624
0.6	9	7	2.17025	3.588502	1.65078	2.397088	2.368246	-1.07775	-2.69395	-0.48743	-1.67373	-1.30624
0.61	9	7	2.17025	3.565252	1.65078	2.397088	2.368246	-1.07775	-2.66746	-0.48743	-1.67373	-1.30624
0.62	9	7	2.17025	3.542752	1.65078	2.397088	2.368246	-1.07775	-2.64182	-0.48743	-1.67373	-1.30624
0.63	9	7	2.17025	3.520966	1.65078	2.397088	2.368246	-1.07775	-2.61699	-0.48743	-1.67373	-1.30624
0.64	9	7	2.17025	3.499861	1.65078	2.397088	2.368246	-1.07775	-2.59294	-0.48743	-1.67373	-1.30624
0.65	9	7	2.17025	3.479406	1.65078	2.397088	2.368246	-1.07775	-2.56963	-0.48743	-1.67373	-1.30624
0.66	9	7	2.17025	3.45957	1.65078	2.397088	2.368246	-1.07775	-2.54703	-0.48743	-1.67373	-1.30624
0.67	9	7	2.17025	3.440327	1.65078	2.397088	2.368246	-1.07775	-2.5251	-0.48743	-1.67373	-1.30624
0.68	9	7	2.17025	3.421649	1.65078	2.397088	2.368246	-1.07775	-2.50381	-0.48743	-1.67373	-1.30624
0.69	9	7	2.17025	3.403513	1.65078	2.397088	1.721244	-1.07775	-2.48314	-0.48743	-1.67373	-0.56878
0.7	9	7	2.17025	3.385895	1.65078	2.397088	1.721244	-1.07775	-2.46307	-0.48743	-1.67373	-0.56878
0.71	9	7	2.17025	3.368773	1.65078	2.397088	1.721244	-1.07775	-2.44356	-0.48743	-1.67373	-0.56878
0.72	9	7	2.17025	3.352127	1.65078	2.397088	1.721244	-1.07775	-2.42459	-0.48743	-1.67373	-0.56878
0.73	9	7	2.17025	3.335937	1.65078	2.397088	1.721244	-1.07775	-2.40614	-0.48743	-1.67373	-0.56878
0.74	9	7	2.17025	3.320184	1.65078	2.397088	1.721244	-1.07775	-2.38819	-0.48743	-1.67373	-0.56878
0.75	9	7	2.17025	3.304852	1.65078	2.397088	1.721244	-1.07775	-2.37071	-0.48743	-1.67373	-0.56878
0.76	9	7	2.17025	3.289923	1.65078	2.397088	1.721244	-1.07775	-2.3537	-0.48743	-1.67373	-0.56878
0.77	9	7	2.17025	3.275382	1.65078	2.397088	1.721244	-1.07775	-2.33713	-0.48743	-1.67373	-0.56878
0.78	9	7	2.17025	3.261213	1.65078	2.397088	1.721244	-1.07775	-2.32098	-0.48743	-1.67373	-0.56878
0.79	9	7	2.17025	3.247404	1.65078	2.397088	1.721244	-1.07775	-2.30525	-0.48743	-1.67373	-0.56878
0.8	9	7	2.17025	3.233939	1.65078	2.397088	1.721244	-1.07775	-2.2899	-0.48743	-1.67373	-0.56878
0.81	9	7	2.17025	3.220807	1.65078	2.397088	1.721244	-1.07775	-2.27494	-0.48743	-1.67373	-0.56878
0.82	9	7	2.17025	3.207995	1.65078	2.397088	1.721244	-1.07775	-2.26034	-0.48743	-1.67373	-0.56878
0.83	9	7	2.17025	3.195493	1.65078	2.397088	1.721244	-1.07775	-2.24609	-0.48743	-1.67373	-0.56878
0.84	9	7	2.17025	3.183287	1.65078	2.397088	1.721244	-1.07775	-2.23218	-0.48743	-1.67373	-0.56878
0.85	9	7	2.17025	3.171369	1.65078	2.397088	1.721244	-1.07775	-2.2186	-0.48743	-1.67373	-0.56878
0.86	9	7	2.17025	3.159728	1.65078	2.397088	1.721244	-1.07775	-2.20533	-0.48743	-1.67373	-0.56878
0.87	9	7	2.17025	3.148355	1.65078	2.397088	1.721244	-1.07775	-2.19237	-0.48743	-1.67373	-0.56878
0.88	9	7	2.17025	3.13724	1.65078	2.397088	1.721244	-1.07775	-2.17971	-0.48743	-1.67373	-0.56878
0.89	9	7	2.17025	3.126375	1.65078	2.397088	1.721244	-1.07775	-2.16733	-0.48743	-1.67373	-0.56878
0.9	9	7	2.17025	3.115751	1.65078	2.397088	1.721244	-1.07775	-2.15522	-0.48743	-1.67373	-0.56878
0.91	9	7	2.17025	3.105361	1.65078	2.397088	1.721244	-1.07775	-2.14338	-0.48743	-1.67373	-0.56878
0.92	9	7	2.17025	3.095197	1.65078	2.397088	1.721244	-1.07775	-2.1318	-0.48743	-1.67373	-0.56878
0.93	9	7	2.17025	3.085251	1.65078	2.397088	1.721244	-1.07775	-2.12046	-0.48743	-1.67373	-0.56878
0.94	9	7	2.17025	3.075517	1.65078	2.397088	1.721244	-1.07775	-2.10937	-0.48743	-1.67373	-0.56878
0.95	9	7	2.17025	3.065988	1.65078	2.397088	1.721244	-1.07775	-2.09851	-0.48743	-1.67373	-0.56878
0.96	9	7	2.17025	3.056658	1.65078	2.397088	1.721244	-1.07775	-2.08788	-0.48743	-1.67373	-0.56878
0.97	9	7	2.17025	3.047519	1.65078	2.397088	1.721244	-1.07775	-2.07746	-0.48743	-1.67373	-0.56878
0.98	9	7	2.17025	3.038568	1.443713	2.397088	1.721244	-1.07775	-2.06726	-0.18919	-1.67373	-0.56878
0.99	9	7	2.17025	3.029797	1.386845	2.397088	1.721244	-1.07775	-2.05727	-0.18919	-1.67373	-0.56878
1	9	7	2.17025	3.021201	1.386845	2.397088	1.721244	-1.07775	-2.04747	-0.18919	-1.67373	-0.56878
1.01	9	7	2.17025	3.012776	1.386845	2.397088	1.721244	-1.07775	-2.03787	-0.18919	-1.67373	-0.56878
1.02	9	7	2.17025	3.004516	1.386845	2.397088	1.721244	-1.07775	-2.02846	-0.18919	-1.67373	-0.56878
1.03	9	7	2.17025	2.996416	1.386845	2.397088	1.721244	-1.07775	-2.01923	-0.18919	-1.67373	-0.56878
1.04	9	7	2.17025	2.988472	1.386845	2.397088	1.721244	-1.07775	-2.01018	-0.18919	-1.67373	-0.56878
1.05	9	7	2.17025	2.98068	1.386845	2.397088	1.721244	-1.07775	-2.0013	-0.18919	-1.67373	-0.56878
1.06	9	7	2.17025	2.973034	1.386845	2.397088	1.721244	-1.07775	-1.99258	-0.18919	-1.67373	-0.56878
1.07	9	7	2.17025	2.965532	1.386845	2.397088	1.721244	-1.07775	-1.98403	-0.18919	-1.67373	-0.56878
1.08	9	7	2.17025	2.958168	1.386845	2.397088	1.721244	-1.07775	-1.97564	-0.18919	-1.67373	-0.56878
1.09	9	7	2.17025	2.950939	1.386845	2.397088	1.721244	-1.07775	-1.9674	-0.18919	-1.67373	-0.56878
1.1	9	7	2.17025	2.943842	1.386845	2.397088	1.721244	-1.07775	-1.95932	-0.18919	-1.67373	-0.56878
1.11	9	6	2.17025	2.936873	1.386845	1.591686	1.721244	-1.07775	-1.95137	-0.18919	-0.62728	-0.56878
1.12	9	6	2.17025	2.930028	1.386845	1.591686	1.721244	-1.07775	-1.94357	-0.18919	-0.62728	-0.56878
1.13	9	6	2.17025	2.923304	1.386845	1.591686	1.721244	-1.07775	-1.93591	-0.18919	-0.62728	-0.56878
1.14	9	6	2.17025	2.916698	1.386845	1.591686	1.721244	-1.07775	-1.92838	-0.18919	-0.62728	-0.56878
1.15	9	6	2.17025	2.910208	1.386845	1.591686	1.721244	-1.07775	-1.92099	-0.18919	-0.62728	-0.56878
1.16	9	6	2.17025	2.903829	1.386845	1.591686	1.721244	-1.07775	-1.91372	-0.18919	-0.62728	-0.56878
1.17	9	6	2.17025	2.897559	1.386845	1.591686	1.721244	-1.07775	-1.90657	-0.18919	-0.62728	-0.56878
1.18	9	6	2.17025	2.891395	1.386845	1.591686	1.721244	-1.07775	-1.89955	-0.18919	-0.62728	-0.56878
1.19	9	6	2.17025	2.885335	1.386845	1.591686	1.721244	-1.07775	-1.89264	-0.18919	-0.62728	-0.56878
1.2	9	6	2.17025	2.879376	1.386845	1.591686	1.721244	-1.07775	-1.88585	-0.18919	-0.62728	-0.56878
1.21	9	6	2.17025	2.873515	1.386845	1.591686	1.721244	-1.07775	-1.87917	-0.18919	-0.62728	-0.56878
1.22	9	6	2.17025	2.867751	1.386845	1.591686	1.721244	-1.07775	-1.87261	-0.18919	-0.62728	-0.56878
1.23	9	6	2.17025	2.86208	1.386845	1.591686	1.721244	-1.07775	-1.86614	-0.18919	-0.62728	-0.56878
1.24	9	6	2.17025	2.856501	1.386845	1.591686	1.721244	-1.07775	-1.85979	-0.18919	-0.62728	-0.56878
1.25	9	6	2.17025	2.851011	1.386845	1.591686	1.721244	-1.07775	-1.85353	-0.18919	-0.62728	-0.56878
1.26	9	6	2.17025	2.845608	1.386845	1.591686	1.721244	-1.07775	-1.84737	-0.18919	-0.62728	-0.56878
1.27	9	6	2.17025	2.84029	1.386845	1.591686	1.721244	-1.07775	-1.84131	-0.18919	-0.62728	-0.56878
1.28	9	6	2.17025	2.835056	1.386845	1.591686	1.721244	-1.07775	-1.83535	-0.18919	-0.62728	-0.56878
1.29	9	6	2.17025	2.829902	1.386845	1.591686	1.721244	-1.07775	-1.82947	-0.18919	-0.62728	-0.56878
1.3	9	6	2.17025	2.824828	1.386845	1.591686	1.721244	-1.07775	-1.82369	-0.18919	-0.62728	-0.56878
1.31	9	6	2.17025	2.819831	1.386845	1.591686	1.721244	-1.07775	-1.818	-0.18919	-0.62728	-0.56878
1.32	9	6	2.17025	2.81491	1.386845	1.591686	1.721244	-1.07775	-1.81239	-0.18919	-0.62728	-0.56878
1.33	9	6	2.17025	2.810063	1.386845	1.591686	1.721244	-1.07775	-1.80687	-0.18919	-0.62728	-0.56878
1.34	9	6	2.17025	2.805288	1.386845	1.591686	1.721244	-1.07775	-1.80142	-0.18919	-0.62728	-0.56878
1.35	9	6	2.17025	2.800584	1.386845	1.591686	1.721244	-1.07775	-1.79606	-0.18919	-0.62728	-0.56878
1.36	9	6	2.17025	2.795949	1.386845	1.591686	1.721244	-1.07775	-1.79078	-0.18919	-0.62728	-0.56878
1.37	9	6	2.17025	2.791382	1.386845	1.591686	1.721244	-1.07775	-1.78558	-0.18919	-0.62728	-0.56878
1.38	9	6	2.17025	2.786881	1.386845	1.591686	1.721244	-1.07775	-1.78045	-0.18919	-0.62728	-0.56878
1.39	9	6	2.17025	2.782445	1.386845	1.591686	1.721244	-1.07775	-1.77539	-0.18919	-0.62728	-0.56878
1.4	9	6	2.17025	2.778072	1.386845	1.591686	1.721244	-1.07775	-1.77041	-0.18919	-0.62728	-0.56878
1.41	9	6	2.17025	2.773761	1.386845	1.591686	1.721244	-1.07775	-1.7655	-0.18919	-0.62728	-0.56878
1.42	9	6	2.17025	2.769511	1.386845	1.591686	1.721244	-1.07775	-1.76065	-0.18919	-0.62728	-0.56878
1.43	9	6	2.17025	2.765321	1.386845	1.591686	1.721244	-1.07775	-1.75588	-0.18919	-0.62728	-0.56878
1.43	8	6	1.65078	2.759099	1.386845	1.591686	1.721244	-0.48743	-1.7488	-0.18919	-0.62728	-0.56878
1.45	8	6	1.65078	2.751455	1.386845	1.591686	1.721244	-0.48743	-1.7401	-0.18919	-0.62728	-0.56878
1.46	8	6	1.65078	2.743917	1.386845	1.591686	1.721244	-0.48743	-1.73152	-0.18919	-0.62728	-0.56878
1.47	8	6	1.65078	2.73648	1.386845	1.591686	1.721244	-0.48743	-1.72305	-0.18919	-0.62728	-0.56878
1.48	8	6	1.65078	2.729144	1.386845	1.591686	1.721244	-0.48743	-1.7147	-0.18919	-0.62728	-0.56878
1.49	8	6	1.65078	2.721907	1.386845	1.591686	1.721244	-0.48743	-1.70647	-0.18919	-0.62728	-0.56878
1.5	8	6	1.65078	2.714766	1.386845	1.591686	1.721244	-0.48743	-1.69834	-0.18919	-0.62728	-0.56878
1.51	8	6	1.65078	2.70772	1.386845	1.591686	1.721244	-0.48743	-1.69032	-0.18919	-0.62728	-0.56878
1.52	8	6	1.65078	2.700766	1.386845	1.591686	1.721244	-0.48743	-1.68241	-0.18919	-0.62728	-0.56878
1.53	8	6	1.65078	2.693904	1.386845	1.591686	1.721244	-0.48743	-1.6746	-0.18919	-0.62728	-0.56878
1.54	8	6	1.65078	2.68713	1.386845	1.591686	1.721244	-0.48743	-1.66689	-0.18919	-0.62728	-0.56878
1.55	8	6	1.65078	2.680444	1.386845	1.591686	1.721244	-0.48743	-1.65928	-0.18919	-0.62728	-0.56878
1.56	8	6	1.65078	2.673844	1.386845	1.591686	1.721244	-0.48743	-1.65177	-0.18919	-0.62728	-0.56878
1.57	8	6	1.65078	2.667327	1.386845	1.591686	1.721244	-0.48743	-1.64435	-0.18919	-0.62728	-0.56878
1.58	8	6	1.65078	2.660894	1.386845	1.591686	1.721244	-0.48743	-1.63703	-0.18919	-0.62728	-0.56878
1.59	8	6	1.65078	2.654541	1.386845	1.591686	1.721244	-0.48743	-1.6298	-0.18919	-0.62728	-0.56878
1.6	8	6	1.65078	2.648267	1.386845	1.591686	1.721244	-0.48743	-1.62266	-0.18919	-0.62728	-0.56878
1.61	8	6	1.65078	2.642072	1.386845	1.591686	1.721244	-0.48743	-1.61561	-0.18919	-0.62728	-0.56878
1.62	8	6	1.65078	2.635952	1.386845	1.591686	1.721244	-0.48743	-1.60864	-0.18919	-0.62728	-0.56878
1.63	8	6	1.65078	2.629908	1.386845	1.591686	1.721244	-0.48743	-1.60177	-0.18919	-0.62728	-0.56878
1.64	8	6	1.65078	2.623938	1.386845	1.591686	1.721244	-0.48743	-1.59497	-0.18919	-0.62728	-0.56878
1.65	8	6	1.65078	2.61804	1.386845	1.591686	1.721244	-0.48743	-1.58826	-0.18919	-0.62728	-0.56878
1.66	8	6	1.65078	2.612213	1.386845	1.591686	1.721244	-0.48743	-1.58163	-0.18919	-0.62728	-0.56878
1.67	8	6	1.65078	2.606456	1.386845	1.591686	1.721244	-0.48743	-1.57507	-0.18919	-0.62728	-0.56878
1.68	8	6	1.65078	2.600768	1.386845	1.591686	1.721244	-0.48743	-1.5686	-0.18919	-0.62728	-0.56878
1.69	8	6	1.65078	2.595146	1.386845	1.591686	1.721244	-0.48743	-1.5622	-0.18919	-0.62728	-0.56878
1.7	8	6	1.65078	2.589591	1.386845	1.591686	1.721244	-0.48743	-1.55588	-0.18919	-0.62728	-0.56878
1.71	8	6	1.65078	2.584101	1.386845	1.591686	1.721244	-0.48743	-1.54963	-0.18919	-0.62728	-0.56878
1.72	8	6	1.65078	2.578675	1.386845	1.591686	1.721244	-0.48743	-1.54346	-0.18919	-0.62728	-0.56878
1.73	8	6	1.65078	2.573311	1.386845	1.591686	1.721244	-0.48743	-1.53735	-0.18919	-0.62728	-0.56878
1.74	8	6	1.65078	2.568009	1.386845	1.591686	1.721244	-0.48743	-1.53132	-0.18919	-0.62728	-0.56878
1.75	8	6	1.65078	2.562768	1.386845	1.591686	1.721244	-0.48743	-1.52535	-0.18919	-0.62728	-0.56878
1.76	8	6	1.65078	2.557586	1.386845	1.591686	1.435805	-0.48743	-1.51946	-0.18919	-0.62728	-0.24523
1.77	8	6	1.65078	2.552463	1.386845	1.591686	1.435805	-0.48743	-1.51363	-0.18919	-0.62728	-0.24523
1.78	8	6	1.65078	2.547398	1.386845	1.591686	1.435805	-0.48743	-1.50786	-0.18919	-0.62728	-0.24523
1.79	8	6	1.65078	2.542389	1.386845	1.591686	1.435805	-0.48743	-1.50216	-0.18919	-0.62728	-0.24523
1.8	8	6	1.65078	2.537435	1.386845	1.591686	1.435805	-0.48743	-1.49652	-0.18919	-0.62728	-0.24523
1.81	8	6	1.65078	2.532537	1.386845	1.591686	1.435805	-0.48743	-1.49095	-0.18919	-0.62728	-0.24523
1.82	8	6	1.65078	2.527692	1.386845	1.591686	1.435805	-0.48743	-1.48543	-0.18919	-0.62728	-0.24523
1.83	8	6	1.65078	2.5229	1.386845	1.591686	1.435805	-0.48743	-1.47998	-0.18919	-0.62728	-0.24523
1.84	8	6	1.65078	2.51816	1.386845	1.591686	1.435805	-0.48743	-1.47459	-0.18919	-0.62728	-0.24523
1.85	8	6	1.65078	2.513472	1.386845	1.591686	1.435805	-0.48743	-1.46925	-0.18919	-0.62728	-0.24523
1.86	8	6	1.65078	2.508833	1.386845	1.591686	1.435805	-0.48743	-1.46397	-0.18919	-0.62728	-0.24523
1.87	8	6	1.65078	2.504245	1.386845	1.591686	1.435805	-0.48743	-1.45875	-0.18919	-0.62728	-0.24523
1.88	8	6	1.65078	2.499705	1.386845	1.591686	1.435805	-0.48743	-1.45358	-0.18919	-0.62728	-0.24523
1.89	8	6	1.65078	2.495213	1.386845	1.591686	1.435805	-0.48743	-1.44847	-0.18919	-0.62728	-0.24523
1.9	8	6	1.65078	2.490769	1.386845	1.591686	1.435805	-0.48743	-1.44341	-0.18919	-0.62728	-0.24523
1.91	8	6	1.65078	2.486371	1.386845	1.591686	1.435805	-0.48743	-1.43841	-0.18919	-0.62728	-0.24523
1.92	8	6	1.65078	2.482019	1.386845	1.591686	1.435805	-0.48743	-1.43345	-0.18919	-0.62728	-0.24523
1.93	8	6	1.65078	2.477712	1.386845	1.591686	1.435805	-0.48743	-1.42855	-0.18919	-0.62728	-0.24523
1.94	8	6	1.65078	2.47345	1.386845	1.591686	1.435805	-0.48743	-1.4237	-0.18919	-0.62728	-0.24523
1.95	8	6	1.65078	2.469231	1.386845	1.591686	1.435805	-0.48743	-1.4189	-0.18919	-0.62728	-0.24523
1.96	8	6	1.65078	2.465055	1.386845	1.591686	1.435805	-0.48743	-1.41415	-0.18919	-0.62728	-0.24523
1.97	8	6	1.65078	2.460922	1.386845	1.591686	1.435805	-0.48743	-1.40944	-0.18919	-0.62728	-0.24523
1.98	8	6	1.65078	2.45683	1.386845	1.591686	1.435805	-0.48743	-1.40479	-0.18919	-0.62728	-0.24523
1.99	8	6	1.65078	2.45278	1.386845	1.591686	1.435805	-0.48743	-1.40018	-0.18919	-0.62728	-0.24523
2	8	6	1.65078	2.44877	1.386845	1.591686	1.435805	-0.48743	-1.39561	-0.18919	-0.62728	-0.24523
2.01	8	6	1.65078	2.4448	1.386845	1.591686	1.435805	-0.48743	-1.3911	-0.18919	-0.62728	-0.24523
2.02	8	6	1.65078	2.440869	1.386845	1.591686	1.435805	-0.48743	-1.38662	-0.18919	-0.62728	-0.24523
2.03	8	6	1.65078	2.436977	1.386845	1.591686	1.435805	-0.48743	-1.38219	-0.18919	-0.62728	-0.24523
2.04	8	6	1.65078	2.433123	1.386845	1.591686	1.435805	-0.48743	-1.37781	-0.18919	-0.62728	-0.24523
2.05	8	6	1.65078	2.429306	1.386845	1.591686	1.435805	-0.48743	-1.37346	-0.18919	-0.62728	-0.24523
2.06	8	6	1.65078	2.425527	1.386845	1.591686	1.435805	-0.48743	-1.36916	-0.18919	-0.62728	-0.24523
2.07	8	6	1.65078	2.421784	1.386845	1.591686	1.435805	-0.48743	-1.3649	-0.18919	-0.62728	-0.24523
2.08	8	6	1.65078	2.418078	1.386845	1.591686	1.435805	-0.48743	-1.36068	-0.18919	-0.62728	-0.24523
2.09	8	6	1.65078	2.414406	1.386845	1.591686	1.435805	-0.48743	-1.35651	-0.18919	-0.62728	-0.24523
2.1	8	6	1.65078	2.41077	1.386845	1.591686	1.435805	-0.48743	-1.35237	-0.18919	-0.62728	-0.24523
2.11	8	6	1.65078	2.407168	1.386845	1.591686	1.435805	-0.48743	-1.34827	-0.18919	-0.62728	-0.24523
2.12	8	6	1.65078	2.4036	1.386845	1.591686	1.435805	-0.48743	-1.34421	-0.18919	-0.62728	-0.24523
2.13	8	6	1.65078	2.400066	1.386845	1.591686	1.435805	-0.48743	-1.34018	-0.18919	-0.62728	-0.24523
2.14	8	6	1.65078	2.396565	1.386845	1.591686	1.435805	-0.48743	-1.3362	-0.18919	-0.62728	-0.24523
2.15	8	6	1.65078	2.393096	1.386845	1.591686	1.435805	-0.48743	-1.33225	-0.18919	-0.62728	-0.24523
2.16	8	6	1.65078	2.389659	1.386845	1.591686	1.435805	-0.48743	-1.32834	-0.18919	-0.62728	-0.24523
2.17	8	6	1.65078	2.386254	1.386845	1.591686	1.435805	-0.48743	-1.32447	-0.18919	-0.62728	-0.24523
2.18	8	6	1.65078	2.382881	1.386845	1.591686	1.435805	-0.48743	-1.32063	-0.18919	-0.62728	-0.24523
2.19	8	6	1.65078	2.379538	1.386845	1.591686	1.435805	-0.48743	-1.31682	-0.18919	-0.62728	-0.24523
2.2	8	6	1.65078	2.376225	1.386845	1.591686	1.435805	-0.48743	-1.31305	-0.18919	-0.62728	-0.24523
2.21	8	6	1.65078	2.372943	1.386845	1.591686	1.435805	-0.48743	-1.30932	-0.18919	-0.62728	-0.24523
2.22	8	6	1.65078	2.36969	1.386845	1.591686	1.435805	-0.48743	-1.30561	-0.18919	-0.62728	-0.24523
2.23	8	6	1.65078	2.366466	1.386845	1.591686	1.435805	-0.48743	-1.30194	-0.18919	-0.62728	-0.24523
2.24	8	6	1.65078	2.363271	1.386845	1.591686	1.435805	-0.48743	-1.29831	-0.18919	-0.62728	-0.24523
2.25	8	6	1.65078	2.360104	1.386845	1.591686	1.435805	-0.48743	-1.2947	-0.18919	-0.62728	-0.24523
2.26	8	6	1.65078	2.356965	1.386845	1.591686	1.435805	-0.48743	-1.29113	-0.18919	-0.62728	-0.24523
2.27	8	6	1.65078	2.353855	1.386845	1.591686	1.435805	-0.48743	-1.28759	-0.18919	-0.62728	-0.24523
2.28	8	6	1.65078	2.350771	1.386845	1.591686	1.435805	-0.48743	-1.28408	-0.18919	-0.62728	-0.24523
2.29	8	6	1.65078	2.347714	1.386845	1.591686	1.435805	-0.48743	-1.2806	-0.18919	-0.62728	-0.24523
2.3	8	6	1.65078	2.344684	1.386845	1.591686	1.435805	-0.48743	-1.27716	-0.18919	-0.62728	-0.24523
2.31	8	6	1.65078	2.34168	1.386845	1.591686	1.435805	-0.48743	-1.27374	-0.18919	-0.62728	-0.24523
2.32	8	6	1.65078	2.338702	1.386845	1.591686	1.435805	-0.48743	-1.27035	-0.18919	-0.62728	-0.24523
2.33	8	5	1.65078	2.33575	1.386845	1.249328	1.435805	-0.48743	-1.26699	-0.18919	-0.18687	-0.24523
2.34	8	5	1.65078	2.332822	1.386845	1.249328	1.435805	-0.48743	-1.26366	-0.18919	-0.18687	-0.24523
2.35	8	5	1.65078	2.32992	1.386845	1.249328	1.435805	-0.48743	-1.26035	-0.18919	-0.18687	-0.24523
2.36	8	5	1.65078	2.327042	1.386845	1.249328	1.435805	-0.48743	-1.25708	-0.18919	-0.18687	-0.24523
2.37	8	5	1.65078	2.324189	1.386845	1.249328	1.435805	-0.48743	-1.25383	-0.18919	-0.18687	-0.24523
2.38	8	5	1.65078	2.321359	1.386845	1.249328	1.435805	-0.48743	-1.25061	-0.18919	-0.18687	-0.24523
2.39	8	5	1.65078	2.318554	1.386845	1.249328	1.435805	-0.48743	-1.24742	-0.18919	-0.18687	-0.24523
2.4	8	5	1.65078	2.315771	1.386845	1.249328	1.435805	-0.48743	-1.24425	-0.18919	-0.18687	-0.24523
2.41	8	5	1.65078	2.313012	1.290498	1.249328	1.435805	-0.48743	-1.24111	0.00232	-0.18687	-0.24523
2.42	8	5	1.65078	2.310276	1.215745	1.249328	1.435805	-0.48743	-1.238	0.00232	-0.18687	-0.24523
2.43	8	5	1.65078	2.307562	1.215745	1.249328	1.435805	-0.48743	-1.23491	0.00232	-0.18687	-0.24523
2.44	8	5	1.65078	2.30487	1.215745	1.249328	1.435805	-0.48743	-1.23184	0.00232	-0.18687	-0.24523
2.45	8	5	1.65078	2.3022	1.215745	1.249328	1.435805	-0.48743	-1.2288	0.00232	-0.18687	-0.24523
2.46	8	5	1.65078	2.299552	1.215745	1.249328	1.435805	-0.48743	-1.22579	0.00232	-0.18687	-0.24523
2.47	8	5	1.65078	2.296925	1.215745	1.249328	1.435805	-0.48743	-1.2228	0.00232	-0.18687	-0.24523
2.48	8	5	1.65078	2.29432	1.215745	1.249328	1.435805	-0.48743	-1.21984	0.00232	-0.18687	-0.24523
2.49	8	5	1.65078	2.291735	1.215745	1.249328	1.435805	-0.48743	-1.2169	0.00232	-0.18687	-0.24523
2.5	8	5	1.65078	2.289172	1.215745	1.249328	1.435805	-0.48743	-1.21398	0.00232	-0.18687	-0.24523
2.51	8	5	1.65078	2.286628	1.215745	1.249328	1.435805	-0.48743	-1.21108	0.00232	-0.18687	-0.24523
2.52	8	5	1.65078	2.284105	1.215745	1.249328	1.435805	-0.48743	-1.20821	0.00232	-0.18687	-0.24523
2.53	8	5	1.65078	2.281602	1.215745	1.249328	1.435805	-0.48743	-1.20536	0.00232	-0.18687	-0.24523
2.54	8	5	1.65078	2.279118	1.215745	1.249328	1.435805	-0.48743	-1.20254	0.00232	-0.18687	-0.24523
2.55	8	5	1.65078	2.276654	1.215745	1.249328	1.435805	-0.48743	-1.19973	0.00232	-0.18687	-0.24523
2.56	8	5	1.65078	2.274209	1.215745	1.249328	1.435805	-0.48743	-1.19695	0.00232	-0.18687	-0.24523
2.57	8	5	1.65078	2.271784	1.215745	1.249328	1.435805	-0.48743	-1.19419	0.00232	-0.18687	-0.24523
2.58	8	5	1.65078	2.269377	1.215745	1.249328	1.435805	-0.48743	-1.19145	0.00232	-0.18687	-0.24523
2.59	8	5	1.65078	2.266988	1.215745	1.249328	1.435805	-0.48743	-1.18873	0.00232	-0.18687	-0.24523
2.6	8	5	1.65078	2.264618	1.215745	1.249328	1.435805	-0.48743	-1.18603	0.00232	-0.18687	-0.24523
2.61	8	5	1.65078	2.262266	1.215745	1.249328	1.435805	-0.48743	-1.18336	0.00232	-0.18687	-0.24523
2.62	8	5	1.65078	2.259932	1.215745	1.249328	1.435805	-0.48743	-1.1807	0.00232	-0.18687	-0.24523
2.63	8	5	1.65078	2.257616	1.215745	1.249328	1.435805	-0.48743	-1.17806	0.00232	-0.18687	-0.24523
2.64	8	5	1.65078	2.255318	1.215745	1.249328	1.435805	-0.48743	-1.17545	0.00232	-0.18687	-0.24523
2.65	8	5	1.65078	2.253036	1.215745	1.249328	1.435805	-0.48743	-1.17285	0.00232	-0.18687	-0.24523
2.66	8	5	1.65078	2.250772	1.215745	1.249328	1.435805	-0.48743	-1.17028	0.00232	-0.18687	-0.24523
2.67	8	5	1.65078	2.248525	1.215745	1.249328	1.435805	-0.48743	-1.16772	0.00232	-0.18687	-0.24523
2.67	7	5	1.386844	2.246067	1.215745	1.249328	1.435805	-0.18919	-1.16492	0.00232	-0.18687	-0.24523
2.69	7	5	1.386844	2.242873	1.215745	1.249328	1.435805	-0.18919	-1.1613	0.00232	-0.18687	-0.24523
2.7	7	5	1.386845	2.239702	1.215745	1.249328	1.435805	-0.18919	-1.15769	0.00232	-0.18687	-0.24523
2.71	7	5	1.386845	2.236555	1.215745	1.249328	1.435805	-0.18919	-1.15412	0.00232	-0.18687	-0.24523
2.72	7	5	1.386845	2.233431	1.215745	1.249328	1.435805	-0.18919	-1.15057	0.00232	-0.18687	-0.24523
2.73	7	5	1.386844	2.23033	1.215745	1.249328	1.435805	-0.18919	-1.14705	0.00232	-0.18687	-0.24523
2.74	7	5	1.386845	2.227252	1.215745	1.249328	1.435805	-0.18919	-1.14356	0.00232	-0.18687	-0.24523
2.75	7	5	1.386845	2.224196	1.215745	1.249328	1.435805	-0.18919	-1.14009	0.00232	-0.18687	-0.24523
2.76	7	5	1.386844	2.221162	1.215745	1.249328	1.435805	-0.18919	-1.13664	0.00232	-0.18687	-0.24523
2.77	7	5	1.386845	2.21815	1.215745	1.249328	1.435805	-0.18919	-1.13322	0.00232	-0.18687	-0.24523
2.78	7	5	1.386845	2.21516	1.215745	1.249328	1.435805	-0.18919	-1.12982	0.00232	-0.18687	-0.24523
2.79	7	5	1.386845	2.212191	1.215745	1.249328	1.435805	-0.18919	-1.12645	0.00232	-0.18687	-0.24523
2.8	7	5	1.386845	2.209243	1.215745	1.249328	1.435805	-0.18919	-1.12311	0.00232	-0.18687	-0.24523
2.81	7	5	1.386844	2.206316	1.206513	1.249328	1.435805	-0.18919	-1.11978	0.067569	-0.18687	-0.24523
2.82	7	5	1.386845	2.20341	1.189692	1.249328	1.435805	-0.18919	-1.11648	0.067569	-0.18687	-0.24523
2.83	7	5	1.386845	2.200525	1.189692	1.249328	1.435805	-0.18919	-1.1132	0.067569	-0.18687	-0.24523
2.84	7	5	1.386845	2.19766	1.189692	1.249328	1.435805	-0.18919	-1.10995	0.067569	-0.18687	-0.24523
2.85	7	5	1.386845	2.194815	1.189692	1.249328	1.435805	-0.18919	-1.10672	0.067569	-0.18687	-0.24523
2.86	7	5	1.386845	2.19199	1.189692	1.249328	1.435805	-0.18919	-1.10351	0.067569	-0.18687	-0.24523
2.87	7	5	1.386845	2.189185	1.189692	1.249328	1.435805	-0.18919	-1.10033	0.067569	-0.18687	-0.24523
2.88	7	5	1.386845	2.186399	1.189692	1.249328	1.435805	-0.18919	-1.09716	0.067569	-0.18687	-0.24523
2.89	7	5	1.386845	2.183632	1.189692	1.249328	1.435805	-0.18919	-1.09402	0.067569	-0.18687	-0.24523
2.9	7	5	1.386845	2.180885	1.189692	1.249328	1.435805	-0.18919	-1.0909	0.067569	-0.18687	-0.24523
2.91	7	5	1.386845	2.178156	1.189692	1.249328	1.435805	-0.18919	-1.0878	0.067569	-0.18687	-0.24523
2.92	7	5	1.386845	2.175446	1.189692	1.249328	1.435805	-0.18919	-1.08472	0.067569	-0.18687	-0.24523
2.93	7	5	1.386845	2.172754	1.189692	1.249328	1.435805	-0.18919	-1.08167	0.067569	-0.18687	-0.24523
2.94	7	5	1.386845	2.170081	1.189692	1.249328	1.435805	-0.18919	-1.07863	0.067569	-0.18687	-0.24523
2.95	7	5	1.386844	2.167426	1.189692	1.249328	1.262038	-0.18919	-1.07562	0.067569	-0.18687	-0.05018
2.96	7	5	1.386844	2.164789	1.189692	1.249328	1.262038	-0.18919	-1.07262	0.067569	-0.18687	-0.05018
2.97	7	5	1.386845	2.16217	1.189692	1.249328	1.262038	-0.18919	-1.06965	0.067569	-0.18687	-0.05018
2.98	7	5	1.386845	2.159568	1.189692	1.249328	1.262038	-0.18919	-1.06669	0.067569	-0.18687	-0.05018
2.99	7	5	1.386845	2.156984	1.189692	1.249328	1.262038	-0.18919	-1.06376	0.067569	-0.18687	-0.05018
3	7	5	1.386845	2.154417	1.189692	1.249328	1.262038	-0.18919	-1.06084	0.067569	-0.18687	-0.05018
3.01	7	5	1.386845	2.151866	1.189692	1.249328	1.262038	-0.18919	-1.05795	0.067569	-0.18687	-0.05018
3.02	7	5	1.386845	2.149333	1.189692	1.249328	1.262038	-0.18919	-1.05507	0.067569	-0.18687	-0.05018
3.03	7	5	1.386844	2.146817	1.189692	1.249328	1.262038	-0.18919	-1.05221	0.067569	-0.18687	-0.05018
3.04	7	5	1.386845	2.144317	1.189692	1.249328	1.262038	-0.18919	-1.04937	0.067569	-0.18687	-0.05018
3.05	7	5	1.386844	2.141833	1.189692	1.249328	1.262038	-0.18919	-1.04655	0.067569	-0.18687	-0.05018
3.06	7	5	1.386845	2.139366	1.189692	1.249328	1.262038	-0.18919	-1.04375	0.067569	-0.18687	-0.05018
3.07	7	5	1.386844	2.136915	1.189692	1.249328	1.262038	-0.18919	-1.04097	0.067569	-0.18687	-0.05018
3.08	7	5	1.386845	2.13448	1.189692	1.249328	1.262038	-0.18919	-1.0382	0.067569	-0.18687	-0.05018
3.09	7	5	1.386845	2.13206	1.189692	1.249328	1.262038	-0.18919	-1.03546	0.067569	-0.18687	-0.05018
3.1	7	5	1.386845	2.129656	1.189692	1.249328	1.262038	-0.18919	-1.03273	0.067569	-0.18687	-0.05018
3.11	7	5	1.386845	2.127268	1.189692	1.249328	1.262038	-0.18919	-1.03001	0.067569	-0.18687	-0.05018
3.12	7	5	1.386845	2.124895	1.189692	1.249328	1.262038	-0.18919	-1.02732	0.067569	-0.18687	-0.05018
3.13	7	5	1.386845	2.122537	1.189692	1.249328	1.262038	-0.18919	-1.02464	0.067569	-0.18687	-0.05018
3.14	7	5	1.386845	2.120194	1.189692	1.249328	1.262038	-0.18919	-1.02198	0.067569	-0.18687	-0.05018
3.15	7	5	1.386845	2.117865	1.189692	1.249328	1.262038	-0.18919	-1.01934	0.067569	-0.18687	-0.05018
3.16	7	5	1.386845	2.115552	1.189692	1.249328	1.262038	-0.18919	-1.01671	0.067569	-0.18687	-0.05018
3.17	7	5	1.386845	2.113253	1.189692	1.249328	1.262038	-0.18919	-1.0141	0.067569	-0.18687	-0.05018
3.18	7	5	1.386844	2.110969	1.189692	1.249328	1.262038	-0.18919	-1.0115	0.067569	-0.18687	-0.05018
3.19	7	5	1.386845	2.108699	1.189692	1.249328	1.262038	-0.18919	-1.00893	0.067569	-0.18687	-0.05018
3.2	7	5	1.386844	2.106443	1.189692	1.249328	1.262038	-0.18919	-1.00637	0.067569	-0.18687	-0.05018
3.21	7	5	1.386845	2.104202	1.189692	1.249328	1.262038	-0.18919	-1.00382	0.067569	-0.18687	-0.05018
3.22	7	5	1.386845	2.101974	1.189692	1.249328	1.262038	-0.18919	-1.00129	0.067569	-0.18687	-0.05018
3.23	7	5	1.386845	2.09976	1.189692	1.249328	1.262038	-0.18919	-0.99878	0.067569	-0.18687	-0.05018
3.24	7	5	1.386845	2.097559	1.189692	1.249328	1.262038	-0.18919	-0.99628	0.067569	-0.18687	-0.05018
3.25	7	5	1.386845	2.095373	1.189692	1.249328	1.262038	-0.18919	-0.99379	0.067569	-0.18687	-0.05018
3.26	7	5	1.386844	2.093199	1.189692	1.249328	1.262038	-0.18919	-0.99133	0.067569	-0.18687	-0.05018
3.27	7	5	1.386845	2.091039	1.189692	1.249328	1.262038	-0.18919	-0.98887	0.067569	-0.18687	-0.05018
3.28	7	5	1.386845	2.088892	1.189692	1.249328	1.262038	-0.18919	-0.98643	0.067569	-0.18687	-0.05018
3.29	7	5	1.386844	2.086758	1.189692	1.249328	1.262038	-0.18919	-0.98401	0.067569	-0.18687	-0.05018
3.3	7	5	1.386845	2.084637	1.189692	1.249328	1.262038	-0.18919	-0.9816	0.067569	-0.18687	-0.05018
3.31	7	5	1.386845	2.082529	1.189692	1.249328	1.262038	-0.18919	-0.97921	0.067569	-0.18687	-0.05018
3.32	7	5	1.386845	2.080434	1.189692	1.249328	1.262038	-0.18919	-0.97683	0.067569	-0.18687	-0.05018
3.33	7	5	1.386845	2.078351	1.189692	1.249328	1.262038	-0.18919	-0.97446	0.067569	-0.18687	-0.05018
3.34	7	5	1.386845	2.07628	1.189692	1.249328	1.262038	-0.18919	-0.97211	0.067569	-0.18687	-0.05018
3.35	7	5	1.386845	2.074222	1.189692	1.249328	1.262038	-0.18919	-0.96978	0.067569	-0.18687	-0.05018
3.36	7	5	1.386845	2.072177	1.189692	1.249328	1.262038	-0.18919	-0.96745	0.067569	-0.18687	-0.05018
3.37	7	5	1.386844	2.070143	1.189692	1.249328	1.262038	-0.18919	-0.96514	0.067569	-0.18687	-0.05018
3.37	6	5	1.352226	2.068036	1.189692	1.249328	1.262038	-0.10978	-0.96265	0.067569	-0.18687	-0.05018
3.39	6	5	1.352226	2.065925	1.189692	1.249328	1.262038	-0.10978	-0.96014	0.067569	-0.18687	-0.05018
3.4	6	5	1.352226	2.063825	1.189692	1.249328	1.262038	-0.10978	-0.95763	0.067569	-0.18687	-0.05018
3.41	6	5	1.352226	2.061739	1.189692	1.249328	1.262038	-0.10978	-0.95515	0.067569	-0.18687	-0.05018
3.42	6	5	1.352226	2.059664	1.189692	1.249328	1.262038	-0.10978	-0.95268	0.067569	-0.18687	-0.05018
3.43	6	5	1.352226	2.057602	1.189692	1.249328	1.262038	-0.10978	-0.95022	0.067569	-0.18687	-0.05018
3.44	6	5	1.352226	2.055551	1.189692	1.249328	1.262038	-0.10978	-0.94778	0.067569	-0.18687	-0.05018
3.45	6	4	1.352226	2.053512	1.189692	1.0367	1.262038	-0.10978	-0.94535	0.067569	0.081321	-0.05018
3.46	6	4	1.352226	2.051486	1.189692	1.0367	1.262038	-0.10978	-0.94293	0.067569	0.081321	-0.05018
3.47	6	4	1.352226	2.04947	1.189692	1.0367	1.262038	-0.10978	-0.94053	0.067569	0.081321	-0.05018
3.48	6	4	1.352226	2.047467	1.189692	1.0367	1.262038	-0.10978	-0.93814	0.067569	0.081321	-0.05018
3.49	6	4	1.352226	2.045475	1.189692	1.0367	1.262038	-0.10978	-0.93577	0.067569	0.081321	-0.05018
3.5	6	4	1.352226	2.043494	1.189692	1.0367	1.262038	-0.10978	-0.93341	0.067569	0.081321	-0.05018
3.51	6	4	1.352226	2.041525	1.189692	1.0367	1.262038	-0.10978	-0.93106	0.067569	0.081321	-0.05018
3.52	6	4	1.352226	2.039566	1.189692	1.0367	1.262038	-0.10978	-0.92873	0.067569	0.081321	-0.05018
3.53	6	4	1.352226	2.037619	1.189692	1.0367	1.262038	-0.10978	-0.92641	0.067569	0.081321	-0.05018
3.54	6	4	1.352226	2.035683	1.189692	1.0367	1.262038	-0.10978	-0.9241	0.067569	0.081321	-0.05018
3.55	6	4	1.352226	2.033758	1.189692	1.0367	1.262038	-0.10978	-0.92181	0.067569	0.081321	-0.05018
3.56	6	4	1.352226	2.031843	1.189692	1.0367	1.262038	-0.10978	-0.91953	0.067569	0.081321	-0.05018
3.57	6	4	1.352226	2.02994	1.189692	1.0367	1.262038	-0.10978	-0.91726	0.067569	0.081321	-0.05018
3.58	6	4	1.352226	2.028047	1.189692	1.0367	1.262038	-0.10978	-0.915	0.067569	0.081321	-0.05018
3.59	6	4	1.352226	2.026164	1.189692	1.0367	1.262038	-0.10978	-0.91276	0.067569	0.081321	-0.05018
3.6	6	4	1.352226	2.024292	1.189692	1.0367	1.262038	-0.10978	-0.91053	0.067569	0.081321	-0.05018
3.61	6	4	1.352226	2.02243	1.189692	1.0367	1.262038	-0.10978	-0.90831	0.067569	0.081321	-0.05018
3.62	6	4	1.352226	2.020579	1.189692	1.0367	1.262038	-0.10978	-0.90611	0.067569	0.081321	-0.05018
3.63	6	4	1.352226	2.018738	1.189692	1.0367	1.262038	-0.10978	-0.90391	0.067569	0.081321	-0.05018
3.64	6	4	1.352226	2.016907	1.189692	1.0367	1.262038	-0.10978	-0.90173	0.067569	0.081321	-0.05018
3.65	6	4	1.352226	2.015086	1.189692	1.0367	1.262038	-0.10978	-0.89956	0.067569	0.081321	-0.05018
3.66	6	4	1.352226	2.013275	1.189692	1.0367	1.262038	-0.10978	-0.8974	0.067569	0.081321	-0.05018
3.67	6	4	1.352226	2.011473	1.189692	1.0367	1.262038	-0.10978	-0.89526	0.067569	0.081321	-0.05018
3.68	6	4	1.352226	2.009682	1.189692	1.0367	1.262038	-0.10978	-0.89312	0.067569	0.081321	-0.05018
3.69	6	4	1.352226	2.0079	1.189692	1.0367	1.262038	-0.10978	-0.891	0.067569	0.081321	-0.05018
3.7	6	4	1.352226	2.006128	1.189692	1.0367	1.262038	-0.10978	-0.88889	0.067569	0.081321	-0.05018
3.71	6	4	1.352226	2.004366	1.189692	1.0367	1.262038	-0.10978	-0.88679	0.067569	0.081321	-0.05018
3.72	6	4	1.352226	2.002613	1.189692	1.0367	1.262038	-0.10978	-0.8847	0.067569	0.081321	-0.05018
3.73	6	4	1.352226	2.000869	1.189692	1.0367	1.262038	-0.10978	-0.88262	0.067569	0.081321	-0.05018
3.74	6	4	1.352226	1.999135	1.189692	1.0367	1.262038	-0.10978	-0.88056	0.067569	0.081321	-0.05018
3.75	6	4	1.352226	1.997409	1.189692	1.0367	1.262038	-0.10978	-0.8785	0.067569	0.081321	-0.05018
3.76	6	4	1.352226	1.995694	1.189692	1.0367	1.262038	-0.10978	-0.87646	0.067569	0.081321	-0.05018
3.77	6	4	1.352226	1.993987	1.189692	1.0367	1.262038	-0.10978	-0.87442	0.067569	0.081321	-0.05018
3.78	6	4	1.352226	1.992289	1.189692	1.0367	1.262038	-0.10978	-0.8724	0.067569	0.081321	-0.05018
3.79	6	4	1.352226	1.9906	1.189692	1.0367	1.262038	-0.10978	-0.87039	0.067569	0.081321	-0.05018
3.8	6	4	1.352226	1.98892	1.189692	1.0367	1.262038	-0.10978	-0.86839	0.067569	0.081321	-0.05018
3.81	6	4	1.352226	1.987249	1.189692	1.0367	1.262038	-0.10978	-0.8664	0.067569	0.081321	-0.05018
3.82	6	4	1.352226	1.985587	1.189692	1.0367	1.262038	-0.10978	-0.86441	0.067569	0.081321	-0.05018
3.83	6	4	1.352226	1.983933	1.189692	1.0367	1.262038	-0.10978	-0.86244	0.067569	0.081321	-0.05018
3.84	6	4	1.352226	1.982288	1.077909	1.0367	1.262038	-0.10978	-0.86048	0.199981	0.081321	-0.05018
3.85	6	4	1.352226	1.980651	1.066597	1.0367	1.262038	-0.10978	-0.85853	0.199981	0.081321	-0.05018
3.86	6	4	1.352226	1.979023	1.066597	1.0367	1.262038	-0.10978	-0.85659	0.199981	0.081321	-0.05018
3.87	6	4	1.352226	1.977404	1.066597	1.0367	1.262038	-0.10978	-0.85467	0.199981	0.081321	-0.05018
3.88	6	4	1.352226	1.975792	1.066597	1.0367	1.262038	-0.10978	-0.85275	0.199981	0.081321	-0.05018
3.89	6	4	1.352226	1.974189	1.066597	1.0367	1.262038	-0.10978	-0.85084	0.199981	0.081321	-0.05018
3.9	6	4	1.352226	1.972595	1.066597	1.0367	1.262038	-0.10978	-0.84894	0.199981	0.081321	-0.05018
3.91	6	4	1.352226	1.971008	1.066597	1.0367	1.262038	-0.10978	-0.84704	0.199981	0.081321	-0.05018
3.92	6	4	1.352226	1.96943	1.066597	1.0367	1.262038	-0.10978	-0.84516	0.199981	0.081321	-0.05018
3.93	6	4	1.352226	1.967859	1.066597	1.0367	1.262038	-0.10978	-0.84329	0.199981	0.081321	-0.05018
3.94	6	4	1.352226	1.966297	1.066597	1.0367	1.262038	-0.10978	-0.84143	0.199981	0.081321	-0.05018
3.95	6	4	1.352226	1.964742	1.066597	1.0367	1.262038	-0.10978	-0.83958	0.199981	0.081321	-0.05018
3.96	6	4	1.352226	1.963195	1.066597	1.0367	1.262038	-0.10978	-0.83774	0.199981	0.081321	-0.05018
3.97	6	4	1.352226	1.961656	1.066597	1.0367	1.262038	-0.10978	-0.8359	0.199981	0.081321	-0.05018
3.98	6	4	1.352226	1.960125	1.066597	1.0367	1.262038	-0.10978	-0.83408	0.199981	0.081321	-0.05018
3.99	6	4	1.352226	1.958601	1.066597	1.0367	1.262038	-0.10978	-0.83226	0.199981	0.081321	-0.05018
4	6	4	1.352226	1.957085	1.066597	1.0367	1.262038	-0.10978	-0.83046	0.199981	0.081321	-0.05018
4.01	6	4	1.352226	1.955577	1.066597	1.0367	1.262038	-0.10978	-0.82866	0.199981	0.081321	-0.05018
4.02	6	4	1.352226	1.954076	1.066597	1.0367	1.262038	-0.10978	-0.82687	0.199981	0.081321	-0.05018
4.03	6	4	1.352226	1.952583	1.066597	1.0367	1.262038	-0.10978	-0.82509	0.199981	0.081321	-0.05018
4.04	6	4	1.352226	1.951097	1.066597	1.0367	1.262038	-0.10978	-0.82332	0.199981	0.081321	-0.05018
4.05	6	4	1.352226	1.949618	1.066597	1.0367	1.262038	-0.10978	-0.82156	0.199981	0.081321	-0.05018
4.05	5	4	1.189692	1.947791	1.066597	1.0367	1.262038	0.067569	-0.81942	0.199981	0.081321	-0.05018
4.07	5	4	1.189692	1.945928	1.066597	1.0367	1.262038	0.067569	-0.81724	0.199981	0.081321	-0.05018
4.08	5	4	1.189692	1.944075	1.066597	1.0367	1.262038	0.067569	-0.81507	0.199981	0.081321	-0.05018
4.09	5	4	1.189692	1.94223	1.066597	1.0367	1.262038	0.067569	-0.81291	0.199981	0.081321	-0.05018
4.1	5	4	1.189692	1.940395	1.066597	1.0367	1.262038	0.067569	-0.81076	0.199981	0.081321	-0.05018
4.11	5	4	1.189692	1.938568	1.066597	1.0367	1.262038	0.067569	-0.80863	0.199981	0.081321	-0.05018
4.12	5	4	1.189692	1.936751	1.066597	1.0367	1.262038	0.067569	-0.8065	0.199981	0.081321	-0.05018
4.13	5	4	1.189692	1.934942	1.066597	1.0367	1.262038	0.067569	-0.80438	0.199981	0.081321	-0.05018
4.14	5	4	1.189692	1.933142	1.066597	1.0367	1.136701	0.067569	-0.80228	0.199981	0.081321	0.088395
4.15	5	4	1.189692	1.93135	1.066597	1.0367	1.136701	0.067569	-0.80018	0.199981	0.081321	0.088395
4.16	5	4	1.189692	1.929568	1.066597	1.0367	1.136701	0.067569	-0.7981	0.199981	0.081321	0.088395
4.17	5	4	1.189692	1.927793	1.066597	1.0367	1.136701	0.067569	-0.79602	0.199981	0.081321	0.088395
4.18	5	4	1.189692	1.926027	1.066597	1.0367	1.136701	0.067569	-0.79395	0.199981	0.081321	0.088395
4.19	5	4	1.189692	1.92427	1.066597	1.0367	1.136701	0.067569	-0.7919	0.199981	0.081321	0.088395
4.2	5	4	1.189692	1.922521	1.066597	1.0367	1.136701	0.067569	-0.78985	0.199981	0.081321	0.088395
4.21	5	4	1.189692	1.92078	1.066597	1.0367	1.136701	0.067569	-0.78782	0.199981	0.081321	0.088395
4.22	5	4	1.189692	1.919048	1.066597	1.0367	1.136701	0.067569	-0.78579	0.199981	0.081321	0.088395
4.23	5	3	1.189692	1.917324	1.066597	0.875625	1.136701	0.067569	-0.78377	0.199981	0.277747	0.088395
4.24	5	3	1.189692	1.915608	1.066597	0.875625	1.136701	0.067569	-0.78176	0.199981	0.277747	0.088395
4.25	5	3	1.189692	1.9139	1.066597	0.875625	1.136701	0.067569	-0.77976	0.199981	0.277747	0.088395
4.26	5	3	1.189692	1.9122	1.066597	0.875625	1.136701	0.067569	-0.77778	0.199981	0.277747	0.088395
4.27	5	3	1.189692	1.910507	1.066597	0.875625	1.136701	0.067569	-0.7758	0.199981	0.277747	0.088395
4.28	5	3	1.189692	1.908823	1.066597	0.875625	1.136701	0.067569	-0.77383	0.199981	0.277747	0.088395
4.29	5	3	1.189692	1.907147	1.066597	0.875625	1.136701	0.067569	-0.77186	0.199981	0.277747	0.088395
4.3	5	3	1.189692	1.905479	1.066597	0.875625	1.136701	0.067569	-0.76991	0.199981	0.277747	0.088395
4.31	5	3	1.189692	1.903818	1.066597	0.875625	1.136701	0.067569	-0.76797	0.199981	0.277747	0.088395
4.32	5	3	1.189692	1.902165	1.066597	0.875625	1.136701	0.067569	-0.76603	0.199981	0.277747	0.088395
4.33	5	3	1.189692	1.900519	1.066597	0.875625	1.136701	0.067569	-0.76411	0.199981	0.277747	0.088395
4.34	5	3	1.189692	1.898881	1.066597	0.875625	1.136701	0.067569	-0.76219	0.199981	0.277747	0.088395
4.35	5	3	1.189692	1.897251	1.066597	0.875625	1.136701	0.067569	-0.76029	0.199981	0.277747	0.088395
4.36	5	3	1.189692	1.895628	1.066597	0.875625	1.136701	0.067569	-0.75839	0.199981	0.277747	0.088395
4.37	5	3	1.189692	1.894013	1.066597	0.875625	1.136701	0.067569	-0.7565	0.199981	0.277747	0.088395
4.38	5	3	1.189692	1.892405	1.066597	0.875625	1.136701	0.067569	-0.75462	0.199981	0.277747	0.088395
4.39	5	3	1.189692	1.890804	1.066597	0.875625	1.136701	0.067569	-0.75274	0.199981	0.277747	0.088395
4.4	5	3	1.189692	1.889211	1.066597	0.875625	1.136701	0.067569	-0.75088	0.199981	0.277747	0.088395
4.41	5	3	1.189692	1.887624	1.066597	0.875625	1.136701	0.067569	-0.74902	0.199981	0.277747	0.088395
4.42	5	3	1.189692	1.886045	1.066597	0.875625	1.136701	0.067569	-0.74717	0.199981	0.277747	0.088395
4.43	5	3	1.189692	1.884473	1.066597	0.875625	1.136701	0.067569	-0.74534	0.199981	0.277747	0.088395
4.44	5	3	1.189692	1.882909	1.066597	0.875625	1.136701	0.067569	-0.7435	0.199981	0.277747	0.088395
4.45	5	3	1.189692	1.881351	1.066597	0.875625	1.136701	0.067569	-0.74168	0.199981	0.277747	0.088395
4.46	5	3	1.189692	1.8798	1.066597	0.875625	1.136701	0.067569	-0.73987	0.199981	0.277747	0.088395
4.47	5	3	1.189692	1.878256	1.066597	0.875625	1.136701	0.067569	-0.73806	0.199981	0.277747	0.088395
4.48	5	3	1.189692	1.876719	1.066597	0.875625	1.136701	0.067569	-0.73626	0.199981	0.277747	0.088395
4.49	5	2	1.189692	1.875189	1.066597	0.849383	1.136701	0.067569	-0.73447	0.199981	0.361614	0.088395
4.5	5	2	1.189692	1.873666	1.066597	0.849383	1.136701	0.067569	-0.73269	0.199981	0.361614	0.088395
4.51	5	2	1.189692	1.872149	1.066597	0.849383	1.136701	0.067569	-0.73092	0.199981	0.361614	0.088395
4.52	5	2	1.189692	1.870639	1.066597	0.849383	1.136701	0.067569	-0.72915	0.199981	0.361614	0.088395
4.53	5	2	1.189692	1.869136	1.066597	0.849383	1.136701	0.067569	-0.72739	0.199981	0.361614	0.088395
4.54	5	2	1.189692	1.86764	1.066597	0.849383	1.136701	0.067569	-0.72564	0.199981	0.361614	0.088395
4.55	5	2	1.189692	1.86615	1.066597	0.849383	1.136701	0.067569	-0.7239	0.199981	0.361614	0.088395
4.56	5	2	1.189692	1.864666	1.066597	0.849383	1.136701	0.067569	-0.72216	0.199981	0.361614	0.088395
4.57	5	2	1.189692	1.863189	1.066597	0.849383	1.136701	0.067569	-0.72043	0.199981	0.361614	0.088395
4.58	5	2	1.189692	1.861719	1.066597	0.849383	1.136701	0.067569	-0.71871	0.199981	0.361614	0.088395
4.59	5	2	1.189692	1.860255	1.066597	0.849383	1.136701	0.067569	-0.717	0.199981	0.361614	0.088395
4.6	5	2	1.189692	1.858797	1.066597	0.849383	1.136701	0.067569	-0.71529	0.199981	0.361614	0.088395
4.61	5	1	1.189692	1.857345	1.066597	0.72489	1.136701	0.067569	-0.7136	0.199981	0.544795	0.088395
4.62	5	1	1.189692	1.8559	1.066597	0.72489	1.136701	0.067569	-0.7119	0.199981	0.544795	0.088395
4.63	5	0	1.189692	1.854461	1.066597	0.574318	1.136701	0.067569	-0.71022	0.199981	0.806225	0.088395
4.64	5	0	1.189692	1.853029	1.066597	0.574318	1.136701	0.067569	-0.70854	0.199981	0.806225	0.088395
4.65	5	0	1.189692	1.851602	1.066597	0.574318	1.136701	0.067569	-0.70688	0.199981	0.806225	0.088395
4.66	5	0	1.189692	1.850182	1.066597	0.574318	1.136701	0.067569	-0.70521	0.199981	0.806225	0.088395
4.67	5	0	1.189692	1.848767	1.066597	0.574318	1.136701	0.067569	-0.70356	0.199981	0.806225	0.088395
4.68	5	0	1.189692	1.847359	1.066597	0.574318	1.136701	0.067569	-0.70191	0.199981	0.806225	0.088395
4.69	5	0	1.189692	1.845957	1.066597	0.574318	1.136701	0.067569	-0.70027	0.199981	0.806225	0.088395
4.7	5	0	1.189692	1.844561	1.066597	0.574318	1.136701	0.067569	-0.69864	0.199981	0.806225	0.088395
4.71	5	0	1.189692	1.84317	1.012216	0.574318	1.136701	0.067569	-0.69701	0.324448	0.806225	0.088395
4.72	5	0	1.189692	1.841786	1.000454	0.574318	1.136701	0.067569	-0.69539	0.324448	0.806225	0.088395
4.73	5	0	1.189692	1.840407	1.000454	0.574318	1.136701	0.067569	-0.69378	0.324448	0.806225	0.088395
4.74	5	0	1.189692	1.839034	1.000454	0.574318	1.136701	0.067569	-0.69217	0.324448	0.806225	0.088395
4.75	5	0	1.189692	1.837667	1.000454	0.574318	1.136701	0.067569	-0.69057	0.324448	0.806225	0.088395
4.76	5	0	1.189692	1.836306	1.000454	0.574318	1.136701	0.067569	-0.68898	0.324448	0.806225	0.088395
4.77	5	0	1.189692	1.83495	1.000454	0.574318	1.136701	0.067569	-0.68739	0.324448	0.806225	0.088395
4.78	5	0	1.189692	1.8336	1.000454	0.574318	1.136701	0.067569	-0.68581	0.324448	0.806225	0.088395
4.79	5	0	1.189692	1.832256	1.000454	0.574318	1.136701	0.067569	-0.68424	0.324448	0.806225	0.088395
4.8	5	0	1.189692	1.830917	1.000454	0.574318	1.136701	0.067569	-0.68267	0.324448	0.806225	0.088395
4.81	5	0	1.189692	1.829584	1.000454	0.574318	1.136701	0.067569	-0.68111	0.324448	0.806225	0.088395
4.82	5	0	1.189692	1.828257	1.000454	0.574318	1.136701	0.067569	-0.67956	0.324448	0.806225	0.088395
4.83	5	0	1.189692	1.826935	1.000454	0.574318	1.136701	0.067569	-0.67801	0.324448	0.806225	0.088395
4.84	5	0	1.189692	1.825618	1.000454	0.574318	1.136701	0.067569	-0.67647	0.324448	0.806225	0.088395
4.85	5	0	1.189692	1.824307	1.000454	0.574318	1.136701	0.067569	-0.67494	0.324448	0.806225	0.088395
4.86	5	0	1.189692	1.823001	1.000454	0.574318	1.136701	0.067569	-0.67341	0.324448	0.806225	0.088395
4.87	5	0	1.189692	1.821701	1.000454	0.574318	1.136701	0.067569	-0.67189	0.324448	0.806225	0.088395
4.88	5	0	1.189692	1.820406	1.000454	0.574318	1.136701	0.067569	-0.67038	0.324448	0.806225	0.088395
4.89	5	0	1.189692	1.819116	1.000454	0.574318	1.136701	0.067569	-0.66887	0.324448	0.806225	0.088395
4.9	5	0	1.189692	1.817831	1.000454	0.574318	1.136701	0.067569	-0.66736	0.324448	0.806225	0.088395
4.91	5	0	1.189692	1.816552	1.000454	0.574318	1.136701	0.067569	-0.66587	0.324448	0.806225	0.088395
4.92	5	0	1.189692	1.815278	1.000454	0.574318	1.136701	0.067569	-0.66438	0.324448	0.806225	0.088395
4.93	5	0	1.189692	1.814009	1.000454	0.574318	1.136701	0.067569	-0.66289	0.324448	0.806225	0.088395
4.94	5	0	1.189692	1.812745	1.000454	0.574318	1.136701	0.067569	-0.66141	0.324448	0.806225	0.088395
4.95	5	0	1.189692	1.811486	1.000454	0.574318	1.136701	0.067569	-0.65994	0.324448	0.806225	0.088395
4.96	5	0	1.189692	1.810233	1.000454	0.574318	1.136701	0.067569	-0.65847	0.324448	0.806225	0.088395
4.97	5	0	1.189692	1.808984	1.000454	0.574318	1.136701	0.067569	-0.65701	0.324448	0.806225	0.088395
4.98	5	0	1.189692	1.807741	1.000454	0.574318	1.136701	0.067569	-0.65556	0.324448	0.806225	0.088395
4.99	5	0	1.189692	1.806502	1.000454	0.574318	1.136701	0.067569	-0.65411	0.324448	0.806225	0.088395
5	5	0	1.189692	1.805268	1.000454	0.574318	1.136701	0.067569	-0.65266	0.324448	0.806225	0.088395
5.01	5	0	1.189692	1.80404	1.000454	0.574318	1.136701	0.067569	-0.65123	0.324448	0.806225	0.088395
5.02	5	0	1.189692	1.802816	1.000454	0.574318	1.136701	0.067569	-0.6498	0.324448	0.806225	0.088395
5.03	5	0	1.189692	1.801597	1.000454	0.574318	1.136701	0.067569	-0.64837	0.324448	0.806225	0.088395
5.04	5	0	1.189692	1.800383	1.000454	0.574318	1.136701	0.067569	-0.64695	0.324448	0.806225	0.088395
5.05	5	0	1.189692	1.799174	1.000454	0.574318	1.136701	0.067569	-0.64553	0.324448	0.806225	0.088395
5.06	5	0	1.189692	1.797969	1.000454	0.574318	1.136701	0.067569	-0.64412	0.324448	0.806225	0.088395
5.07	5	0	1.189692	1.796769	1.000454	0.574318	1.136701	0.067569	-0.64272	0.324448	0.806225	0.088395
5.08	5	0	1.189692	1.795574	0.932629	0.574318	1.136701	0.067569	-0.64132	0.414212	0.806225	0.088395
5.09	5	0	1.189692	1.794384	0.91013	0.574318	1.136701	0.067569	-0.63993	0.414212	0.806225	0.088395
5.1	5	0	1.189692	1.793198	0.91013	0.574318	1.136701	0.067569	-0.63854	0.414212	0.806225	0.088395
5.11	5	0	1.189692	1.792017	0.91013	0.574318	1.136701	0.067569	-0.63716	0.414212	0.806225	0.088395
5.12	5	0	1.189692	1.790841	0.91013	0.574318	1.136701	0.067569	-0.63578	0.414212	0.806225	0.088395
5.13	5	0	1.189692	1.789669	0.91013	0.574318	1.136701	0.067569	-0.63441	0.414212	0.806225	0.088395
5.14	5	0	1.189692	1.788502	0.91013	0.574318	1.136701	0.067569	-0.63305	0.414212	0.806225	0.088395
5.15	5	0	1.189692	1.787339	0.91013	0.574318	1.136701	0.067569	-0.63169	0.414212	0.806225	0.088395
5.16	5	0	1.189692	1.786181	0.91013	0.574318	1.136701	0.067569	-0.63033	0.414212	0.806225	0.088395
5.17	5	0	1.189692	1.785027	0.91013	0.574318	1.136701	0.067569	-0.62898	0.414212	0.806225	0.088395
5.18	5	0	1.189692	1.783878	0.91013	0.574318	1.136701	0.067569	-0.62764	0.414212	0.806225	0.088395
5.19	5	0	1.189692	1.782733	0.91013	0.574318	1.136701	0.067569	-0.6263	0.414212	0.806225	0.088395
5.2	5	0	1.189692	1.781592	0.91013	0.574318	1.036405	0.067569	-0.62496	0.414212	0.806225	0.196894
5.21	5	0	1.189692	1.780456	0.91013	0.574318	1.036405	0.067569	-0.62363	0.414212	0.806225	0.196894
5.22	5	0	1.189692	1.779325	0.91013	0.574318	1.036405	0.067569	-0.62231	0.414212	0.806225	0.196894
5.23	5	0	1.189692	1.778197	0.91013	0.574318	1.036405	0.067569	-0.62099	0.414212	0.806225	0.196894
5.24	5	0	1.189692	1.777074	0.91013	0.574318	1.036405	0.067569	-0.61968	0.414212	0.806225	0.196894
5.25	5	0	1.189692	1.775955	0.91013	0.574318	1.036405	0.067569	-0.61837	0.414212	0.806225	0.196894
5.26	5	0	1.189692	1.774841	0.91013	0.574318	1.036405	0.067569	-0.61706	0.414212	0.806225	0.196894
5.27	5	0	1.189692	1.77373	0.91013	0.574318	1.036405	0.067569	-0.61576	0.414212	0.806225	0.196894
5.27	4	0	1.106403	1.772555	0.91013	0.574318	1.036405	0.216982	-0.61435	0.414212	0.806225	0.196894
5.29	4	0	1.106403	1.771296	0.91013	0.574318	1.036405	0.216982	-0.61277	0.414212	0.806225	0.196894
5.3	4	0	1.106403	1.770041	0.91013	0.574318	1.036405	0.216982	-0.61121	0.414212	0.806225	0.196894
5.31	4	0	1.106403	1.768791	0.91013	0.574318	1.036405	0.216982	-0.60965	0.414212	0.806225	0.196894
5.32	4	0	1.106403	1.767546	0.91013	0.574318	1.036405	0.216982	-0.6081	0.414212	0.806225	0.196894
5.33	4	0	1.106403	1.766306	0.91013	0.574318	1.036405	0.216982	-0.60655	0.414212	0.806225	0.196894
5.34	4	0	1.106403	1.76507	0.91013	0.574318	1.036405	0.216982	-0.60501	0.414212	0.806225	0.196894
5.35	4	0	1.106403	1.763839	0.91013	0.574318	1.036405	0.216982	-0.60347	0.414212	0.806225	0.196894
5.36	4	0	1.106403	1.762612	0.868299	0.574318	1.036405	0.216982	-0.60194	0.554062	0.806225	0.196894
5.37	4	0	1.106403	1.76139	0.830277	0.574318	1.036405	0.216982	-0.60041	0.554062	0.806225	0.196894
5.37	3	0	1.000454	1.760073	0.830277	0.574318	1.036405	0.324448	-0.59879	0.554062	0.806225	0.196894
5.39	3	0	1.000454	1.758664	0.830277	0.574318	1.036405	0.324448	-0.59708	0.554062	0.806225	0.196894
5.4	3	0	1.000454	1.75726	0.830277	0.574318	1.036405	0.324448	-0.59537	0.554062	0.806225	0.196894
5.41	3	0	1.000454	1.755861	0.830277	0.574318	1.036405	0.324448	-0.59367	0.554062	0.806225	0.196894
5.42	3	0	1.000454	1.754467	0.830277	0.574318	1.036405	0.324448	-0.59198	0.554062	0.806225	0.196894
5.43	3	0	1.000454	1.753078	0.830277	0.574318	1.036405	0.324448	-0.59029	0.554062	0.806225	0.196894
5.44	3	0	1.000454	1.751695	0.830277	0.574318	1.036405	0.324448	-0.58861	0.554062	0.806225	0.196894
5.45	3	0	1.000454	1.750316	0.830277	0.574318	1.036405	0.324448	-0.58693	0.554062	0.806225	0.196894
5.46	3	0	1.000454	1.748943	0.830277	0.574318	1.036405	0.324448	-0.58527	0.554062	0.806225	0.196894
5.47	3	0	1.000454	1.747575	0.830277	0.574318	1.036405	0.324448	-0.5836	0.554062	0.806225	0.196894
5.48	3	0	1.000454	1.746211	0.830277	0.574318	1.036405	0.324448	-0.58195	0.554062	0.806225	0.196894
5.49	3	0	1.000454	1.744853	0.830277	0.574318	1.036405	0.324448	-0.58029	0.554062	0.806225	0.196894
5.5	3	0	1.000454	1.743499	0.830277	0.574318	1.036405	0.324448	-0.57865	0.554062	0.806225	0.196894
5.51	3	0	1.000454	1.742151	0.830277	0.574318	1.036405	0.324448	-0.57701	0.554062	0.806225	0.196894
5.52	3	0	1.000454	1.740807	0.830277	0.574318	1.036405	0.324448	-0.57538	0.554062	0.806225	0.196894
5.53	3	0	1.000454	1.739468	0.830277	0.574318	1.036405	0.324448	-0.57375	0.554062	0.806225	0.196894
5.54	3	0	1.000454	1.738134	0.830277	0.574318	1.036405	0.324448	-0.57213	0.554062	0.806225	0.196894
5.55	3	0	1.000454	1.736805	0.830277	0.574318	1.036405	0.324448	-0.57051	0.554062	0.806225	0.196894
5.56	3	0	1.000454	1.735481	0.830277	0.574318	1.036405	0.324448	-0.5689	0.554062	0.806225	0.196894
5.57	3	0	1.000454	1.734161	0.830277	0.574318	1.036405	0.324448	-0.5673	0.554062	0.806225	0.196894
5.58	3	0	1.000454	1.732846	0.830277	0.574318	1.036405	0.324448	-0.5657	0.554062	0.806225	0.196894
5.59	3	0	1.000454	1.731536	0.766599	0.574318	1.036405	0.324448	-0.56411	0.687934	0.806225	0.196894
5.6	3	0	1.000454	1.730231	0.674881	0.574318	1.036405	0.324448	-0.56252	0.687934	0.806225	0.196894
5.61	3	0	1.000454	1.72893	0.674881	0.574318	1.036405	0.324448	-0.56094	0.687934	0.806225	0.196894
5.62	3	0	1.000454	1.727634	0.674881	0.574318	1.036405	0.324448	-0.55937	0.687934	0.806225	0.196894
5.63	3	0	1.000454	1.726342	0.674881	0.574318	1.036405	0.324448	-0.5578	0.687934	0.806225	0.196894
5.64	3	0	1.000454	1.725055	0.674881	0.574318	1.036405	0.324448	-0.55623	0.687934	0.806225	0.196894
5.65	3	0	1.000454	1.723773	0.674881	0.574318	1.036405	0.324448	-0.55467	0.687934	0.806225	0.196894
5.66	3	0	1.000454	1.722495	0.674881	0.574318	1.036405	0.324448	-0.55312	0.687934	0.806225	0.196894
5.67	3	0	1.000454	1.721221	0.674881	0.574318	1.036405	0.324448	-0.55157	0.687934	0.806225	0.196894
5.68	3	0	1.000454	1.719952	0.674881	0.574318	1.036405	0.324448	-0.55003	0.687934	0.806225	0.196894
5.69	3	0	1.000454	1.718688	0.674881	0.574318	1.036405	0.324448	-0.54849	0.687934	0.806225	0.196894
5.7	3	0	1.000454	1.717428	0.674881	0.574318	1.036405	0.324448	-0.54696	0.687934	0.806225	0.196894
5.71	3	0	1.000454	1.716172	0.674881	0.574318	1.036405	0.324448	-0.54544	0.687934	0.806225	0.196894
5.72	3	0	1.000454	1.714921	0.674881	0.574318	1.036405	0.324448	-0.54391	0.687934	0.806225	0.196894
5.73	3	0	1.000454	1.713674	0.674881	0.574318	1.036405	0.324448	-0.5424	0.687934	0.806225	0.196894
5.74	3	0	1.000454	1.712431	0.674881	0.574318	1.036405	0.324448	-0.54089	0.687934	0.806225	0.196894
5.75	3	0	1.000454	1.711193	0.674881	0.574318	1.025952	0.324448	-0.53938	0.687934	0.806225	0.224644
5.76	3	0	1.000454	1.709959	0.674881	0.574318	1.025952	0.324448	-0.53788	0.687934	0.806225	0.224644
5.77	3	0	1.000454	1.70873	0.674881	0.574318	1.025952	0.324448	-0.53639	0.687934	0.806225	0.224644
5.78	3	0	1.000454	1.707504	0.674881	0.574318	1.025952	0.324448	-0.5349	0.687934	0.806225	0.224644
5.79	3	0	1.000454	1.706283	0.674881	0.574318	1.025952	0.324448	-0.53342	0.687934	0.806225	0.224644
5.8	3	0	1.000454	1.705066	0.674881	0.574318	1.025952	0.324448	-0.53194	0.687934	0.806225	0.224644
5.81	3	0	1.000454	1.703853	0.674881	0.574318	1.025952	0.324448	-0.53046	0.687934	0.806225	0.224644
5.82	3	0	1.000454	1.702645	0.674881	0.574318	1.025952	0.324448	-0.52899	0.687934	0.806225	0.224644
5.83	3	0	1.000454	1.70144	0.674881	0.574318	1.025952	0.324448	-0.52753	0.687934	0.806225	0.224644
5.84	3	0	1.000454	1.70024	0.674881	0.574318	1.025952	0.324448	-0.52607	0.687934	0.806225	0.224644
5.85	3	0	1.000454	1.699044	0.674881	0.574318	1.025952	0.324448	-0.52462	0.687934	0.806225	0.224644
5.86	3	0	1.000454	1.697852	0.674881	0.574318	1.025952	0.324448	-0.52317	0.687934	0.806225	0.224644
5.87	3	0	1.000454	1.696664	0.674881	0.574318	1.025952	0.324448	-0.52172	0.687934	0.806225	0.224644
5.88	3	0	1.000454	1.695479	0.674881	0.574318	1.025952	0.324448	-0.52029	0.687934	0.806225	0.224644
5.89	3	0	1.000454	1.694299	0.674881	0.574318	1.025952	0.324448	-0.51885	0.687934	0.806225	0.224644
5.9	3	0	1.000454	1.693123	0.674881	0.574318	1.025952	0.324448	-0.51742	0.687934	0.806225	0.224644
5.91	3	0	1.000454	1.691951	0.674881	0.574318	1.025952	0.324448	-0.516	0.687934	0.806225	0.224644
5.92	3	0	1.000454	1.690783	0.674881	0.574318	1.025952	0.324448	-0.51458	0.687934	0.806225	0.224644
5.93	3	0	1.000454	1.689619	0.674881	0.574318	1.025952	0.324448	-0.51316	0.687934	0.806225	0.224644
5.94	3	0	1.000454	1.688459	0.674881	0.574318	1.025952	0.324448	-0.51175	0.687934	0.806225	0.224644
5.95	3	0	1.000454	1.687303	0.674881	0.574318	1.025952	0.324448	-0.51035	0.687934	0.806225	0.224644
5.96	3	0	1.000454	1.68615	0.674881	0.574318	1.025952	0.324448	-0.50895	0.687934	0.806225	0.224644
5.97	3	0	1.000454	1.685002	0.674881	0.574318	1.025952	0.324448	-0.50755	0.687934	0.806225	0.224644
5.98	3	0	1.000454	1.683857	0.674881	0.574318	1.025952	0.324448	-0.50616	0.687934	0.806225	0.224644
5.99	3	0	1.000454	1.682716	0.674881	0.574318	1.025952	0.324448	-0.50477	0.687934	0.806225	0.224644
6	3	0	1.000454	1.681579	0.674881	0.574318	1.025952	0.324448	-0.50339	0.687934	0.806225	0.224644
6.01	3	-	1.000454	1.680446	-	-	-	0.324448	-0.50201	-	-	-
6.02	3	-	1.000454	1.679316	-	-	-	0.324448	-0.50064	-	-	-
6.03	3	-	1.000454	1.67819	-	-	-	0.324448	-0.49927	-	-	-
6.04	3	-	1.000454	1.677068	-	-	-	0.324448	-0.49791	-	-	-
6.05	3	-	1.000454	1.67595	-	-	-	0.324448	-0.49655	-	-	-
6.06	3	-	1.000454	1.674835	-	-	-	0.324448	-0.49519	-	-	-
6.07	3	-	1.000454	1.673724	-	-	-	0.324448	-0.49384	-	-	-
6.07	2	-	0.899555	1.672461	-	-	-	0.492664	-0.49224	-	-	-
6.09	2	-	0.899555	1.671191	-	-	-	0.492664	-0.49062	-	-	-
6.1	2	-	0.899555	1.669926	-	-	-	0.492664	-0.48901	-	-	-
6.11	2	-	0.899555	1.668666	-	-	-	0.492664	-0.4874	-	-	-
6.12	2	-	0.899555	1.667409	-	-	-	0.492664	-0.4858	-	-	-
6.13	2	-	0.899555	1.666156	-	-	-	0.492664	-0.4842	-	-	-
6.14	2	-	0.899555	1.664908	-	-	-	0.492664	-0.48261	-	-	-
6.15	2	-	0.899555	1.663663	-	-	-	0.492664	-0.48103	-	-	-
6.16	2	-	0.899555	1.662423	-	-	-	0.492664	-0.47945	-	-	-
6.17	2	-	0.899555	1.661186	-	-	-	0.492664	-0.47787	-	-	-
6.18	2	-	0.899555	1.659954	-	-	-	0.492664	-0.4763	-	-	-
6.19	2	-	0.899555	1.658726	-	-	-	0.492664	-0.47474	-	-	-
6.2	2	-	0.899555	1.657501	-	-	-	0.492664	-0.47318	-	-	-
6.21	2	-	0.899555	1.656281	-	-	-	0.492664	-0.47162	-	-	-
6.22	2	-	0.899555	1.655064	-	-	-	0.492664	-0.47007	-	-	-
6.23	2	-	0.899555	1.653851	-	-	-	0.492664	-0.46852	-	-	-
6.24	2	-	0.899555	1.652642	-	-	-	0.492664	-0.46698	-	-	-
6.25	2	-	0.899555	1.651438	-	-	-	0.492664	-0.46545	-	-	-
6.26	2	-	0.899555	1.650236	-	-	-	0.492664	-0.46392	-	-	-
6.27	2	-	0.899555	1.649039	-	-	-	0.492664	-0.46239	-	-	-
6.28	2	-	0.899555	1.647846	-	-	-	0.492664	-0.46087	-	-	-
6.29	2	-	0.899555	1.646656	-	-	-	0.492664	-0.45936	-	-	-
6.3	2	-	0.899555	1.64547	-	-	-	0.492664	-0.45784	-	-	-
6.31	2	-	0.899555	1.644288	-	-	-	0.492664	-0.45634	-	-	-
6.32	2	-	0.899555	1.64311	-	-	-	0.492664	-0.45484	-	-	-
6.33	2	-	0.899555	1.641935	-	-	-	0.492664	-0.45334	-	-	-
6.34	2	-	0.899555	1.640764	-	-	-	0.492664	-0.45185	-	-	-
6.35	2	-	0.899555	1.639597	-	-	-	0.492664	-0.45036	-	-	-
6.36	2	-	0.899555	1.638433	-	-	-	0.492664	-0.44888	-	-	-
6.37	2	-	0.899555	1.637273	-	-	-	0.492664	-0.4474	-	-	-
6.38	2	-	0.899555	1.636117	-	-	-	0.492664	-0.44593	-	-	-
6.39	2	-	0.899555	1.634964	-	-	-	0.492664	-0.44446	-	-	-
6.4	2	-	0.899555	1.633815	-	-	-	0.492664	-0.44299	-	-	-
6.41	2	-	0.899555	1.63267	-	-	-	0.492664	-0.44153	-	-	-
6.42	2	-	0.899555	1.631528	-	-	-	0.492664	-0.44008	-	-	-
6.43	2	-	0.899555	1.630389	-	-	-	0.492664	-0.43863	-	-	-
6.44	2	-	0.899555	1.629255	-	-	-	0.492664	-0.43718	-	-	-
6.45	2	-	0.899555	1.628123	-	-	-	0.492664	-0.43574	-	-	-
6.45	1	-	0.800651	1.626946	-	-	-	0.574795	-0.43426	-	-	-
6.47	1	-	0.800651	1.625669	-	-	-	0.574795	-0.4327	-	-	-
6.48	1	-	0.800651	1.624396	-	-	-	0.574795	-0.43115	-	-	-
6.49	1	-	0.800651	1.623126	-	-	-	0.574795	-0.4296	-	-	-
6.49	0	-	0.674881	1.621674	-	-	-	0.687934	-0.42788	-	-	-
6.51	0	-	0.674881	1.620219	-	-	-	0.687934	-0.42617	-	-	-
6.52	0	-	0.674881	1.61877	-	-	-	0.687934	-0.42446	-	-	-
6.53	0	-	0.674881	1.617324	-	-	-	0.687934	-0.42276	-	-	-
6.54	0	-	0.674881	1.615883	-	-	-	0.687934	-0.42106	-	-	-
6.55	0	-	0.674881	1.614446	-	-	-	0.687934	-0.41937	-	-	-
6.56	0	-	0.674881	1.613014	-	-	-	0.687934	-0.41768	-	-	-
6.57	0	-	0.674881	1.611586	-	-	-	0.687934	-0.41599	-	-	-
6.58	0	-	0.674881	1.610163	-	-	-	0.687934	-0.41432	-	-	-
6.59	0	-	0.674881	1.608743	-	-	-	0.687934	-0.41264	-	-	-
6.6	0	-	0.674881	1.607328	-	-	-	0.687934	-0.41098	-	-	-
6.61	0	-	0.674881	1.605918	-	-	-	0.687934	-0.40931	-	-	-
6.62	0	-	0.674881	1.604511	-	-	-	0.687934	-0.40766	-	-	-
6.63	0	-	0.674881	1.603109	-	-	-	0.687934	-0.406	-	-	-
6.64	0	-	0.674881	1.601711	-	-	-	0.687934	-0.40436	-	-	-
6.65	0	-	0.674881	1.600318	-	-	-	0.687934	-0.40271	-	-	-
6.66	0	-	0.674881	1.598928	-	-	-	0.687934	-0.40108	-	-	-
6.67	0	-	0.674881	1.597543	-	-	-	0.687934	-0.39944	-	-	-
6.68	0	-	0.674881	1.596161	-	-	-	0.687934	-0.39782	-	-	-
6.69	0	-	0.674881	1.594784	-	-	-	0.687934	-0.39619	-	-	-
6.7	0	-	0.674881	1.593411	-	-	-	0.687934	-0.39458	-	-	-
6.71	0	-	0.674881	1.592042	-	-	-	0.687934	-0.39296	-	-	-
6.72	0	-	0.674881	1.590678	-	-	-	0.687934	-0.39135	-	-	-
6.73	0	-	0.674881	1.589317	-	-	-	0.687934	-0.38975	-	-	-
6.74	0	-	0.674881	1.58796	-	-	-	0.687934	-0.38815	-	-	-
6.75	0	-	0.674881	1.586607	-	-	-	0.687934	-0.38656	-	-	-
6.76	0	-	0.674881	1.585259	-	-	-	0.687934	-0.38497	-	-	-
6.77	0	-	0.674881	1.583914	-	-	-	0.687934	-0.38338	-	-	-
6.78	0	-	0.674881	1.582573	-	-	-	0.687934	-0.3818	-	-	-
6.79	0	-	0.674881	1.581236	-	-	-	0.687934	-0.38023	-	-	-
6.8	0	-	0.674881	1.579904	-	-	-	0.687934	-0.37866	-	-	-
6.81	0	-	0.674881	1.578575	-	-	-	0.687934	-0.37709	-	-	-
6.82	0	-	0.674881	1.57725	-	-	-	0.687934	-0.37553	-	-	-
6.83	0	-	0.674881	1.575928	-	-	-	0.687934	-0.37397	-	-	-
6.84	0	-	0.674881	1.574611	-	-	-	0.687934	-0.37242	-	-	-
6.85	0	-	0.674881	1.573298	-	-	-	0.687934	-0.37087	-	-	-
6.86	0	-	0.674881	1.571988	-	-	-	0.687934	-0.36933	-	-	-
6.87	0	-	0.674881	1.570682	-	-	-	0.687934	-0.36779	-	-	-
6.88	0	-	0.674881	1.56938	-	-	-	0.687934	-0.36625	-	-	-
6.89	0	-	0.674881	1.568082	-	-	-	0.687934	-0.36472	-	-	-
6.9	0	-	0.674881	1.566787	-	-	-	0.687934	-0.3632	-	-	-
6.91	0	-	0.674881	1.565497	-	-	-	0.687934	-0.36168	-	-	-
6.92	0	-	0.674881	1.56421	-	-	-	0.687934	-0.36016	-	-	-
6.93	0	-	0.674881	1.562926	-	-	-	0.687934	-0.35865	-	-	-
6.94	0	-	0.674881	1.561647	-	-	-	0.687934	-0.35714	-	-	-
6.95	0	-	0.674881	1.560371	-	-	-	0.687934	-0.35564	-	-	-
6.96	0	-	0.674881	1.559098	-	-	-	0.687934	-0.35414	-	-	-
6.97	0	-	0.674881	1.55783	-	-	-	0.687934	-0.35264	-	-	-
6.98	0	-	0.674881	1.556565	-	-	-	0.687934	-0.35115	-	-	-
6.99	0	-	0.674881	1.555303	-	-	-	0.687934	-0.34966	-	-	-
7	0	-	0.674881	1.554046	-	-	-	0.687934	-0.34818	-	-	-
7.01	0	-	0.674881	1.552792	-	-	-	0.687934	-0.3467	-	-	-
7.02	0	-	0.674881	1.551541	-	-	-	0.687934	-0.34523	-	-	-
7.03	0	-	0.674881	1.550294	-	-	-	0.687934	-0.34376	-	-	-
7.04	0	-	0.674881	1.54905	-	-	-	0.687934	-0.3423	-	-	-
7.05	0	-	0.674881	1.547811	-	-	-	0.687934	-0.34083	-	-	-
7.06	0	-	0.674881	1.546574	-	-	-	0.687934	-0.33938	-	-	-
7.07	0	-	0.674881	1.545341	-	-	-	0.687934	-0.33792	-	-	-
7.08	0	-	0.674881	1.544112	-	-	-	0.687934	-0.33647	-	-	-
7.09	0	-	0.674881	1.542886	-	-	-	0.687934	-0.33503	-	-	-
7.1	0	-	0.674881	1.541663	-	-	-	0.687934	-0.33359	-	-	-
7.11	0	-	0.674881	1.540444	-	-	-	0.687934	-0.33215	-	-	-
7.12	0	-	0.674881	1.539228	-	-	-	0.687934	-0.33072	-	-	-
7.13	0	-	0.674881	1.538016	-	-	-	0.687934	-0.32929	-	-	-
7.14	0	-	0.674881	1.536807	-	-	-	0.687934	-0.32787	-	-	-
7.15	0	-	0.674881	1.535602	-	-	-	0.687934	-0.32645	-	-	-
7.16	0	-	0.674881	1.5344	-	-	-	0.687934	-0.32503	-	-	-
7.17	0	-	0.674881	1.533201	-	-	-	0.687934	-0.32362	-	-	-
7.18	0	-	0.674881	1.532005	-	-	-	0.687934	-0.32221	-	-	-
7.19	0	-	0.674881	1.530813	-	-	-	0.687934	-0.3208	-	-	-
7.2	0	-	0.674881	1.529624	-	-	-	0.687934	-0.3194	-	-	-
7.21	0	-	0.674881	1.528439	-	-	-	0.687934	-0.318	-	-	-
7.22	0	-	0.674881	1.527257	-	-	-	0.687934	-0.31661	-	-	-
7.23	0	-	0.674881	1.526078	-	-	-	0.687934	-0.31522	-	-	-
7.24	0	-	0.674881	1.524902	-	-	-	0.687934	-0.31384	-	-	-
7.25	0	-	0.674881	1.52373	-	-	-	0.687934	-0.31245	-	-	-
7.26	0	-	0.674881	1.52256	-	-	-	0.687934	-0.31108	-	-	-
7.27	0	-	0.674881	1.521395	-	-	-	0.687934	-0.3097	-	-	-
7.28	0	-	0.674881	1.520232	-	-	-	0.687934	-0.30833	-	-	-
7.29	0	-	0.674881	1.519072	-	-	-	0.687934	-0.30696	-	-	-
7.3	0	-	0.674881	1.517916	-	-	-	0.687934	-0.3056	-	-	-
7.31	0	-	0.674881	1.516762	-	-	-	0.687934	-0.30424	-	-	-
7.32	0	-	0.674881	1.515612	-	-	-	0.687934	-0.30289	-	-	-
7.33	0	-	0.674881	1.514465	-	-	-	0.687934	-0.30154	-	-	-
7.34	0	-	0.674881	1.513321	-	-	-	0.687934	-0.30019	-	-	-
7.35	0	-	0.674881	1.512181	-	-	-	0.687934	-0.29884	-	-	-
7.36	0	-	0.674881	1.511043	-	-	-	0.687934	-0.2975	-	-	-
7.37	0	-	0.674881	1.509909	-	-	-	0.687934	-0.29617	-	-	-
7.38	0	-	0.674881	1.508777	-	-	-	0.687934	-0.29483	-	-	-
7.39	0	-	0.674881	1.507649	-	-	-	0.687934	-0.2935	-	-	-
7.4	0	-	0.674881	1.506523	-	-	-	0.687934	-0.29218	-	-	-
7.41	0	-	0.674881	1.505401	-	-	-	0.687934	-0.29085	-	-	-
7.42	0	-	0.674881	1.504282	-	-	-	0.687934	-0.28953	-	-	-
7.43	0	-	0.674881	1.503165	-	-	-	0.687934	-0.28822	-	-	-
7.44	0	-	0.674881	1.502052	-	-	-	0.687934	-0.28691	-	-	-
7.45	0	-	0.674881	1.500942	-	-	-	0.687934	-0.2856	-	-	-
7.46	0	-	0.674881	1.499834	-	-	-	0.687934	-0.28429	-	-	-
7.47	0	-	0.674881	1.49873	-	-	-	0.687934	-0.28299	-	-	-
7.48	0	-	0.674881	1.497629	-	-	-	0.687934	-0.28169	-	-	-
7.49	0	-	0.674881	1.49653	-	-	-	0.687934	-0.2804	-	-	-
7.5	0	-	0.674881	1.495435	-	-	-	0.687934	-0.27911	-	-	-
7.51	0	-	0.674881	1.494342	-	-	-	0.687934	-0.27782	-	-	-
7.52	0	-	0.674881	1.493252	-	-	-	0.687934	-0.27654	-	-	-
7.53	0	-	0.674881	1.492166	-	-	-	0.687934	-0.27525	-	-	-
7.54	0	-	0.674881	1.491082	-	-	-	0.687934	-0.27398	-	-	-
7.55	0	-	0.674881	1.490001	-	-	-	0.687934	-0.2727	-	-	-
7.56	0	-	0.674881	1.488922	-	-	-	0.687934	-0.27143	-	-	-
7.57	0	-	0.674881	1.487847	-	-	-	0.687934	-0.27017	-	-	-
7.58	0	-	0.674881	1.486775	-	-	-	0.687934	-0.2689	-	-	-
7.59	0	-	0.674881	1.485705	-	-	-	0.687934	-0.26764	-	-	-
7.6	0	-	0.674881	1.484638	-	-	-	0.687934	-0.26638	-	-	-
7.61	0	-	0.674881	1.483574	-	-	-	0.687934	-0.26513	-	-	-
7.62	0	-	0.674881	1.482513	-	-	-	0.687934	-0.26388	-	-	-
7.63	0	-	0.674881	1.481454	-	-	-	0.687934	-0.26263	-	-	-
7.64	0	-	0.674881	1.480398	-	-	-	0.687934	-0.26139	-	-	-
7.65	0	-	0.674881	1.479345	-	-	-	0.687934	-0.26015	-	-	-
7.66	0	-	0.674881	1.478295	-	-	-	0.687934	-0.25891	-	-	-
7.67	0	-	0.674881	1.477248	-	-	-	0.687934	-0.25767	-	-	-
7.68	0	-	0.674881	1.476203	-	-	-	0.687934	-0.25644	-	-	-
7.69	0	-	0.674881	1.475161	-	-	-	0.687934	-0.25521	-	-	-
7.7	0	-	0.674881	1.474122	-	-	-	0.687934	-0.25399	-	-	-
7.71	0	-	0.674881	1.473085	-	-	-	0.687934	-0.25277	-	-	-
7.72	0	-	0.674881	1.472051	-	-	-	0.687934	-0.25155	-	-	-
7.73	0	-	0.674881	1.47102	-	-	-	0.687934	-0.25033	-	-	-
7.74	0	-	0.674881	1.469991	-	-	-	0.687934	-0.24912	-	-	-
7.75	0	-	0.674881	1.468965	-	-	-	0.687934	-0.24791	-	-	-
7.76	0	-	0.674881	1.467942	-	-	-	0.687934	-0.24671	-	-	-
7.77	0	-	0.674881	1.466921	-	-	-	0.687934	-0.2455	-	-	-
7.78	0	-	0.674881	1.465903	-	-	-	0.687934	-0.2443	-	-	-
7.79	0	-	0.674881	1.464888	-	-	-	0.687934	-0.24311	-	-	-
7.8	0	-	0.674881	1.463875	-	-	-	0.687934	-0.24191	-	-	-
7.81	0	-	0.674881	1.462865	-	-	-	0.687934	-0.24072	-	-	-
7.82	0	-	0.674881	1.461857	-	-	-	0.687934	-0.23954	-	-	-
7.83	0	-	0.674881	1.460852	-	-	-	0.687934	-0.23835	-	-	-
7.84	0	-	0.674881	1.459849	-	-	-	0.687934	-0.23717	-	-	-
7.85	0	-	0.674881	1.45885	-	-	-	0.687934	-0.23599	-	-	-
7.86	0	-	0.674881	1.457852	-	-	-	0.687934	-0.23482	-	-	-
7.87	0	-	0.674881	1.456857	-	-	-	0.687934	-0.23364	-	-	-
7.88	0	-	0.674881	1.455865	-	-	-	0.687934	-0.23247	-	-	-
7.89	0	-	0.674881	1.454875	-	-	-	0.687934	-0.23131	-	-	-
7.9	0	-	0.674881	1.453888	-	-	-	0.687934	-0.23014	-	-	-
7.91	0	-	0.674881	1.452903	-	-	-	0.687934	-0.22898	-	-	-
7.92	0	-	0.674881	1.451921	-	-	-	0.687934	-0.22783	-	-	-
7.93	0	-	0.674881	1.450941	-	-	-	0.687934	-0.22667	-	-	-
7.94	0	-	0.674881	1.449963	-	-	-	0.687934	-0.22552	-	-	-
7.95	0	-	0.674881	1.448988	-	-	-	0.687934	-0.22437	-	-	-
7.96	0	-	0.674881	1.448016	-	-	-	0.687934	-0.22322	-	-	-
7.97	0	-	0.674881	1.447046	-	-	-	0.687934	-0.22208	-	-	-
7.98	0	-	0.674881	1.446078	-	-	-	0.687934	-0.22094	-	-	-
7.99	0	-	0.674881	1.445113	-	-	-	0.687934	-0.2198	-	-	-
8	0	-	0.674881	1.44415	-	-	-	0.687934	-0.21867	-	-	-

References

Adam, Klaus, and Roberto M. Billi (2008), "Monetary Conservatism and Fiscal Policy", Journal of Monetary Economics 55(8), 1376-88.

Adolfson, Malin, Stefan Laséen, Jesper Lindé and Mattias Villani (2005), "The Role of Sticky Prices in an Open Economy DSGE Model: A Bayesian Investigation", Journal of the European Economic Association Papers and Proceedings 3(2-3), 444-457.

Altig, David, Christiano, Lawrence J., Eichenbaum, Martin and Jesper Lindé (2010), "Firm-Specific Capital, Nominal Rigidities and the Business Cycle", Federal Reserve Board International Finance Discussion Paper No. 990, Review of Economic Dynamics, forthcoming.

Anderson, Gary and George Moore (1985), "A Linear Algebraic Procedure for Solving Linear Perfect Foresight Models", Economics Letters 17(3), 247-252.

Barro, Robert (1981), "Output Effects of Government Purchases," The Journal of Political Economy 89(6), 1086-1121.

Barro, Robert (1990), Macroeconomics, Third edition, John Wiley & Sons, Inc., New York.

Bernanke, Ben, Gertler, Mark and Simon Gilchrist (1999), "The Financial Accelerator in a Quantitative Business Cycle Framework", in John B. Taylor and Michael Woodford (Eds.), Handbook of Macroeconomics, North-Holland Elsevier Science, New York.

Blanchard, Olivier and Charles Kahn (1980), "The Solution of Linear Difference Models under Rational Expectations", Econometrica 48, 1305-1311.

Blanchard, Olivier and Roberto Perotti (2002), "An Empirical Characterization of The Dynamic Effects of Changes in Government Spending and Taxes on Output", The Quarterly Journal of Economics 117(4), 1329-1368.

Bodenstein, Martin, Erceg, Christopher, and Luca Guerrieri, (2009), "The Effects of Foreign Shocks When Interest Rates are at Zero", International Finance Discussion Paper no. 983.

Calvo, Guillermo (1983), "Staggered Prices in a Utility Maximizing Framework", Journal of Monetary Economics 12, 383-98.

Christiano, Lawrence, Martin Eichenbaum and Charles Evans (2005), "Nominal Rigidities and the Dynamic Effects of a Shock to Monetary Policy", Journal of Political Economy 113(1), 1-45.

Christiano, Lawrence, Martin Eichenbaum and Sergio Rebelo (2009), "When is the Government Spending Multiplier Large?" NBER Working Paper Series No. 15394.

Christiano, Lawrence, Motto, Roberto and Massimo Rostagno (2007), "Shocks, Structures or Monetary Policies? The Euro Area and the US After 2001", ECB Working Paper Series No. 774.

Cogan, John F., Cwik, Tobias, Taylor, John B. and Volker Wieland (2010), "New Keynesian versus Old Keynesian Government Spending Multipliers", Journal of Economic Dynamics and Control 34. 281-95.

Davig, Troy and Eric M. Leeper (2009), "Monetary-Fiscal Interactions and Fiscal Stimulus" Manuscript, Indiana University.

Domeij, David and Martin Flodén (2006), "The Labor-Supply Elasticity and Borrowing Constraints: Why Estimates are Biased", Review of Economic Dynamics 9 (1), 242-262.

Eggertsson, Gauti and Michael Woodford (2003), "The Zero Interest-Rate Bound and Optimal Monetary Policy", Brookings Papers on Economic Activity 1, 139-211.

Eggertsson, Gauti (2008), "Great Expectations and the End of the Depression", American Economic Review 98(4), 1476-1516.

Eggertsson, Gauti (2009), "What Fiscal Policy Is Effective at Zero Interest Rates?", Federal Reserve Bank of New York Staff Report No. 402.

Erceg, Christopher, Guerrieri, Luca and Christopher Gust (2006), "SIGMA: A New Open Economy Model for Policy Analysis", Journal of International Central Banking 2 (1), 1-50.

Fisher Jonas D.M, and Ryan Peters (2009), "Using Stock Returns to Identify Government Spending Shocks", Federal Reserve Bank of Chicago Working Paper 2009-03.

Friedman, Milton (1953), Essays in Positive Economics, Chicago: The University of Chicago Press.

Galí, Jordi and Mark (1999), "Inflation Dynamics: A Structural Econometric Analysis", Journal of Monetary Economics, 44, 195-220.

Galí, Jordi, Gertler, Mark and David López-Salido (2001), "European Inflation Dynamics", European Economic Review, 45, 1237-70.

Galí, Jordi, López-Salido, David and Javier Vallés (2007), "Understanding the Effects of Government Spending on Consumption", Journal of the European Economic Association, 5(1), 227-270.

Hall, Robert E. (2009), "How Much Does GDP Rise if the Government Buys More Output?" Manuscript, Stanford University, September 2009.

Hebden, James, Lindé, Jesper and Lars E.O. Svensson (2009), "Optimal Monetary Policy in the Hybrid New Keynesian Model under the Zero Lower Bound Constraint", mimeo, Federal Reserve Board and Sveriges Riksbank.

Jung, Taehun, Yuki Teranishi, and Tsotumu Watanabe (2005), "Optimal Monetary Policy at the Zero-Interest-Rate Bound," Journal of Money, Credit, and Banking, 37 (5), 813-35.

Keynes, John Maynard (1933), The Means to Prosperity, London: Macmillan Press.

Keynes, John Maynard (1936), The General Theory of Employment, Interest and Money, London: Macmillan Press.

Leeper Eric M., Walker, Todd B. and Shu-Chun Susan Yang (2009), "Fiscal Foresight and Information Flows" NBER Working Paper Series No. 14630.

Lindé, Jesper (2005), "Estimating New Keynesian Phillips Curves: A Full Information Maximum Likelihood Approach", Journal of Monetary Economics, 52(6), 1135-49.

Mertens, Karel & Morten Ravn, "Fiscal Policy in an Expectations Driven Liquidity Trap", mimeo, Cornell University and University College of London.

Mountford, Andrew and Harald Uhlig (2008), "What are the Effects of Fiscal Policy Shocks", NBER Working Papers No. 14551, National Bureau of Economic Research.

Nakata, Taisuke (2009), "Optimal Monetary Policy and Government Expenditure Under a Liquidity Trap", manuscript, New York University.

Perotti, Roberto (2007), "In Search of the Transmission Mechanism of Fiscal Policy", NBER Working Papers No. 13143, National Bureau of Economic Research.

Ramey, Valerie A. (2009), "Identifying Government Spending Shocks: It's All in the Timing", NBER Working Papers No. 15464, National Bureau of Economic Research.

Smets, Frank and Raf Wouters (2003), "An Estimated Stochastic Dynamic General Equilibrium Model of the Euro Area", Journal of the European Economic Association 1(5), 1123-1175.

Smets, Frank and Raf Wouters (2007), "Shocks and Frictions in US Business Cycles: A Bayesian DSGE Approach", American Economic Review 97(3), 586-606.

Uhlig, Harald (2009) "Some Fiscal Calculus" Manuscript, University of Chicago, May 2009.

Woodford, Michael, 2003, Interest and Prices, Princeton: Princeton University Press.

Woodford, Michael, 2010, "Some Analytics of the Government Spending Multiplier", CEPR Discussion Paper No. 7704.

Yun, Tack (1996), "Nominal Price Rigidity, Money Supply Endogeneity, and Business Cycles", Journal of Monetary Economics 37, 345-370.

Footnotes

**  We thank Martin Bodenstein, V.V. Chari, Luca Guerrieri, and Raf Wouters for very constructive suggestions. We also thank participants at a macroeconomic modeling conference at the Bank of Italy in June 2009, at the February 2010 NBER EF&G Meeting in San Francisco, at the CEPR 18th ESSIM conference in Tarragona (Spain), at the 2010 SED Meeting in Montreal, and seminar participants at the European Central Bank, Georgetown University, University of Maryland, the Federal Reserve Banks of Cleveland and Kansas City, and the Sveriges Riksbank. Mark Clements, James Hebden, and Ray Zhong provided excellent research assistance. The views expressed in this paper are solely the responsibility of the authors and should not be interpreted as reflecting the views of the Board of Governors of the Federal Reserve System or of any other person associated with the Federal Reserve System. Return to text

1.  Corresponding Author: Telephone: 202-452-2575. Fax: 202-263-4850 E-mail addresses: [email protected] and [email protected]. Return to text

2.   The bulk of research suggests a government spending multiplier in the range of 0.5 to slightly above unity. One strand of the literature - originating with Barro (1981, 1990) - has estimated the multiplier by examining the response of output to changes in military spending. This approach has typically yielded multipliers in the range of 0.5-1.0, including in recent work by Hall (2009), although Ramey (2009) estimated a somewhat higher multiplier of 1.2. As emphasized by Hall, estimates based on this approach hinge critically on the relationship between output and spending during WWII and the Korean War, and may be somewhat downward-biased due to the "command-economy" features prevalent in WWII, and because taxes were raised markedly during the Korean War. An alternative approach involves identifying the government spending multiplier using a structural VAR - as in Blanchard and Perotti (2002), and Gali, Lopez-Salido, and Valles (2007). These studies report a government spending multiplier of unity or somewhat higher (after 1-2 years), though the cross-county evidence of Perotti (2007) and Mountford and Uhlig (2008) is suggestive of a lower multiplier. Return to text

3.   In contrast, Cogan et al. (2009) analyze the effects of government spending shocks in the Smets-Wouters model, and conclude that the multiplier is only slightly amplified under the range of liquidity trap durations that they consider, which extend between 4 and 8 quarters. Mertens and Ravn (2010) develop a stylized model which rationalizes a low and possibly negative spending multiplier in a liquidity trap in an environment with multiple equilibria driven by expectational shocks. In their model, an increase in fiscal spending confirms and reinforces the pessimistic expectations of the private sector. Return to text

4.   Bodenstein, Erceg, and Guerrieri (2009) show in the context of simulations of a large-scale open economy model that the contractionary effect of foreign shocks on the domestic economy increases nonlinearly in the size of the shock when the domestic economy is constrained by the zero bound. Return to text

5.   As discussed in recent papers by Leeper, Walker and Yang (2009) and Ramey (2009), identified VARs can produce misleading results if some of the fiscal expansion is anticipated. Accordingly, Fisher and Peters (2009) identify government spending shocks with statistical innovations to the accumulated excess returns of large U.S. military contractors, and find that positive spending shocks are associated with an output multiplier above unity and increases in hours and consumption. Return to text

6.   We stress that the implied slope of the Phillips Curve is consistent with empirical estimates (albeit at the lower end). In this paper, we find it convenient to simply map a given slope of the Phillips curve into an effective contract duration under the assumption that marginal costs are identical across firms. However, the same slope of the Phillips curve can be consistent with a much shorter price contract duration if capital is firm-specific, as shown by e.g. Galí, Gertler, and López-Salido (2001) and Altig, Christiano, Eichenbaum and Lindé (2010). Return to text

7.   As shown below, the multiplier isn't nearly as large if only price contracts are shorter. Return to text

8.   We use the notation $y_{t+j\vert t}$ to denote the conditional expectation of a variable $y$ at period $t+j$ based on information available at $t$, i.e., $y_{t+j\vert t}$ = E $_{t}y_{t+j}.$ The superscript 'pot' denotes the level of a variable that would prevail under completely flexible prices, e.g., $y_{t}^{pot}$ is potential output. Return to text

9.   The effect of each shock on the marginal utility of consumption $\lambda_{ct}$ can be expressed:

$$\lambda_{c,t}=-\frac{1}{\hat{\sigma}}c_{t}+\frac{\nu_{c}(1-g_{y})}{\hat {\sigma}}\nu_{t}=\frac{1}{\hat{\sigma}}\left[ \frac{(g_{y}g_{t}-y_{t} )}{1-g_{y}}+\nu_{c}(1-g_{y})\nu_{t}\right]$$ (8)

where $c_{t}$ is consumption, $y_{t}$ output, and $g_{t}$ government spending. Return to text

10.   In the more empirically realistic models considered in Sections 3 and 4, the underlying shock process is chosen to roughly match the decline in U.S. GDP during the recent recession. However, in this section we simply scale the taste shock to generate a liquidity trap of the same duration (8 quarters) as in the models considered subsequently. Return to text

11.   The parameter $\xi_{p}$ is set equal to .9995, implying a mean duration of price contracts of 2000 quarters, and a value of $\kappa_{p}$ of .0000028. Return to text

12.   As seen in the figure, cuts in government spending exert a progressively more negative marginal impact as they become large enough to extend the duration of the liquidity trap. Return to text

13.   As in the upper left panel, the "0" spending level on the lower horizontal axis implies an 8 quarter liquidity trap (denoted by the tick marks on the upper horizontal axis). Return to text

14.   The two-state Markov framework adopted by Eggertson (2008 and 2009), Christiano, Eichenbaum, and Rebelo (2009), and Woodford (2010) provides a great deal of clarity in identifying factors that can potentially account for a high multiplier, which is the focus of their analysis. But given that the depth of the recession - and associated fall in the potential real interest rate - is assumed to be constant in the liquidity trap state, the multiplier also turns out to be constant in a liquidity trap irrespective of the level of spending (i.e., until spending rises enough to snap the economy out of the liquidity trap entirely). Return to text

15.   The mean duration of price contracts is set to 5 quarters, as in Figure 2. Return to text

16.   Paralleling the case in which government spending requires implementation lags, we assume that $\nu_{t}$ follows $\nu_{t}-\nu_{t-1}$= $\rho_{\nu_{1}} (\nu_{t-1}-\nu_{t-2})$- $\rho_{\nu_{2}}\nu_{t-1}$+ $\varepsilon_{\nu,t},$ where $\rho_{\nu_{1}}$ = 0.2 and $\rho_{\nu_{2}}=$ 0.05. Return to text

17.   The data are from Bloomberg. Monthly OIS rates are averaged to obtain the quarterly values shown in the figure, with the values in quarters 9-11 derived from interpolation using a cubic spline. Return to text

18.   The American Reinvestment and Recovery Act was passed in 2009:Q1, the first quarter in which the federal funds rate averaged less than 1/4 percentage point. Return to text

19.   Using our terminology in Section 2, this definition corresponds to an "average" multiplier, since it indicates how output on average responds to a fiscal stimulus package of a given size. We will examine the behavior of the "marginal" multiplier in the next subsection. Return to text

20.   Note that while the tax-rule (33) responds to government debt as a ratio of annualized trend nominal output $b_{G,t}=\frac{B_{Gt}}{4P_{t}Y},$ the figure reports government debt relative to actual output $\tilde{b}_{G,t}\equiv$ $\frac{B_{Gt}}{4P_{t}Y_{t}}.$ Return to text

21.   In general, the exit period from the liquidity trap depends on model's structural parameters. Hence, the spending levels at which the multiplier jumps vary across calibrations. Given the four alternative calibrations in the lower panel of Figure 7 (and also 10), the upper tick marks simply highlight where these jumps occur for the calibration in which wages and prices are highly flexible. By contrast, the jump points in the corresponding panel in Figure 3 are uniform across the alternative calibrations examined, reflecting that the exit from the liquidity trap depends only on the potential real interest rate under our simplifying assumption that monetary policy completely stabilizes the economy. Return to text

22.   Uhlig (2009) emphasizes that highly persistent (or permanent) increases in the level of government spending tend depress output significantly at horizons beyond a couple of years if the higher spending must be financed by a hike in the labor income tax rate. Return to text

23.   We have also examined a case in which the capital income tax rate adjusts dynamically to government debt. This alternative implies an even lower output response than in Figure 8 (actually negative if capital taxes adjust quickly enough). Return to text

24.   The monitoring cost, $\mu$, expressed as a proportion of entrepreneurs' total gross revenue, is 0.12. The default rate of entrepeneurs is 3 percent per year, and the variance of the idiosyncratic productivity to entrepreneurs is 0.28.  Return to text

25.   Most of the difference between the workhorse model and the full model is driven by the inclusion of Keynesian households (and the assumption that they account for half of all households). Return to text

26.   Eggertsson (2009) argues that tax cuts aimed at stimulating aggregate demand rather than aggregate supply are preferable in a liquidity trap (e.g. sales taxes and implementing an investment tax credit). Return to text

This version is optimized for use by screen readers. Descriptions for all mathematical expressions are provided in LaTex format. A printable pdf version is available. Return to text

Home | Economic research and data | Publications and education resources
Accessibility | Contact us
Last update: October 8, 2010
