Keywords: Shipments, orders, business investment, business cycles, threshold cointegration, markov switching models
Abstract:
JEL Classification: E22, E23, E32
Equipment investment is an important part of the US business cycle, accounting for about a quarter of the variance of annual real GDP growth since 1985.^{1} The data produced by the US Census Bureau on shipments of nondefense capital goods are the primary source data used by the US Bureau of Economic Analysis (BEA) to produce estimates of equipment investment, and the Census Bureau also produces data on net new orders and backlogs of unfilled orders for most of these capital goods industries. Since these industries generally take orders before producing and shipping the capital goods, the orders data are followed closely as an indicator of where shipments, equipment investment, and the business cycle are headed.
Most papers in the investment literature study the behavior of firms who employ capital equipment to produce goods for final consumption. Relatively few papers study the behavior of the firms who provide the capital equipment to those firms making consumption goods, as we do here. For these capitalgoodssupplying firms, demand is other firms' demand for capital, as reflected in the orders data. The data on capital goods orders and shipments afford us the opportunity to study how these firms respond to fluctuations in demand, and this paper documents and studies some interesting changes in firm response patterns over the business cycle. Using different types of variation and different econometric specifications, including threshold cointegration and Markov switching models, we show that shipments of capital goods producers exhibit stronger responses to fluctuations in orders when the level of new orders is low relative to the level of shipments, typically in and around recessions. Furthermore, we demonstrate that the change in the response of shipments to orders accounts for much of the steep decline in shipments (and thus equipment investment) seen in the last two recessions (i.e. the 2001 and 20079 recessions).
We interpret these empirical results through the lens of a production smoothing model with a target delivery lag for new orders, expressed as a ratio of unfilled orders to shipments. Backlogs of unfilled orders are used by firms as a buffer between demand and production, in much the same way as finished goods inventory stocks are used to absorb demand shocks, so this model resembles closely the theoretical machinery that has been developed over the years to study inventories.^{2} Since order backlogs are usually associated with productiontoorder industries, which encompass most of the nondefense capital goods we analyze, while finished goods inventories are more prominent in productiontostock industries, we assume that firms do not hold finished goods inventories (Besley, 1969; Abramowitz, 1950).^{3}
Similar to Blanchard and Fischer (1989), the production smoothing model predicts greater responsiveness of shipments to orders when the effects of shocks to orders persist longer. Using threshold autoregressions and Markov switching specifications, we show that the orders growth process exhibits significant timevarying persistence. For limited periods of time (generally a few quarters or less), the short run dynamics of orders growth are governed by extreme persistence, such that the best estimate of orders growth next period is close to current orders growth.^{4}And, in line with the implications of the theory, these periods of heightened orders growth persistence tend to coincide with the periods of increased responsiveness of shipments to orders.
While the changing persistence of the orders process provides a plausible explanation for some of the time variation in the responsiveness of shipments to orders that we observe, it probably does not explain all of it. The model shows that the persistence of the orders process should affect only a subset of the coefficients in our empirical specifications, not the case in a number of our specifications. We consider other explanations for these changes in the responsiveness of shipments to orders, including cyclical changes in other parameters of the production smoothing model. Interestingly, the ratio of unfilled orders to shipments tends to shoot above its trend in recessions and then fall back afterwards, suggesting cyclical changes in the target delivery lag. Perhaps firms desire larger buffer stocks of unfilled orders in bad economic times, amplifying downturns. We also discuss briefly whether features of other models, such as models may help explain these empirical results.
Some of the literature related to our paper is the following. As in Kahn (2010), we analyze how the behavior of firms in productiontoorder industries helps explain certain features of the business cycle. Our finding that the sensitivity of shipments to orders is higher when shocks to orders are more persistent is similar to the result in Tevlin and Whelan (2003), where more persistent changes in fundamentals lead to higher investment elasticities. The business cycle asymmetries in the dynamics of orders and shipments that we uncover are also related to the literature on asymmetric business cycles, such as French and Sichel (1993). And the increased persistence in recessionary episodes may be related to the effect of uncertainty shocks on investment demand, as in Bloom (2009). However, our paper suggests that these shocks may be significantly amplified by the endogenous response of producers of capital goods.
We use monthly data on orders and shipments from the Census Manufacturers' Shipments, Inventories, and Orders (M3) survey. This survey includes data on monthly flows of shipments and new orders and endofmonth stocks of inventories and unfilled orders for several manufacturing industry groupings. The M3 survey asks respondents directly about shipments, inventories, and unfilled orders, and new orders are backed out as shipments plus the change in unfilled orders.
Although not mandatory, the M3 survey is regularly benchmarked to the more comprehensive Annual Survey of Manufacturers (ASM) and Quinquennial Economic Census (EC). However, neither the ASM nor the EC contain any information on unfilled orders, which raises some questions about the quality of the unfilled and new orders data in the M3 survey, especially at low frequencies. To address this problem, the Census conducted comprehensive unfilled orders surveys in 1976, 1986, 2000, and 2008. Starting in 2009, a new annual unfilled orders survey was created.
To analyze the response of shipments to demand over the business cycle, we focus on industries producing nondefense capital goods excluding aircraft, industries that mostly produce to order and accumulate nontrivial backlogs of unfilled orders recorded by the Census Bureau.^{5} We exclude defenserelated industries because shipments in these industries are not very sensitive to the business cycle.^{6} Finally, we exclude the aircraft industry because it is characterized by extremely long lags between new orders and final shipments.^{7} Note that our selected aggregate includes most of the M3 equipment categories that the BEA uses to estimate private equipment investment in the quarterly National Income and Product Accounts.
The M3 data is available on a NAICS industry classification from January 1992 to present. However, we use the historical data on a SIC industry classification to extend the aggregate data on nondefense capital goods excluding aircraft back to January 1968. In the empirical analysis, we use both the shorter, NAICSbased timeseries and the longer, SICextended timeseries. These data are nominal, so we construct real data as a chainweighted aggregate of the relevant M3 categories. As described in appendix A, we use the US Bureau of Labor Statistics (BLS) data on Producer Price Indexes (PPI) to construct price deflators at the M3 category level and then chainaggregate the M3 categories included in nondefense capital goods excluding aircraft. Figure 1 plots the logarithms of real orders and shipments (the thin and thick lines, respectively), using the SICextended timeseries, from 1968 to 2011. The chart shows that both series are highly procyclical and that orders are generally more volatile than shipments. Moreover, during expansions orders tend to run above shipments, while in recessions orders tend to plunge below shipments.^{8}
In this section we report a wide array of results showing that shipments respond more strongly to orders at certain times, most typically in or around recessions. We emphasize that we are not particularly wedded to any of these econometric specifications: for example, we do not necessarily believe we have identified a precise cutoff for the level of orders relative to shipments where all of the increased sensitivity of orders to shipments is activated. Rather, the different specifications are simply different ways of illustrating the same stylized fact, broadly speaking.
We begin our econometric examination of the monthly shipments data with regressions of the log difference of real shipments, , on six of its lags, , six lags of the log difference of real orders, , and an error correction term equal to the first lag of log real orders minus real shipments, , where is defined as . The lag length of six is the optimal lag length according to the Akaike information criterion. Columns one and three of Table 1 show estimation results using the long sample extending from January 1969 to June 2011 and the shorter January 1993 to June 2011 sample using NAICSbased data only.^{9} Shipments are quite noisy, so shipments growth exhibits substantial negative serial correlation at the first and second lags. Many of the coefficients on lagged orders growth are significant, so shipments do respond to lagged orders, but the error correction terms are not statistically significant.^{10}
This result is somewhat puzzling, because Figure 1 shows that in periods such as 1982, 2001, and from late 2008 to early 2009, when orders plunged, shipments followed orders down, suggesting error correction of shipments towards orders. As a first pass at examining potential nonlinearities in the response of shipments to orders, we add to the regression the error correction term multiplied by a dummy variable equal to one when orders fall below shipments. Columns two and four of Table 1 show results: the error correction coefficient is negative (but small and insignificant) when orders are above shipments, but shifts to positive when orders are below shipments. The increase is sizable using the 1993 to 2011 sample, with log shipments correcting to close about a third of the gap between log orders and shipments each month when orders are below shipments.
With a known break point, these standard errors would be valid, but since the break point is unknown, the OLS standard errors here should be interpreted with some caution: see Balke and Fomby (1997) and Hansen and Seo (2002), who discuss these threshold cointegration models, as well as the earlier literature on threshold autoregression starting with Tong (1983, 1990). Table 1a reports results from a fully general threshold cointegration model allowing all parameters to break when the error correction term falls below a certain value (i.e. we include interactions of all variables with an indicator variable ). The value is estimated using the search procedure described in Hansen and Seo (2002).
The optimized value of is 1.73 (in percentage points) using the longer sample, and 0.13 using the shorter sample, the latter activating the dummy when orders are more than slightly below shipments. Both specifications show increased responsiveness of shipments to orders when the dummy is activated, with the coefficients on the interactions with the lagged orders growth terms and the error correction all positive.
Since the standard errors here are somewhat suspect, we use the heteroskedasticityrobust supLM statistic of Hansen and Seo (2002) to test the significance of the nonlinearities, computing asymptotic pvalues for this statistic with the fixed regressor bootstrap described in that paper.^{11} The pvalue of the test statistic is 0.48 using the 19692011 sample, but only 0.04 using the 19932011 sample.
Before examining these nonlinearities further, we convert the data from monthly to quarterly to wipe out much of the highfrequency noise in the data leading to the negative serial correlation in shipments growth in Tables 1 and 1a. Similar to those monthly specifications, we explain the log difference of quarterly shipments with two of its lags, two lags of the log difference of quarterly orders, the quarterly error correction term, and some interactions of these terms with a dummy variable. The first row of each panel of Table 2 reports results without interactions, and similar to Table 1, we find some responsiveness of shipments growth to lagged orders growth and no evidence of error correction of shipments towards orders, but now we see no significant negative serial correlation in shipments growth.
We experimented with specifications that allow for interactions with all six of the parameters in this quarterly specification, but the coefficients on the dummyinteracted constant and lagged shipments terms were not particular large, and the presence of these additional terms did not affect the coefficients on the dummyinteracted orders terms very much. In light of this, we settled on the more parsimonious specification reported in Table 2, which allows the coefficients on the orders variables (the error correction term and the lagged orders growth terms) to shift when the error correction term falls below the critical threshold . The optimal value of (again estimated as in Hansen and Seo (2002)) activates the dummy when orders fall below a threshold of a little less than one percent above shipments, with the coefficient on the first lag of orders growth increasing considerably when orders fall below this threshold. Testing the joint significance of the nonlinearities using the supLM statistic, we find a pvalue of 0.11 using the 19692011 sample, and 0.06 using the 19932011 sample.

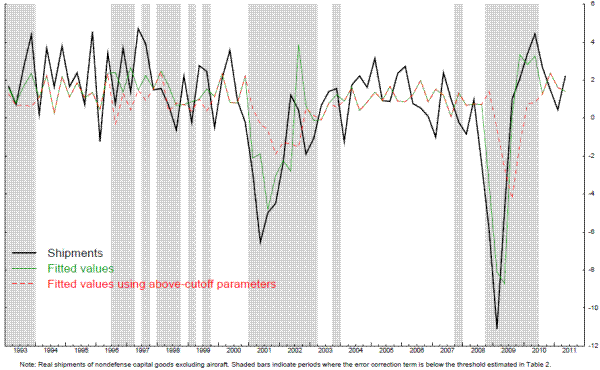

The coefficient changes in Table 2 show that shipments react more quickly to changes in orders when . After one quarter, shipments decline 0.6 percent for every 1 percent decline in orders, compared to a decline of less than 0.1 percent when . To show how this increased responsiveness below the threshold allows the model to fit cyclical declines in shipments, Figure 2 plots NAICSbased quarterly shipments growth, the heavy solid line, from 1993Q1 to 2011Q2, along with two sets of predicted values from the shortsample specification in Table 2. The first set of predicted values, the lighter solid line, uses the full specification with interactions, while the second set of predicted values, the dashed line, sets the coefficients on the dummy interactions to zero, imposing the abovecutoff coefficients on the entire sample. In the periods where the error correction is above the cutoff, the two sets of predicted values coincide, and periods where it is below the cutoff are shaded. The error correction term is below the cutoff on and off through the midtolate 1990s, but stays below the cutoff for more than several consecutive quarters only in recessions and their aftermath. In these periods, the predicted values using the abovecutoff parameters do not come close to capturing the depth of the decline in shipments. Therefore, the increased responsiveness of shipments to orders below the cutoff is critical to explaining the severity of the shipments declines in and around recessions.^{12}
Table 3 examines the properties of the orders growth process. The first row of each panel reports results from a standard autoregression, while the second shows results from a threshold autoregression.^{13} In addition to allowing the coefficients on the lagged orders terms to change, this specification also allows the variance of the shocks to the orders process to change when orders are below the cutoff; the change in the variance is the parameter. In the longer sample, the cutoff is quite a bit higher than the cutoff in Table 2, and the variance declines when orders fall below this threshold. In the shorter sample, the cutoff is exactly the same as the cutoff in Table 2, and the shock variance increases when orders fall below this threshold.
In both samples, we see virtually no persistence in orders growth when orders are above the cutoff, with . However, when orders are below the cutoff, orders growth is quite persistent, with about 0.6 in the long sample and 0.8 in the short sample. While this heightened persistence is itself temporary, the degree of persistence is a noteworthy for a growth rate process. When orders are below the cutoff, as they typically were in recent recessions, a rapid orders decline in the current quarter generally signals a continued rapid decline next quarter.^{14}
The evidence for nonlinearity in the orders growth autoregressions in Table 3 is strong, with the pvalue for the supLM statistic equal to 0.04 using the long sample and 0.001 using the short sample. The more than doubling of the regression when we allow for the nonlinearity, from 0.17 to 0.40, is particularly striking in the short sample. We conclude that the shortrun dynamics of orders growth exhibit significantly more persistence in periods where orders fall below the critical threshold .
The specifications employed so far assume that the dummy variable is activated when the error correction term falls below a certain critical value, but the next set of results, reported in Table 4, relaxes that assumption. The activation of the dummy variable can be thought of as a regime switch, and Table 4 reports results from a twostate Markov switching model where the coefficients on the lagged orders growth terms and and the error correction term switch with the state . The estimates maximize the likelihood by jointly estimating the statedependent coefficients and the probability the economy is in state 1 or state 2 in each quarter. The probabilities in quarter influence the probabilities in quarter through a Markov transition matrix, where is the probability the economy remains in state in period conditional on the economy being in state in period . Using this structure, the model chooses the probabilities to provide the best fit of shipments growth, so the probabilities are not tied directly to the level of the error correction term in any way.
Table 4 shows that shipments respond more to fluctuations in orders in state 2. If the economy stays in state 2 with 100 percent probability, the level of shipments declines by more than 1 percent for each 1 percent decline in orders, compared to changes in the level of shipments of less than 0.25 percent if the economy is in state 1. Consequently, we call state 2 the "high response state". The coefficient on the first lag of orders growth increases markedly in this highresponse state, and, as in the threshold specifications, the response of shipments to orders comes more quickly. Notably, the coefficient on the error correction term also shifts from small and negative to large and positive in the high response state.

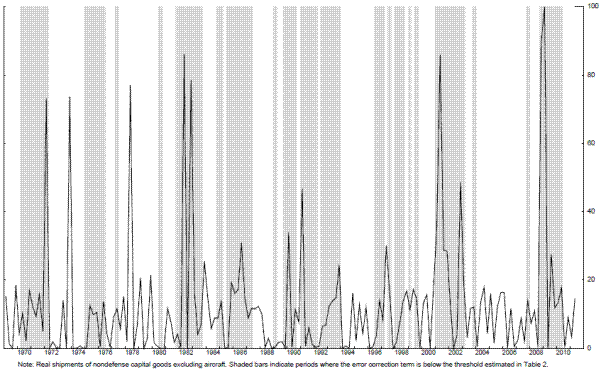

Smoothed probabilities that the economy is in the high response state, computed from the 1969 to 2011 sample, are shown in Figure 3; for comparison, periods where the error correction term is below the optimal threshold from Table 2 are shaded gray. Most of the spikes up in the probability of the high response state are in the shaded areas where the error correction term is below the threshold, although we do see two spikes up in the highresponse probabilities outside of the shaded areas, in 1972 and 1978. However, starting with the 19812 recession, the largest spikes up in the probabilities of the highresponse state occur in the shaded areas, and, indeed, during recessions.
These probabilities look somewhat ragged, because the model estimates a very low value for , 17 percent, implying that the high response state is not at all persistent. This probability is higher using the shorter sample, and smoothed probabilities from this sample are shown in Figure 4, with gray shading where the error correction term is below the optimal threshold from Table 2. These smoothed probabilities are elevated from late 2000 through the end of the 2001 recession, in the pause in the recovery from late 2002 to early 2003, at the height of the 20079 recession, and in the first quarter of recovery from that recession. Except for late 2000, these periods are all shaded, with orders having dropped precipitously so the error correction term was below the critical threshold. The Markovswitching model could have estimated elevated probabilities of the highresponse state at other times, for example, in booms with orders running well above shipments, and the fact that it generally does not do so provides some validation for the use of the simplified threshold specifications in section 3.1.
Table 5 reports from a Markovswitching autoregression in orders growth, using the 1993 to present sample, allowing the variance to change with the state as well as the autoregressive parameters.^{15} While orders growth exhibits virtually no persistence in state 1, we see very high persistence in the orders growth process in state 2. Indeed, if state 2 were permanent, orders growth would be nonstationary, but the average duration of state 2 is only a couple of quarters, with a probability of continuation into next quarter of 56 percent. Still, these parameters imply that if orders are plunging and the economy is in state 2, orders will continue to plunge until either a large positive shock to orders or the economy transitions out of state 2.
In addition to the relatively high persistence in state 2, the model also estimates a relatively high variance. Since state 2 tends to occur in and around recessions, the variance finding is consistent with the earlier literature on asymmetric business cycles, such as French and Sichel (1993) and Beaudry and Koop (1993), who characterize recessions as periods of relatively large shocks concentrated over a short period of time. Our finding of increased persistence in the orders process over short periods of time in recessionary episodes is a new result, but not necessarily inconsistent with those earlier findings.^{16}

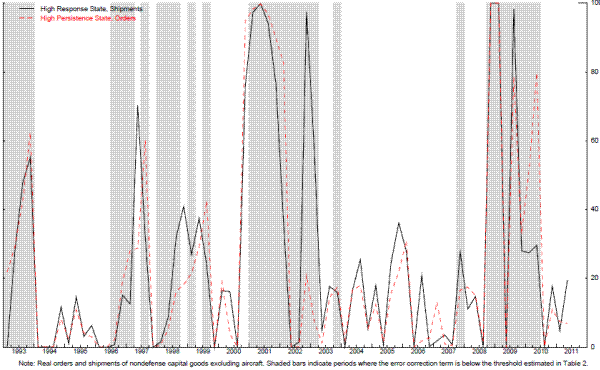

We call state 2 the "high persistence state", and Figure 4a plots smoothed probabilities of this state along with smoothed probabilities of the high response state for shipments from Figure 4. These states largely coincide, so periods were orders growth exhibits high persistence tend to be periods where shipments growth responds strongly to orders growth. We also see elevated smoothed probabilities of the high persistence state again tending to occur in periods shaded gray, where the error correction term is below the optimal threshold from Table 3, providing more support for the simplified threshold specifications in section 3.1.

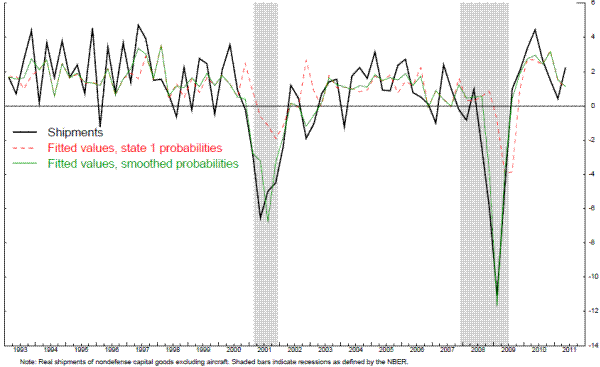

Figure 5 plots quarterly shipments growth and the predicted values from the Markovswitching model, computed using smoothed probabilities, so the probabilities in each quarter are estimated using information from all quarters in the sample. The model tracks very well the declines in shipments in the 2001 recession and its aftermath, and in the 20079 recession. The other line in the figure shows predicted values if the economy had stayed in state 1 (with 100 percent probability) throughout the sample. Shipments would have fallen much less in these recessions had this been the case, indicating that most of the decline in shipments (and equipment investment) in those recessions was due to changes in the responsiveness of shipments to orders. These results are very similar to those in Figure 2, again highlighting the broad similarities between the threshold cointegrations and Markov switching specifications.
Since our NAICSbased sample is somewhat short, we bring additional variation to bear in our final cut at the data. Using twenty industry categories, we ran crosssectional regressions for each quarter from 1993Q1 to 2011Q2 of industrylevel shipments growth on a constant, the industrylevel error correction term, and one lag each of industrylevel shipments growth and orders growth.^{17} The time series of crosssectional s on the error correction term shows interesting cyclical patterns, and these are plotted in Figure 6, with recessions shaded gray.^{18} Note that including a constant in the regression for each quarter purges the data of aggregate effects, as the inclusion of a set of time dummies would in a panel regression, so these timevarying coefficients are estimated using variation that is orthogonal to the aggregate variation we have exploited thus far.
Figure 6 shows that while the s reach some elevated values in the mid1990s, they are most elevated for extended periods during the 2001 and 20079 recessions, peaking at a value close to 0.8 at the height of the Great Recession. On average, the average 0.43 in recessions and only 0.13 in expansions, providing acrossindustry evidence that shipments respond more to orders in bad economic times.
Table 6 shows aggregate regression results including the time series of lagged one quarter, both directly and interacted with the aggregate error correction term and the orders growth terms . The adjusted Rsquare of the regression increases from 0.40 to 0.42 when lagged is added to the regression, but it increases more, to 0.45, when lagged interacted with the aggregate error correction term is added instead, and it increases to 0.50 when both terms are added. Further, the coefficient on the aggregate error correction term interacted with lagged is highly statistically significant. With averaging about 0.13 in expansions and 0.43 in recessions, the second to last specification tells us that the timevarying coefficient on the error correction term is close to zero in expansions and about 0.35 in recessions.
In the last specification in Table 6, we interact the with the lagged orders growth terms as well as the error correction term. While the interesting time variation in the cross sectional regression coefficients appears in the error correction term, when these cross sectional error correction coefficients are interacted with all the aggregate orders terms, it is the interaction with the second lag of orders growth that is largest and statistically significant. So, at the aggregate level, we have strong evidence of increased sensitivity of shipments to orders during downturns, but whether that increased sensitivity appears through the error correction term or the lagged orders growth terms is less clear.
Our goal in this section is not to write down and estimate a fully structural model. Rather, it is to derive implications from a simple stylized model, with an eye towards organizing our thoughts about firm behavior, and providing some basic insights into the factors that might or might not explain our empirical results.
In this model, firms produce a complex good with customizable specifications, making holding inventories of the finished good extremely costly as it is very unlikely that a customer will request the particular set of specifications in a good that has been already produced. Because all firms face the same constraint, customers are willing to wait a certain time until the ordered good is delivered. This type of good is naturally a producedtoorder good, where the firm holds unfilled orders but no finished goods inventories. Unfilled orders are accumulated according to:
.
The target is an important parameter in the model, helping pin down the degree to which shipments respond to orders. To see this, note that:
Layered on top of the cost of deviating from the target is an increasing marginal cost of production, modelled as a quadratic function of current shipments, which leads firms to smooth production by using unfilled orders as a buffer between shipments and stochastic demand. Firms take the price of their product, , as given. At the beginning of each period, once new orders are received, firms decide how much to produce and sell of total orders in stock (including current new orders and backlogged orders). The optimization problem of the firm is given by:^{19}
For simplicity, assume that aggregate orders growth follows an autoregressive process:
According to (4'), both with and without a production smoothing motive, i.e., , the sensitivity of shipments growth to new orders growth increases with the persistent in the new orders process:^{22}
Unlike the other model parameters (, , and ), which affect the sensitivity of shipments growth to both the error correction term and lagged new orders growth, the parameter governing the persistence of demand shocks, , affects only the coefficient on lagged new orders growth. The hypothesis that increased persistence of orders shocks explains some of the increased responsiveness of shipments to orders at certain times then provides two testable implications: first, the increased persistence of orders shocks should coincide with the increased sensitivity of shipments to orders, and second, the increased sensitivity of orders to shipments should appear as larger coefficients on lagged new orders growth, not as a larger coefficient on the error correction term.
Regarding the first testable implication, for the 1993 to 2011 sample, the evidence in Tables 2 and 3 and in Figure 4a is clearly favorable. Periods where orders growth exhibits high persistence do tend to be periods where shipments growth responds strongly to orders growth. Regarding the second testable implication, in all the specifications we examine in section 3, the increased sensitivity of shipments to orders does appear, at least in part, as larger coefficients on lagged new orders growth. With the empirical results confirming both of our testable implications, we conclude that changes in the persistence of the orders growth process are likely driving part of the changing responsiveness of shipments to orders over the business cycle.
However, in many of the specifications in section 3, we also observe an increase in the coefficient on the error correction term. In the threshold specifications, the increase in the error correction coefficient below the threshold appears in the monthly specifications, although not in the quarterly ones. In the Markov switching results, a sizable increase in the error correction coefficient in the highresponse state does appear. And time variation in the error correction coefficient appears in the crosssectional regression coefficients reported in Figure 6. Changing orders persistence cannot explain these results, so it falls short of providing a full and complete explanation for the time varying responsiveness of shipments to orders that we document. Simulations of the model, both with and without a production smoothing motive and using a nonlinear aggregate orders process similar to that estimated in Table 3 (except that changes in volatility are not allowed), confirm this prediction. In addition, these simulations show that the higher persistence of new orders cannot account for all of the increase in the sensitivity of shipments to new orders growth when new orders become more persistent. We conclude that capital goods producers must be changing their behavior for other reasons, possibly reacting to other changes in the business environment.
Next we consider time variation in the target ratio of unfilled orders to shipments. While this target is unobserved, it probably tracks actual fairly closely over long periods of time. Figure 7 shows that shows a strong downward trend between the mid1970s and the late 1990s, similar to the results in Kahn (2010), who argues that technological advances allowing for shorter delivery lags for producedtoorder goods can help explain the Great Moderation. Our 1993 to 2011 specifications generally show larger responses of shipments to orders than our 1969 to 2011 specifications, in line with the model prediction if the equilibrium target is lower in the latter part of the sample.

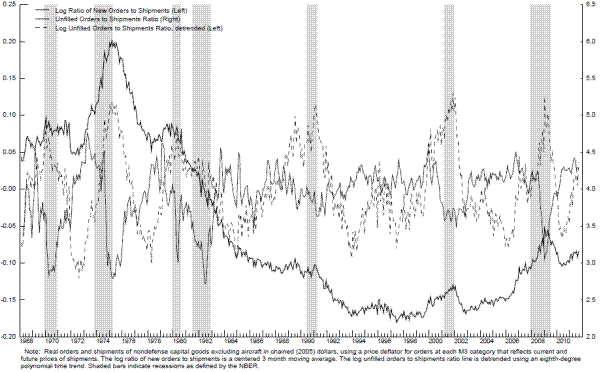

The business cycle frequency movements in this ratio are interesting as well. To emphasize these fluctuations, we plot the detrended logarithm of this ratio, along with the log ratio of new orders to shipments. At business cycle frequencies, when orders are below shipments, tends to increase noticeably. Although shipments tend to fall less than new orders in recessions, firms cut shipments more aggressively than needed to leave unchanged, perhaps revealing an increase in the target during recessions. Lack of access to credit and heightened pessimism or higher uncertainty could be leading firms to build up relatively large buffer stocks of unfilled orders in bad economic times, similar to how some firms hoard cash. In addition, customers may be willing to accept longer delivery lags in bad economic times, reducing the cost to producers of running a large orders backlog, thus increasing the target .^{24} In the early stages of a recovery, when demand rebounds, the costs of a long delivery lag could increase again, bringing back down.
Regarding and , the following expression shows that the lower the cost of production fluctuations and the higher the cost of deviations from the unfilled orders target, the higher the sensitivity of shipments to both new orders growth and the error correction term. We have:
Finally, other economic mechanisms not built into our framework may help explain part of our empirical results. In particular, if firms face nonconvex adjustment costs, leading to decision rules where firms only change production if unfilled orders deviate substantially from target, then the fraction of adjusting firms could increase disproportionately in periods with large negative demand shocks, increasing the responsiveness of shipments to orders in such periods.^{26} Simulating such a model, we found it largely insufficient to explain our main empirical findings, but a more flexible specification might be more successful. In particular, we assumed a symmetric shock process in our simulations, and employing an asymmetric shock process, with larger or more volatile shocks in recessions, may imply higher sensitivity of shipments to orders in recessions (see Bloom, 2009; Caballero, 1992).^{27}French and Sichel (1993) find evidence for such asymmetric shocks, and our results here suggest some asymmetry as well. Alternatively, an extreme form of an model where firms only adjust production by changing the number of shifts may also have some success at explaining both the higher sensitivity of shipments to orders in recessions and the countercyclical unfilled orders to shipments ratio.
Using a variety of approaches and statistical techniques, we have demonstrated that shipments of capital goods producers exhibit stronger responses to fluctuations in their new orders when the level of orders is low relative to the level of shipments, typically in and around recessions. This change in the response of shipments to orders is quantitatively important, accounting for much of the steep decline in shipments (and thus equipment investment) in the 2001 and 20079 recessions, and those declines in equipment investment accounted for a sizable portion of the deceleration in overall economic output in those recessions. Our results show how changes in time series processes and firm behavior amplify shocks in recessionary episodes, contributing to an understanding of how recessions are different from expansions and why they are more severe than standard linear economic models predict.
We provide interpretations for our empirical finding using a production smoothing model where firms receive orders and then set production and shipments using a target delivery lag, expressed as the ratio of unfilled orders to shipments. In the model, the sensitivity of shipments to new orders increases with the persistence of shocks to the orders process, which our results show varies over time. Consistent with the model, the heightened sensitivity of shipments to orders tends to occur when shocks to the orders process display heightened persistence, often in and around recessions. At such times, the short run dynamics of the orders process are highly persistent in growth rates, so that a decline in orders (perhaps in the early stages of a recession) signals that orders are likely to continue to decline, and a stabilization of orders (perhaps in the late stages of a recession or the early stages of a recovery) signals that orders are likely to remain stable.
Understanding why the orders process becomes so persistent in recessionary episodes likely would necessitate returning to the traditional domain of investment researchstudying the behavior of the firms providing the demand for capital. That is beyond the scope of this paper, which studies the behavior of firms supplying the capital, but we can offer some speculative hypotheses. Clearly recent recessions have entailed large negative shocks. At issue is why firms (in the aggregate) do not adjust to the shock instantaneously, but instead react in such a way that capital goods orders fall over a number of quarters, generating positive persistence in growth rates. Some models generate such slow adjustmentthe production smoothing model with a target delivery lag we study in this paper, for example; similar models may be governing other firms' production decisions and thus their demand for capital. Or firms may make adjustments to their capital expansion plans only periodically, and it may be costly to cancel orders and projects already in the pipeline, so that plans made before a recession provide some support to capital demand in the early stages of the recession. In addition, firms may be uncertain about the magnitude of the negative demand shock, which may reveal itself only slowly over the course of a recession, leading firms to ratchet back their capital goods orders gradually. Finally, causal feedback loops may be at playnegative feedback loops in recessions and positive feedback loops in the early stages of expansionshelping generate the extreme persistence we observe in orders growth at certain times.
Timevarying persistence of the orders process likely explains only part of the timevarying sensitivity of shipments to orders we observe, however. We consider other complementary explanations, including changes over the business cycle in other parameters of the production smoothing model such as the target delivery lag. Interestingly, the ratio of unfilled orders to shipments is countercyclical, suggesting firms may be slashing shipments in recessions to hold larger buffer stocks of unfilled orders (relative to shipments), perhaps for precautionary reasons. Further investigation of this aspect of firm behavior might be another worthwhile goal for future research.
We construct the real data for nondefense capital goods excluding aircraft by chainweigthing the real data of the M3 equipment categories included in that aggregate. We obtain the real data at the M3 category level in two steps. First, we use PPIs to create price deflators for the detailed SIC / NAICS industry codes included in each M3 category. Whenever a matching industry PPI is incomplete or unavailable, we use the closest commodity or industry PPI. Second, we use these price deflators together with the ASM and EC data on annual nominal shipments for each detailed SIC / NAICS code to create a chainweighted price deflator for each M3 category. Employing the shipments data from the ASM and EC for this purpose seems sensible because they serve as annual benchmarks for the M3 data.
According to the BLS, the PPIs are a measure of price changes in the monthly shipments data. Our baseline assumption is that these price changes apply equally to the orders data, in which case the price deflators for shipments, new orders, and unfilled orders are identical. However, the current stock of unfilled orders reflects future monthly shipments, implying that new and unfilled orders are not valued at current shipments prices. We create a currentprice measure of the backlog of unfilled orders as the deflated flow of future nominal monthly shipments that exhausts such backlog, from which a similar currentprice measure of new orders can be derived. Finally, we use the shipments price deflator to create the alternative real data on new and unfilled orders. Although our empirical analysis is done with the standard reals, the results are not very sensitive to using one or the other measure of the real orders data.
In this appendix we show how to derive equations (4), (4'), (7), and (8). From the first order condition (3), we get the difference equation
,
,
.
.
,
1969M1 to 2011M6  1969M1 to 2011M6  1993M1 to 2011M6  1993M1 to 2011M6

0.20  0.51  0.13  0.75
(Standard Error)  (0.09)  (0.12)  (0.12)  (0.21)
0.42  0.43  0.57  0.63
(Standard Error)  (0.05)  (0.05)  (0.10)  (0.10)
0.19  0.20  0.19  0.23
(Standard Error)  (0.06)  (0.06)  (0.10)  (0.10)
0.14  0.10  0.16  0.09
(Standard Error)  (0.06)  (0.06)  (0.10)  (0.10)
0.09  0.06  0.03  0.04
(Standard Error)  (0.06)  (0.06)  (0.10)  (0.10)
0.04  0.02  0.19  0.19
(Standard Error)  (0.05)  (0.05)  (0.10)  (0.09)
0.13  0.11  0.03  0.02
(Standard Error)  (0.05)  (0.05)  (0.08)  (0.08)
0.09  0.07  0.18  0.20
(Standard Error)  (0.03)  (0.03)  (0.07)  (0.07)
0.11  0.09  0.13  0.12
(Standard Error)  (0.03)  (0.03)  (0.07)  (0.07)
0.13  0.13  0.16  0.15
(Standard Error)  (0.03)  (0.03)  (0.07)  (0.07)
0.10  0.09  0.18  0.14
(Standard Error)  (0.03)  (0.03)  (0.07)  (0.07)
0.07  0.06  0.19  0.15
(Standard Error)  (0.03)  (0.03)  (0.06)  (0.06)
0.04  0.04  0.15  0.13
(Standard Error)  (0.02)  (0.02)  (0.05)  (0.05)
0.00  0.04  0.05  0.14
(Standard Error)  (0.02)  (0.03)  (0.07)  (0.09)
0.19  0.46
(Standard Error)  (0.05)  (0.13)
0.23  0.25  0.38  0.41
Note: , , where and are real orders and shipments of nondefense capital goods excluding aircraft, respectively. Standard errors of estimates are in parenthesis.
1969M1 to 2011M6  1993M1 to 2011M6

0.51  1.12
(Standard Error)  (0.22)  (0.32)
0.09  0.97
(Standard Error)  (0.25)  (0.44)
0.44  0.68
(Standard Error)  (0.09)  (0.13)
0.01  0.02
(Standard Error)  (0.11)  (0.20)
0.34  0.42
(Standard Error)  (0.10)  (0.13)
0.24  0.48
(Standard Error)  (0.12)  (0.23)
0.08  0.11
(Standard Error)  (0.09)  (0.13)
0.05  0.10
(Standard Error)  (0.12)  (0.22)
0.13  0.11
(Standard Error)  (0.09)  (0.13)
0.11  0.38
(Standard Error)  (0.12)  (0.21)
0.18  0.12
(Standard Error)  (0.10)  (0.12)
0.26  0.06
(Standard Error)  (0.12)  (0.19)
0.19  0.16
(Standard Error)  (0.09)  (0.10)
0.11  0.33
(Standard Error)  (0.11)  (0.17)
0.05  0.21
(Standard Error)  (0.04)  (0.10)
0.03  0.10
(Standard Error)  (0.06)  (0.15)
0.08  0.09
(Standard Error)  (0.05)  (0.10)
0.01  0.03
(Standard Error)  (0.06)  (0.15)
0.07  0.00
(Standard Error)  (0.05)  (0.09)
0.07  0.20
(Standard Error)  (0.06)  (0.15)
0.04  0.03
(Standard Error)  (0.05)  (0.09)
0.07  0.42
(Standard Error)  (0.06)  (0.15)
0.01  0.07
(Standard Error)  (0.04)  (0.08)
0.08  0.03
(Standard Error)  (0.06)  (0.13)
0.01  0.11
(Standard Error)  (0.04)  (0.06)
0.07  0.03
(Standard Error)  (0.05)  (0.11)
0.02  0.20
(Standard Error)  (0.03)  (0.11)
0.14  0.33
(Standard Error)  (0.06)  (0.18)
1.73  0.13
0.25  0.48
Value  0.45  0.09  0.09  0.28  0.13  0.06  0.40
(Standard Error)  (0.18)  (0.12)  (0.10)  (0.06)  (0.06)  (0.05)
Value  0.77  0.10  0.10  0.15  0.13  0.07  0.950  0.20  0.09  0.15  0.42
(Standard Error)  (0.24)  (0.11)  (0.10)  (0.08)  (0.07)  (0.06)  (0.09)  (0.08)  (0.14)
Value  0.37  0.01  0.25  0.38  0.38  0.05  0.40
(Standard Error)  (0.27)  (0.23)  (0.21)  (0.16)  (0.15)  (0.17)
Value  0.39  0.01  0.15  0.10  0.15  0.18  0.870  0.86  0.27  0.33  0.56
(Standard Error)  (0.42)  (0.20)  (0.19)  (0.17)  (0.16)  (0.23)  (0.19)  (0.17)  (0.41)
Value  0.53  0.23  0.18  0.10
(Standard Error)  (0.37)  (0.12)  (0.12)  1.17
Value  1.17  0.10  0.10  24.87  2.400  0.50  0.08  12.04  0.14
(Standard Error)  (0.33)  (0.14)  (0.14)  (4.58)  (0.17)  (0.16)  (4.90)
Value  0.40  0.39  0.11  0.17
Standard Error  (0.44)  (0.16)  (0.16)
Value  1.18  0.24  0.12  4.76  0.870  1.20  0.37  8.03  0.40
Standard Error  (0.44)  (0.13)  (0.13)  (1.03)  (0.23)  (0.24)  (3.58)
Value  0.64  0.05  0.08  0.26  0.13  0.10  0.86  0.23  0.48  0.88  0.16
(Standard Error)  (0.18)  (0.11)  (0.09)  (0.06)  (0.06)  (0.05)  (0.17)  (0.21)  (0.21)  (0.07)  (0.17)
Value  0.82  0.21  0.03  0.02  0.35  0.17  0.83  0.26  0.42  0.82  0.46
(Standard Error)  (0.24)  (0.12)  (0.19)  (0.11)  (0.15)  (0.15)  (0.13)  (0.17)  (0.26)  (0.04)  (0.03)
Value  1.19  0.15  0.22  4.23  1.46  0.34  8.78  0.85  0.56
(Standard Error)  (0.38)  (0.10)  (0.14)  (1.41)  (0.24)  (0.19)  (5.33)  (0.11)  (0.20)
Value  0.01  0.25  0.38  0.38  0.05  0.40
(Standard Error)  (0.23)  (0.21)  (0.16)  (0.15)  (0.17)
Value  0.01  0.24  0.33  0.35  0.00  2.08  0.42

(Standard Error)  (0.23)  (0.21)  (0.17)  (0.15)  (0.17)  (1.14)
Value  0.00  0.17  0.33  0.31  0.22  0.99  0.45
(Standard Error)  (0.23)  (0.22)  (0.16)  (0.16)  (0.19)  (0.41)
Value  0.03  0.13  0.24  0.25  0.20  3.12  1.30  0.50
(Standard Error)  (0.23)  (0.24)  (0.17)  (0.18)  (0.19)  (1.26)  (0.47)
Value  0.01  0.23  0.15  0.15  0.00  2.80  0.39  0.46  1.11  0.54
(Standard Error)  (0.23)  (0.27)  (0.20)  (0.20)  (0.20)  (1.35)  (0.89)  (0.54)  (0.49)
